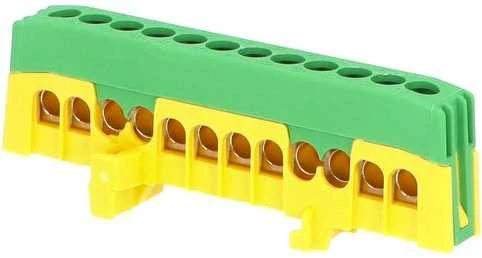

Elfetex Mto Electric As Jordklemme PE12-F2, 12 x 16 mm², grøn/gul

Bridge PE 12-F2 (terminal block 12x16mm2), IP20 protected, green-yellow, 63A, DIN, size 90x12x27mm. Junction terminals - bridges on the carrier rail are widely used in low voltage switchboards or in other applications where we need to connect multiple conductors to one potential. It is used e.g. as a neutral bridge "N" or as a bridge for a protective conductor "PE". The bridges are produced as uncovered (IP00) or covered (IP20), in the colour variants grey, black, blue and green-yellow. The number of connection points ranges from 7 to 15 with a maximum cross section of 16 mm2. The terminals are designed for mounting on a 35 mm DIN rail. The wires are attached to the terminals after stripping by means of a screw connection. The screw fits directly onto the conductor, therefore it is necessary to provide the finely salted conductors with a cavity. However, the cavity increases the cross-section of the conductor and it is therefore necessary to connect salted conductors an order of magnitude smaller than the specified cross-sections. This is not necessary for solid conductors. Brand POLLMANN Main line clamps Rated current 63 A Mounting method DIN rail mounted Width 90 mm Height 27 mm Depth 12 mm Connection type Screw-in Number of poles 1 Safe to touch Yes Number of inputs 12 Suitable for wires with fine wires No Suitable for solid cores Yes Suitable for multi-core conductors Yes Suitable for fine wire conductors without terminations No Suitable for finely wired wires No Suitable for finely wired conductors without terminations No Conductor cross-section access 1.5 - 16 mm2 AWG wire gauge access 6 - 16 mm2
