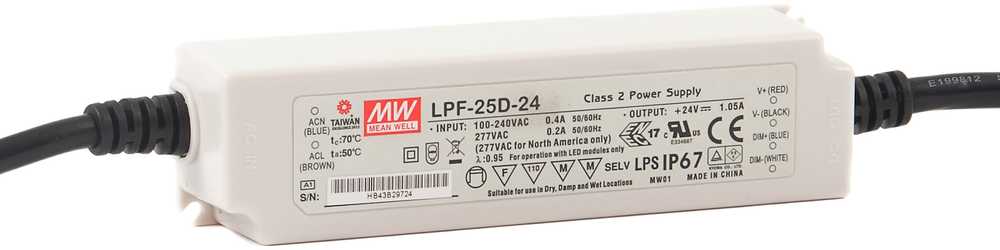

Name: Impulsinis maitinimo šaltinis 24V 1.05A 25.2W IP67, dimeriuojamas
SKU: 50462716
Price: 41.26 EUR
Availability: InStock

Tipas: Impulsinis maitinimo šaltinis
Modelis: LPF-25D-24
Įėjimo įtampos diapazonas: IN 90-305VAC / 127-431VDC
Įtampa: 24V
Galia: 25.2W
Srovė: 1.05A
Darbinė temperatūra: -35°C ÷ +70°C
Dimeriavimas: 3in1 (0-10V; PWM, Rezistorius)
Apsaugos klasė: OVC II
Matmenys: 148 x 40 x 32 mm
IP reitingas: IP67
Prekės ženklas: MEAN WELL

Bendrieji duomenys
Modelis	LPF-25D-24
Išvesties įtampa	24V DC
Nominali srovė	1.05A
Nominali galia	25.2W
Output Type	Constant Current Mode
Dimming Function	3-in-1 (0–10VDC, 10V PWM, Resistance)
Įtampos diapazonas	90 – 305 VAC / 127 – 431 VDC
Dažnių diapazonas	47 – 63 Hz
Naudingumo koeficientas (tip.)	85.5%
Power Factor (PF)	PF ≥ 0.97 @ 115 VAC, PF ≥ 0.95 @ 230 VAC, PF ≥ 0.92 @ 277 VAC (full load)
THD (Total Harmonic Distortion)	<20% @ ≥60% load (115/230V), ≥75% (277V)
AC Current	0.4A @ 115 VAC, 0.25A @ 230 VAC, 0.2A @ 277 VAC
Įjungimo srovė	Cold start 50A @ 230 VAC (twidth = 200μs)
No. of Drivers on 16A Circuit	12 (type B breaker) / 21 (type C breaker) @ 230VAC
Nutekėjimo srovė	<0.75 mA @ 240 VAC
Short Circuit Protection	Hiccup mode, auto recovery
Viršįtampio apsauga	28–35V, auto recovery
Over Temperature Protection	Shutdown, auto recovery after cooling
Current Tolerance	±5%
Current Ripple	≤5% @ rated current
Setup/Rise Time	500ms, 80ms @ 230VAC; 1500ms, 80ms @ 115VAC
Hold-up Time	16ms @ 230VAC / 115VAC
Operating Temperature (Tcase)	–35°C to +70°C
Maximum Case Temperature	+70°C
Darbo drėgmė	20 – 95% RH (non-condensing)
Storage Temperature / Humidity	–40°C to +80°C / 10 – 95% RH
Isolation Voltage	I/P–O/P: 3.75kVAC
Izoliacijos varža	≥100 MΩ @ 500VDC, 25°C, 70% RH
EMC atitiktis	EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547, EN61000-4-2~6,8,11, EAC TP TC 020
Saugos standartai	UL8750, CSA C22.2 No. 250.0-08, ENEC EN61347-1/-2-13, EN62384, IP67 (independent), GB19510.1/.14, EAC TP TC 004
Korpusas	Plastic housing, Class II design, IP67 waterproof
Aušinimas	Method Free air convection (fanless)
Lifetime	>50,000 hours (Tcase ≤ 70°C)
Matmenys	148 × 40 × 32 mm (L × W × H)
Svoris	0.36 kg; Packing: 40 pcs / 15.4 kg / 1.02 CUFT
Wiring	AC: Blue (N), Brown (L); Output: Red (+V), Black (–V); Dimming: Purple (DIM+), Pink (DIM–)
Savybės	Built-in active PFC, Class 2 power unit, SELV output, suitable for dry/damp/wet locations, 100μA source current on DIM+
Naudojimas	LED panel lighting, LED downlights, decorative & tunnel lighting, moving signs
Garantija	5 years
