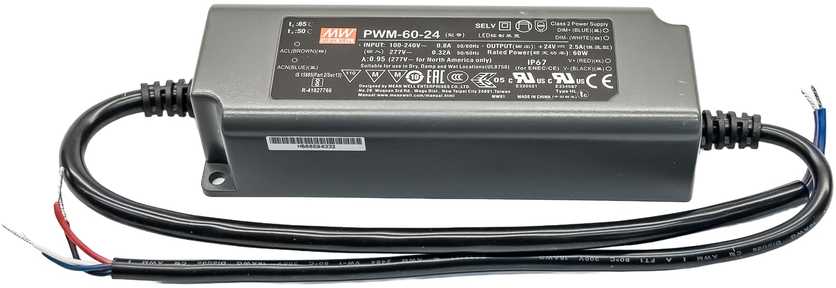

Name: Impulsinis maitinimo šaltinis 24V 2.5A MEAN WELL
SKU: 50462710
Price: 44.17 EUR
Availability: InStock

Tipas: Impulsinis maitinimo šaltinis
Modelis: PWM-60-24
Įėjimo įtampos diapazonas: IN 90-305VAC / 127-431VDC
Galia: 60W
Srovė: 2.5A
Įtampa: 24V
Darbinė temperatūra: -40°C ÷ +85°C
Apsaugos klasė: OVC II
Matmenys: 159 x 97 x 30 mm
IP reitingas: IP67
Prekės ženklas: MEAN WELL

Bendrieji duomenys
Modelis	PWM-60-24
Išvesties įtampa	24V DC
Nominali srovė	2.5A
Nominali galia	60W
Output Type	Constant voltage PWM-style output
Dimming Function	3-in-1: 0–10V DC, 10V PWM signal, or resistance (Blank Type); DALI / DALI-2 (DA / DA2 Types)
PWM Frequency	1.47 kHz (Blank/DA Type), 2.5 kHz (DA2 Type)
Įvesties įtampos diapazonas	90 – 305 VAC / 127 – 431 VDC
Įvesties dažnis	47 – 63 Hz
Naudingumo koeficientas (tip.)	89%
Galios faktorius	>0.97 @ 115 VAC, >0.95 @ 230 VAC, >0.92 @ 277 VAC
Kintamosios srovės stipris (tip.)	0.4A @ 230 VAC
Įjungimo srovė	Cold start 50A @ 230 VAC (measured at 50% Ipeak, twidth = 270μs)
Nutekėjimo srovė	<0.25 mA @ 277 VAC
Energijos suvartojimas be apkrovos	<0.5W
Perkrovos apsauga	108–130% rated power (hiccup mode, auto recovery)
Overvoltage Protection	28–34V (shutdown, re-power to recover)
Overtemperature Protection	Shutdown, re-power to recover
Short Circuit Protection	Shutdown, auto recovery (DA2: hiccup mode)
Darbinė temperatūra	Tcase: –40°C to +85°C
Max. Case Temperature	+85°C
Darbo drėgmė	20 – 95% RH non-condensing
Storage Temperature / Humidity	–40°C to +80°C / 10 – 95% RH
Vibration Resistance	10 – 500 Hz, 5G, 12 min/cycle, 72 min for X, Y, Z axes
Temperatūros koeficientas	±0.03% / °C (0 – 50°C)
MTBF	2626.6K hrs (Telcordia SR-332); 227.1K hrs (MIL-HDBK-217F @ 25°C)
Saugos standartai	UL8750, UL879 (for 12/24V Blank Type), CSA C22.2 No. 250.13-12, EN61347-1/-2-13, EN62384, IP67, BIS IS 15885 (for 12/24/48 Blank, 12/24-DA2), GB19510.1/.14
DALI Standards	IEC62386-101/102/207/251 (DA/DA2 Types), DT6 device type
EMC standartai	EN55015, EN61000-3-2, EN61000-3-3, EN61000-4-2/3/4/5/6/8/11, EN61547
Atsparumo įtampa	I/P–O/P: 3.75kVAC; I/P–DA: 1.5kVAC; O/P–DA: 1.5kVAC
Izoliacijos varža	100 MΩ @ 500VDC / 25°C / 70% RH
Matmenys	150 × 53 × 35 mm (L×W×H)
Svoris	0.49 kg; Packing: 30 pcs / 15.7 kg / 1.0 CUFT
Connection Wire	UL2464 18AWG (Vo), 22AWG (DIM)
Waterproof Level	IP67
Naudojimas	LED strip lighting, indoor lighting, decorative lighting, architectural lighting, industrial lighting
Mounting Direction	Horizontally mounted on flat surface (recommended)
Pastabos	Do not connect DIM– to Vo–; suitable for indoor or covered outdoor use; avoid submersion >30 min
Garantija	5 years
Typical Lifetime	>50,000 hours @ Tcase ≤ 75°C
