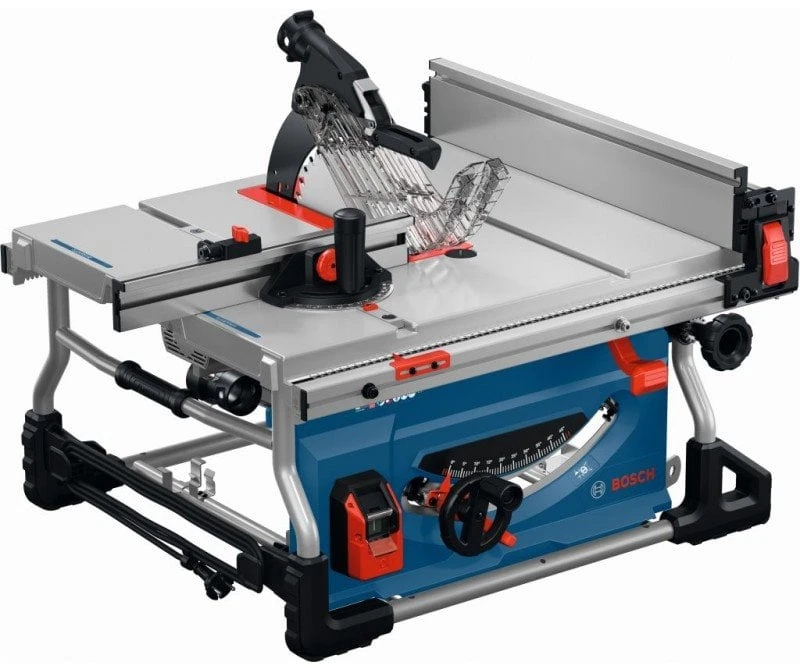

Bosch GTS100-254, CT

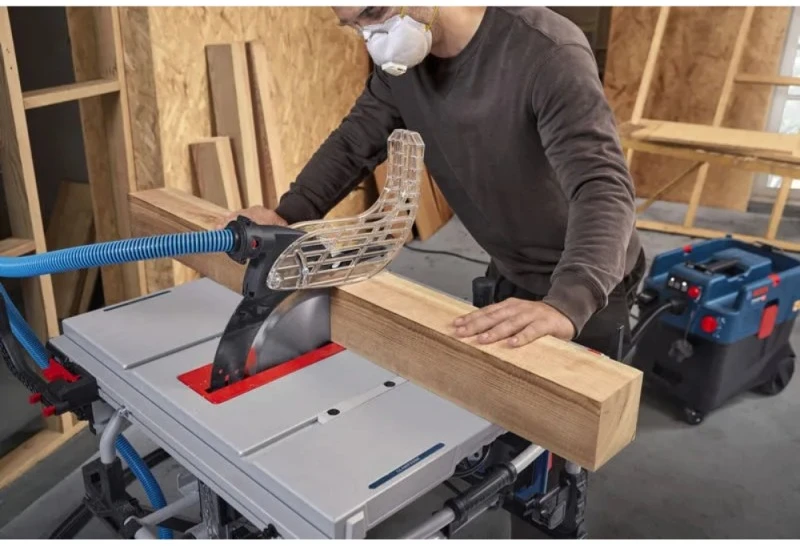

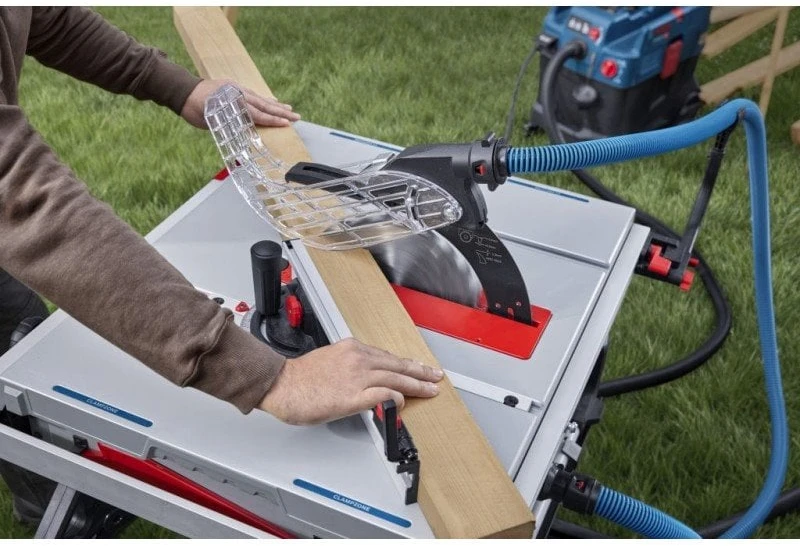

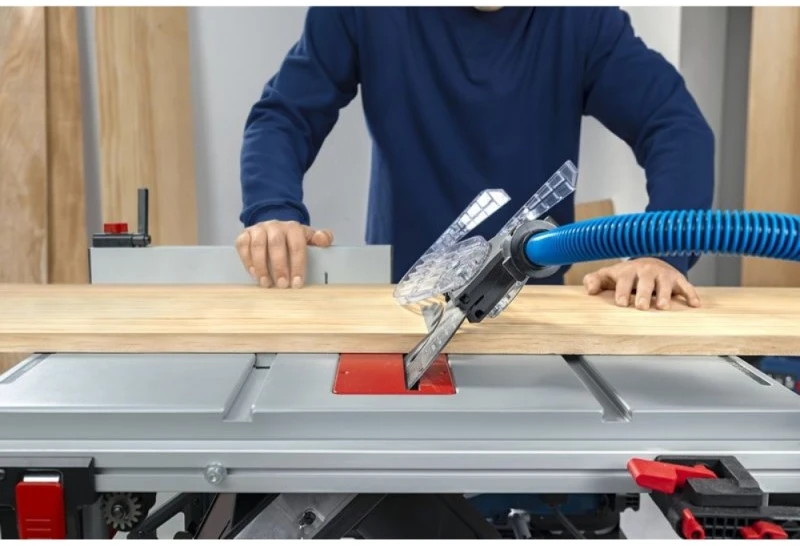

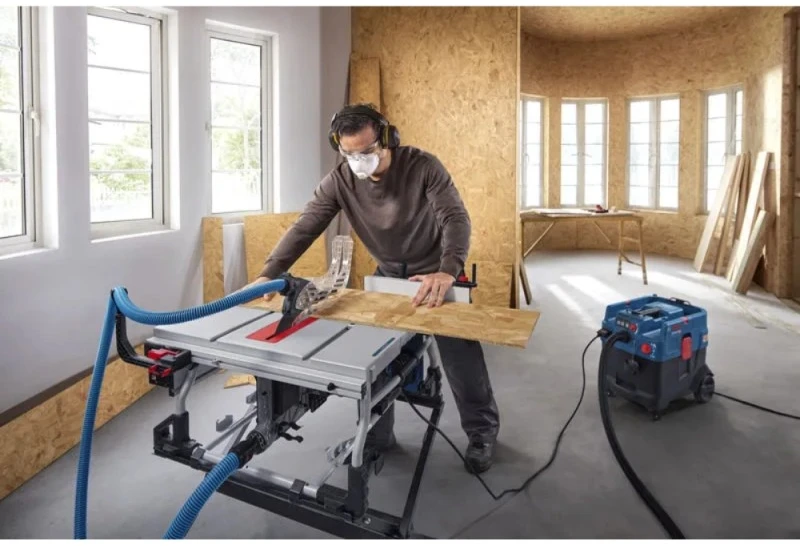

The Bosch PRO HEAVY DUTY GTS 100-254 Professional table circular saw is the top of its class, designed specifically for cabinet makers, carpenters, framers and other professional craftsmen who demand absolute precision for long lengthwise and mitre cuts. The saw is powered by an extremely powerful motor rated at 2,200 W, which ensures stable cutting performance even in the hardest wood. With an unrivalled cutting height of 100 mm, it eliminates the need for lengthy tipping of workpieces, significantly speeding up work and increasing accuracy. The advanced parallel ridge stop ensures perfectly parallel and stable material guidance with a maximum longitudinal cutting width of up to 825 mm. Bevel adjustment is completely tool-free and features a practical automatic reset to standard angles of 0° and 45°. For maximum safety and operator comfort, the machine is equipped with a soft start function, a fast braking system, special clamping zones for pressure combs and two dust ports that are fully compatible with Bosch Click & Clean series extraction systems.

Specifications
Tool type: Professional Bench Circular Saw (Heavy Duty Series)

Rated power: 2 200 W

Idle speed: 4,500 rpm

Saw blade diameter: 254 mm

Saw blade bore diameter: 30.0 mm

Cutting capacity:

Cutting depth at 90°: 100 mm (best in class)

Cutting depth at 45°: 68 mm

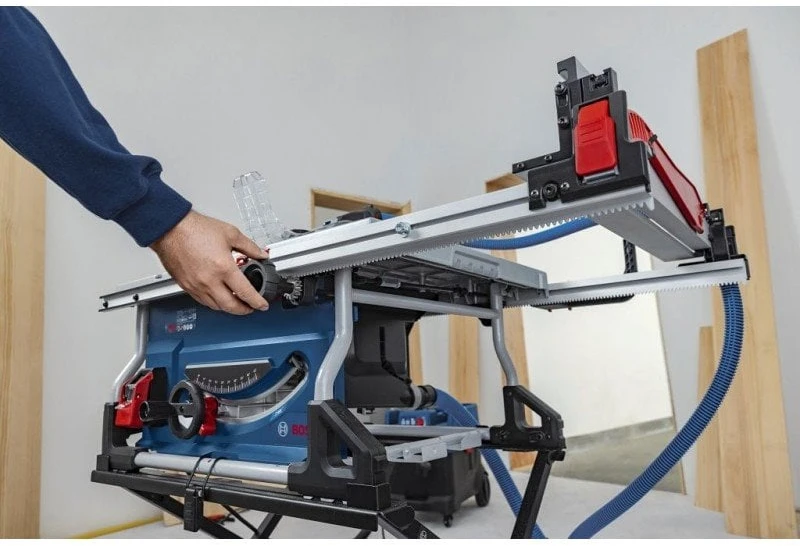

Maximum width of longitudinal cut (right): 825 mm

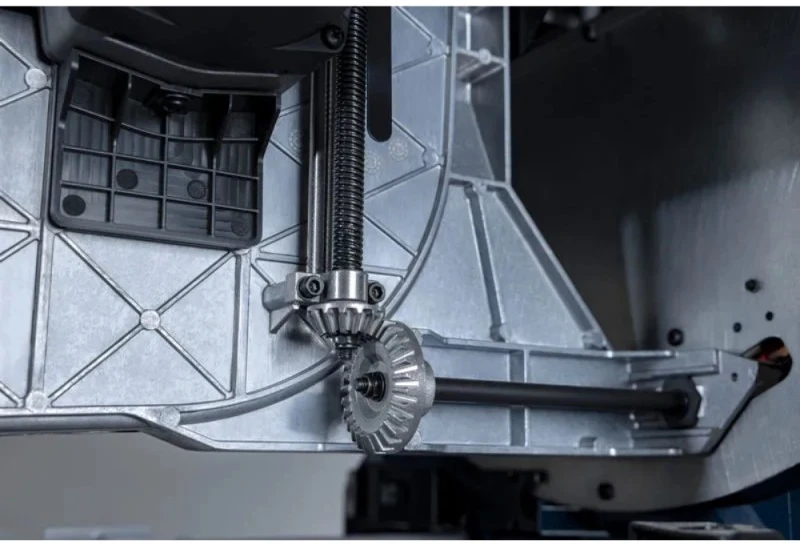

Bevel angle adjustment range: 47° left / -2° right (with automatic return to 0° and 45°)

Base table dimensions: 713 × 579 mm

Safety and protection features: quick disc braking system, soft start function, overload protection

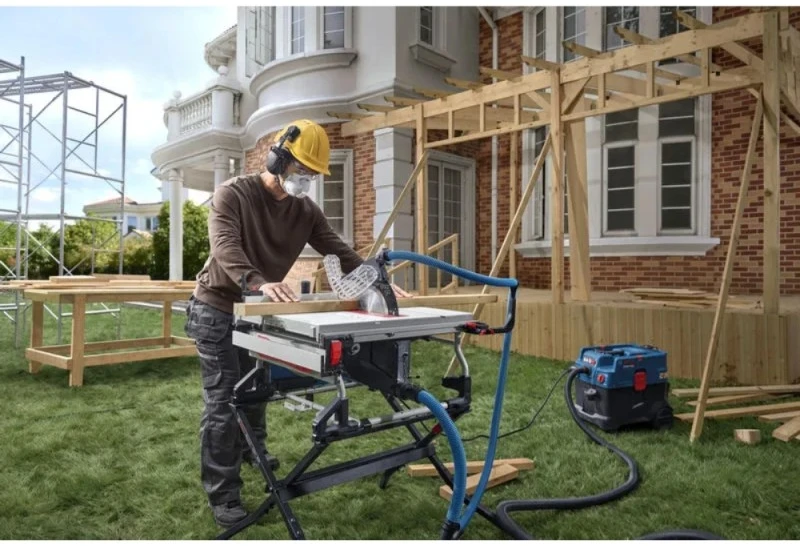

Dust extraction: Two dust ports (including adapter on the protective cover), compatible with Click & Clean system

Design features: comb ruler with precision feed, dedicated clamping zones for pressure combs, tool-free angle adjustment

Noise level: Sound pressure 93 dB(A), sound power 105 dB(A) (uncertainty K = 3 dB)

Tool dimensions (width × length × height): 694 × 713 × 363 mm

Weight: 28.7 kg

Package contents
Bosch PRO HEAVY DUTY GTS 100-254 table circular saw

1× Optiline Wood saw blade (254 × 2.8/1.8 × 30 mm, 24 teeth, 2 608 838 412)

Side (parallel) stop (1 619 PS5 064)

Angle stop

Profile rail (1 619 PS5 067)

Protective cover with dust extraction adapter (1 619 PS5 065)

Dust extraction adapter (1 619 PS3 515)

Sliding rod (1 619 PS4 987)

Allen key (1 619 PS3 582)

Eye wrench (1 619 PS5 059)

Cardboard box
