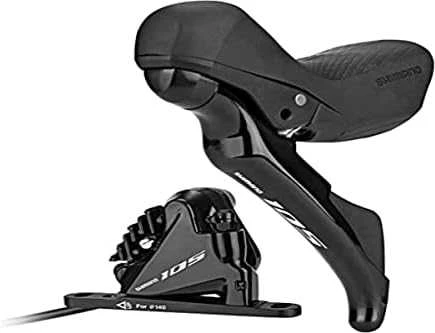

Brake set SHIMANO 105 BR-R7070, lever ST-R7020 front caliper BR-R7070 polymer + cooler set left

Shift and hydraulic brake lever SHIMANO 105 BR-R7070


SHIMANO 105 - Road lever for hydraulic brakes - DUAL CONTROL - 2x11 speeds
The SHIMANO 105 R7020 delivers the confidence of hydraulic disc brakes in all conditions and delivers the quick and intuitive shifting that cyclists have come to expect from the SHIMANO 105 series.

Ergonomics taken from the Ultegra series
Fast and intuitive shifting control
Redesigned internal shifting unit
Same controls as higher series
Lighter front derailleur in conjunction with FD-R7000 derailleur


Model ST-R7020-L
SHIMANO 105 R7000 Series
Weight 610g pair
For small hands
Clamp mount (mm) 23.8 - 24.2
SHIMANO Mineral Brake Fluid
Recommended brake caliper BR-R7070
Brake Hoses (Kit) SM-BH90-JK-SSR SM-BH90-J-SSR
Front speed 2
DUAL CONTROL LEVER type
Shift lever cable_Outer casing_Left side OT-SP41
Shift lever cable_Outer casing_Rear derailleur side OT-RS900


SHIMANO 105 - Flat Mount - Hydraulic disc brake - Front caliper
Hydraulic brakes for road bike

The all-new SHIMANO 105 R7000 series hydraulic disc brakes offer better control while riding in all conditions.
With convenient ONE WAY BLEEDING and an easy hose connection system, installation and adjustment is simple.
The R7070 caliper is offered in silver and black.

Better bike control in all conditions
Excellent heat dissipation
Easy setup and maintenance
Convenient access to the valve
Easy hose connection system (J-kit)
Easy and clean ONE WAY BELEEDING venting system

Model BR-R7070-F
SHIMANO 105 R7000 Series
Weight 141g
Caliper compatibility with ICE - cooler technology
Brake Hoses (Kit) SM-BH90-JK-SSR SM-BH90-J-SSR
Brake type Hydraulic disc brake
Flat mount type
ONE WAY BLEEDING
Number of piston 2
Recommended brake lever ST-R7020 / ST-R7025
Recommended brake disc SM-RT70
Fluid type SHIMANO Mineral

Compatible pads
K04S-MX Metal (w/o fin)
L04C-MF Metal (w/ fin)
K05S-RX Resin (w/o fin)
L05A-RF Resin (w/ fin)
