iFlight Chimera 7 Pro V2 O4 6S HD | FPV Drone |

Specialist drone with long range

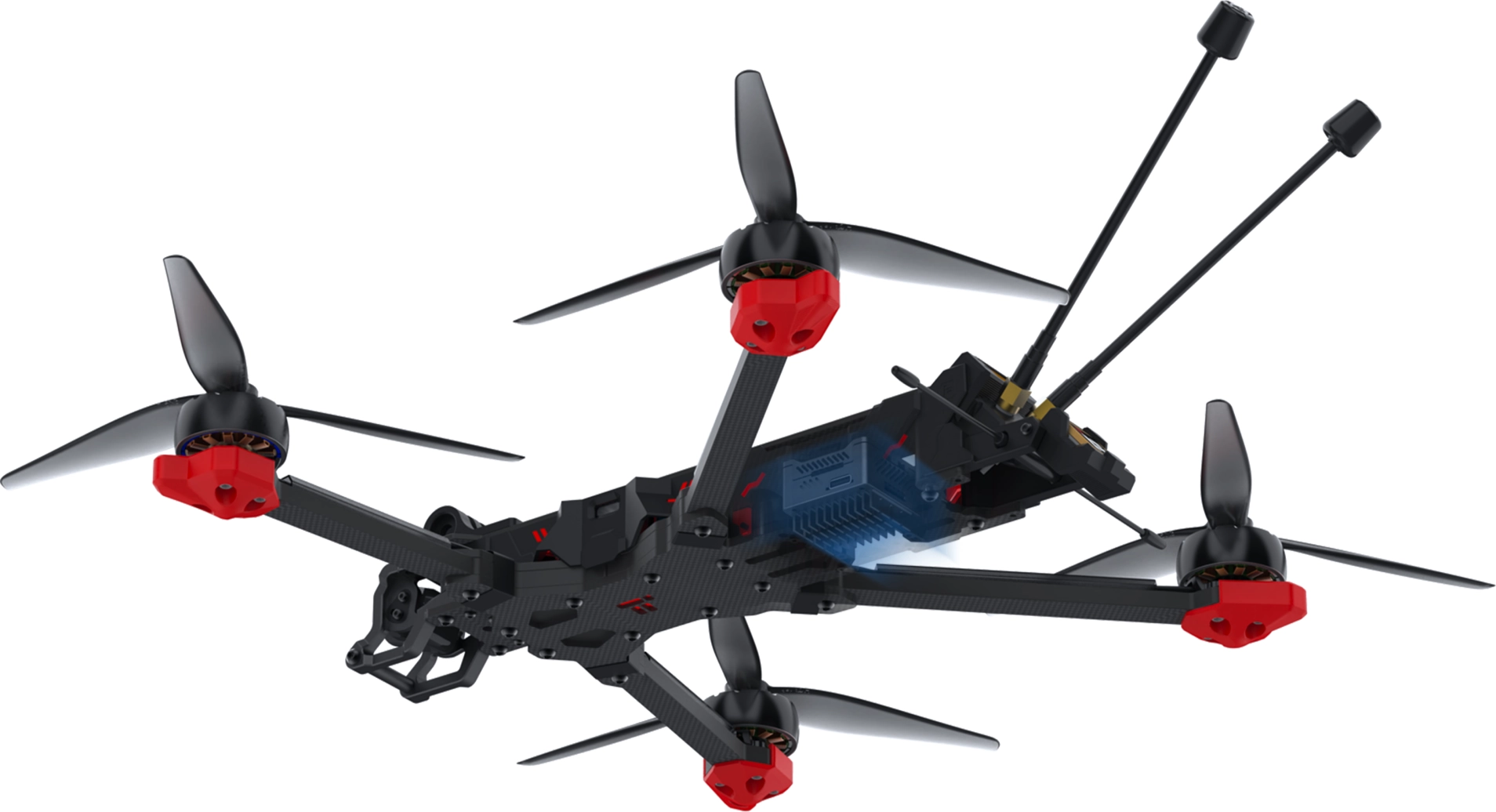

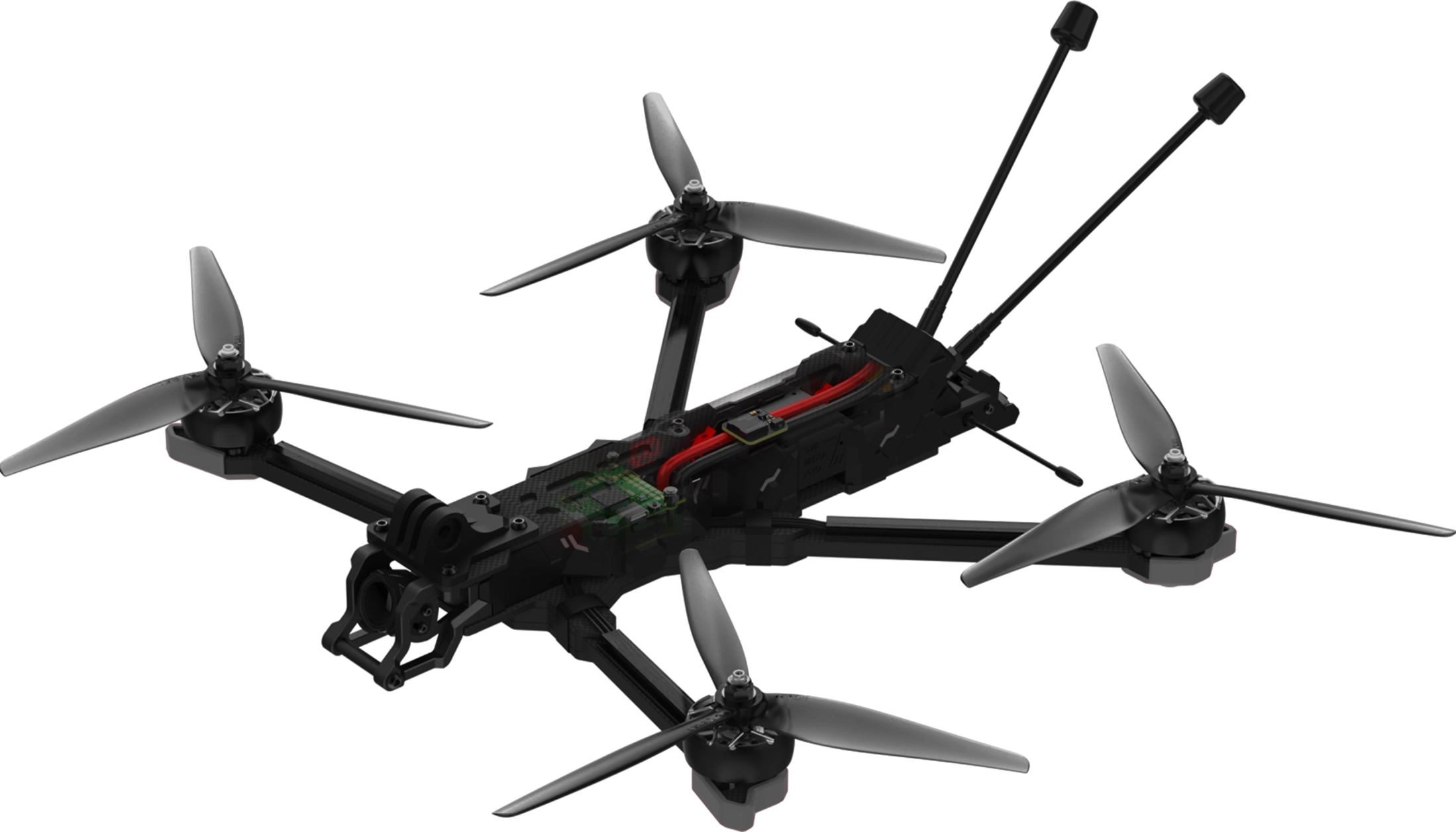

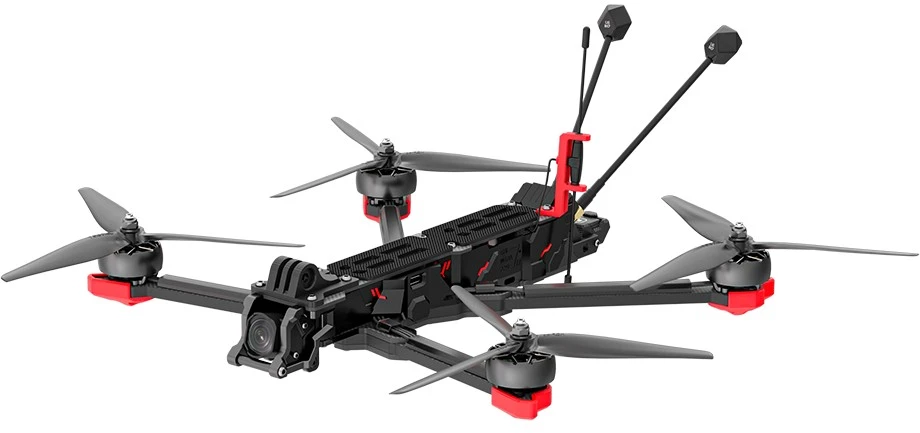

iFlight Chimera 7 Pro V2 is an advanced 7.5-inch class model, designed by iFlight for long-distance flights. The device is a practical solution for people looking for a stable platform capable of carrying large batteries, such as 6S 3300mAh or larger Li-ion units. The iFlight drone has been optimised for aerodynamic efficiency, allowing exploration of hard-to-reach terrain while maintaining an appropriate flight time. Thanks to the 6S HD system, the user gets a stable signal and high control precision, which is essential in Long Range operations.

Chimera7 Pro V2 frame construction with XING2 2809 motors

The construction of the Chimera7 Pro V2 model is based on a rigid frame that minimises resonance during the operation of large propellers. iFlight has equipped this unit with XING2 2809 1250KV motors, which use Unibell technology and durable 7075 aluminium bells. Inside the motors, Japanese NSK bearings and curved N52H magnets have been used, resulting in smooth operation and high mechanical quality. The frame has been designed to protect the ESC and flight controller from dirt and moisture, while using numerous TPU guards and illuminated side panels.

DJI O4 Air Unit technology and 6S HD image quality

In the field of FPV transmission, the Chimera7 Pro V2 O4 6S model uses the latest DJI O4 Air Unit Pro system. This technology allows 1080p/100fps video transmission over distances of up to 8-13 km, ensuring signal stability even in challenging environments. Dji has introduced a 1/1.3-inch sensor here, enabling 4K recording with an ultra-wide 155° field of view. Compared with older systems such as the DJI O3 Air Unit or HD O3 , the new unit offers lower latency and a higher bitrate, which is crucial for the safety of LR (Long Range) flights.

GPS functions and safety in the Pro V2 O4 6S HD model

Flight safety is supported by a pre-installed GPS module, which works with the Betaflight GPS Rescue function. This allows the drone to return automatically in the event of a loss of connection with the transmitter, which is essential during long flights in open areas. iFlight has also taken care of protecting the electronics by using an Anti-Spark filter at the XT60 connector. This solution protects low- ESR capacitors from sudden voltage spikes when connecting 6S batteries. The entire system is monitored by the efficient Blitz F722 flight controller, ensuring stable operating parameters across a wide temperature range.

The evolution of iFlight Nazgul Evoque technology in the V2 O4 6S HD system

Drawing on experience from popular series such as iFlight Nazgul Evoque , the manufacturer has created a machine with greater payload capacity and vertical stability. Drones of this class allow batteries to be mounted both on the top and the bottom of the frame, making it easier to balance the centre of gravity properly. The Chimera7 Pro V2 6S HD reaches speeds of up to 140 km/h, which, combined with 7.5-inch propellers, gives full control over the flight path. Thanks to the use of high-strength materials and refined geometry, this unit is a suitable tool for professionals involved in filming dynamic shots from long distances.

Technical data

Key advantages:

• High Long Range performance thanks to 7.5-inch propellers and XING2 2809 motors.
• Latest DJI O4 system offering crystal-clear HD viewing and 4K recording.
• Increased frame rigidity made of 7075 aluminium and carbon fibre.
• XT60 anti-spark protection extending the life of electronic components.
• Precise GPS navigation with the ready-to-use Betaflight Rescue mode.
• Advanced Aero design protecting the electronics from environmental contaminants.

The product is intended for:

• FPV pilots specialising in long-distance terrain exploration.
• Video creators needing a stable unit for 4K recordings in the mountains and in open areas.
• DJI ecosystem users who own Goggles 3 or Goggles N3.
• Advanced hobbyists requiring high power and resistance to challenging flying conditions.
