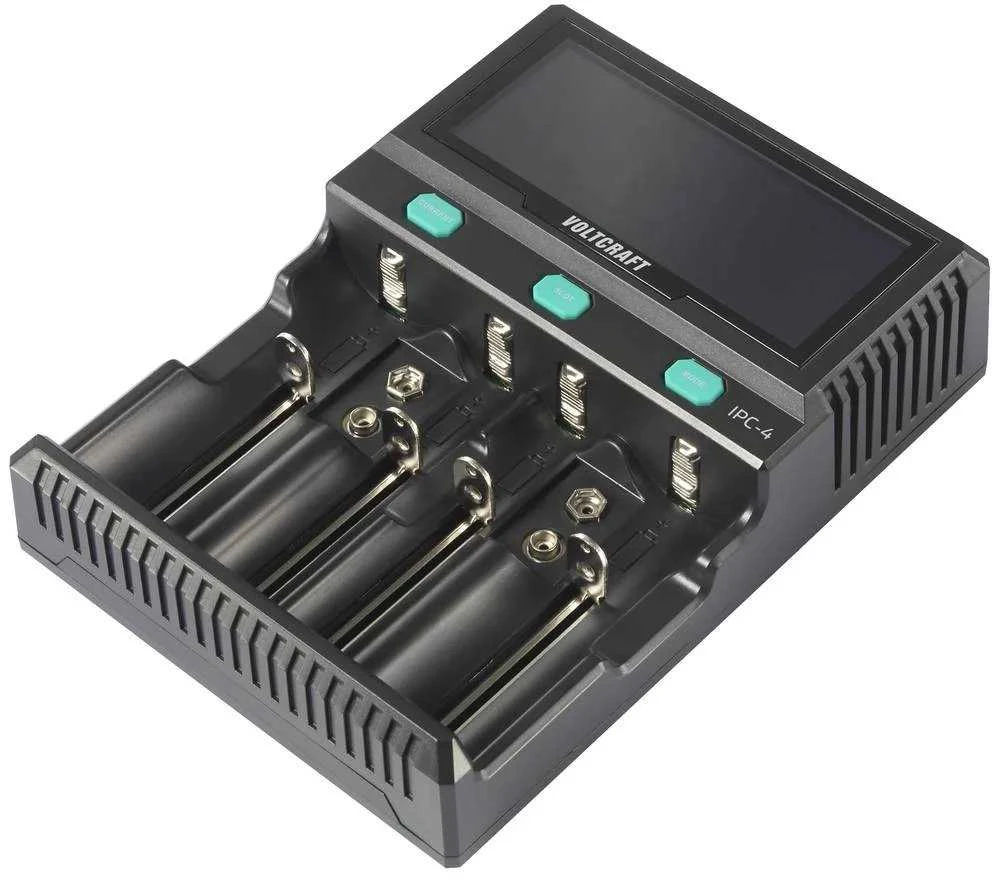

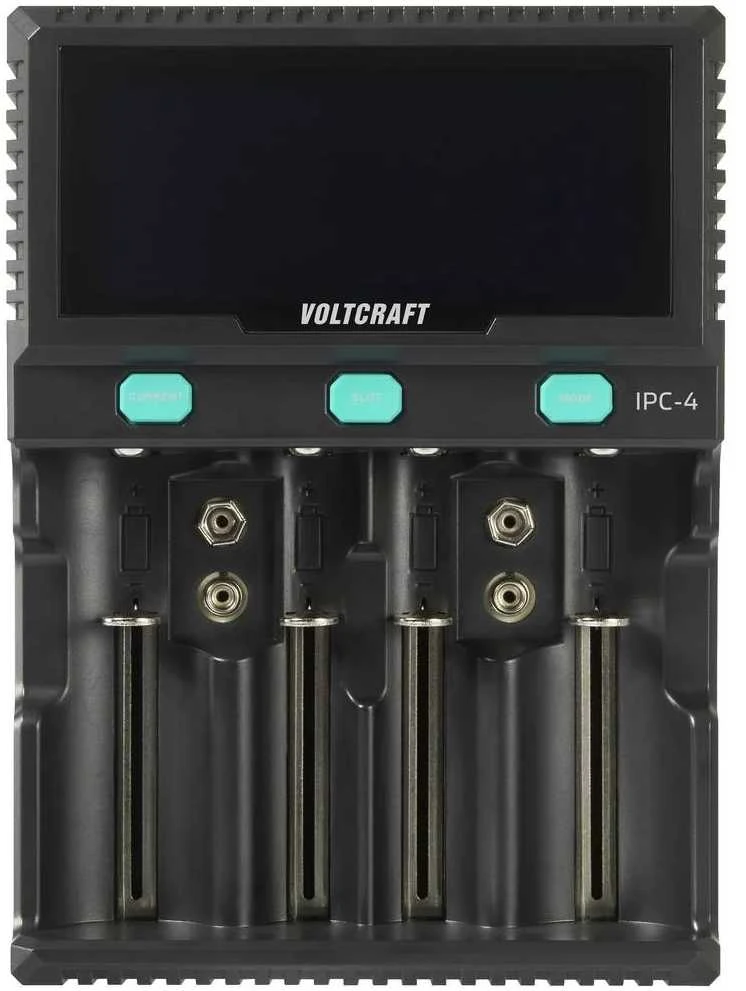

Voltcraft IPC-4

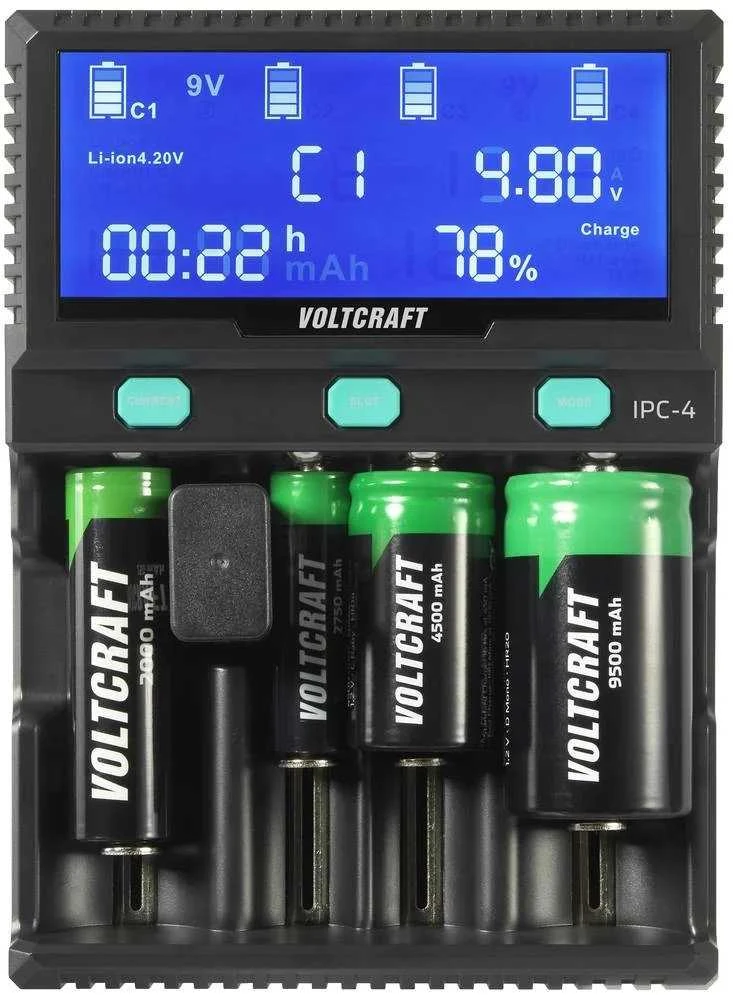

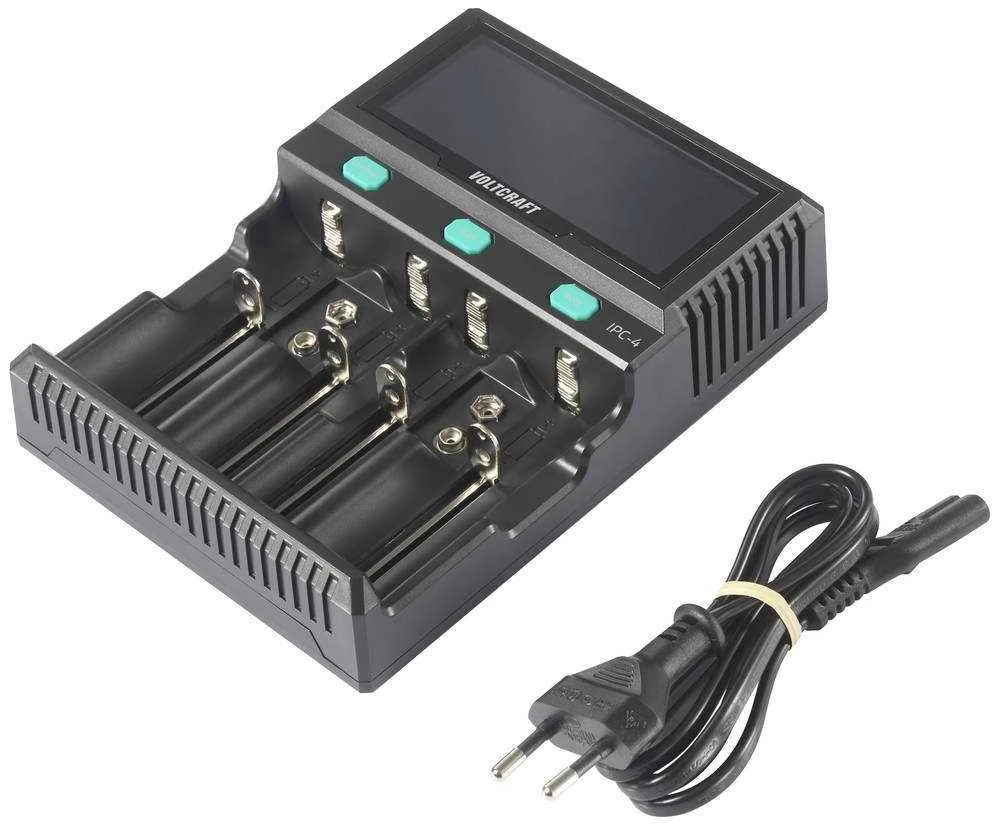

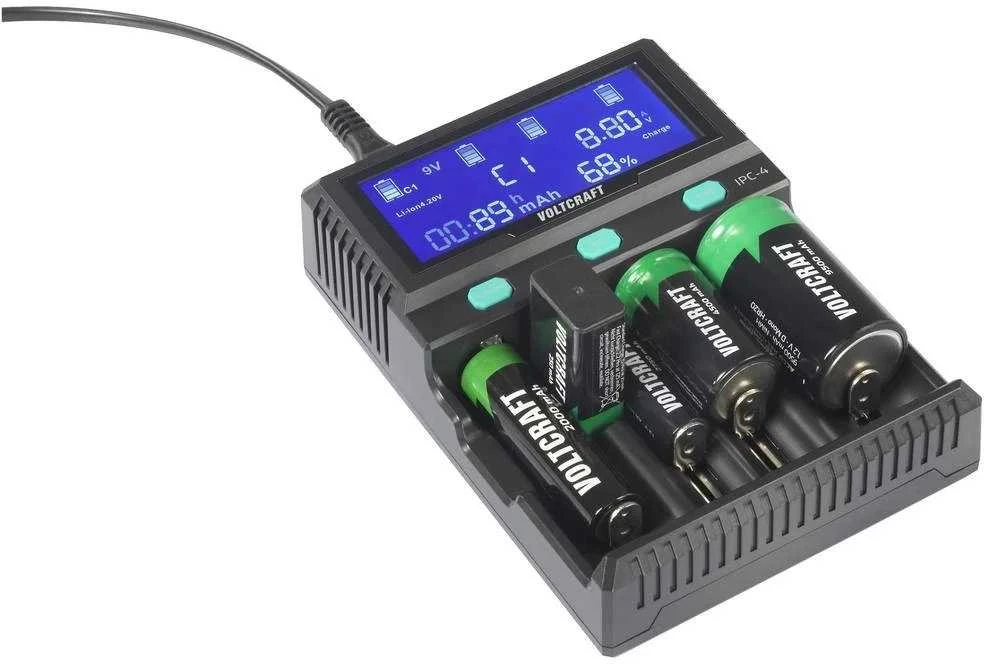

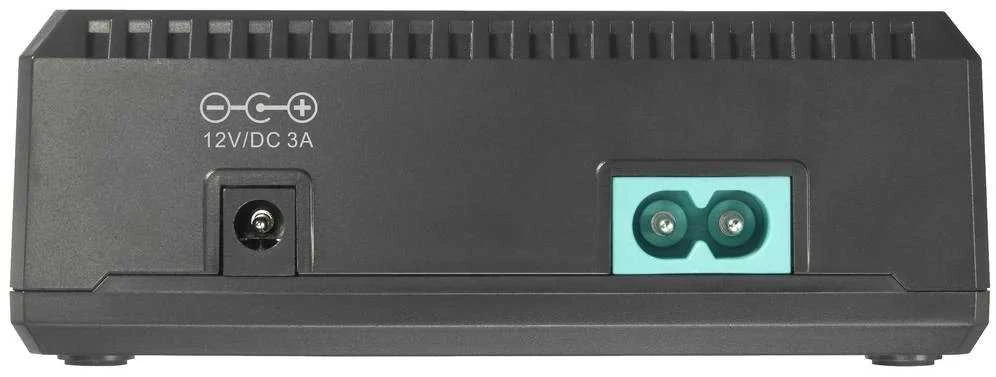

With the smart charger, you can not only charge normal AA or AAA batteries, but also round Li-Ion cells. These also include regular 18650, 14500 and CR-123A batteries. Protected cells up to 70 mm in length are no problem either. Operation is very easy - simply insert the batteries and the device starts charging. Additional programs can also be selected, such as discharging or testing. Microprocessor controlled Shutdown of the charging cycle based on a characteristic drop, the so-called "Minus Delta U" (-dV) Single slot monitoring 4 adjustable charging currents Automatic maintenance charging Discharge/recharge/test function (only in slot 4) Recognition of badly inserted or damaged batteries Backlit LCD Displays charge status, capacity, voltage For batteries with dimensions (oxh) from 8 x 32 mm to 33 x 70 mm and a maximum capacity of 20000 mAh Scope of delivery Charger Input voltage/current 1................... AC 100~240V 50-60Hz Input voltage/current 2................... DC 12 V/3 A Output voltage/current 1................ DC 3.65V /DC4.2V / 4.35V 2A2 (slot 1& slot 4), ...................................................... 1.5A3 , 0.2A/0.5A/0.8A/1A4 Output voltage/current 2................ 1.48V 0.2A/0.5A/0.8A/1A4 Output voltage/current 3................ DC 9V 60mA/120mA2 Discharge current.......................... 0.2A/0.4A1 (slot 4 only) Sustain charge............................. 100mA±30mA (NiMH rechargeable battery only) Material.......................................... ABS Wattage....................... 36W Maximum charging voltage.............. LiFePO4 3.65V±0.05V ...................................................... Li-ion 4.2V ±0.05V ...................................................... Li-ion 4.35V ±0.05V ...................................................... NiMH 1.48V ±0.05V ...................................................... NiMH9V 10V ±0.5V Compatible rechargeable batteries... 1.2V Ni-MH/CD: A, AA, AAA, AAAA,C,SC,D ...................................................... 9V Ni-MH 6F22 ...................................................... 3.2V LiFePO4, 3.6/3.7/3.85VLi-ion:10340/10440/14500/ ...................................................... 14650/16340/17335/17500/17670/18350/18500/18650/ ...................................................... 18700/20700/21700/22650/22700/26500/26650/32650
