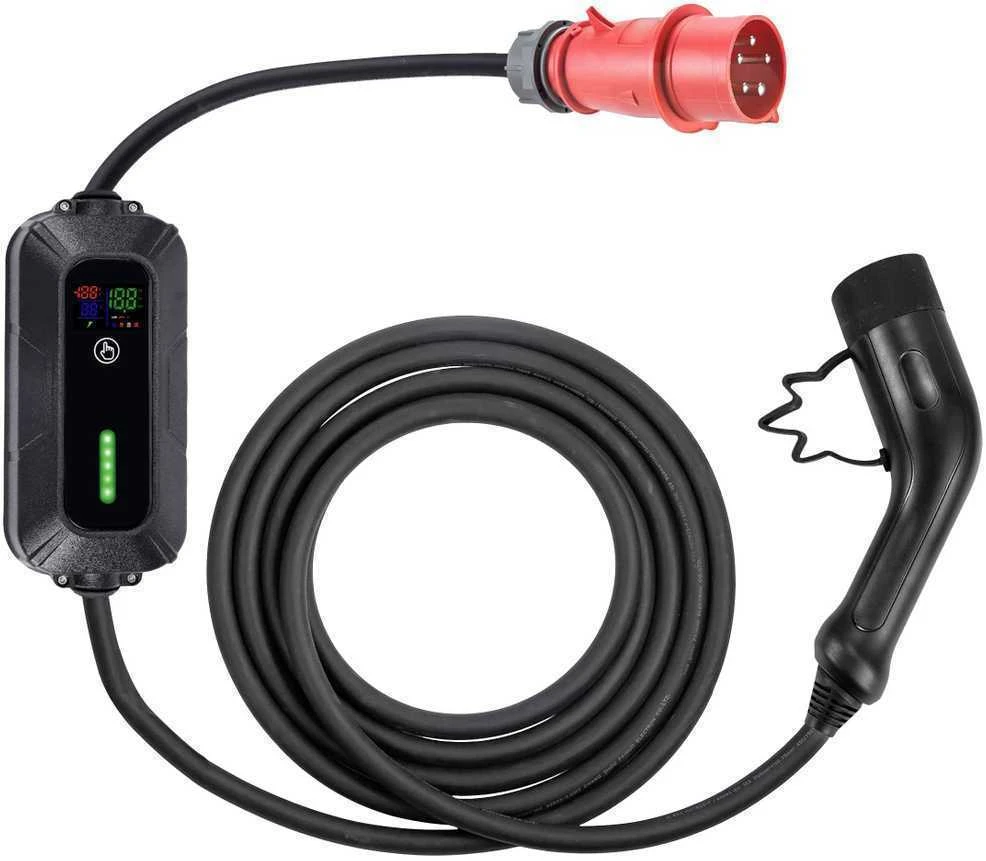

Fast and portable electric vehicle/plug-in hybrid electric vehicle (EV/PHEV) charger with a Type-2 socket, up to 11 kW, a 5-meter cable, and a universal Schuko adapter included. Completely universal, it can be used with both high-voltage 3-phase (up to 11 kW) and low-voltage sockets (3.7 kW) in single-phase electrical systems.

Among its many advantages, the charger features Plug & Play functionality. The vehicle will start charging automatically after the charger is connected. To end the charging process, simply pull the charger plug out of the vehicle.

European standard plug (CEE red)
3 phase 16 A - adjustable 8 / 10 / 13 / 16
Cable length: 5 meters (16.5 feet)
Rated input voltage: 85-380V AC
Rated output voltage: 85-380V AC
Rated current: default – 16 A (adjustable 8 / 10 / 13 / 16 A)
Rated power: Up to 11 kW fast charging
Cable insulation resistance: >1000M (DC500V)
Contact resistance: 0.5 m MAX
Housing fire rating: UL94V–0
Cable cross-section: 32.5 mm2 + 20.5 mm2
LED display to show temperature, charging time and actual current
With leakage protection
Over and under voltage protection
With overload protection (self-healing)
With lightning protection
With overheating protection

https://prod-pim.s3.pl-waw.scw.cloud/product-manuals/s-pcd05-ev-portable-charger-manual.en.et.pdf
