Platinet elektromobilio įkroviklis Type 2 16A 11kW Tuya 5m (EV_PPCW5M11)

Maximum control. Effective protection. Convenient charging.

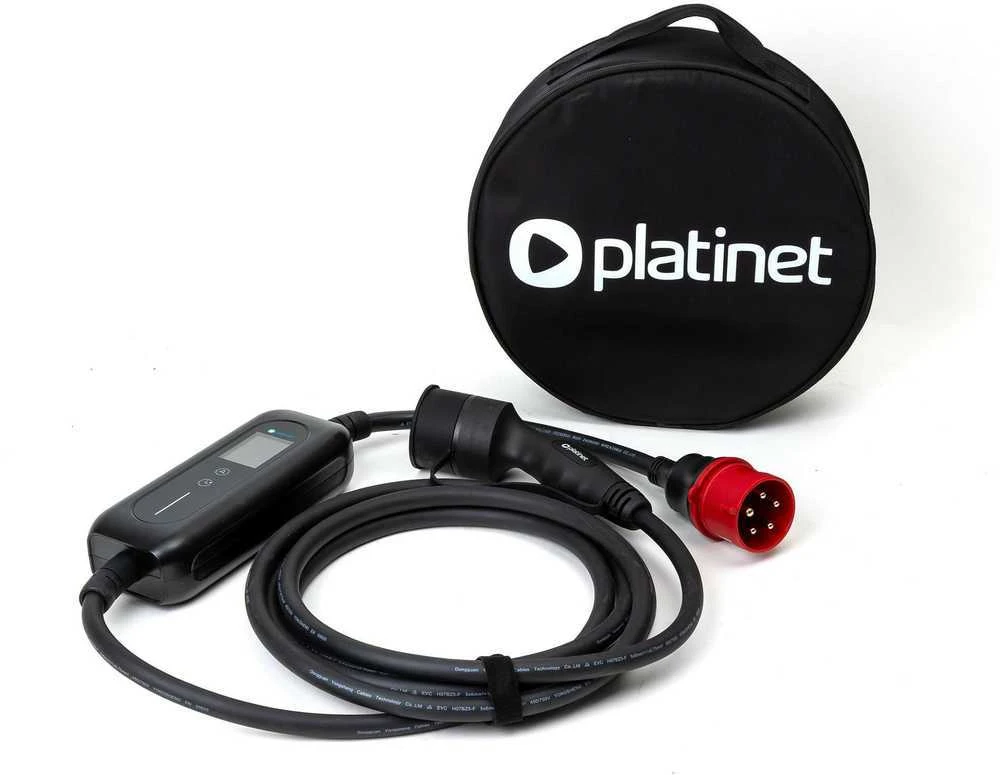

The Platinet EV_PPCW5M11 electric car charger combines reliability, ease of use and smart features. Thanks to the Tuya Smart system and a clear LCD screen, you can easily monitor and control the entire charging process with this charger.

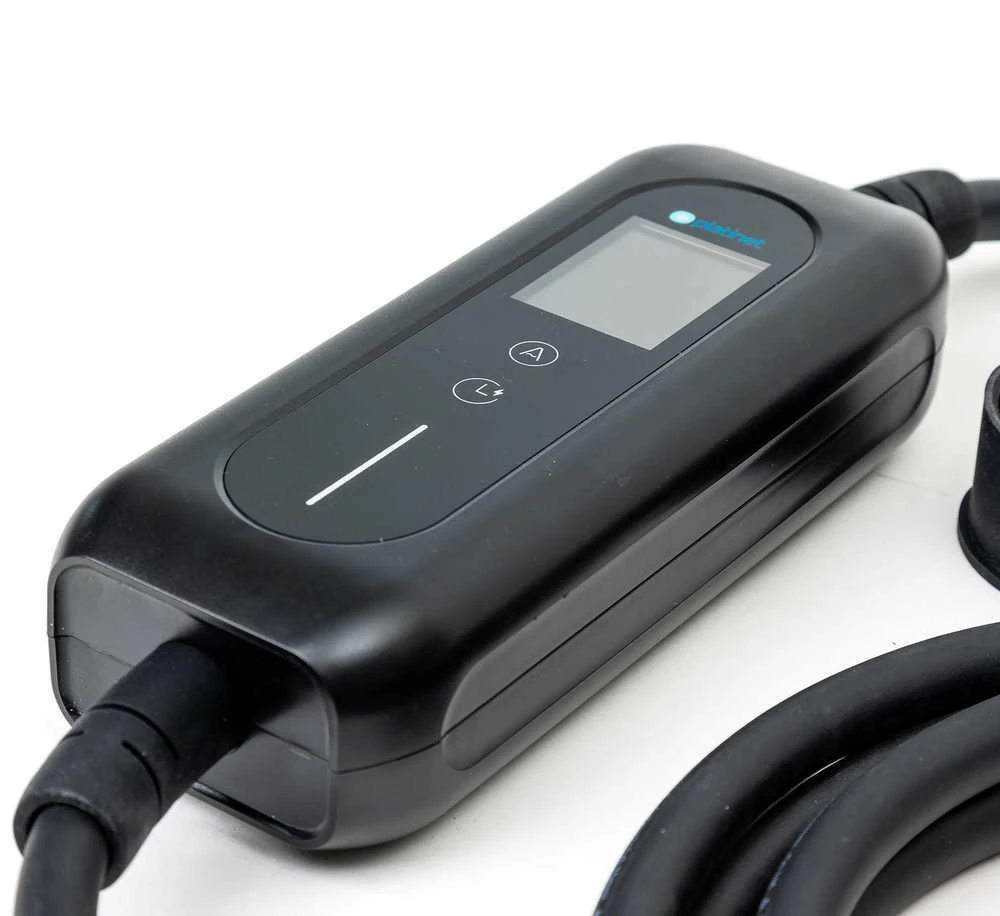

Clear LCD screen – all the necessary information is instantly visible
The charger has a built-in illuminated LCD screen, which allows for quick and clear monitoring. All charging information can be seen in real time on the screen – from current and charging power to supply voltage, device temperature and charge level. The indicators are clear and the icons are easy to understand, making the charger easy to use even for those who are new to charging electric cars.

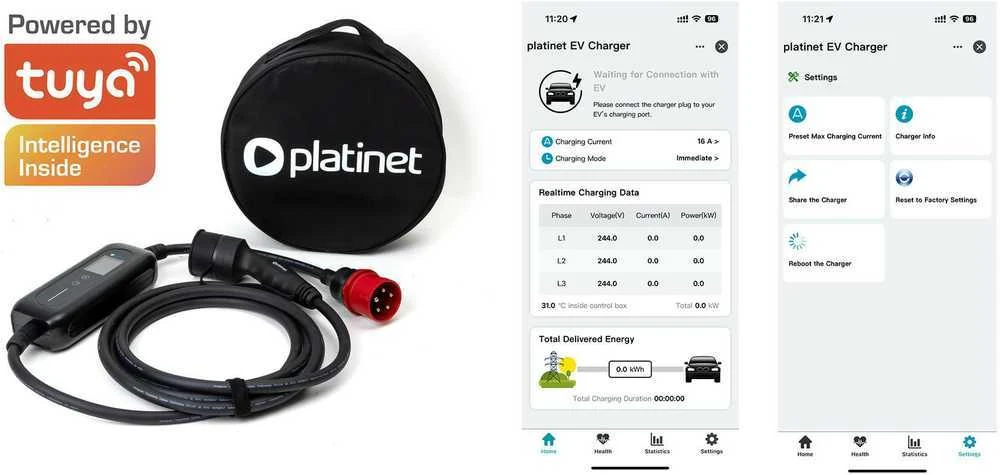

Smart control via the Tuya Smart app

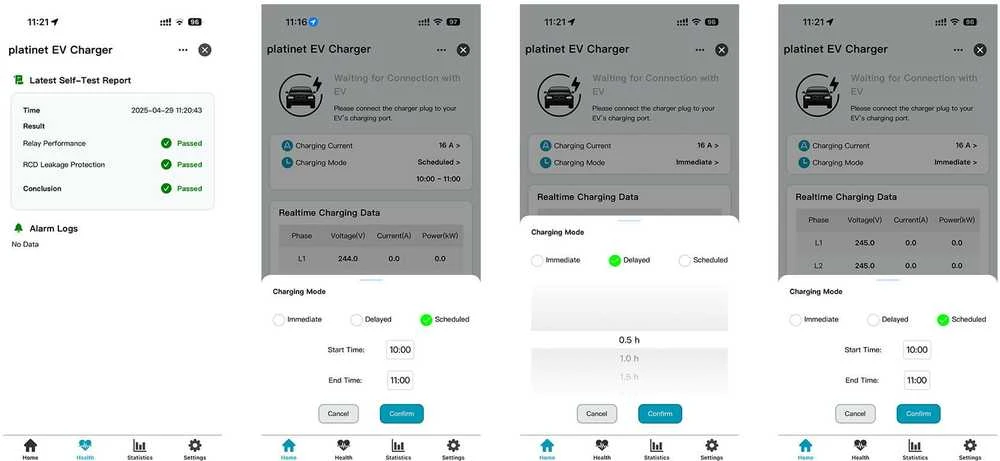

The charger supports WiFi and Bluetooth connectivity and is compatible with the Tuya Smart phone app, which allows you to conveniently control the charger remotely. The app allows you to set charging schedules, change the current, monitor charging sessions and receive notifications about possible faults, for example. It is also possible to manage multiple devices at once, making this charger suitable for use in a smart home.

Top-class security
Safety is a top priority for a car charger. This charger is equipped with state-of-the-art protection mechanisms, including a residual current protection (type B), which provides protection against both AC and DC leakage. In addition, the charger performs automatic self-tests, detects possible errors (e.g. lack of grounding or overheating) and prevents dangerous situations, such as sticking relay contacts. The robust and weatherproof housing (IP66) ensures reliability even in the most difficult conditions.

Reliable in any environment
The Platinet EV_PPCW5M11 is suitable for use in various environments – whether it is a home garage, a public parking lot or a commercial building charging area. The charger can withstand temperatures from -25 degrees to +45 degrees. Durable connectors ensure a reliable connection to both the car and the mains.

Technical data:

• Connection: European 3-phase red CEE plug
• Cable length: 5 meters
• Operating voltage: 230V AC, 3-phase, 50 Hz
• Operating current: 16 A
• Protection classes: IP66 (charger), IP54 (car plug), IP44 (CEE plug)
• Residual current protection: Type B (AC 30 mA + DC 6 mA)
• TÜV Rheinland Certified
• Wires: 5 × 2.5 mm² + 1 × 0.75 mm² (Ø13.2 mm)
• Operating temperature: –25 °C to +45 °C
• Connection: WiFi and Bluetooth
• Compatible with Tuya Smart phone app (iOS and Android)

https://prod-pim.s3.pl-waw.scw.cloud/product-manuals/s-pcd05-ev-portable-charger-manual.en.et.pdf
