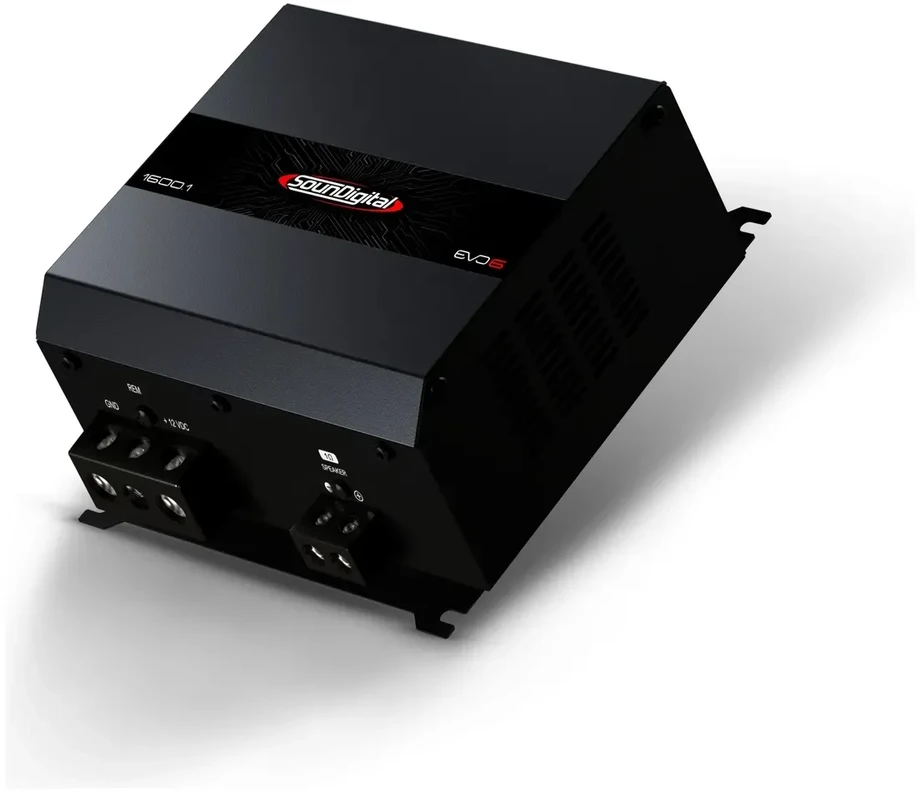

SounDigital 1600.1 EVO 6 - 1 Ohm, modelis - SD1600.1-1 EVO6, žema kaina

Turite Varlės paskyrą?

Prisijunkite, kad pamatytumėte krepšelio turinį

Prisijungti

Atsiimkite parduotuvėje 0 €

Pristatymas į namus nuo 3.⁹⁰ €

Take your sound system to the next level with SounDigital EVO6 series amplifiers – compact size and plenty of power in one package!

Never before have such high powers been achieved from such small external dimensions. And still at a very reasonable price!

The damping coefficient of all EVO 6 models is over 1000!

At high power levels, a lot of current is consumed, and in many cars, the problem becomes voltage drop during peak moments in the music and when played loudly.

In Soundigital amplifiers, this practical situation has been taken into account so that the operating voltage of the amplifiers can be as low as 9 volts!

SounDigital operates in a very rare way today as an amplifier manufacturer,
ALL models are designed and manufactured in their own production facility in Brazil.

Pastebėjote klaidą prekės aprašyme ar nuotraukų galerijoje? Praneškite mums.

Skaityti daugiau

Skaityti mažiau

Gamintojas SounDigital
Modelis

SD1600.1-1 EVO6
Svoris 1.54
Techniniai duomenys
Power @ 4Ω: 1 X 697 WRMS
Power @ 2Ω: 1 X 1056 WRMS
Power @ 1Ω: 1 X 1600 WRMS

Frequency Response (-3dB):

5Hz ~ 25kHz

Subsonic Filter:

5Hz ~ 80Hz

Low Pass Filter:

50Hz ~ 1kHz

Bass Boost:

0dB ~ 12dB @ 50Hz

Operating Voltage:

9V ~ 16V

Signal-Noise Ratio:

1Ω: 93.7dB
2Ω: 95dB
4Ω: 93.4dB

Input Sensitivity:

0.2V ~ 2V

Current Draw (Music):

1Ω: 75A
2Ω: 71A
4Ω: 69.4A

Current Draw (Max):

1Ω: 149A
2Ω: 143A
4Ω: 138.8A

Total Efficiency:

1Ω: 85%
2Ω: 89%
4Ω: 91.5%

Damping Factor:

2000

Power Cable:

16mm² (5 AWG)

Audio Output Cable:

2 x 1.5 mm² (15 AWG)

Recommended Fuse (Music):

80A

Recommended Battery:

80Ah

Width:

13.6 cm / 5.4 in

Length:

18 cm / 7.1 in

Height:

5.48 cm / 2.1 in

Weight:

1.13 Kg.
Trumpas aprašymas • 1 channel amplifier • 1600W • 1 Ohm model • Small size
Modelio specifikacija EVO6
Modelio pavadinimas

SD1600.1-1 EVO6
