TRYX PANORAMA 280 All-in-One Liquid...

AiO Liquid Cooling with 280 mm long and 30 mm thick radiator
Powerful 8th Gen Asetek Pump with 2,600 RPM
2x 140 mm ROTA-Pro Fans with high airflow and static pressure
Anamorphic 3D-AMOLED Display with 2K Resolution and 60 Hz
Simple Setup: control fans, pump, and display via KANALI Software
Compatible with AMD Sockets AM5 / AM4 and Intel LGA 1851 / 1700

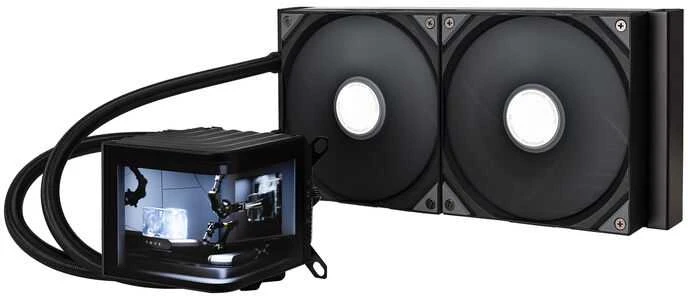

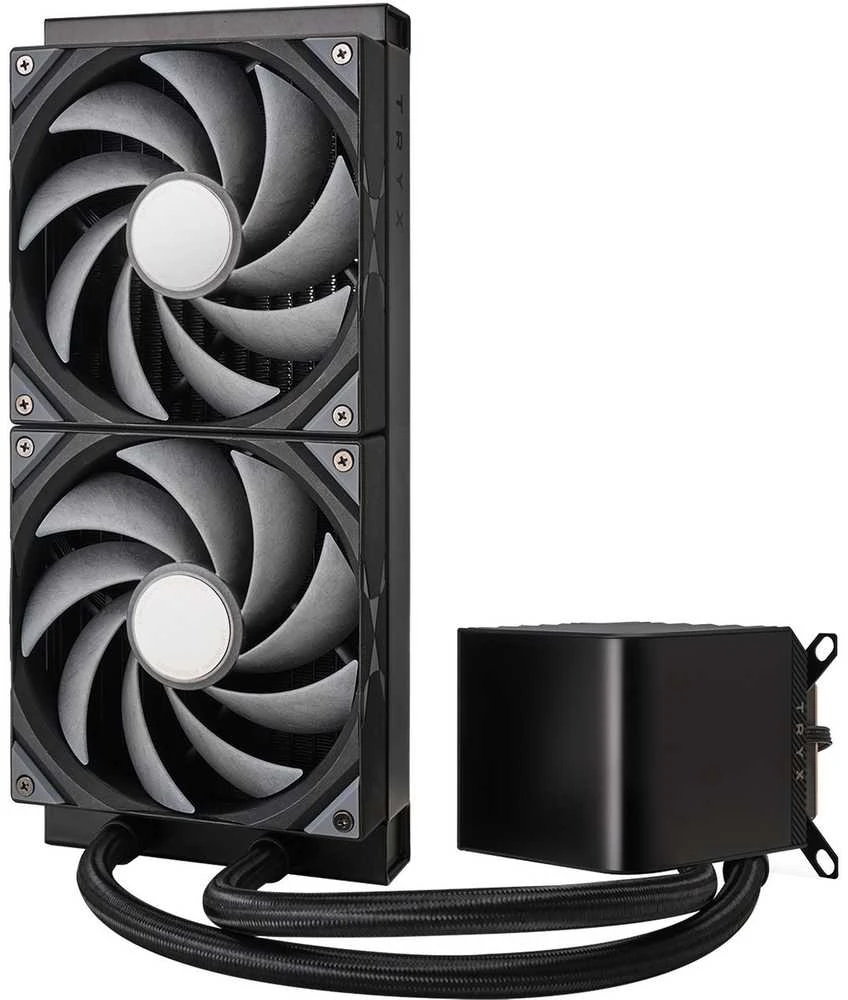

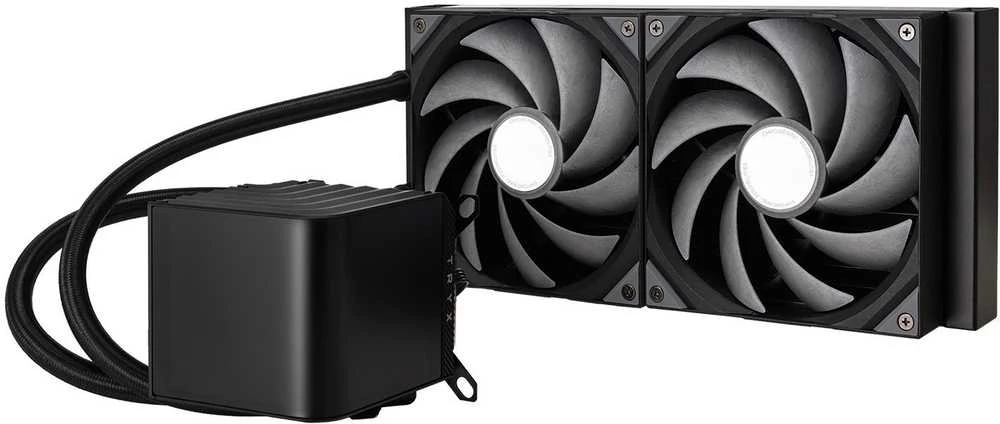

TRYX PANORAMA 280: All-in-One Liquid Cooling with Unique Display

The TRYX PANORAMA AiO Liquid Cooling combines advanced technology and a unique 3D-AMOLED display, allowing your gaming PC to set new standards in both aesthetics and performance. With a 30 mm thick 280-mm radiator , powerful PWM fans , and a reliable 8th Gen pump from Asetek , this all-in-one solution provides excellent cooling for your hardware. Thanks to the well-thought-out and flexible design, installation is quick and easy.

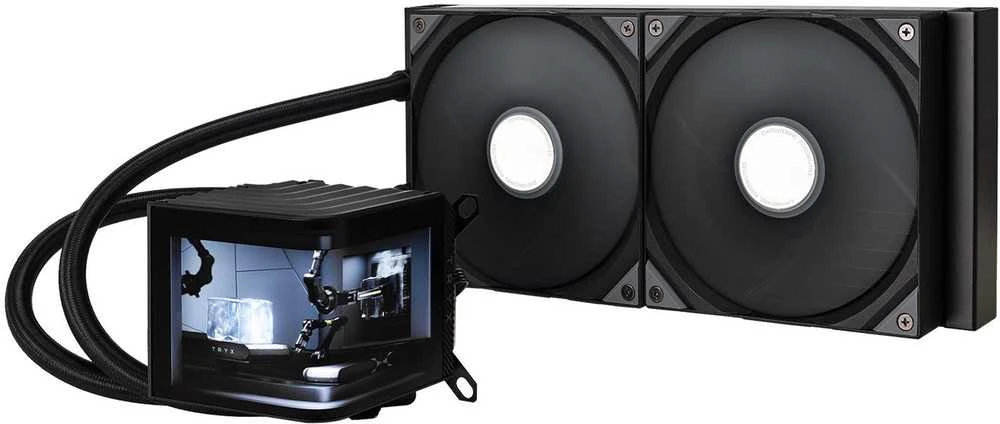

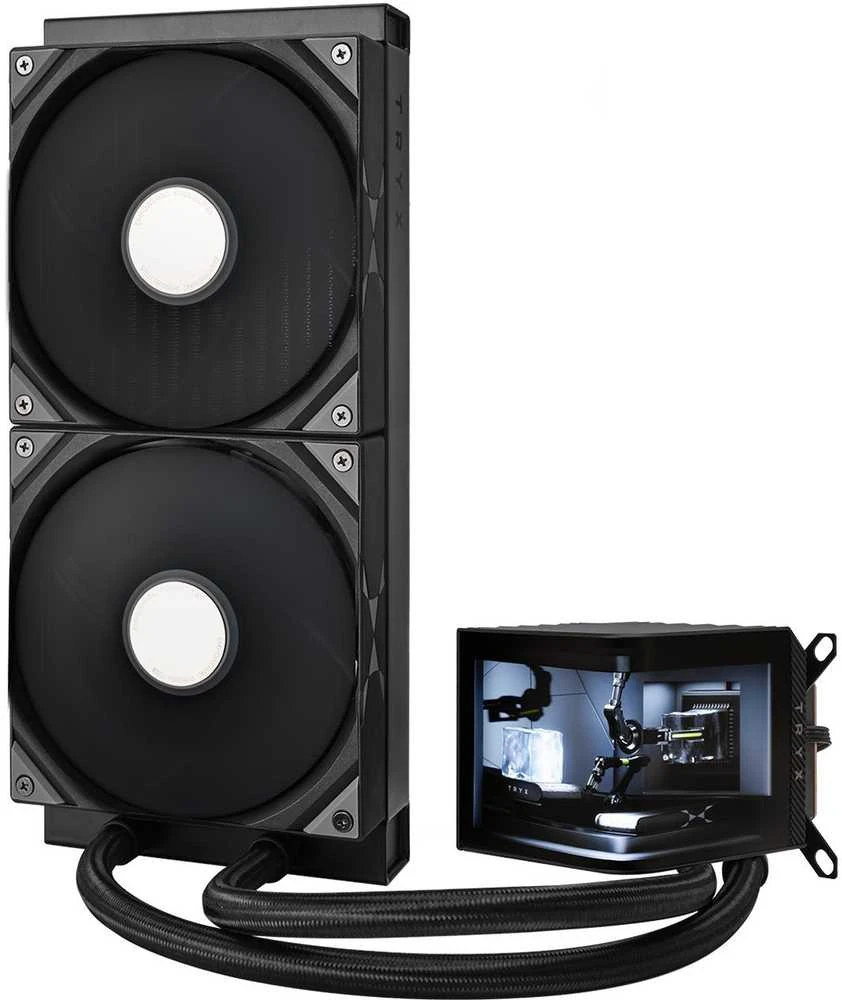

Curved 3D-AMOLED Display for Unparalleled Visuals

The highlight of the TRYX PANORAMA AiO is the anamorphic 3D-AMOLED display . This scratch-resistant screen offers features never seen before:

Fascinating Technology, Stunning Images

The curved 3D-AMOLED display stands out from anything you’ve seen before. It creates an impressive 3D depth effect right in your gaming PC – no uncomfortable glasses needed. Content appears vivid and tangible: whether an animated wallpapers, detailed graphics, or system information. With the KANALI software, you can bring your own 3D images and videos to life on the display in full glory. The best part? The software is continuously updated with new, exciting content, giving you endless options to customise your setup. With this liquid cooler, every glance at your PC becomes a true experience.

Efficient Performance and Reliable Cooling

The TRYX PANORAMA 280 relies on a durable aluminium radiator for effective heat dissipation. The circulating coolant is powered by a high-performance Asetek 8th Gen pump , which remains remarkably quiet at only 25.3 dB(A) despite high performance and an integrated 30-mm VRM fan. Thanks to the high-volume tubing, coolant circulates efficiently, resulting in low and stable component temperatures.

Powerful and Quiet Fans

The two included 140mm fans ensure optimal airflow. With a maximum airflow of 170.41 m³/h and a static pressure of 2.53 mmH2O , these fans can deliver efficient cooling even during intensive use. The noise level remains low at just 32 dB(A) , so you barely hear your powerful cooling system.

Intuitive Software Integration

The KANALI software offers an intuitive control platform for the TRYX PANORAMA AiO . Using the software, you can configure the display modes and content of the AMOLED screen, as well as adjust fan speed, pump speed, and A-RGB lighting to suit your preferences. The software is easy to use and enables you to easily monitor and control your system precisely. Whether you prefer a whisper-quiet operation for office work or maximum cooling for demanding gaming sessions, KANALI software gives you complete control.

Specification

Colour: Black
Screen: Type: 3D-AMOLED Resolution: 2,240 x 1,080 Pixels Size: 6.5 Inches Brightness: 500 Nits Refresh Rate: 60 Hz Connection: 9-Pin (USB, Internal)
Radiator: Dimensions: 320 x 140 x 30 mm (W x H x D) Material: Aluminium Tube Length: 400 mm
Pump: Dimensions: 115.5 x 92 x 92 mm (W x H x D) Fan: 30 mm Speed Range: 800 - 2,600 RPM Connection: 1x SATA (Power)
Cooling Block: Material: Copper
Fans: Model: ROTA Pro 140 Quantity: 2 Bearing Type: FDB Bearing Speed Range: 500 - 1,650 RPM Airflow: 170.41 m³/h Static Pressure: 2.53 mmH2O Connection: 4-Pin PWM Noise Level: 32 dB(A)
Controller: Connections: 1x SATA (Power) 2x 4-Pin PWM
Compatibility: Intel Sockets: LGA 1851, 1700, 1200, 115x AMD Sockets: AM5, AM4

Colour
Primary Colour	Black
Fan Main Colour (Frame)	Black
Fan Main Colour (Rotor)	Black
Main radiator colour (cage)	Black
Main radiator colour (fins)	Black
Dimensions
Length / Depth	320 mm
Width	140 mm
Height	30 mm
Fan height	25 mm
Radiator Size	280 mm
Radiator Height	30 mm
Radiator Height With Fan	55 mm
Tube length	40 cm
Type
CPU Cooler Type	AiO Liquid Cooler
CPU
CPU Socket	115X, 1200, 1700, 1851, AM4, AM5
Display
Display Included	Yes
Fan Specifications
Fan Size	140 mm
Fan Support
Included fans	2
Noise
Max. Pump Noise dB(A)	25.3 dB(A)
Max. Single Fan Noise dB(A)	27.86 dB(A)
Internal Ports
Fan connectors	4 Pin (PWM)
Pump connectors	4 Pin (PWM control)
RGB / LED connectors	2x Digital RGB (3-Pin 5VDG)
Materials
Materials	Aluminium, Copper
Base Plate Material	Copper
Lighting
Lighting / RGB	No
Additional Contents
Included fans	2x 140 mm
