Ek Water Blocks Ek Vanduo Blocks EK...

120-mm reservoir-pump combo with D-RGB lighting, featuring a D5 PWM pump, 125 ml volume, nine G1/4-inch fittings, made from acrylic glass and stainless steel, includes mounting for 120-mm fan

125-ml pump-reservoir combo for compact systems
Easy maintenance and flexibility thanks to nine G1/4-inch fittings
High-quality acrylic glass for clear visibility of your coolant
D-RGB lighting for customisable lighting effects
Integrated D5 PWM pump for maximum cooling performance
Durable EPDM O-rings for maximum reliability
Easy installation thanks to 120-mm fan mounting holes

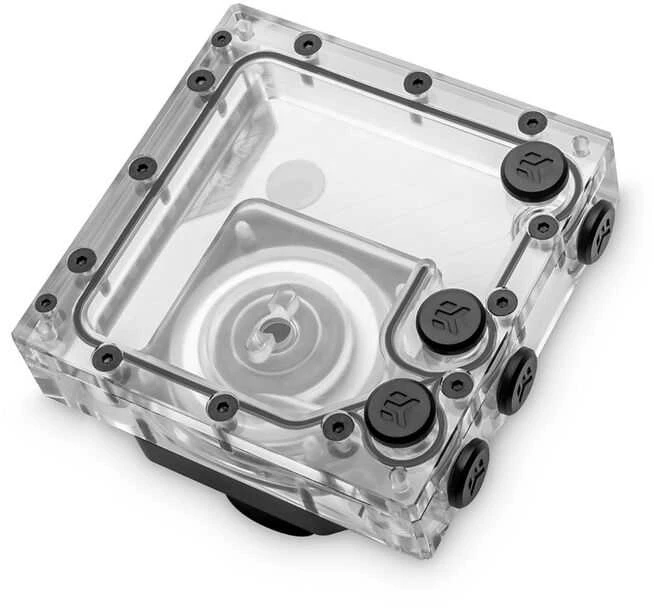

The EK-Quantum Kinetic3 FLT D5 PWM D-RGB Reservoir-Pump Combo in Detail

The EK-Quantum Kinetic3 FLT D5 PWM D-RGB is distinguished by its integrated D5 PWM pump and high-quality construction. With a maximum flow rate of 1.000 l/h and a maximum head pressure of 5.2 m , the pump delivers substantial power, ensuring that your system remains adequately cooled. The reservoir is made from transparent acrylic glass , offering excellent visibility of your coolant. The integrated addressable D-RGB lighting , concealed behind a black anodised aluminium cover , provides even illumination. With a volume of 125 ml and a sufficiently large cooling area, this reservoir-pump combo provides ample coolant for small and compact systems that require efficient cooling. Sealing is achieved with high-quality EPDM O-rings , ensuring a durable and reliable seal.

Easy Installation and Strong Flexibility

You mount the EK-Quantum Kinetic3 FLT D5 PWM D-RGB on 120-mm fan mounts , making it an ideal fit for your gaming PC. No additional drilling is required, saving you time and effort. With nine G1/4-inch fittings , it offers versatile inlets and outlets and can be flexibly integrated into your system.

Enhance Your System with Light and Colours

Achieve a personalised look with a variety of visual effects. Thanks to the addressable, integrated D-RGB lighting, you can beautifully showcase your PC. This connects via a 3-pin 5V Digital-RGB header . Your creativity knows no bounds.

Specification

Dimensions: 123.3 x 126.4 x 86 mm (W x H x D)
Material: Acrylic, EPDM rubber, anodised aluminium, stainless steel, PPS-GF40, aluminium oxide
Colour: Transparent, Black (anodised aluminium cover)
Volume: 125 ml
Fittings: 9x G1/4-inch threads
D-RGB Connection: 3-pin digital 5V LED header (+5V / Digital / Blocked / Ground)
Number of LEDs: 11
Pump: Integrated D5 PWM pump Rated Voltage: 12 V DC Power Consumption: 20 W Max Head Pressure: 5.2 m Max Flow Rate: 1.000 l/h Max System Temperature: 60°C Power Connection: SATA power and 4-pin PWM fan connector
Contents: 1x EK-Quantum Kinetic3 FLT D5 PWM D-RGB L-shaped steel bracket with mounting screws Mounting mechanism with all necessary screws

Colour
Primary Colour	Transparent
Dimensions
Length / Depth	86 mm
Width	123.3 mm
Height	126.4 mm
Volume	125 ml
Pump Specifications
Max. Pressure Head	5.2 m
Max. Water Flow	1000 l/h
Type
Pump type	D5
Power Specifications
Power Consumption	20 W
Rated voltage	12 V
Water Cooling
Water cooling component	Pump + Reservoir
Water cooling connectors	9x G1/4"
Internal Ports
Pump connectors	4 Pin (PWM control), SATA (power)
RGB / LED connectors	1x Digital RGB (3-Pin 5VDG)
Thermal Specifications
Max. System Temperature	60 °C
Materials
Materials	Acrylic glass, Aluminium oxide, Anodised aluminium, PPS-GF40, Rubber, Stainless steel
Lighting
Lighting / RGB	Yes
Lighting Colour	RGB
