Ek Water Blocks Ek Vanduo Blocks EK...

140-mm reservoir-pump combo with D-RGB lighting, featuring a D5 PWM pump, 200 ml volume, nine G1/4-inch fittings, made from acrylic glass and stainless steel, includes mounting for 140-mm fan

200-ml pump-reservoir combo for compact to medium-sized systems
Easy maintenance and flexibility thanks to nine G1/4-inch fittings
High-quality acrylic glass for clear visibility of your coolant
D-RGB lighting for customisable lighting effects
Integrated D5 PWM pump for maximum cooling performance
Durable EPDM O-rings for maximum reliability
Easy installation thanks to 140-mm fan mounting holes

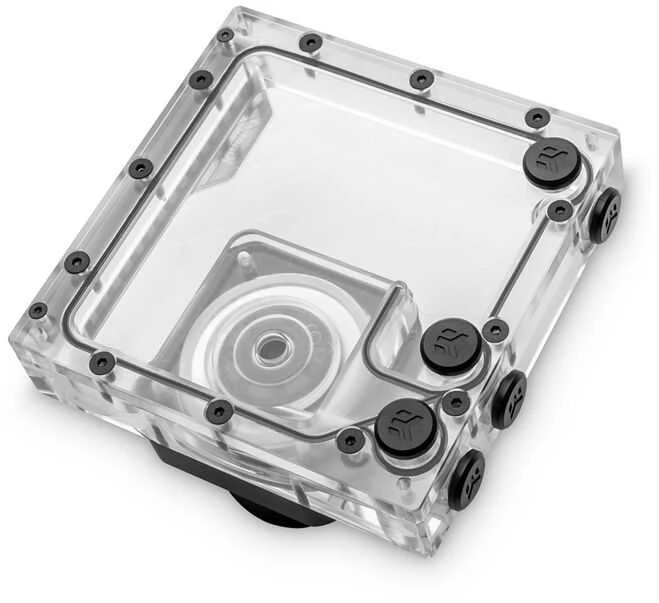

The EK-Quantum Kinetic3 FLT D5 PWM D-RGB Reservoir-Pump Combo in Detail

The EK-Quantum Kinetic3 FLT D5 PWM D-RGB stands out with its integrated D5 PWM pump and high-quality construction. With a maximum flow rate of 1.000 l/h and a maximum head pressure of 5.2 m , the pump delivers substantial power, ensuring your system remains well-cooled. The reservoir is made from transparent acrylic glass , providing excellent visibility of your coolant. The integrated addressable D-RGB lighting , concealed behind a black anodised aluminium cover , offers even illumination. With a volume of 200 ml and a large cooling area, this reservoir-pump combo ensures strong cooling performance for medium to large systems. Your gaming PC will remain reliably cooled and maintain excellent performance even under higher demands. The sealing is achieved with high-quality EPDM O-rings , ensuring a durable and reliable seal.

Easy Installation and Strong Flexibility

Mount the EK-Quantum Kinetic3 FLT D5 PWM D-RGB on 140-mm fan mounts , making it a perfect fit for your gaming PC. No additional drilling is required, saving you time and effort. With nine G1/4-inch fittings , it offers versatile inlets and outlets and can be flexibly integrated into your system.

Enhance Your System with Light and Colours

Achieve a customised look with a variety of visual effects. The addressable, integrated D-RGB lighting beautifully showcases your PC. It connects via a 3-pin 5V Digital-RGB header . Your creativity has no limits.

Specification

Dimensions: 143.5 x 146.5 x 86 mm (W x H x D)
Material: Acrylic, EPDM rubber, anodised aluminium, stainless steel, PPS-GF40, aluminium oxide
Colour: Transparent, Black (anodised aluminium cover)
Volume: 200 ml
Fittings: 9x G1/4-inch threads
D-RGB Connection: 3-pin digital 5V LED header (+5V / Digital / Blocked / Ground)
Number of LEDs: 14
Pump: Integrated D5 PWM pump Rated Voltage: 12 V DC Power Consumption: 20 W Max Head Pressure: 5.2 m Max Flow Rate: 1.000 l/h Max System Temperature: 60°C Power Connection: SATA power and 4-pin PWM fan connector
Contents: 1x EK-Quantum Kinetic3 FLT D5 PWM D-RGB L-shaped steel bracket with mounting screws Mounting mechanism with all necessary screws

Colour
Primary Colour	Transparent
Dimensions
Length / Depth	86 mm
Width	143.5 mm
Height	146.5 mm
Volume	200 ml
Pump Specifications
Max. Pressure Head	5.2 m
Max. Water Flow	1000 l/h
Type
Pump type	D5
Power Specifications
Power Consumption	20 W
Rated voltage	12 V
Water Cooling
Water cooling component	Pump + Reservoir
Water cooling connectors	9x G1/4"
Internal Ports
Pump connectors	4 Pin (PWM control), SATA (power)
RGB / LED connectors	1x Digital RGB (3-Pin 5VDG)
Thermal Specifications
Max. System Temperature	60 °C
Materials
Materials	Acrylic glass, Aluminium oxide, Anodised aluminium, PPS-GF40, Rubber, Stainless steel
Lighting
Lighting / RGB	Yes
Lighting Colour	RGB
