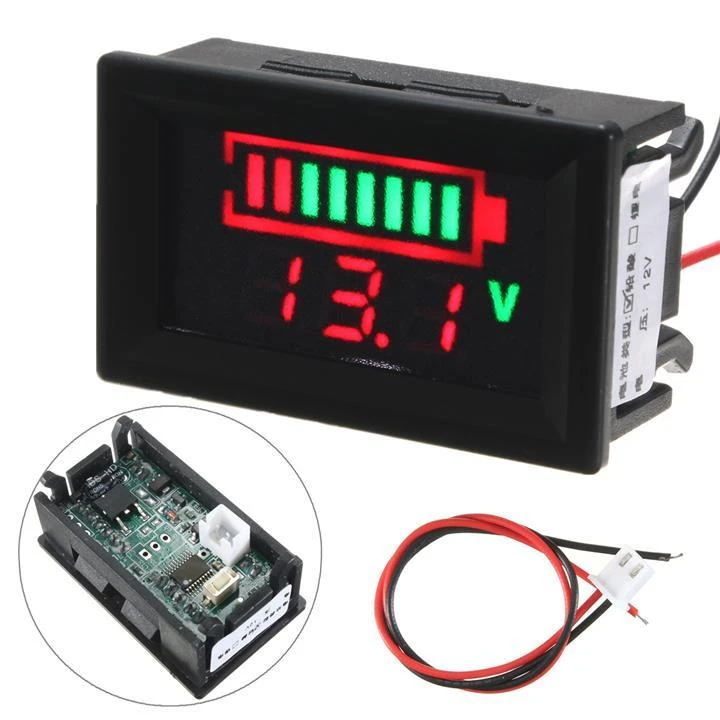

Oem Švino akumuliatoriaus skaitmeninis talpos indikatorius

1. Double display: the battery capacity + voltage. Show more intuitive.
2. Up line: 8 colorful bar shows the battery power, the down line: voltmeter displays battery voltage, the voltage table decimal point automatically shift, accuracy is higher.
3. Use of a wider range: 18650 lithium polymer lithium battery pack, lead-acid batteries, electric car batteries, and other types of electric equipment can be used.

Indicator:
Battery voltage is greater than 11.1V, 1 led indicator is lit.
Battery voltage is greater than 11.3V, 2 led indicator is lit.
Battery voltage is greater than 11.6V, 3 led indicator is lit.
Battery voltage is greater than 11.9V, 4 led indicator is lit.
Battery voltage is greater than 12.2V, 5 led indicator is lit.
Battery voltage is greater than 12.5V, 6 led indicator is lit.
Battery voltage is greater than 12.9V, 7 led indicator is lit.
Battery voltage is greater than 13.3V, 8 led indicator is lit.

NOTICE: It will only display voltage if not measure lead-acid battery!

Specifications:
Item Type: Battery Power Capacity Indicator Voltmeter
Working current: 5-15mA (The lower the battery voltage is , the smaller current is)
Eight electricity Resolution: 10%, 25%, 40%, 50%, 60%, 75%, 90%, 100%
Voltmeter accuracy: 1%
Working temperature: -10 ~ +65°
Operating Humidity: 10 ~ 80%
Material: ABS
Size: 48×29×21mm/1.89×1.14×0.83in (Approx.)
LED Indicator Color: Blue/Red (Optional)
Quantity: 1PC
