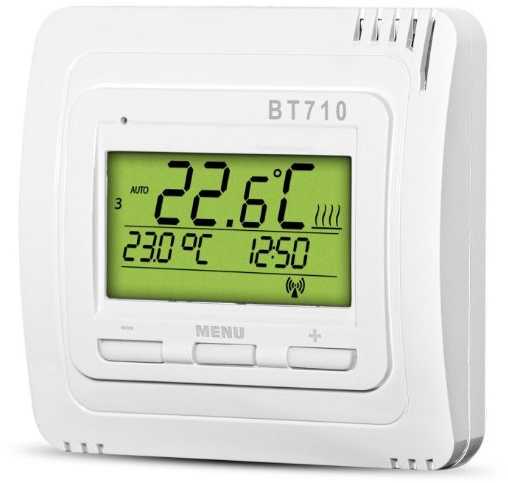

ELEKTROBOCK wireless room thermostat - transmitter BT710

BT710 transmitter features:
The BT710 is capable of controlling up to 9 switching elements (receivers). It switches the elements sequentially, thus preventing current surges in the network. The range in the built-up area is at least 35 m - depending on the receiver used.

Compatible with BT001, BT002, BT003 receivers.

Advantages of BT710:
7 weekly programs with 6 temperature changes per day
backlit display
Modes: AUTO/MANU/OFF/ALLOWED
quick change of desired temperature
can be programmed day by day or in blocks of Mon-Fri, Sat-Sun, Mon-Sun
information on hours of operation
child lock - key lock
automatic changeover to summer/winter time
function "OPEN WINDOW" (automatic switching off of heating during ventilation)
possibility to set the correction of the current temperature
frost protection (3°C)


The transmitter can be placed in a stand - stand on request!

Technical parameters
Power supply 2 batteries (2x1,5V AAA - not included)
Thermostat type wireless
Hysteresis control type (0.2°C)
Accuracy 0.5 °C
Dimensions (LxWxD) 81x81x25 mm
Degree of protection IP20
Operating temperature 0 °C to 40 °C
Temperature variation per day 6
Adjustable temperature range 5 °C to 39 °C
Temperature setting in 0, 5 °C increments
Min. programming time 10 min
Min. indication jump 0, 1 °C
Frequency 433, 92 MHz
RF power 10 mW
Battery life heating season
