Forward Am BASF Ultracur3D kieta UV derva RG 9400 B FR

Ultracur3D® RG 9400 B FR is a rigid, flame-retardant material that can be used for production parts requiring UL 94 V-0 rating. The material is halogen free, and in addition to its flame-retardant properties, it has a very high HDT, making it ideal for demanding applications in electronics, custom jigs & fixtures as well as replacement parts for industrial environments. Highlights

• Flame-retardant (UL 94 V-0 at 3mm)
• Very high temperature resistance (HDT B >250°C)
• Easy to print and process, no heated printer required

RG 9400 B FR

Ultracur3D® RG 9400 B FR is a rigid, flame-retardant material that can be used for production parts requiring UL 94 V-0 rating. The material is halogen free, and in addition to its flame-retardant properties, it has a very high HDT, making it ideal for demanding applications in electronics, custom jigs & fixtures as well as replacement parts for industrial environments.

Ultracur3D® RG 9400 B FR distinguishes itself from other flame-retardant materials for having a low viscosity and being very easy to handle and print.

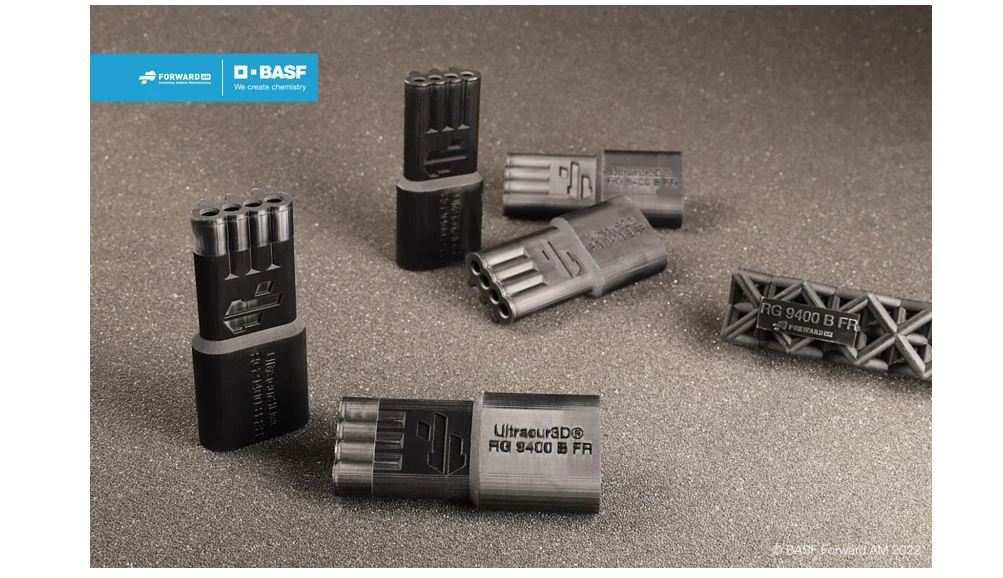

Example Applications

• Electronics
• Custom jigs & fixtures
• Replacement parts for industrial environments

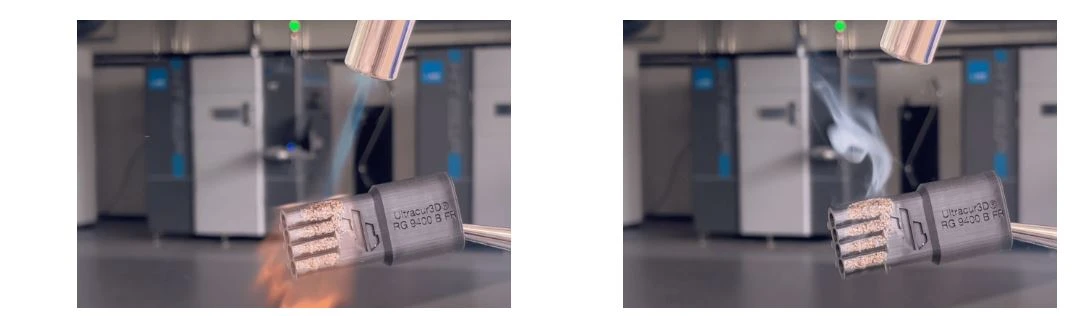

With Flame-Retardant & Self-Extinguishing Features

Flame-retardant materials will stop burning once the flame source has been removed. This feature of Ultracur3D® RG 9400 B FR is making it ideal for demanding applications in electronics like cable holders, electrical connectors, battery housing and high power electrical applications. The material is also suited for custom jigs & fixtures as well as replacement parts for industrial environments with high HDT and ignition sources.

Material Properties

• Young’s modulus: 3,900 MPa
• Flammability: UL 94 V-0 at 3mm
• Heat deflection temperature: 255 °C
• Viscosity, 30 °C: 350 mPa
