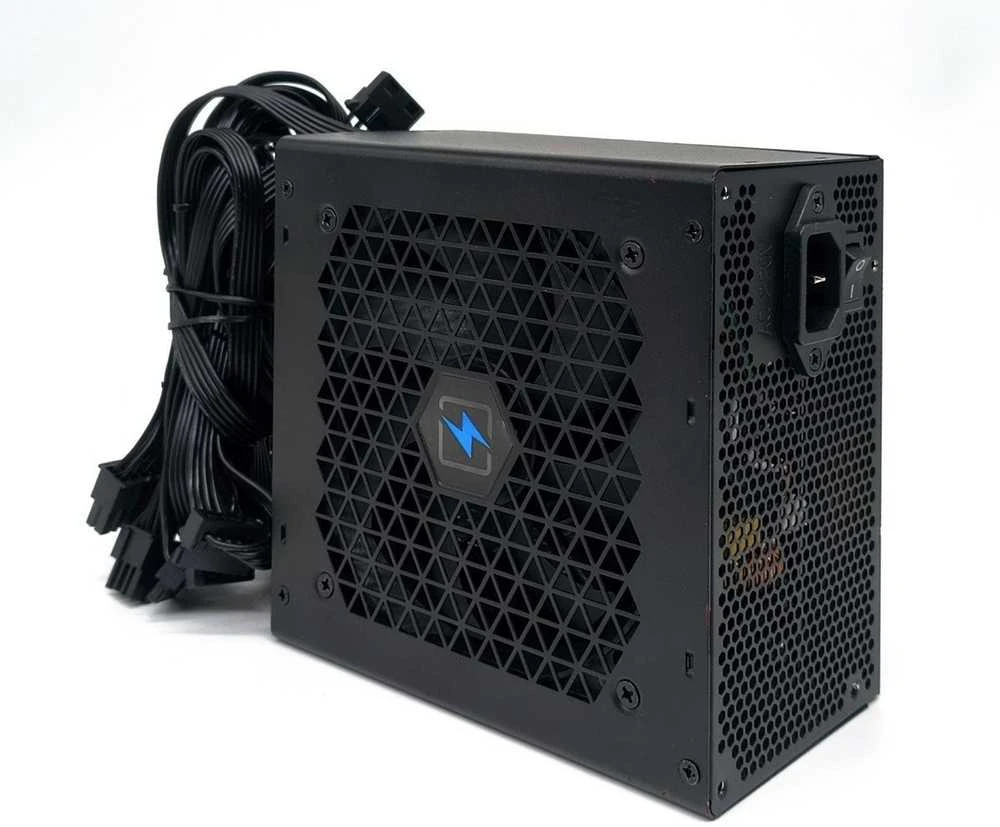

1st Cool 1stCOOL Dark Line 650 88+, 650 W

1st COOL Dark Line 88+ series

The new DARK LINE power supply series brings a modern solution for stable and efficient computer power supply. The DARK LINE series uses synchronous rectification with MOSFET transistors on the secondary side instead of conventional diodes, resulting in higher efficiency, lower heat loss and more stable voltage under load. With a minimum of 88% typical efficiency, a powerful 12V branch with 564W output and a quiet 12cm fluid bearing fan, it is an interesting choice for even the most demanding setups. High-quality bonded cabling then ensures a clean and uncluttered layout inside the case.



Model:

DARK LINE 650 88+



Features:

High efficiency of at least 88% or more at typical load (50%)

Compatibility with the latest processors

Stand-by power consumption < 0.5W

Active Power Factor Correction, 99% (typical)

Hold up time min 20ms

One powerful 12V branch to match today's trends and to maximize the power supply's capabilities:

12V / 564W

Minimum load 3.3V/0.3A; 5V/0.8A; 12V/1A

Low noise function along with quiet fluid bearing fans

High-quality bonded flat cabling for ideal placement in the PC

Complete OVP, OCP, OPP, SCP, UVP circuit protection - over-voltage protection, over-current protection, over-power protection, short circuit protection and under-voltage protection

Complies with CB, CE standards

Meets the requirements of the ErP 2013 Directive

MTBF > 100,000 hours, 25 °C ambient (excl. DC fan)
