PXN Bundle VD6+W GTL GT ONE

PXN VD6 + W GTL GT ONE Bundle, Direct Drive base 6 Nm + GT wheel 300 mm, USB / Quick Release.
Complete sim racing set with Direct Drive technology and a professional GT wheel.
PXN VD6 + GT ONE represents an ideal combination for realistic racing with a high level of control and customization.
The Direct Drive base ensures immediate and smooth response without mechanical losses.
A constant torque of 6 Nm offers a balanced ratio between performance and controllability.
The GT ONE wheel provides a professional control layout with up to 78 inputs for detailed configuration.
The 300 mm diameter supports precise steering and fast response across various vehicle types.
The combination of advanced electronics, RGB elements, and telemetry enables full personalization.
The Sense+ algorithm translates in-game data into realistic force feedback in real time.
The entire system is optimized for PC and offers plug-and-play operation without complicated installation.



BASE – PXN VD6
PXN VD6 represents an entry into the world of Direct Drive technology, where the wheel is driven directly by a servo motor without belts or gears.
The base uses a proprietary low-inertia servo motor that delivers smooth and immediate response.
A constant torque of 6 Nm provides strong yet controllable force feedback for a wide range of users.
A 24-bit magnetic encoder captures movement with extreme precision and minimal latency.
The adjustable rotation range from 90° to 2700° allows adaptation to different vehicle types.
The advanced Sense+ algorithm processes in-game data and translates it into realistic forces on the wheel.
The system can simulate road surface, G-forces, and loss of traction with a high level of detail.
Integrated thermal management actively regulates performance and prevents overheating during long sessions.
The aluminum housing ensures structural strength and efficient heat dissipation.
The base supports plug-and-play connection to PC without the need to install drivers.
It is compatible with PXN wheels as well as selected third-party wheels via standard interfaces.

• Direct Drive servo motor
• Constant torque of 6 Nm
• 24-bit magnetic encoder
• Adjustable rotation range 90°–2700°
• Sense+ simulation algorithm
• Intelligent thermal management
• Aluminum housing for heat dissipation
• Plug-and-play (PC)

TECHNICAL SPECIFICATIONS – BASE (PXN VD6)
Model: VD6
Type: Direct Drive wheel base
Connection: USB (wired)
Power supply: DC 24 V / USB 5 V
Current: motor 3.75 A / USB ≤ 500 mA
Torque: 6 Nm
Rotation range: 90°–2700°
Operating temperature: 10–40 °C
Operating humidity: 20–80%
Dimensions and weight: approx. 238 × 125 × 125 mm (wheel base) / 5900 g

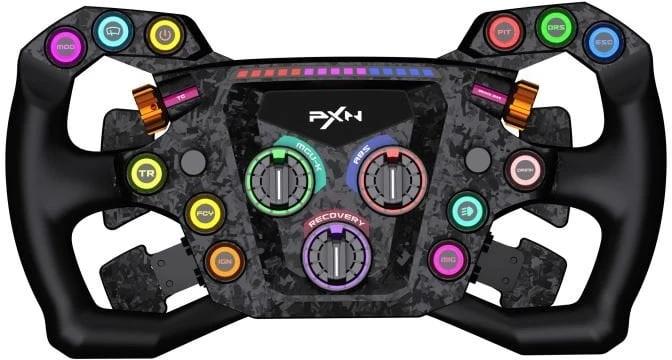

WHEEL – PXN W GTL GT ONE
Compact GT racing wheel for simulators, 300 mm, USB / Quick Release – with a maximum number of control elements.
PXN GT ONE is a professional GT wheel designed for maximum control and customization in sim racing.
The 300 mm diameter offers an ideal balance between fast response and precise steering.
The ergonomic shape with TPE grip ensures comfortable handling even during long races.
The construction combines glass fiber-reinforced composite with carbon elements for high strength and low weight.
The wheel is equipped with four carbon shift paddles supporting dual-clutch mode and individual configuration.
A total of 12 RGB backlit buttons allows full customization of functions.
It features 3 main rotary encoders, 2 side encoders, and 2 seven-way switches for advanced control.
In total, the wheel provides up to 78 input signals for professional-level setup.
An integrated LED strip with 15 LEDs displays engine RPM in real time.
Fully adjustable RGB lighting supports up to 16.7 million colors.
The wheel can be connected via USB and is compatible with most third-party wheel bases.
Support for PXN SimRacing and SimHub enables detailed configuration of buttons, telemetry, and lighting.

• 300 mm diameter (GT style)
• 12 RGB programmable buttons
• 4 carbon shift paddles (dual-clutch support)
• 3 main + 2 side rotary encoders
• 2× 7-way switches
• Up to 78 inputs (professional control)
• LED RPM indication (15 LEDs)
• RGB lighting (16.7 million colors)
• Compatibility with third-party bases (USB)

TECHNICAL SPECIFICATIONS – WHEEL (GT ONE)
Model: GT ONE
Diameter: 300 mm
Connection: USB / Quick Release (depending on configuration)
Compatible with most wheel bases via USB connection
Construction: composite + carbon elements
Lighting: RGB (16.7 million colors)
LED indication: 15× RPM LEDs
Operating temperature: 10–40 °C
Operating humidity: 20–80%


Link to SW PXN Simracing

• PC Windows

PACKAGE CONTENTS (BUNDLE)

• PXN VD6 wheel base
• Power adapter
• USB cable
• Type-C cable
• Mounting screws
• Allen key
• User manual
• PXN GT ONE wheel
• USB-A cable (aviation connector › USB)
• Accessory kit
• User manual
• Stickers
