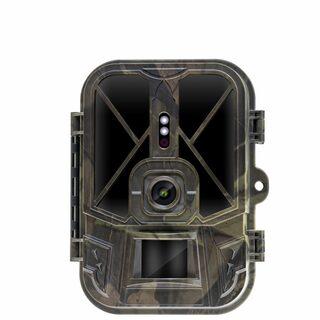

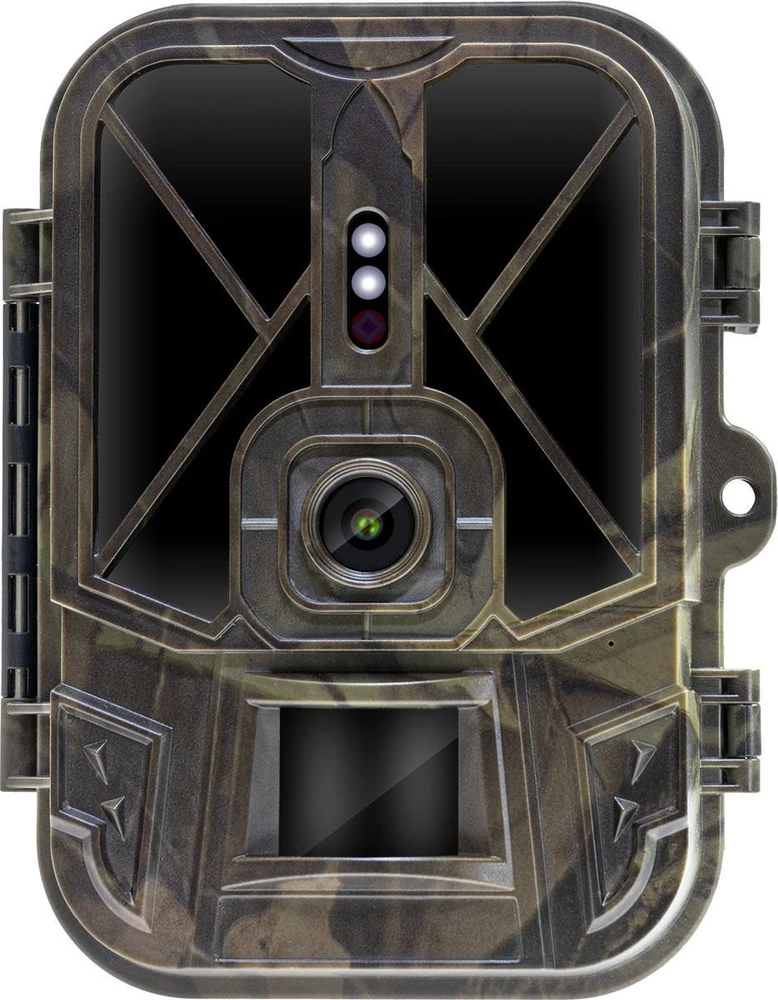

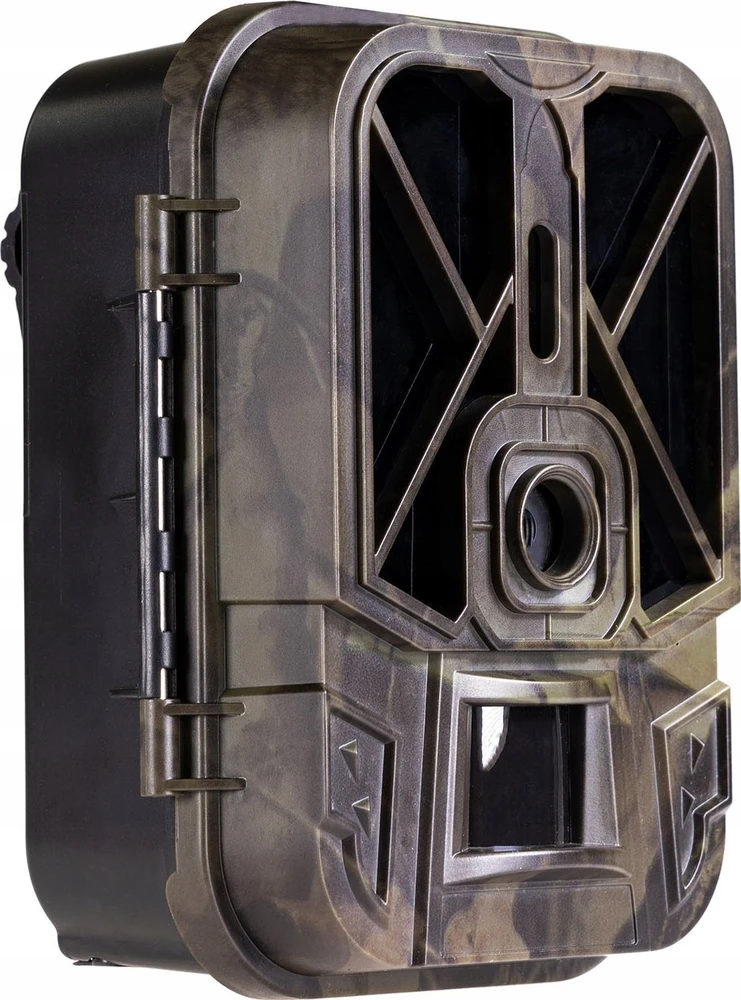

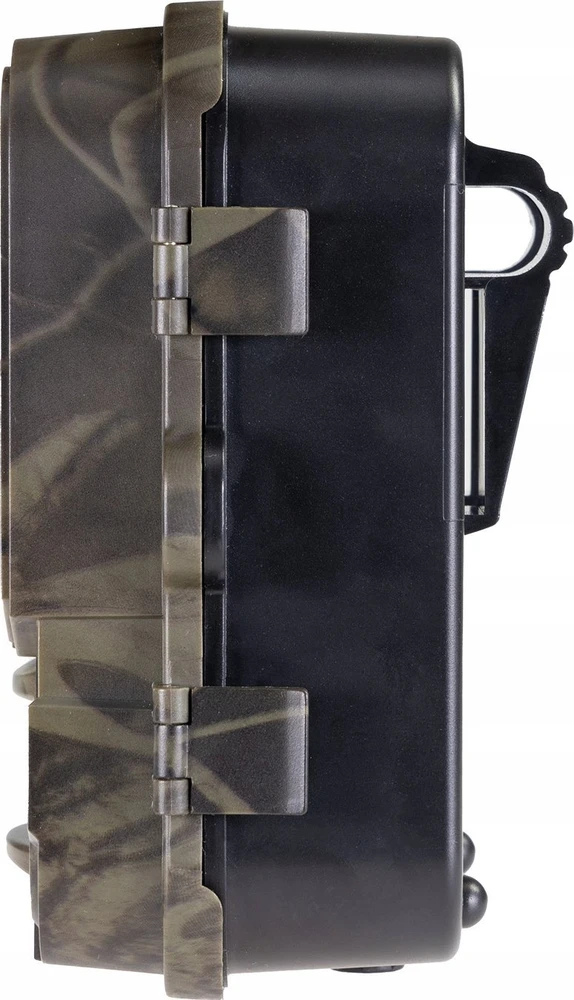

EVOLVEO StrongVision PRO A

EVOLVEO StrongVision PRO A, photo trap/security camera

- 4K Video
- 30Mpx photos
- Night photo and video
- 120° PIR sensor
- 2.4" display - Czech menu
- SD card support up to 256GB
- 6x High Power IR LED 940nm
- Power supply 10x AA battery or 8000 Li-on battery
- IP 65 protection

________________________________________________________________________________________________________________

Universal camera

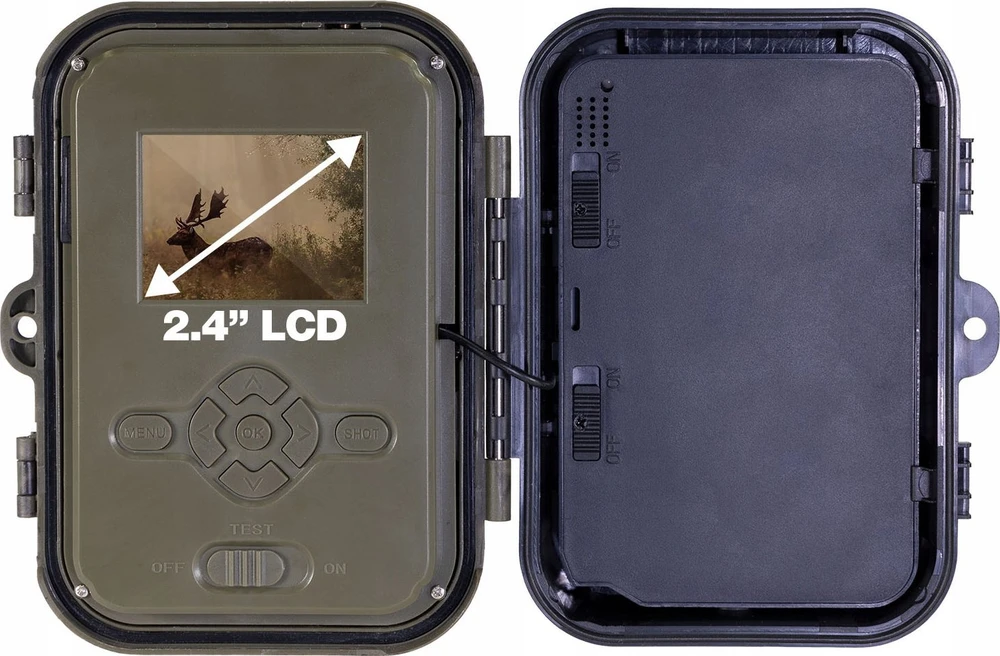

StrongVision PRO A is the basic camera of the new PRO series of EVOLVEO photo traps. The camera stores all captured images on an inserted SD card, directly on the camera you can view individual images or videos directly on the large 2.4" LCD display. The camera is suitable for the woods for game viewing, as well as for taking time-lapse footage or monitoring the progress of your building. Thanks to its compact size and conveniently placed mounts on the camera body, it can be mounted using the included strap, as well as possibly secured with a rope lock like the EVOLVEO StrongVision LOCK. The camera is powered by 10x AA batteries of 1.5V, which ensure a long operating time.


Clear images in any conditions
The photo trap is equipped with an 8Mpx sensor and an active IR filter. Thanks to which the camera records 4K video and photos with a maximum resolution of up to 30 Mpx. The active IR filter works automatically and helps when recording at night, when the camera captures the surrounding scene with the help of a powerful IR illuminator. Invisible illumination is provided by 6x high-brightness IR LEDs, each with 3W of power. The illumination has a wavelength of 940nm, which makes it very difficult to detect by the human or animal eye. So you don't have to worry about the camera being recognized by animals or unwanted visitors passing in front of the camera. In the daytime, the recording is in colour for both photos and video, which is recorded with sound. At night, the recording is black and white and switching between modes is completely automatic.

Rich optional accessories
With battery-powered cameras, the biggest issue is always battery life and the associated operational efficiency. The StrongVision PRO A is powered by 10xAA 1.5V cells which, depending on the frequency and type of recording, allows a battery life of 1 to 4 months per set. If you want to ensure long-term and inexpensive operation, the camera can be equipped with a rechargeable 8 000mAh StrongVison BAT3 battery, which can extend the battery life up to 6 months depending on the settings used. The rechargeable battery will also allow you to operate more economically, as it eliminates the need to constantly purchase new AA cells.


Although the camera itself is rugged and IP65 rated, there are plenty of situations where you may need to protect it from either the unwary or a squirrel that likes to test the durability of the plastic housing. For this reason, we have the EVOLVEO StrongVision MB2 protective and lockable metal box available for the entire StrongVision PRO series. The box is made from 1.5mm thick sheet metal, has all the holes so that external power can be connected or a steel cable can be used for attachment, and is weatherproof thanks to the matte protective coating.
For when you have the option to connect the camera to the mains, the EVOLVEO StrongVision ADAP 12V power adapter can be purchased, the camera will be primarily powered by the adapter and if the mains power fails, the embedded batteries will serve as backup power.
If you want to use any other power supply or backup lead acid battery, the EVOLVEO StrongVision PWRC power cable can be purchased directly for evolveo photo traps.

SPECIFICATIONS:

- Sensor: 8 MPX CMOS
- Camera lens: F=3.1; FOV=57°
- Video resolution: 4K/2.7k/1080P/720P/VGA
- Photo resolution: 12MP - 30MP
- 0.8s shutter speed
- Mode: Photo, Video, Photo&video, Time-lapse, Multishot.
- SD Card up to 256GB
- 2.4" TFT Display - Czech menu
- Night Light: 6 x 940nm Infrared Powerful 3W IR LED
- PIR Range: Selectable sensitivity High/Normal/Low
- PIR Sensor Angle: 120°
- Maximum IR LED range: 20 meters
- Trigger interval 1/5/10/30s/min
- Multishot: 1/2/3/10
- Date in photo: Yes
- Security: PIN at start-up (4 digits)
- Possibility of setting shooting in time interval (Time lapse)
- Possibility to set a shooting interval of 1 second to 24h for time-lapse

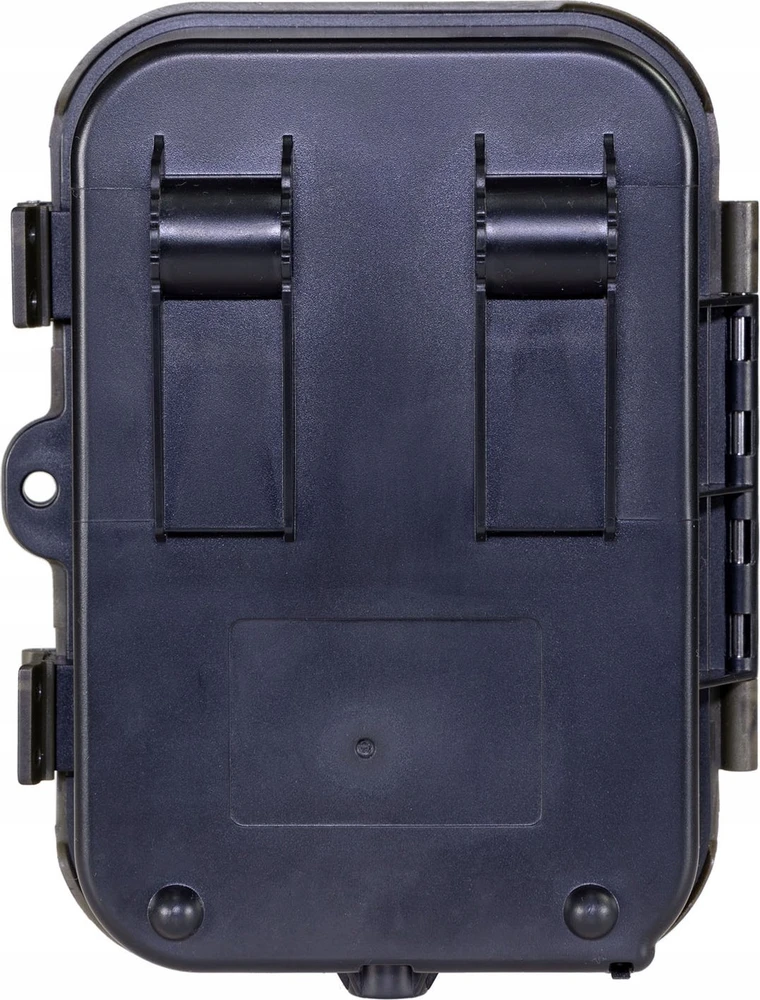

- attaching the camera with a strap or StrongVision LOCK rope lock
- Operating temperature -10°C to +50°C

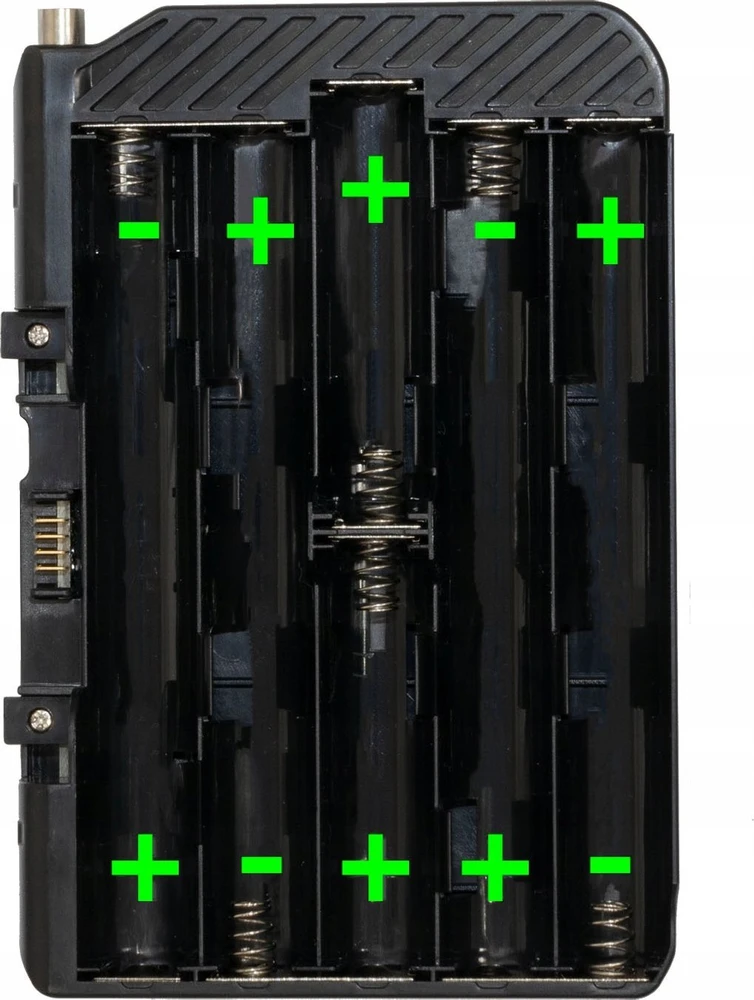

- batteries in a separate battery box to protect the electronics

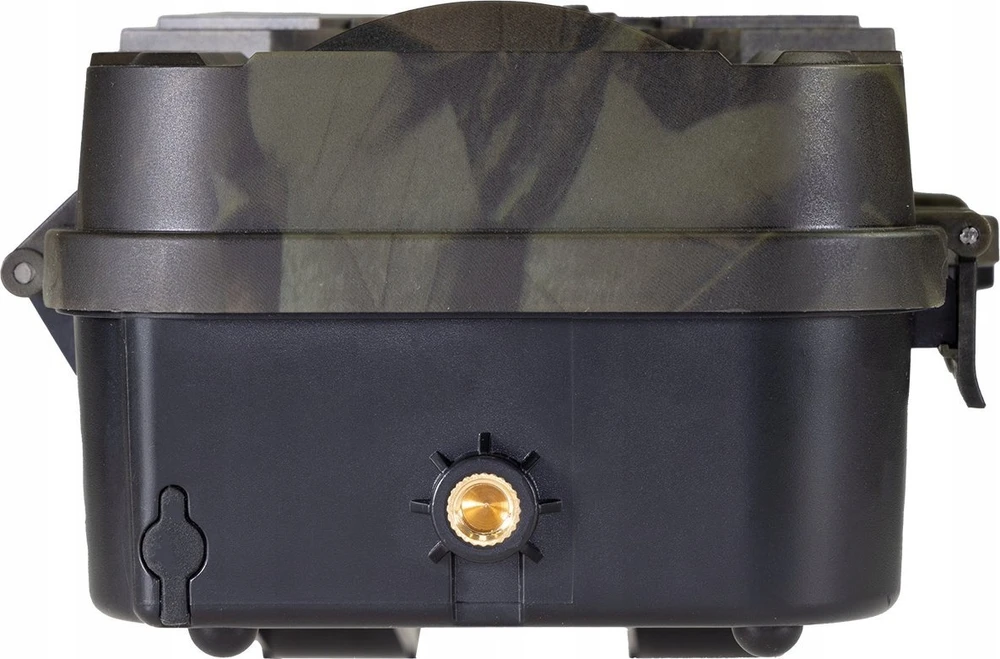

- Fastening: tape max. 30x2mm cross-section, 8mm cable, 1/4' tripod thread
- Interface: USB-C, SD card
- Battery: 10x AA 1.5V LR6 or StrongVision BAT3 Li-Ion battery (not included)
- Power connector DC Jack 3.5x1.3 mm
- Input voltage 12V/1.5A DC - StrongVision ADAP
- quiescent current: 0.1mA
- stand-by time: >6 months
- dimensions 151 x 118 x 87 mm
- weight 371 g (without batteries)

PACKAGE CONTENTS:

- EVOLVEO StrongVision PRO A
- mounting strap
- SD card reader
- user manual

ADDITIONAL ACCESSORIES:
- EVOLVEO StrongVision MB2, metal box (PartNo: CAM-MB2)
- EVOLVEO StrongVision LOCK, 8mm x 2m adjustable cable lock (PartNo: CAM-LOCK)
- EVOLVEO StrongVision cable for connecting an external power supply (PartNo: CAM-PWRC)
- EVOLVEO StrongVision H1, metal bracket for threaded photo traps (PartNo: CAM-H1)
- EVOLVEO StrongVision BAT3, replacement battery for StrongVision (PartNo: CAM-BAT3)
