Feelworld Monitorius F6 Plus V2 6" Monitorius

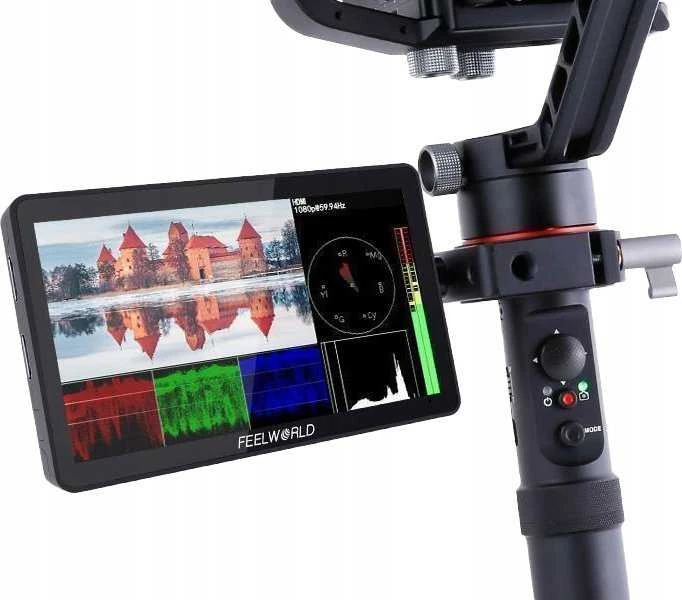

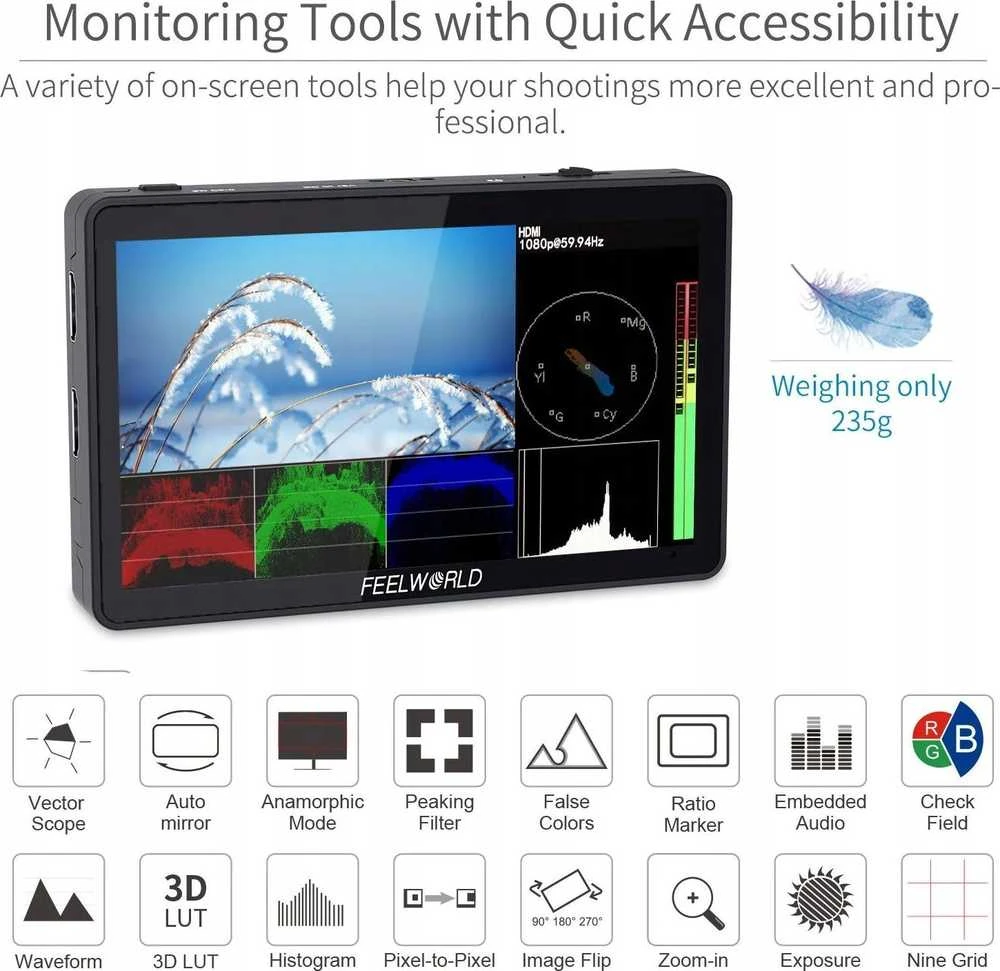

The Feelworld F6 Plus V2 keeps the original great: it's small, lightweight and has great image quality. In addition, it now features the touch screen and has the ability to import 3D LUTs via the SD card. The F6 Plus V2 is the perfect monitor for those who need an easy-to-use lightweight on-camera monitor such as gimbal operators, or shooters that are always on the go. Its touchscreen conveniently allows you to zoom your image with a pinch gesture and tap to access the menu settings. There are also a variety of onscreen tools to help you set up your shots, including parade (RGB, YUV, Y), vector, histogram, peaking, embedded audio, exposure, false color, nine grid, auto mirror, zoom, guides, pixel-to-pixel, anamorphic mode, image freeze and more.

Light and Slim Design, Only 235g
The F6 Plus is 6 inch and only 235g, and makes it the ideal size and weight for field production. The entire monitor’s build is sturdy and compact, allowing you to easily mount it to your DSLR camera or even a gimbal stabilizer. It gives you the freedom to shoot well anywhere.

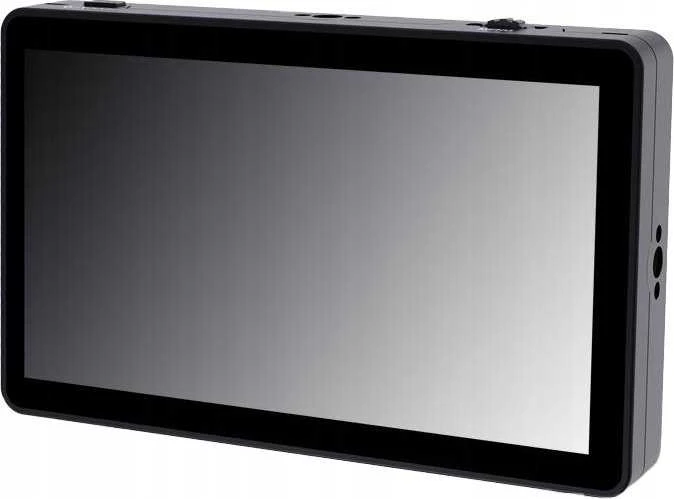

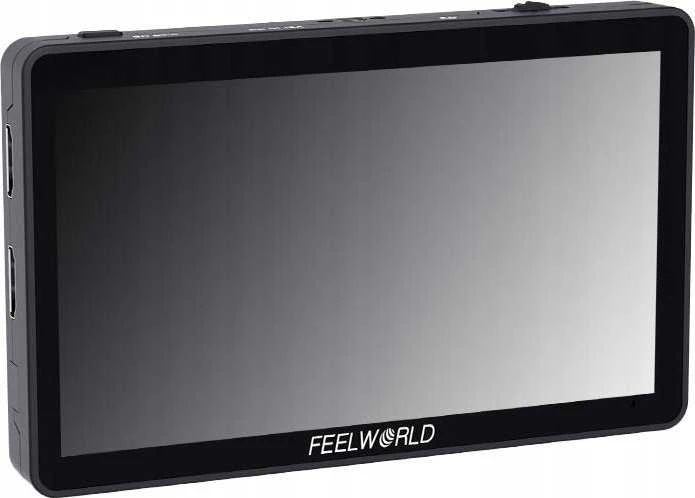

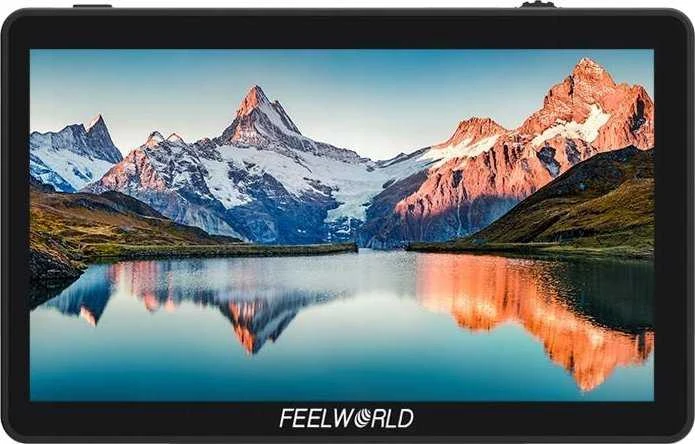

6" 1920 × 1080 Display with Rec. 709 Color Calibration
The 6" IPS screen features a 1920 × 1080 resolution, packing 367 pixels per inch and provides a wide viewing angle of 160° and for easier off-axis position monitoring. Built-in 3D LUT color calibration, which complies with the standard of REC-709, can calibrate each monitors so that it can eliminate the trouble of color cast.

Use simple tap and swipe gestures to make adjustments
The built-in monitor is also an interactive touchscreen that makes setting up the F6 Plus V2 incredibly intuitive. All of the functions are at your fingertips, allowing you to use simple tap and swipe gestures to change function settings. You can easily and intuitively zoom in and out of your shot with the pinch-to-zoom gesture.

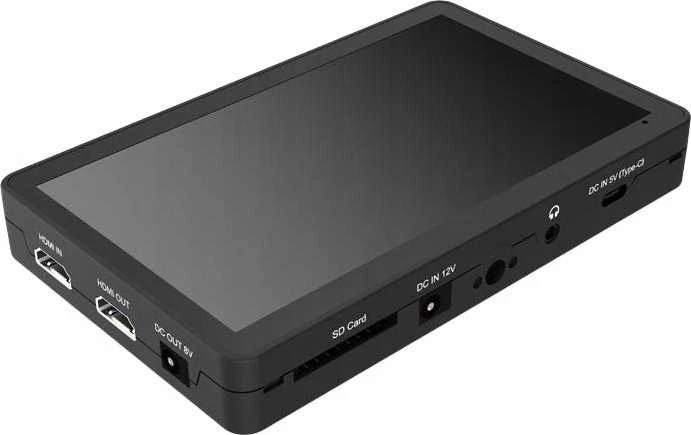

4K HDMI Input & Loop Output
The F6 Plus V2 has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality. Plus, you can monitor audio using the 3.5mm stereo headphone jack.

Power Input

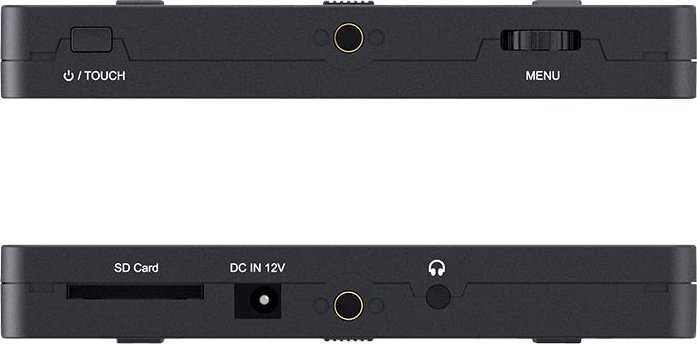

In addition to the power supply through the battery plates and 12V DC power input(can be using 12V/1.5A adapter), it also supports 5V Type-C input, which can be powered by mobile phone charger or power bank. (At least 5V/2A)
Note: The 5V Type-C port is only used for power supply, not for data transmission, and cannot provide loop-out power.

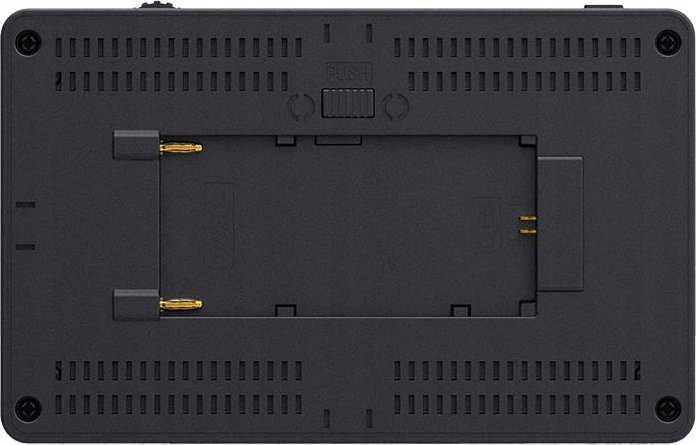

Flexible Dual-purpose Battery Plate
Compatibility with Sony F970 and Canon LP-E6 of lithium batteries for one battery plate. Providing long-time working condition for cameraman in shooting applications.

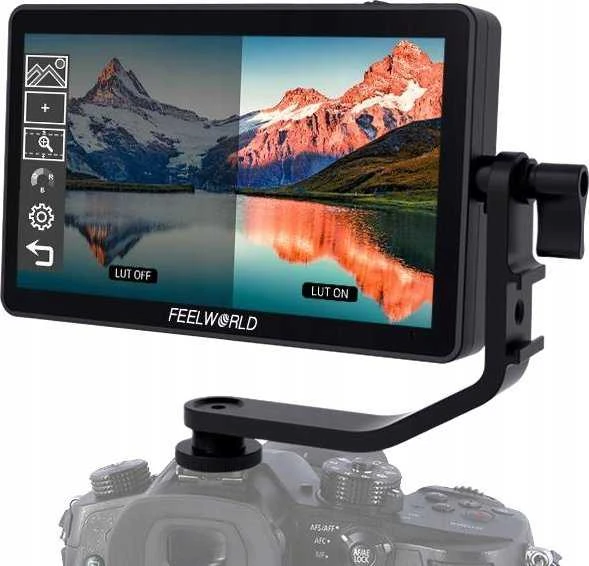

3D LUT Color Calibration and Real-time Preview
F6 Plus provides S-log2/3, V-log, Log-C etc, to convert log mode to REC709 for all major cameras. The LUT loading function makes the color calibration work of the previous shooting easier and more intuitive, optimizes the workflow and improves work efficiency. User creative 3D LUT cube or calibration 3D LUT cube can be uploaded to F6 Plus by SD card.

HDR Monitoring
F6 Plus V2 has built-in HLG 2020, HLG 709, HLG P3 HDR 3D LUT, and Rec709 De-slog3 LUTs, includes SLOG2, SLOG3, LOGC, VLOG. The monitor can display an HDR (high dynamic range) signal for incredible clarity and detail, simplify the complexities of shooting Log and HDR, helping you to replicate post-production workflows at the moment when it matters most–while shooting.

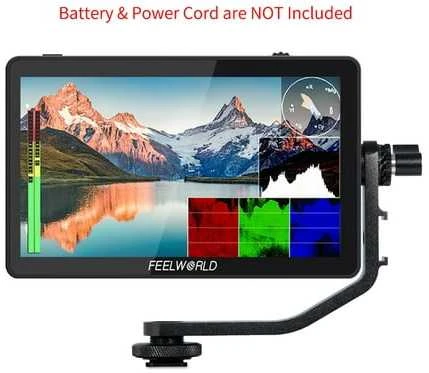

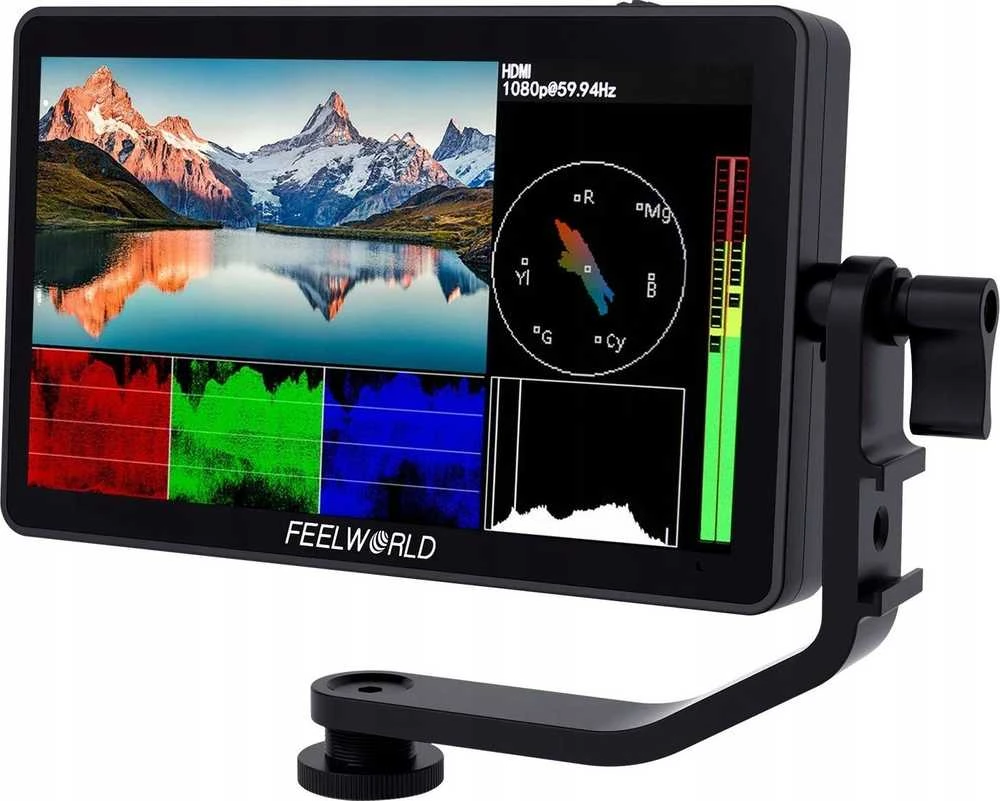

Convenient Mountin
The F6 Plus V2 monitor comes with a cold shoe mounted Tilt Arm. Shooters will have a secure way to position their monitor while maintaining a low profile. It allows the F6 Plus V2 monitor to rotate 360 degrees for viewing convenience anbd it features a shoe mount and a 1/4"-20 thread. The extra shoe mount allows attaching accessories like a microphone, LED light, or wireless receiver, etc.

Portable Sunshade, Easy Install
The F6 Plus V2 monitor is equipped with a sunshade, which allows the photographer to focus more on the video and avoid the interference of strong light, providing a better visual experience. The installation process is simple and fast, which is very suitable for outdoor shooting.

Key Features

• Support 3D LUT Log to Rec.709, user 3D LUT Upload
• Support Touch Menu
• High Resolution: Full HD 1920x1080, High Contrast: 1000:1
• 160° wide viewing angles IPS Panel

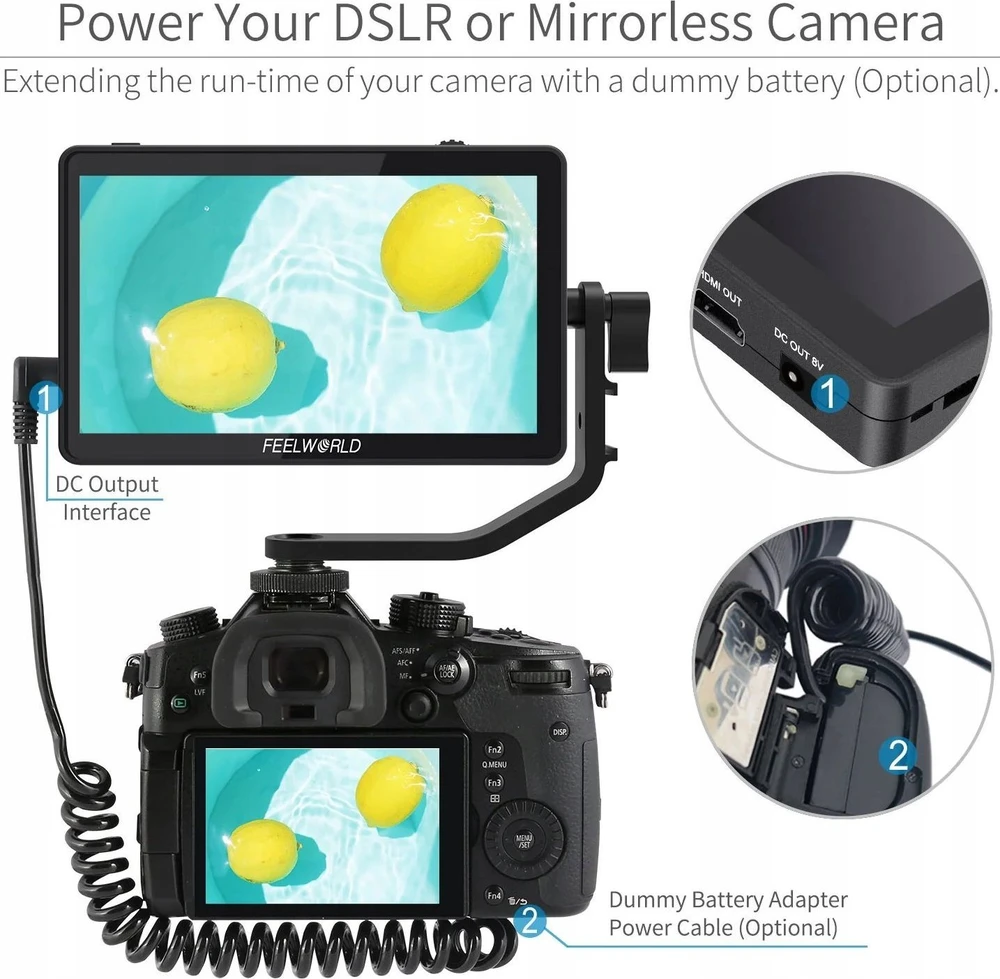

• Provides auxiliary power out; allowing shooters to power their cameras
• Support HDR monitoring
• Parade (RGB, YUV, Y)
• VectorScope
• Histogram
• Support screenshot, image overlay
• Peaking Focus Assist (red, green,blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)
• False Colors
• Zebra Exposure (1%~100% adjustable)
• Scan Mode (Under Scan, Over Scan)
• Zoom (100%~300%)
• Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)
• Pixel to Pixel
• Nine Grid
• Center Marker
• Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1)
• Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
• Marker Color (red, green, blue, white, black, yellow)
• Check Field (red, green, blue, gray)
• Image Flip (H, V, H/V)
• Image Freeze
• Color Temperature Adjustment

• Feelworld F6 Plus V2 video monitor
• Micro HDMI Cable
• Sunshade
• Tilt Arm
• Manual
