VOLTCRAFT 4106c4

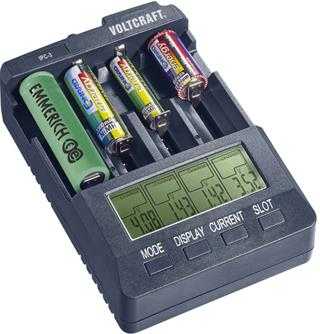

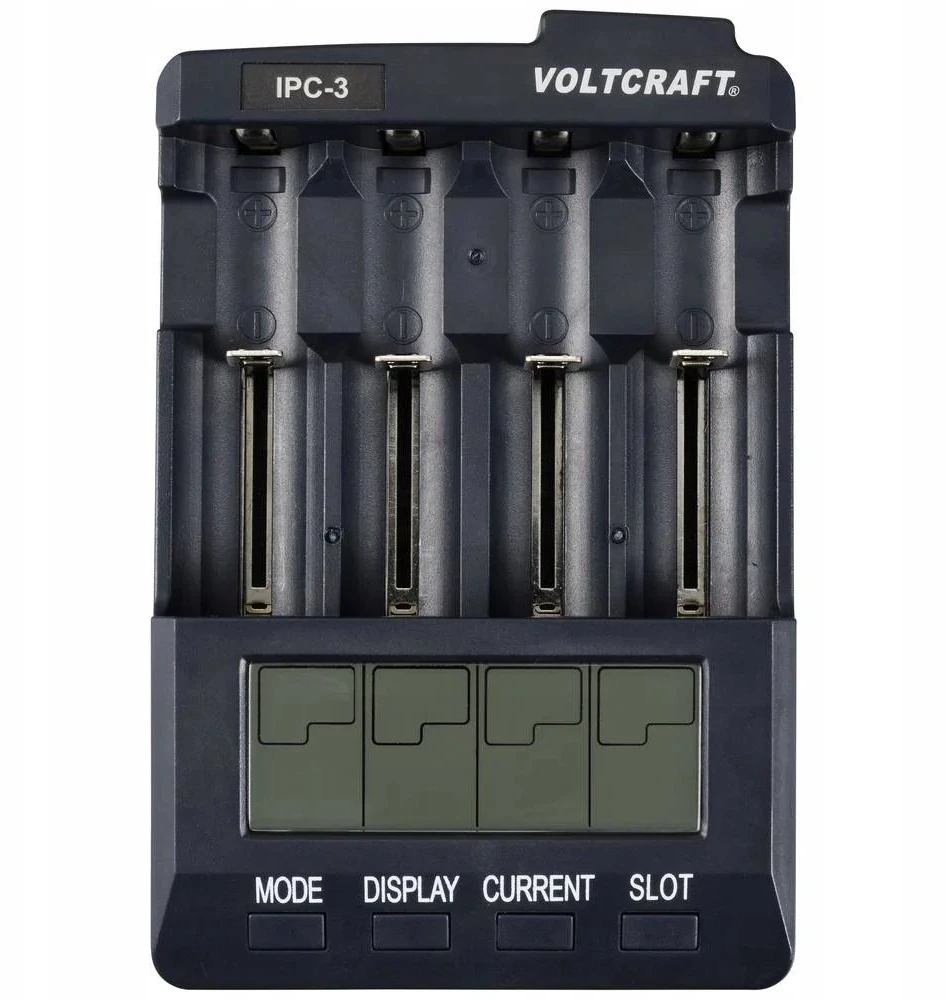

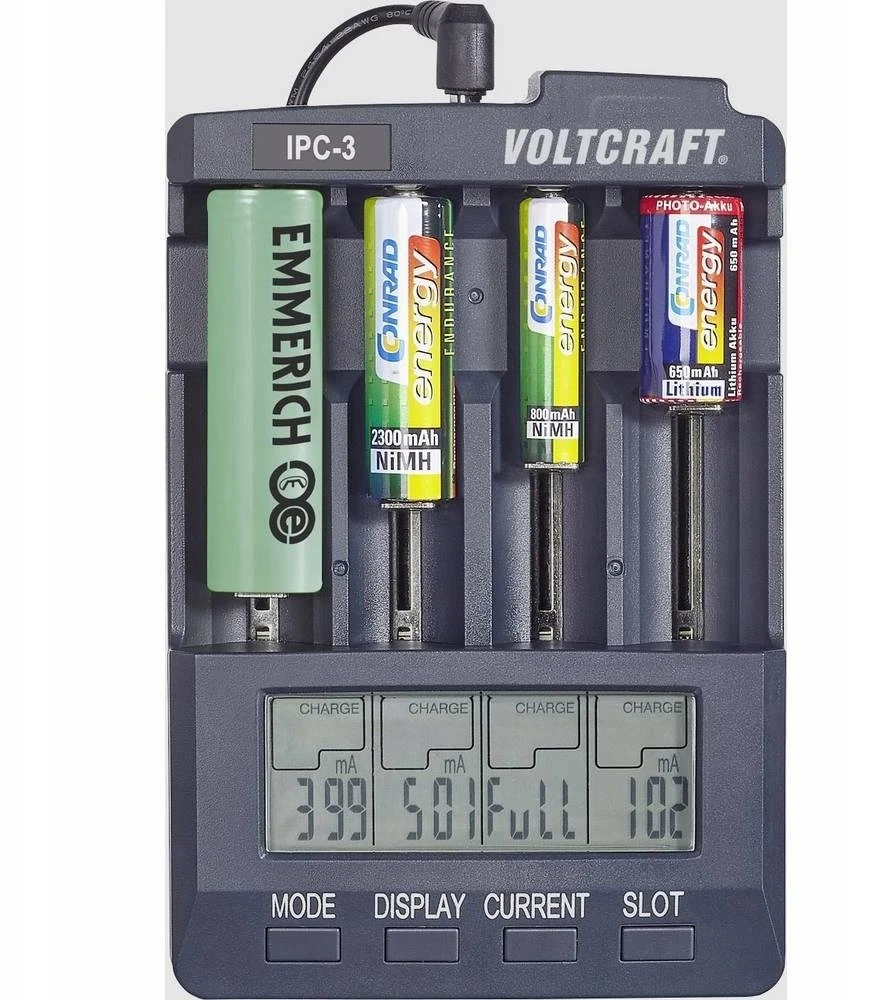

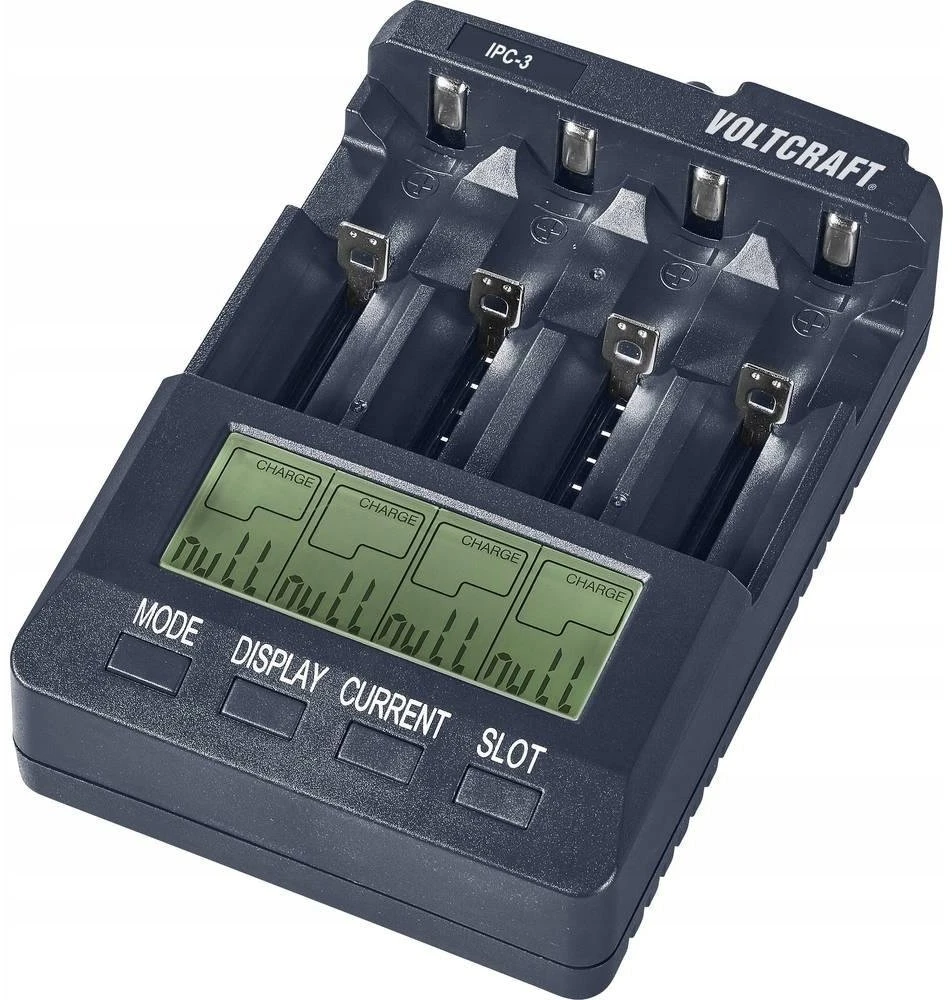

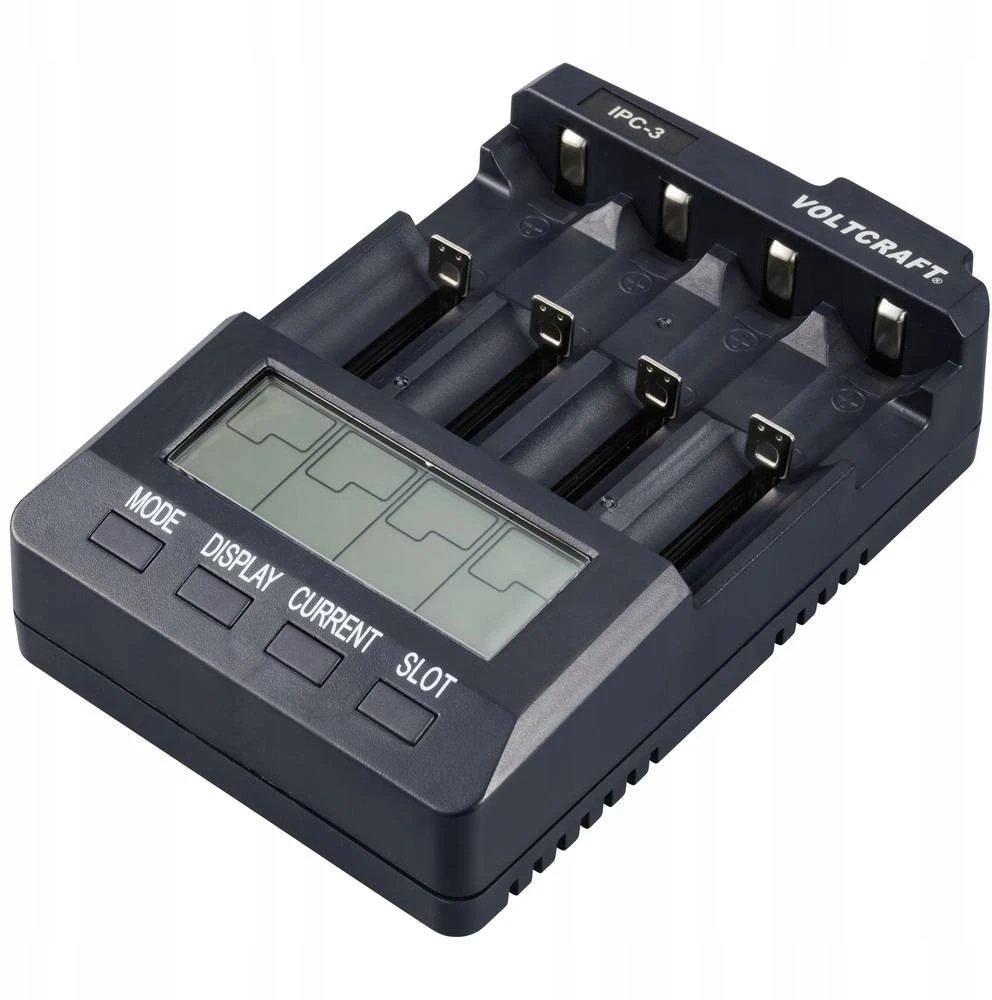

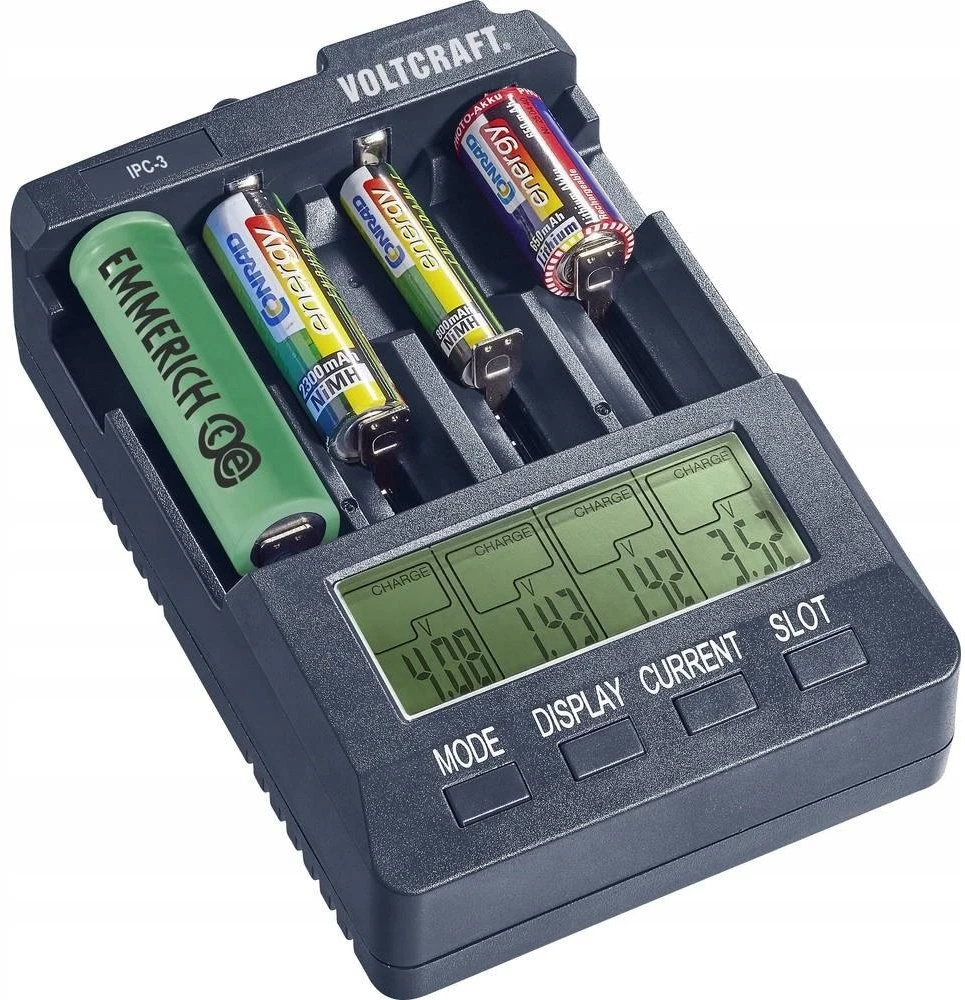

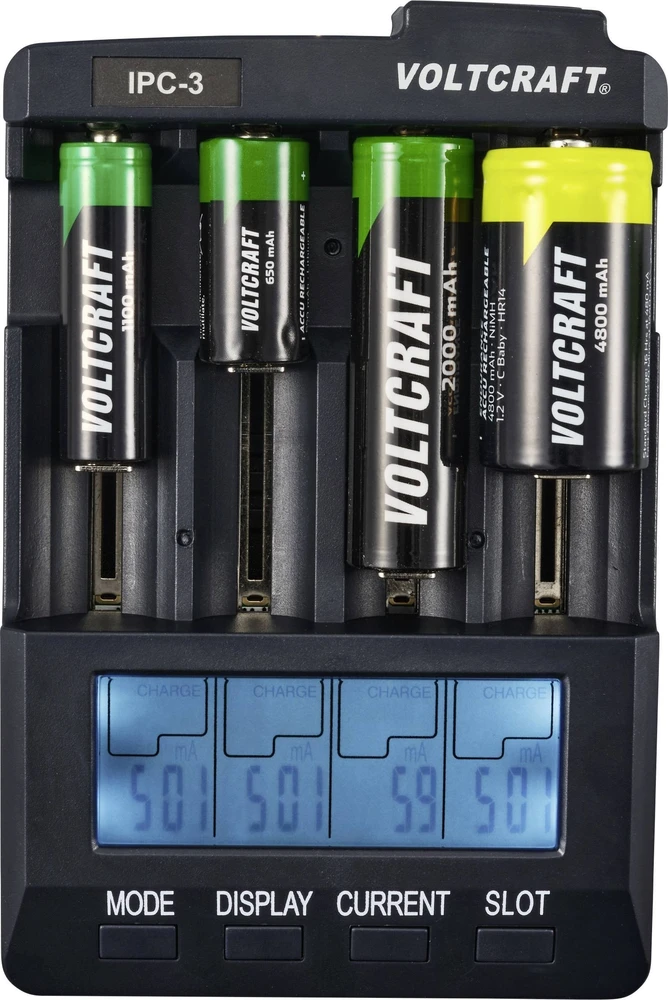

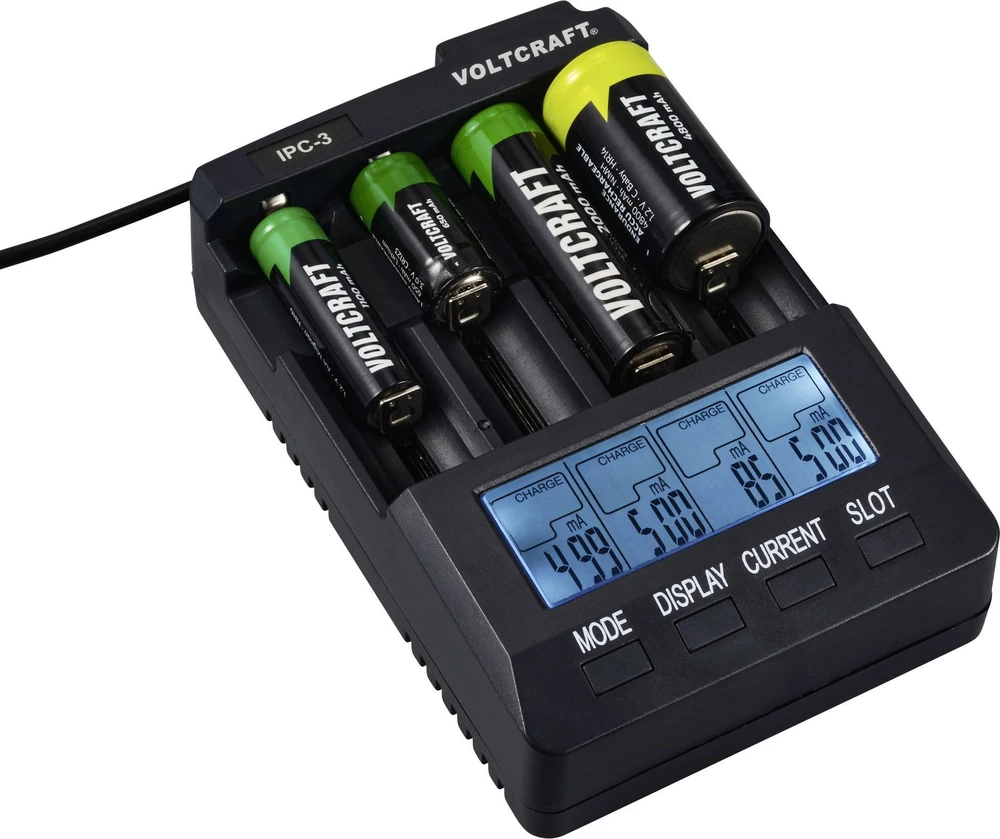

The IPC-3 smart charger can charge NiCd and NiMH batteries as well as Li-Ion round cells. These include the most common 18650 batteries, but also 14500, CR-123A and others. Batteries of various sizes with different capacities can be charged without any problems. Operation is very easy - simply insert the batteries and the device starts charging. The charger also has a battery test function that automatically detects the condition of the batteries or whether they are inserted correctly. If needed, the Refresh function is activated to restore the functionality of the batteries and extend their life. Thanks to the backlit LCD, the current parameters and charging progress can always be reviewed.

Technical specifications
Adjustable charging current 200, 300, 500, 700, 1000, 1500, 2000 mA
Adjustable discharge current 200, 300, 500, 700 mA
Max. charging capacity 20000 mAh
Power supply cable length 145 cm

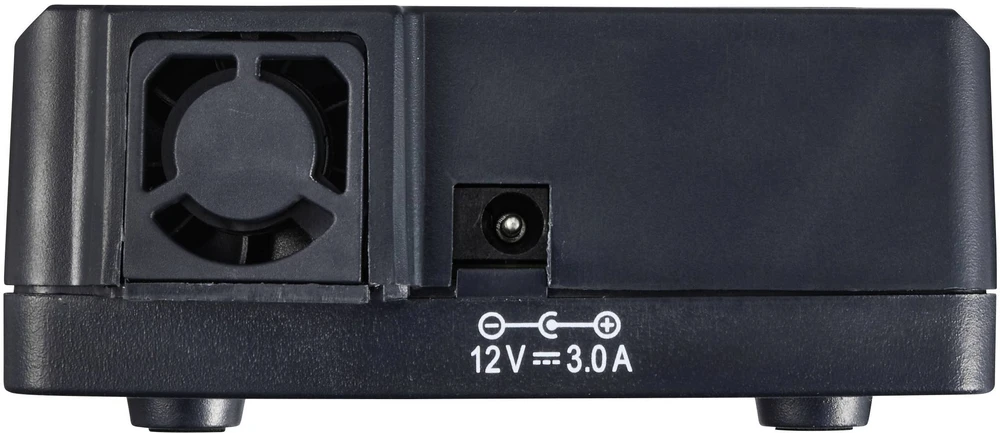

Charger input voltage 12 V
Compare with another product Technical parameters
Suitable battery Li-Ion - NiCd - NiMH

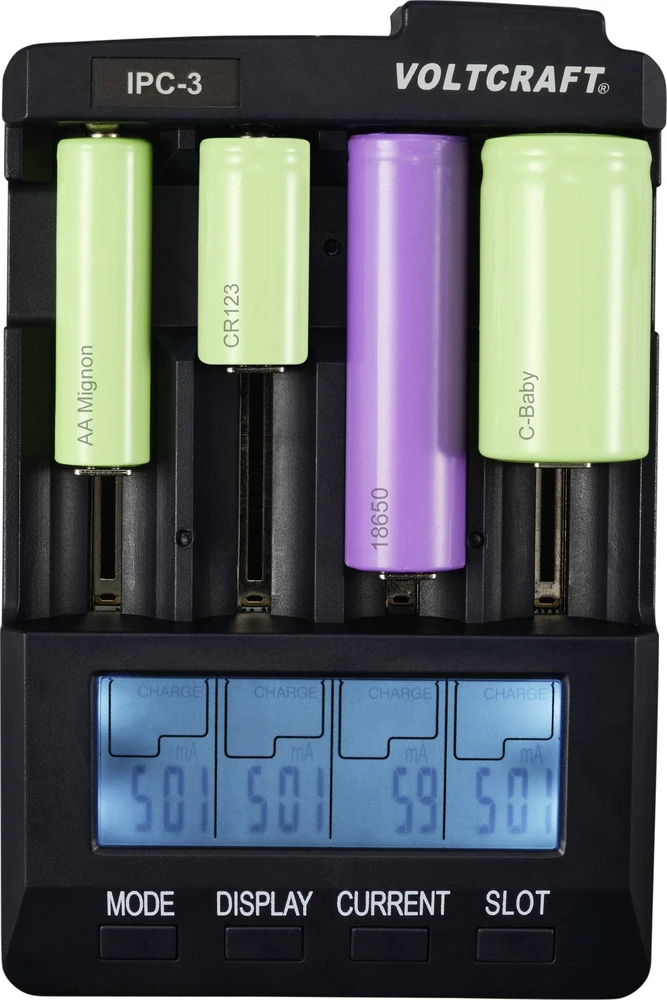

Suitable for battery size 14500 - 16650 - 17500 - 17670 - 18500 - 18650 - 22650 - CR-123A - AAA - AA - small mono
Number of charging channels/channels 4
Operating voltage 100 V - 240 V
Discharge current 700 mA
Max. charging current per shaft 1000 mA
Charger features Charging function - graphic display
Typical charging time for a 2000 mAh AA battery 70 min
Charger type Battery charger
Width 100 mm
Height 42 mm
Dimension, depth 151 mm
Weight 230 g
Equipment
For NiCd, NiMH and Li-Ion batteries
Quick battery test function
Adjustable charging and discharging currents
Test and Refresh functions

Features
Microprocessor controlled
Charge cycle shutdown based on characteristic drop, called "Minus Delta U" (-dV)
Single slot monitoring
Adjustable charge and discharge currents
Automatic maintenance charging
Quick battery test function
Discharge function
Temperature monitoring
Recognition of badly inserted or damaged batteries
Overcharge protection
Easy operation with 4 buttons
Overload protection
Large LCD display with backlight

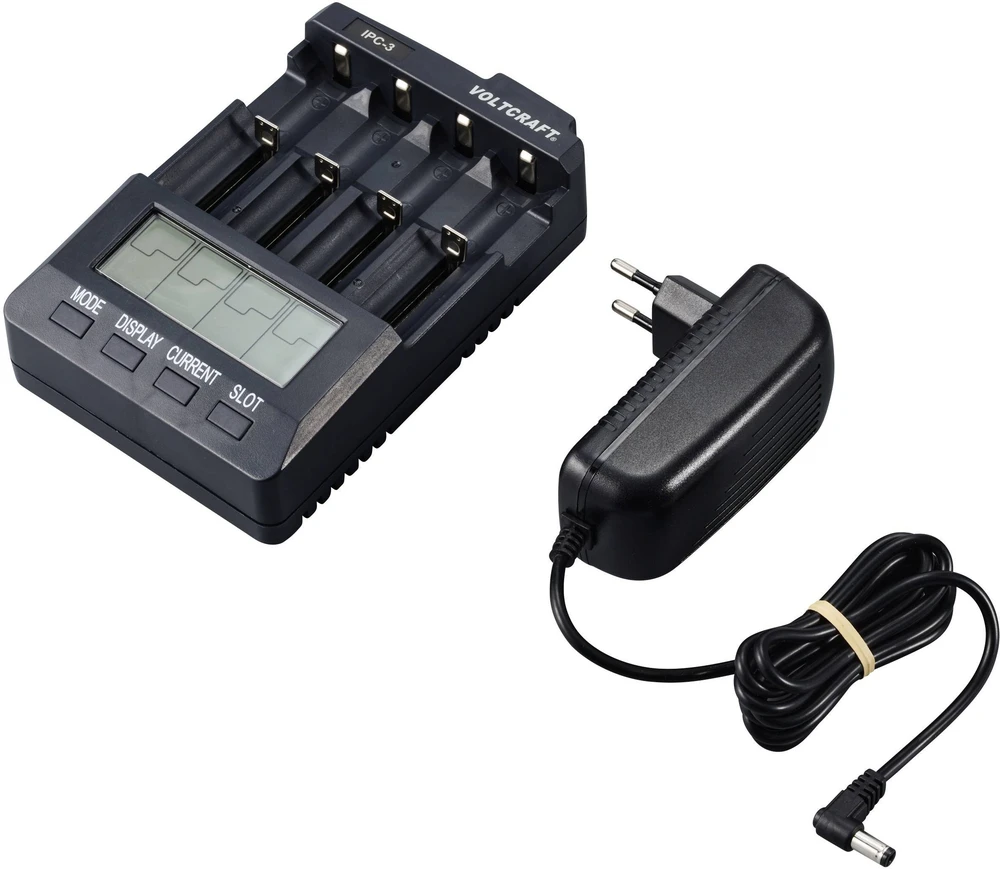

Scope of delivery
IPC-3
Power supply
