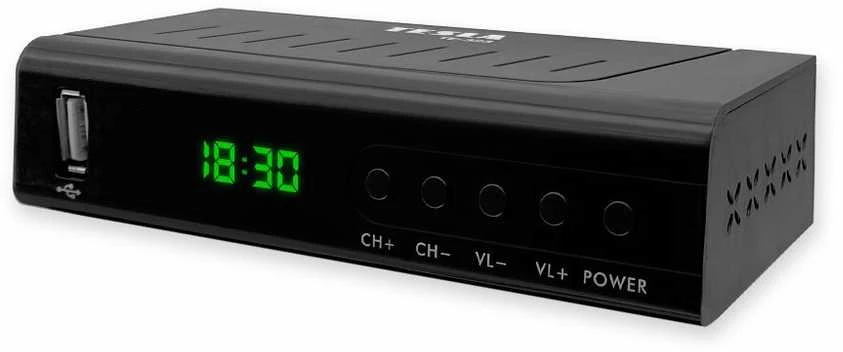

Tesla TE-323 Imtuvas DVB-T2

Set-top box for the new digital broadcasting in the Czech Republic DVB-T2 H.265 (HEVC) and for the existing DVB-T through a classic antenna with the possibility of placing behind the TV.






Installation

Quick and easy automatic channel setup and tuning thanks to the integrated installation wizard. Manual tuning on a channel-by-channel basis is also possible.

Localization not only in English

Menus, EPG (electronic programme guide) and teletext are adapted to English. In the settings, the language can be changed to Slovak, English, Polish, Italian or Croatian.







Connecting to TV

The set-top box can be connected to modern TVs via HDMI cable, for older models you can use the SCART connector.

Multimedia

Movies, music or photos can be played via USB external storage. The receiver also allows you to record TV shows with scheduling options. You can play shows at any time and rewind commercials. In addition, the TimeShift function allows you to pause a live broadcast and resume it later.







HDMI-CEC function

HDMI-CEC connects and controls devices via a single remote control. For example, the remote control of a set-top box can control the TV at the same time.

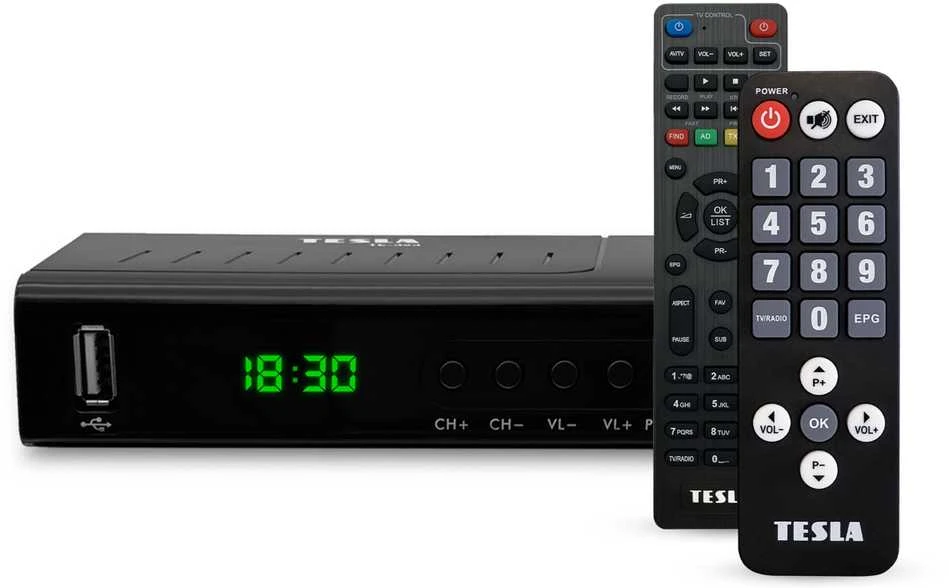

Universal and senior remote control

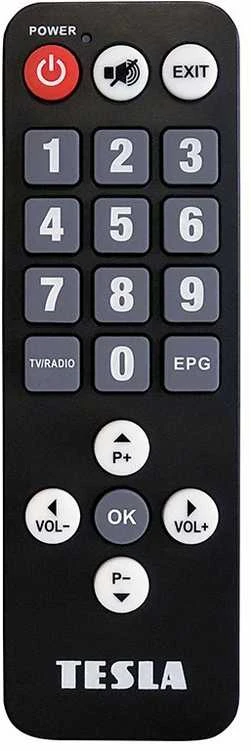

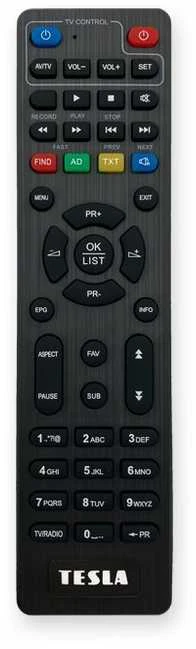

The package contains two types of remotes: universal and simplified. Universal can be programmed with the original TV remote and serves as the only remote needed. The simplified version is suitable for seniors and people with less dexterity. It has only basic buttons for on/off, channel switching and volume adjustment, reducing the risk of misadjustment. The large buttons are easy to see even for people with poor eyesight.







Positioning the receiver behind the TV

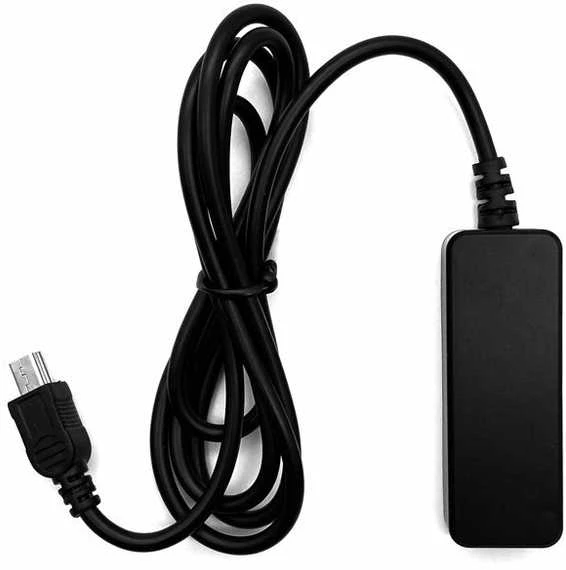

Thanks to its small size, the TESLA TE-323 is easily concealed behind the TV. Just connect an external IR sensor and place it in front of the TV to maintain the functionality of the remote control.




Specifications


tuner compatible with DVB-T2, H.265 (HEVC)
HDMI-CEC support, the receiver can turn on and off the TV via HDMI cable (the condition is that the TV supports this function)
Dolby Digital
Backward compatible with MPEG-4 HD/MPEG-4 SD/AVC/H.264 HP@L4, MPEG-2 and MPEG-4 SD
Support for time recording, manual entry of start and stop time
4:3PS/4:3LB/16:9/Auto picture mode
Resolution 576i, 576p, 720p, 1080i, 1080p
FAT32 support
recording to .TS format
Easy automatic installation and tuning of programs or channel-by-channel tuning
manual program sorting
clear Czech menu on screen
Czech Electronic Program Guide EPG
Czech teletext
Support for MPEG2/M2TS/TS/AVI/MKV/3G2/3GP/MP4/MOV/FLV/F4V/VOB/WAV
support for internal and external Czech DivX/MKV subtitles
automatic photo presentation
parental lock
support for updating the device from the USB port
standby power consumption less than 1 W
4 MB SPI flash memory
SDRAM memory DDR 64 MB

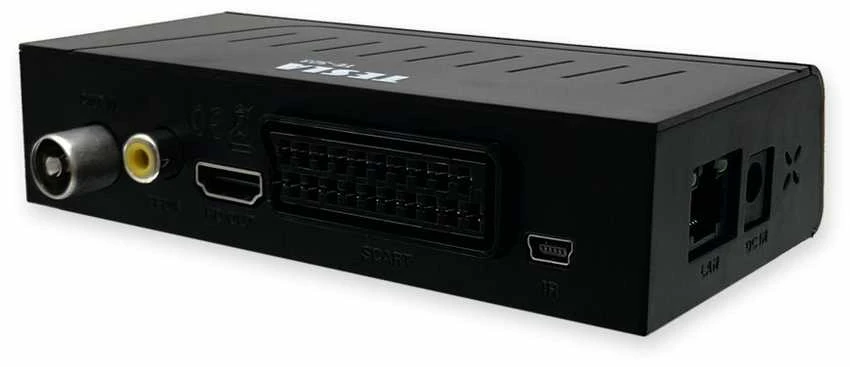

Interface – back side


HDMI output (HD OUT)
SCART
Digital audio S/PDIF output (Cinch)
antenna input
IR sensor input

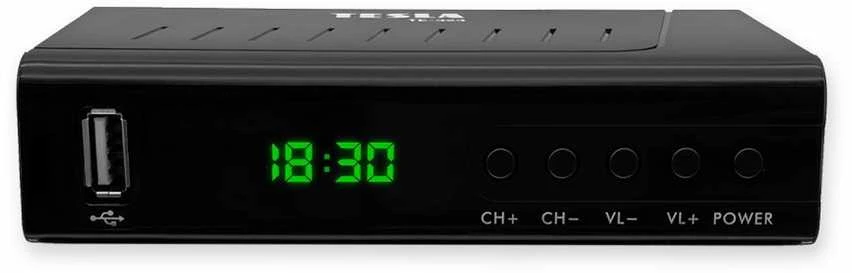

Interface – front side


USB port 2.0




Interface – side


Ethernet LAN input (RJ45) - for service purposes
power adapter input




Package includes


TE-323 receiver
Programmable remote control
large (senior) remote control
2x AAA batteries
HDMI cable
12V/1A power adapter
user manual CZ, SK, HR, IT, PL
IR sensor cable




Dimensions


receiver dimensions 130 x 65 x 30 mm, weight 112 g
IR sensor dimensions 60 x 20 x 10 mm, weight including cable 31 g
Controller dimensions 175 x 45 x 15 mm, weight 53 g





HDMI-CEC must be supported by both devices. However, correct operation may not always be guaranteed.
