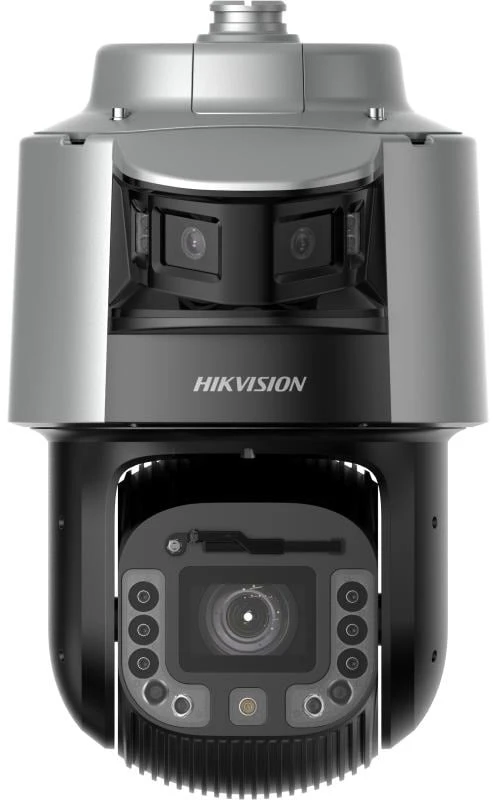

Name: Hikvision TandemVu PTZ DS-2SF8C425MXG1-ELW/26(F0)
Brand: Hikvision
SKU: 54627445
Price: 2100.57 EUR
Availability: InStock

Patvirtinimai
Apsauga nuo korozijos NEMA 4X (NEMA 250-2018)
EMC CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7)
Aplinkosauga CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
Apsauga IP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection,IK10 (IEC 62262:2002, excluding glass window)
Saugumas CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)

Garsas
Garso bitų dažnis 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),64 Kbps (G.711),16 Kbps (G.726),16 Kbps (G.722.1),8-48 Kbps (PCM)
Garso glaudinimas G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
Garso atrankos dažnis 8 kHz,16 kHz,32 kHz,48 kHz
Pašalinių garsų šalinimas Yes

Kamera
Diena&Naktis [Panoramic channel] Day,Night,Schedule,Auto, [PTZ channel] Day,Night,Schedule,Auto
Vaizdo jutiklis [Bullet channel] 1/2.5" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS
Didžiausia raiška [Panoramic channel] 3680 × 1656, [PTZ channel] 2688 × 1520
Minimalus apšvietimas [Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light,[PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON), 0 lux with IR
Užrakto greitis 1 s to 1/30000 s
Lėtas užraktas Yes
Priartinimas [PTZ channel] 25 × optical, 16 × digital

Išmaniosios funkcijos
Veido atpažinimas Detects up to 30 faces simultaneously,Uploads face with background and closed-up face pictures
Face Comparison Up to 10 face libraries. 30000 faces for each library. 150000 faces in total,Recognizes face identity via face modeling, grading and comparing to those in face library,Supports face library encryption
Multi-Target-Type Detection Supports simultaneous detection and capture of human body, face and vehicle,Gets 7 face features, 14 human body features and 8 vehicle features
Perimetro apsauga Line crossing detection, region entrance detection, intrusion detection, region exiting detection
Kelių eismo ir transporto priemonių aptikimas Smart Function:Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.Support vehicle and non-vehicle countingBlocklist and allowlist: up to 10,000 recordsLPR Countries/Regions:4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regionsAccuracy (Under recommended installation and lighting conditions):License plate recognition rate ≥98%Capture rate ≥99%Driving direction accuracy rate ≥98%Vehicle Capture Speed:Front installation in checkpoint scenario: up to 120 km/hSide installation: up to 80 km/hCapture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode

Funkcijos
Pagrindinės funkcijos [PTZ channel & panoramic channel] alarm input and output, exception,[PTZ channel] video tampering alarm
Sąsaja [Panoramic channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Išmaniosios funkcijos Line crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection,loitering detection,people gathering detection,fast moving detection,parking detection
Išmani jungtis Manual tracking, tracking takeover, linked tracking capture

Bendra
Rasos šalinimas Yes
Matmenys Ø290 mm × 453.2 mm (Ø11.42" × 17.84")
Pagrindinės funkcijos mirror,password protection
Kalba 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Medžiaga ADC12
Darbo sąlygos -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F)
Galia 36V, 2.5 A, PoE(802.3 bt), 42.5 to 57 V, 1.76 A
Svoris Approx. 10.5 kg ( 23.15 lb.)
Wiper Yes

Apšvietimas
Išmanus papildomas apšvietimas Yes
Papildomo apšvietimo diapazonas [Panoramic channel] white light: up to 30 m, [PTZ channel] IR: up to 300 m

Nuotrauka
Dienos/nakties perjungiklis Day,night,auto,schedule
Rūko šalinimas Digital defog
Nuotraukų pagražinimas HLC,3D DNR
Nuotraukos parametrų keitiklis Yes
Vaizdo nustatymai Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Vaizdo stabilizavimas EIS (Built-in gyroscope to improve EIS performance)
Privatumo kaukė [Panoramic channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
Regioninė ekspozicija Yes
Regioninis fokusavimas [Panoramic channel] No, [PTZ channel] Yes
SNR ≥ 52 dB
Wide Dynamic Range (WDR) [Bullet channel] 120 dB, [PTZ channel] 150 dB

Sąsaja
Signalizacija 7 input(s), 2 output(s)
Garsas 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
Integruotas garsiakalbis 1 built-in speaker
Interneto sąsaja 1 RJ45 100M self-adaptive Ethernet port
Saugyklos vieta Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB .
RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Perkrovimas Yes

Objektyvas
Diafragma [Panoramic channel] F1.0, [PTZ channel] F1.6
FOV [Panoramic channel] horizontal field of view: 190° ± 5°°, vertical field of view: 80° ± 5°, [PTZ channel] horizontal field of view: 58.5° to 3.1°, vertical field of view: 34° to 1.7°, diagonal field of view: 65.8° to 3.5°
Židinio nuotolis [Panoramic channel] 2.8 mm, [PTZ channel] 6 to 150 mm
Fokusavimas Auto,semi-auto,manual
Priartinimo greitis [Panoramic channel] No, [PTZ channel] approx. 5.6 s

Linkage and Tracking
Object Tracking Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.
Išmanus sekimas Manual tracking, auto-tracking 3.0

Tinklas
API ONVIF (Profile S, Profile G, Profile T, Profile M),ISUP,ISAPI,SDK,OTAP
Klientas iVMS-4200,HikCentral Pro,Hik-Connect
Vidinė atmintis NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
Protokolai IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
Saugumas Password protection,complicated password,HTTPS encryption,IP address filter,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2)
Tiesioginis vaizdo žiūrėjimas Up to 20 channels
Naudotojas/prievadas Up to 32 users. 3 user levels: administrator, operator, and user
Naršyklė Plug-in required live view: IE8+Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+Local service: Chrome 41.0+, Firefox 30.0+

PTZ
3D pozicija Yes
Movement Range (Pan) 360° endless
Movement Range (Tilt) [Panoramic channel] 12° to 24°, [PTZ channel] -20° to 90°
PTZ būsenos vaizdavimas Yes
Pan greitis [PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
Park Action Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
Patruliavimas 8 patrols, up to 32 presets for each patrol
Išsaugotų rėžimų skenavimas 4 pattern scans, record time over 10 minutes for each scan
Išjungimo atmintis Yes
Išsaugotų nustatymų sustabdymas Yes
Iš anksto išsaugoti nustatymai 300
Proporcingas Pan [Panoramic channel] No, [PTZ channel] Yes
Užduočių grafikas Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
Tilt greitis [PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s,[Panoramic channel] tilt speed configurable

Supplement Detection
Compass No
Gyroscope Yes
Satellite Positioning No

Vaizdas
H.264 tipas Baseline profile,Main profile,High profile
H.265 tipas Main profile
Pagrindinis srautas [Panoramic channel] 50 Hz: 25 fps (3680 × 1656，3632 × 1632), 60 Hz: 30 fps (3680 × 1656，3632 × 1632)[PTZ channel] 50 Hz: 50 fps (2688 × 1520, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 60 fps (2688 × 1520, 2560 × 1440), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720)*High frame rate is supported under monitoring mode only.
Region of Interest (ROI) 8 fixed regions for each stream
Scalable Video Coding (SVC) H.264 and H.265 encoding
Antrinis srautas [PTZ channel] 50 Hz: 25 fps (704 × 576,640 × 480,352 × 288), 60 Hz: 30 fps (704 × 480,640 × 480,352 × 240),[Panoramic channel] 50 Hz: 25 fps (1200 × 536、960x432), 60 Hz: 30 fps (1200 × 536,960 × 432)
Trečias srautas [PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),[Panoramic channel] No
Vaizdo bitų dažnis 32 Kbps to 16 Mbps
Vaizdo glaudinimas Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264/MJPEG
