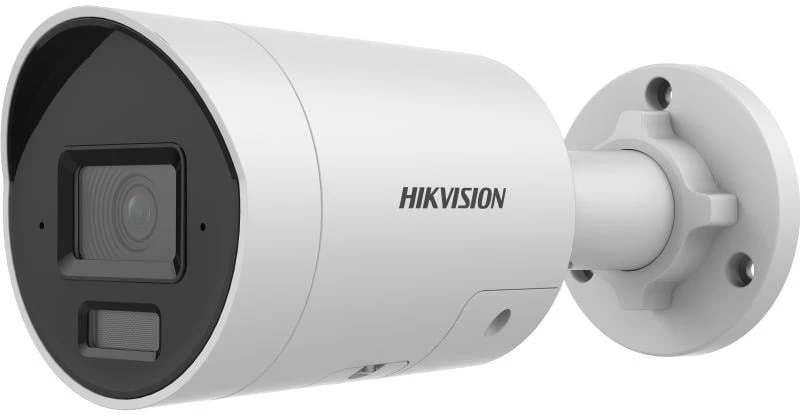

Name: Hikvision bullet DS-2CD2083G2-LI2U F2.8 (balta, 8 MP, 40 m IR+LED, AcuSense)
Brand: Hikvision
SKU: 54495279
Price: 186.48 EUR
Availability: OutOfStock

Patvirtinimai
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
Aplinkosauga CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Apsauga IP67: IEC 60529-2013
Saugumas CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,LOA: IEC/EN 60950-1

Garsas
Garso bitų dažnis -2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Compression -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso atrankos dažnis -2U: 8 kHz/16 kHz/32 kHz/48 kHz
Pašalinių garsų šalinimas -2U: Yes

Camera
Kampo keitimas Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Diena&Naktis IR cut filter
Vaizdo jutiklis 1/2.8" Progressive Scan CMOS
Didžiausia raiška 3840 × 2160
Minimalus apšvietimas Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Užrakto greitis 1/3 s to 1/100,000 s

DORI
DORI 2.8 mm, D: 84 m, O: 33 m, R: 16 m, I: 8 m4 mm, D: 117 m, O: 46 m, R: 23 m, I: 11 m6 mm, D: 176 m, O: 70 m, R: 35 m, I: 17 m

Išmaniosios funkcijos
Perimeter Protection Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)

Funkcijos
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Sąsaja Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
Išmaniosios funkcijos Unattended baggage detection, object removal detection,Face detection

Bendra informacija
Matmenys Ø74.4 mm × 176.3 mm (Ø2.93" × 6.94")
Pagrindinės funkcijos Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Kalba 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Medžiaga Metal
Pakuotės dydis 234 mm × 120 mm × 117 mm (9.21" × 4.72" × 4.61")
Galia 12 VDC ± 25%, 0.5 A, max. 6 W,reverse polarity protection,Ø5.5 mm coaxial power plug,PoE: IEEE 802.3af, Class 3, max. 7.5 W
Darbo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Sandėliavimo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Svoris Approx. 515 g (1.1 lb.)
Svoris su įpakavimu Approx. 760 g (1.7 lb.)

Apšvietimas
IR bangos ilgis 850 nm
Išmanus papildomas apšvietimas Yes
Papildomo apšvietimo diapazonas Up to 40 m
Papildomo apšviešimo tipas IR,White Light

Nuotrauka
Dienos/nakties perjungiklis Day,Night,Auto,Schedule
Nuotraukų pagražinimas BLC,HLC,3D DNR
Nuotraukos parametrų keitiklis Yes
Vaizdo nustatymai Rotate mode
Privatumo kaukė 8 programmable polygon privacy masks
SNR ≥ 52 dB
Wide Dynamic Range (WDR) 120 dB

Sąsaja
Garsas Built-in Microphone:-2U: Dual Array Microphone
Interneto sąsaja 1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintis Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Perkrovimo mygtukas Yes

Objektyvas
Diafragma F1.6
Ryškumo gylis 2.8 mm: 1.7 m to ∞4 mm: 2.6 m to ∞6 mm: 5.8 m to ∞
Focal Length & FOV 2.8 mm, horizontal FOV 108°, vertical FOV 59°, diagonal FOV 127°4 mm, horizontal FOV 88°, vertical FOV 44°, diagonal FOV 105°6 mm, horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63°
Rainelės tipas Fixed
Objektyvo tvirtinimas M12
Objektyvo tipas Fixed focal lens, 2.8, 4, and 6 mm optional

Tinklas
API Open Network Video Interface (Profile S, Profile G),ISAPI,SDK,ISUP
Klientas iVMS-4200,Hik-Connect,Hik-Central
Vidinė atmintis NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Protokolai TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Saugumas Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
Tiesioginis vaizdo žiūrėjimas Up to 6 channels
Naudotojas/prievadas Up to 32 users3 user levels: administrator, operator, and user
Naršyklė Plug-in required live view: IE 11,Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

Vaizdas
Bitų dažnio valdymas CBR,VBR
H.264 tipas Baseline Profile,Main Profile,High Profile
H.265 tipas Main Profile
Pagrindinis srautas 50 Hz:20 fps (3840 × 2160)25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz:20 fps (3840 × 2160)30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Scalable Video Coding (SVC) H.264 and H.265 encoding
Antrinis srautas 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Tikslinis apkarpymas Yes
Trečias srautas 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*Third stream is supported under certain settings.
Vaizdo bitų dažnis 32 Kbps to 16 Mbps
Video Compression Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,*Third stream is supported under certain settings.
