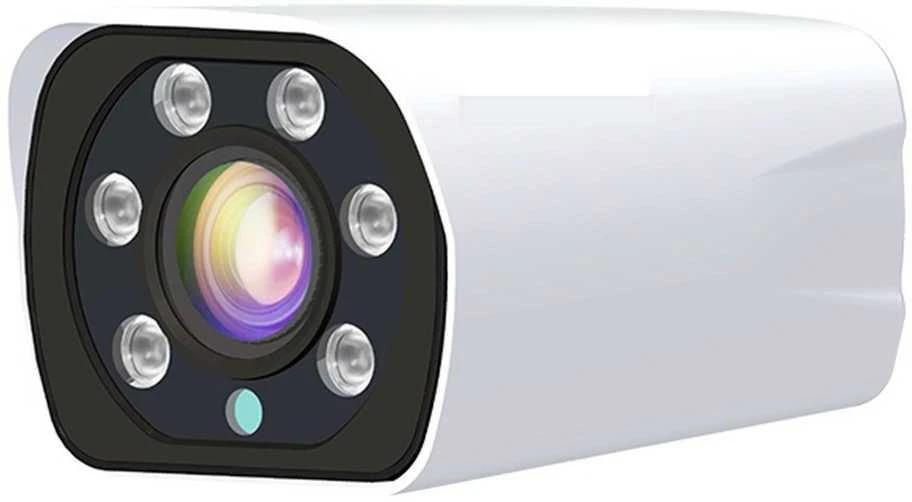

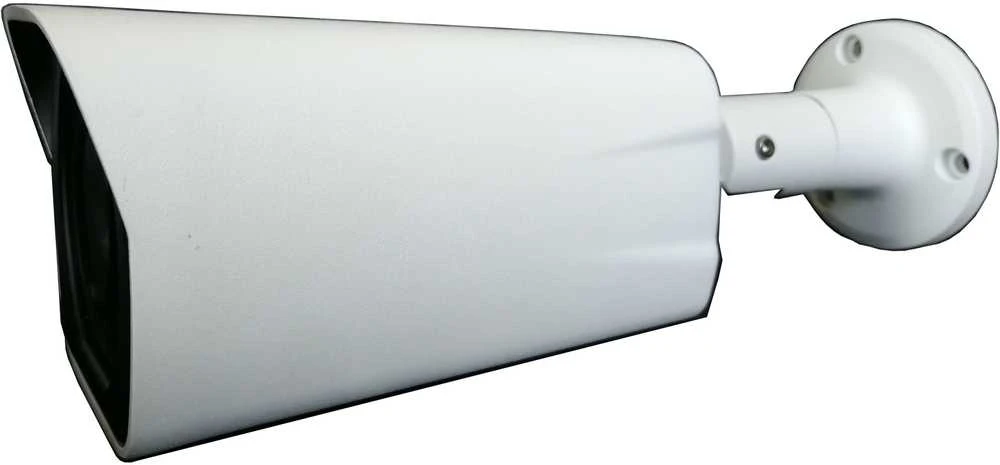

Digitalas 60a70Z 5MP IP vaizdo stebėjimo kamera lauko sąlygoms

MODEL

60A70Z

BASIC PARAMETER

Image Sensor

1/2.7″ SC5235

Chipset

MSC316DM

Effective Pixels

5MP

Min. Illumination

Color ： 0.1Lux@F1.2 ； B&W ： 0Lux@F1.2 （ IR on ）

IR Distance

40-50M （ 6 x IR III Array IR Lamps ）

Lens

M12 4mm fixed lens （ 6/8mm optional ）

Noise Reduction

3D digital noise reduction

WDR

Support WDR （ D-WDR ） . ＞ 80db

BLC

Support

S/N Ratio

≥ 50db(AGC closed)

Image Settings

Support for brightness. contrast. saturation. white balance. AWB (automatic white balance). AGC (automatic gain). AE (automatic exposure); support privacy area; normal / 90 ° / 270 ° image rotation; Automatic. manual color to black and other switches.

AUDIO / VIDEO ENCODING

Encoding Format

H.265 Main Profile Encoding ；

H.264 Baseline/ Main Profile/High Profile Encoding

Image Resolution

Main stream

2592×1944. 15 fps

2592×1520. 20 fps

2048×1536. 25 fps

Sub stream

704*576. 15-25 fps

640*480. 15-25 fps

Video Bit Rate

32Kbps-16Mbps continuously adjustable. support CBR / VBR

Overlay

Channel name. date time. steam info; position is adjustable.

DATA TRANSMISSION & STORAGE

Video 、 Image

Manual. automatic (cycle. timing. alarm switch. motion detection)

FTP. E-mail. Browser. Management software

TCP/IP.UDP.HTTP.DHCP.RTSP.DDNS.NTP.PPPOE.UPNP.SMTP.ONVIF

ONVIF Protocol; SDK

Smart Functions

Target count. item left/lost. area detection. line crossing;

Client Browse

Support IE6.0 and above browser. support 8 users concurrent access (MAX)

P2P Remote

AEeye2.0 supports iPhone. iPad. Android system smartphone

Support Windows 7 and above computer client. Apple MAC computer client

Other

Support corridor mode to increase monitoring area in vertical and long environment

PORT

Network

RJ45. 10M/100M network adaptive

GENERAL

Operation T/H

-20°C ~ 55°C/0﹪-90﹪

Waterproof

IP67

Power Supply

DC12V /POE

Power Consumption

<10W (MAX)

Camera: 132(L)*84.9(W)*74.4(H)mm.

With Package: 205mm(L)*120mm(W)*105mm(H)

980g

24pcs/carton. size ： 520mm(H)*435mm(W)*350mm(H)  Weight:19.5kg
