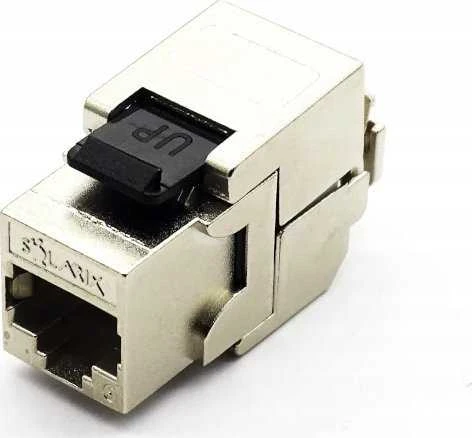

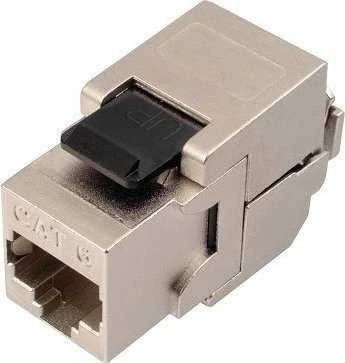

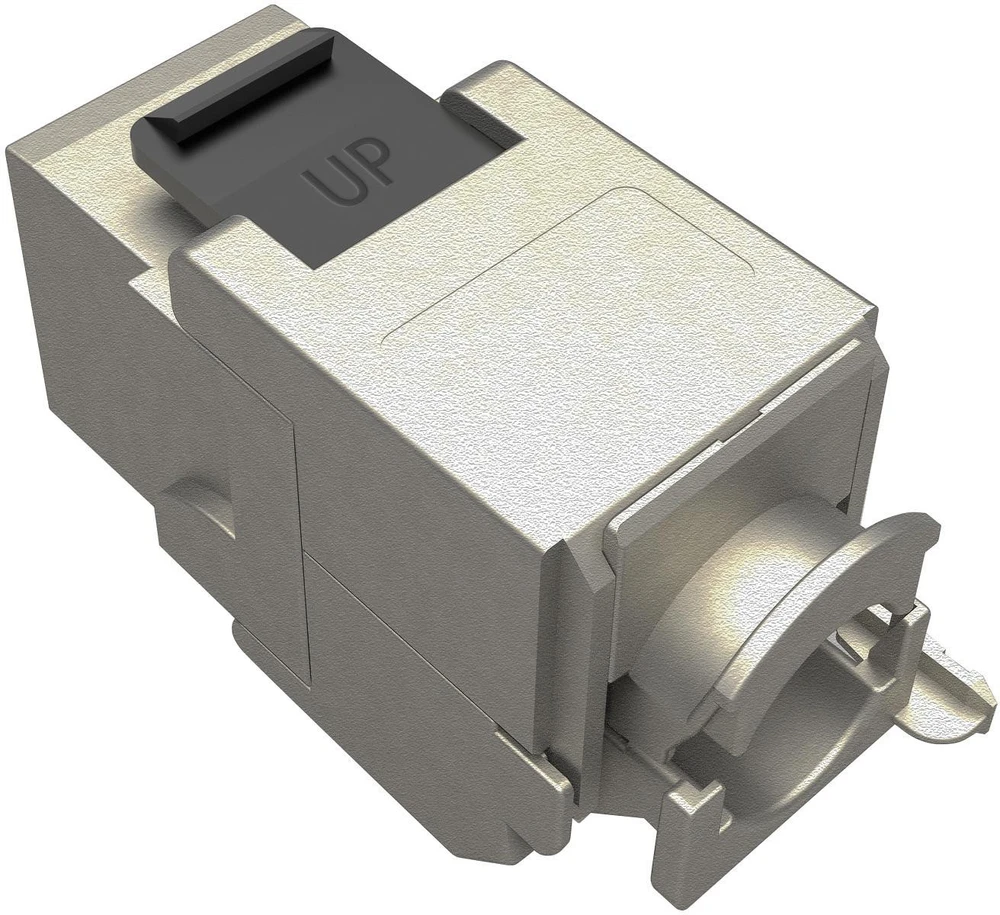

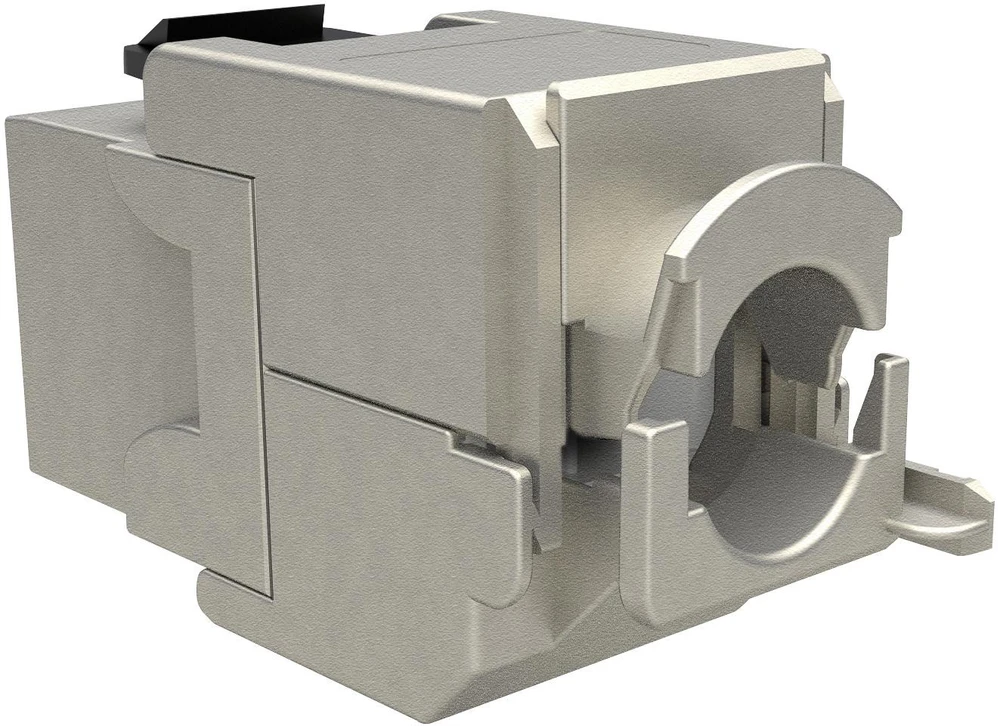

Solarix Solarix Savisriegio pagrindo akmuo CAT6 STP RJ45 SXKJ-6-STP-BK-SA

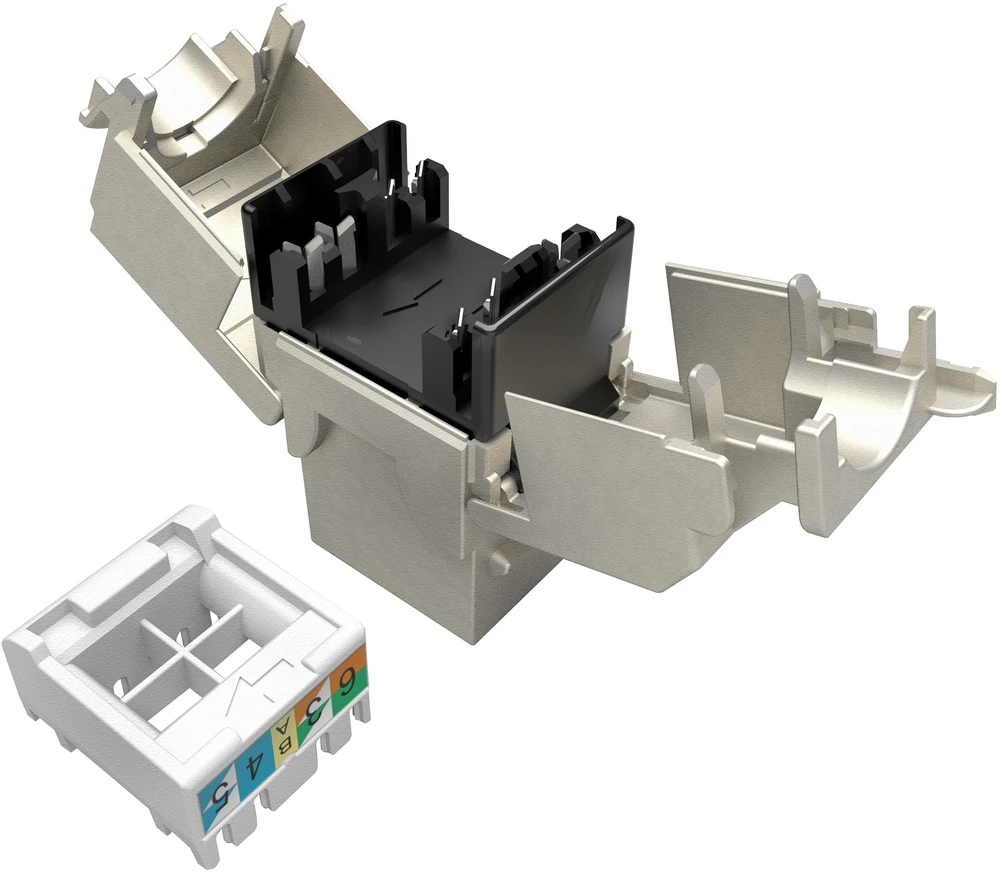

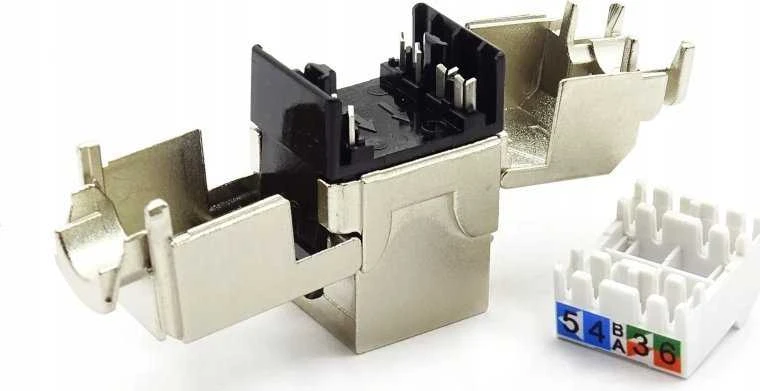

Solarix self-cutting keystones are characterised by their very simple installation, which does not require the use of a cutting tool. These keystones easily meet the parameters specified in the international structured cabling standards, including all updates. The keystones are fitted with a 180° self-cutting terminal block which is colour coded according to the wiring type, either T568A or T568B. Cables with conductors of AWG 26-22 can be cut into this terminal block. The standard colour of the Solarix unshielded self-tapping keystones is black, while the shielded version has a silver metallic cladding on the module body. Due to their compact size, these self-tapping keystones are compatible with most modular sockets from various manufacturers. Category. Highest protocol supported [?] : 1000BaseT, 1000BaseTX Highest theoretical speed that can be achieved per component Shielding: yes Min. port lifetime [?] : 1000 connections/disconnections RJ45 port lifetime - i.e. number of cycles of patch cable connection and disconnection Contact protection [?] : 50 µ gold and 100 µ nickel RJ45 connector contact material and quantity Terminal block [?] : self-cutting Type of terminal block used to notch the installation cable conductor Min. terminal life [?] : 200 notches Terminal block lifetime - i.e. number of installation cable notching cycles Conductor size [?] : AWG 26 - 22 Recommended diameter of the installation cable conductor for the component terminal block Material of non-metallic parts [?] : FR plastic according to UL94-0 Type of plastic materials on the component Color: Black Storage temperature: -40 to 70°C Operating temperature: -10 to 60°C Max. operating humidity: 93%
