Solarix savisriegio raktinis akmuo CAT5E UTP RJ45 juodas SXKJ-5E-UTP-BK-SA

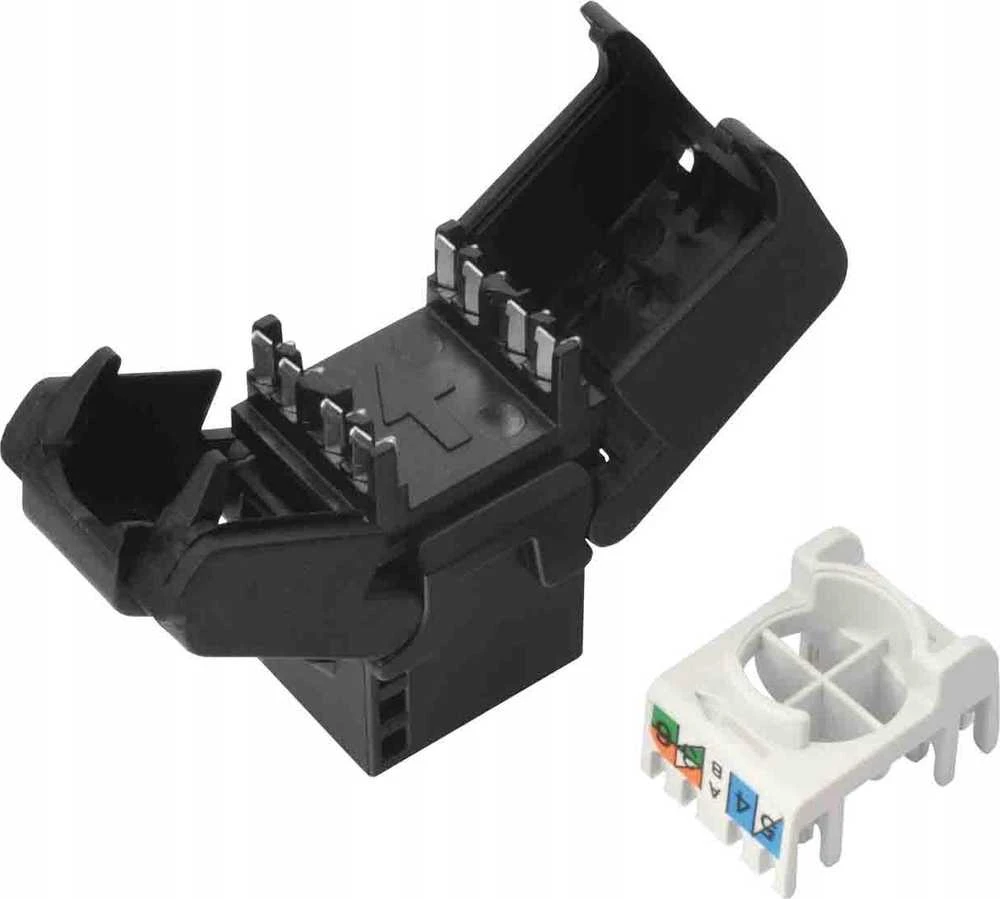

Solarix self-cutting keystones are characterised by their very simple installation, which does not require the use of a cutting tool. These keystones easily meet the parameters specified in the international structured cabling standards, including all updates. The keystones are fitted with a 180° self-cutting terminal block which is colour coded according to the wiring type, either T568A or T568B. Cables with conductors of AWG 26-22 can be cut into this terminal block. The standard colour of the Solarix unshielded self-tapping keystones is black, while the shielded version has a silver metallic cladding on the module body. Due to their compact size, these self-tapping keystones are compatible with most modular sockets from various manufacturers.

CAT5E
Highest supported protocol [?] : 1000BaseT
The highest theoretical speed that can be achieved on a component
Shielding : No
Min. port lifetime [?] : 1000 connections/disconnections
RJ45 port lifetime - i.e. number of cycles of patch cable connection and disconnection
Contact protection [?] : 50 µ gold and 100 µ nickel
RJ45 connector contact material and quantity
Terminal block [?] : self-cutting
Type of terminal block used to notch the installation cable conductor
Min. terminal life [?] : 200 notches
Terminal block lifetime - i.e. number of installation cable notching cycles
Conductor size [?] : AWG 26 - 22
Recommended diameter of the installation cable conductor for the component terminal block
Material of non-metallic parts [?] : FR plastic according to UL94-0
Type of plastic materials on the component
Color: Black
Storage temperature: -40 to 70°C
Operating temperature: -10 to 60°C
Max. operating humidity: 93%
