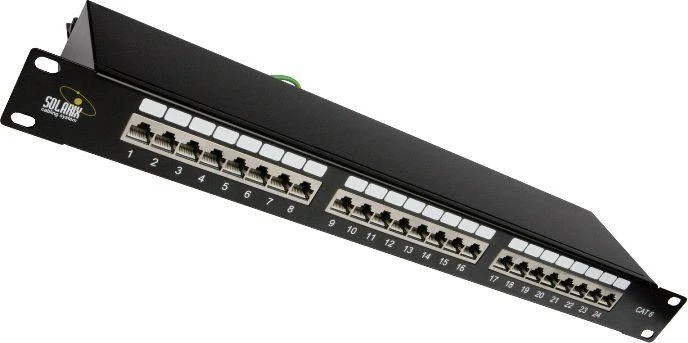

Solarix Patch panel 19" 1U 24x RJ-45 Cat.6 STP (SX24-6-STP-BK)

The Solarix patch panel, labeled SX24-6-STP-BK, is a shielded CAT6 panel equipped with 24 RJ45 ports and a Krone IDC terminal block. The contacts on the terminal block are differentiated by color according to the type of wiring, either according to the T568A or T568B standard. This panel from the Solarix - CAT6 product line easily meets and also exceeds the requirements defined in the international standards TIA/EIA 568, EN 50173 and ISO 11801 including all the latest additions for this category. The panel is designed to be robust, reliable, provide maximum performance and allow for easy installation. The panel body includes a tie bar that allows for a tight fit and a clear arrangement of the data cable. The colour of the Solarix CAT6 shielded patch panel is black; the size in the data cabinet is 1U.

CAT6
Highest supported protocol: 1000BaseT, 1000BaseTX
The highest theoretical speed that can be achieved on the cable
Number of ports: 24
Number of RJ45 ports per panel
Shielding: yes
Tie bar: yes
Min. port life : 1000 connections/disconnections
RJ45 port lifetime - i.e. number of cycles of patch cable connection and disconnection
Contact protection: 50 µ gold and 100 µ nickel
RJ45 connector contact material and quantity
Terminal block: Krone 8p8c
Type of terminal block used to notch the installation cable conductor
Min. lifetime of terminal block: 200 notches
Terminal block life - i.e. number of installation cable cutting cycles
Trimming blades: bronze, P, Sn and Pb alloy
Material of the notching knives on the terminal block
Wire size: AWG 26 - 22
Recommended conductor diameter of the installation cable for the component terminal block
Material of non-metallic parts: FR plastic according to UL94-0
Type of plastic material on the component
Color: Black
Size: 1U
Height: 44 mm
Width: 484 mm
Depth: 137 mm
Storage temperature: -40 to 70°C
Operating temperature: -10 to 60°C
Max. operating humidity: 93%
