Solarix montavimas CAT6 FTP LSOH viela 500m / dėžutė (SXKD-6-FTP-LSOH)

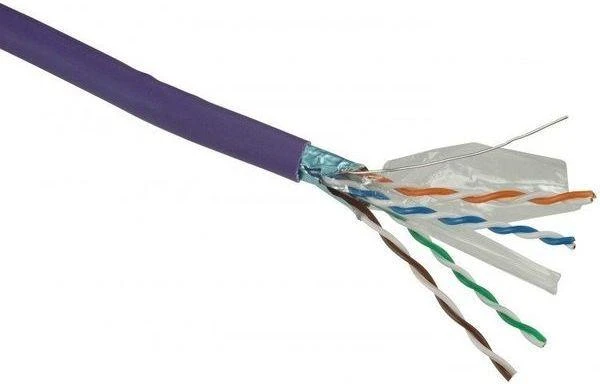

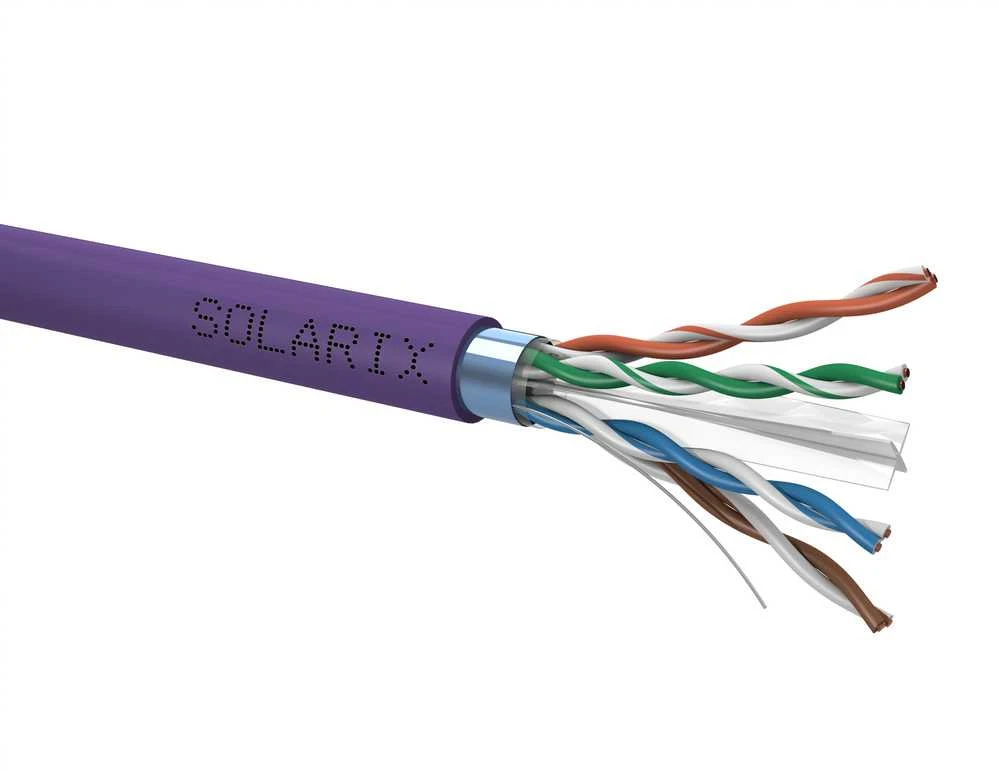

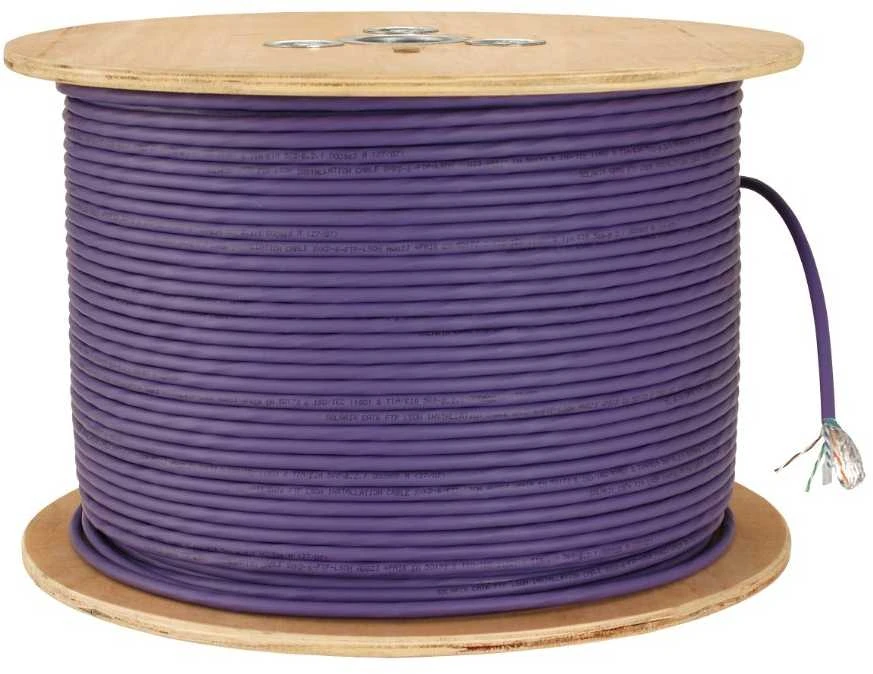

The Solarix CAT6 telecommunication installation cable is a high quality cable for horizontal structured cabling that meets and exceeds the requirements specified in the international standards TIA/EIA 568, EN 50173 and ISO 11801 for CAT6. The conductors of the cable are made of high quality copper wire of AWG 23; in the case of both the unshielded and shielded versions of CAT6 cable, the individual pairs are separated by a plastic cross. The Solarix - CAT6 cable is suitable for the most demanding protocols (e.g. 1000BaseT and 1000BaseTX). The cable is supplied with both PVC and LSOH sheaths in 500 rolls.
The cables are marked with a meter mark in 1 m increments.

Solarix LSOH installation cables meet the following standards:

A) Acidity of gases produced during combustion
IEC 60754-2: Test on gases evolved during combustion of electric cables - Part 2: Determination of degree of acidity of gases evolved during the combustion of materials taken from electric cables by measuring pH and conductivity
EN 50267-2-2: Common test methods for cables under fire conditions - Tests on gases evolved during combustion of materials taken from cables - Part 2-2: Procedures - Determination of the degree of acidity of gases during combustion of cable materials by measuring pH and conductivity
EN 50267-2-3: Common test methods for cables under fire conditions - Tests for gases evolved during combustion of cable materials - Part 2-3: Procedures - Determination of the degree of acidity of gases during combustion of cable materials by determining the weighted average pH and conductivity of composite materials

(B) Smoke density
IEC 61034-2: Measurement of smoke density of cables burning under defined conditions - Part 2: Test procedure and requirements
IEC 61034-2: Measurement of smoke density of cables burning under defined conditions - Part 2: Test procedure and requirements (This standard has superseded EN 50268-2)

(C) Flame retardancy/flame spread of single insulated cables
IEC 60332-1-2: Tests on electric and optical fibre cables under fire conditions - Part 1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1 kW pre-mixed flame
EN 60332-1-2: Tests on electric and optical fibre cables under fire conditions - Part 1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1 kW mixed flame (replaced by this standard EN 50265-2-1)

Category: CAT6
Highest supported protocol [?] : 1000BaseT, 1000BaseTX
Highest theoretical speed that can be achieved on the cable
Shielding: foil around all 4 pairs
Bandwidth [?] : 250 MHz
Available bandwidth
Conductor [?] : 0, 58 mm AWG 23 copper wire
Conductor type and diameter
Insulation [?] : polyethylene 1, 06 mm
Insulation type and diameter
Sheath [?] : LSOH
Type of sheath
Colour: purple
Cable diameter: 6, 9 mm
Weight: 41 kg/km
NVP [?] : 69 %
Nominal Velocity of Propagation - the ratio of the speed of the signal in the cable to the speed of light in %
Propagation delay [?] : 427 ns/100 m
Signal delay on one pair
Delay skew [?] : 12 ns/100 m
Signal delay difference between fastest and slowest pair
Storage temperature: -20°C to 60°C
Operating temperature: -20°C to 60°C
Installation temperature: 0°C to 50°C
