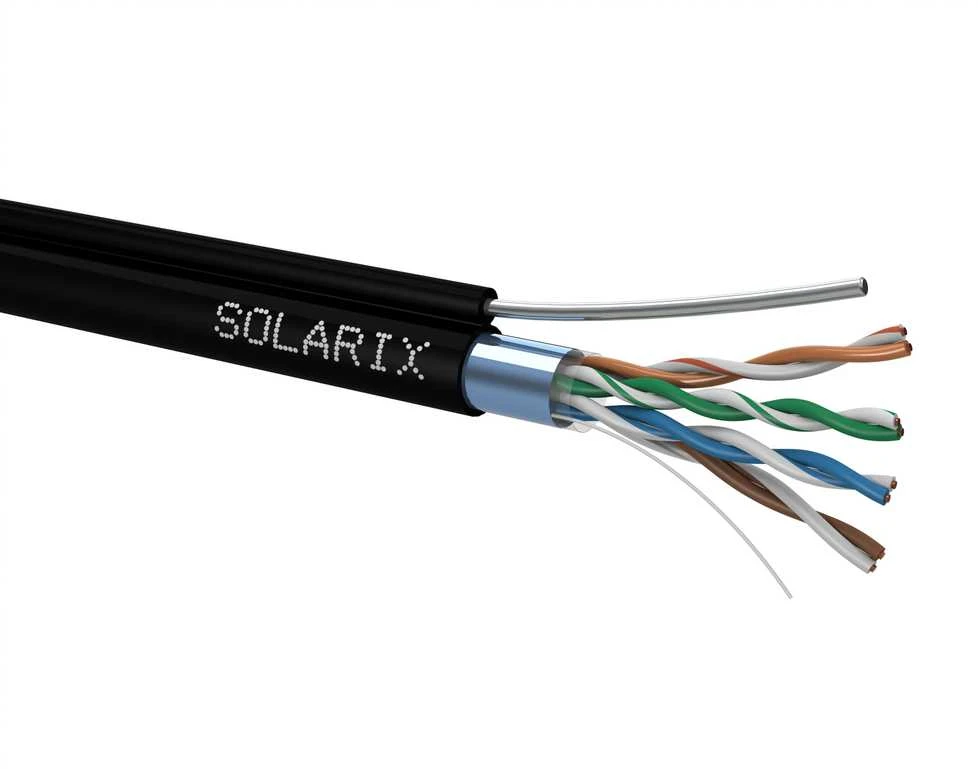

Solarix lauko instaliacijos kabelis FTP CAT5e PE kabelis 305m / konsolinė dėžutė SXKD-5E-FTP-PE-SAM

CAT5E
Highest supported protocol [?] : 1000BaseT
Highest theoretical speed that can be achieved on the cable
Shielding: foil around all 4 pairs
Bandwidth [?] : 100 MHz
Available bandwidth
Conductor [?] : 0, 505 mm AWG 24 copper wire
Conductor type and diameter
Insulation [?] : polyethylene 1, 0 mm
Insulation type and diameter
Sheath [?] : PE
Type of sheath
Colour: black
Cable diameter: 6, 4 mm + 2, 6 mm
Weight: 56 kg/km
NVP [?] : 68 %
Nominal Velocity of Propagation - the ratio of the signal speed in the cable to the speed of light in %
Propagation delay [?] : 535 ns/100m
Signal delay on one pair
Delay skew [?] : 20 ns/100m
Signal delay difference between fastest and slowest pair
Storage temperature: -20°C to 70°C
Operating temperature: -20°C to 70°C
Installation temperature: 0°C to 50°C

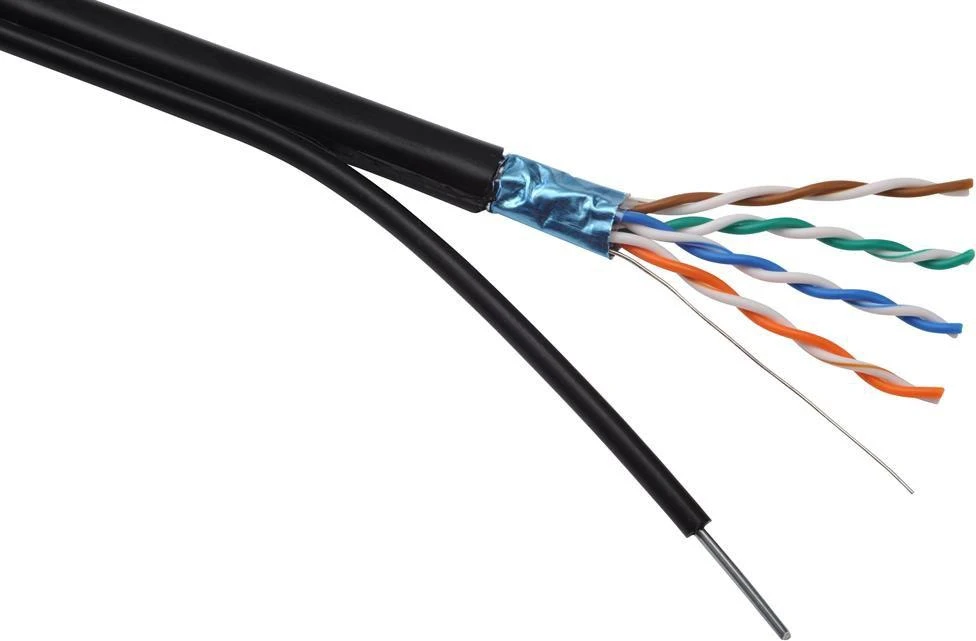

The installation cable, designated SXKD-5E-FTP-PE-SAM, is an outdoor self-supporting shielded CAT5E cable with a polyethylene jacket. The cable is designed for outdoor installations where conventional PVC or LSOH sheathed data cable does not provide sufficient protection against environmental influences. This cable is also equipped with a supporting steel wire placed in a separate insulation, which allows this cable to be used as self-supporting, up to a distance of 70m. Together with the other components of the Solarix structured cabling system, it creates a solution that guarantees long life, maximum performance and trouble-free operation of the computer network. Solarix installation cables - category 5E are designed for horizontal distribution and are offered in shielded and unshielded versions with different sheath types - i.e. PVC, LSOH or UV stable PE. These cables seamlessly meet the requirements defined in the international standards ANSI/TIA/EIA 568, ISO/IEC 11801 and EN 50173 for category 5E and are also suitable for data transmission speeds up to 1 Gbps (i.e. gigabit Ethernet).

Like other Solarix cables, the SXKD-5E-FTP-PE-SAM cable is marked with meter gauges in 1m increments ranging from 0 to 305m. The cable is supplied on a high-strength wooden spool, on which all necessary product information is provided, including barcodes, batch, description and the most important technical parameters (e.g. NVP in the form of a QR code).
