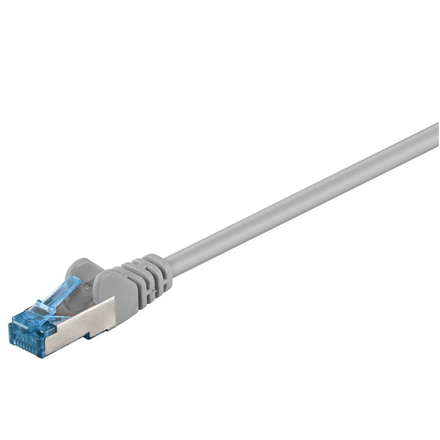

Goobay 93701 CAT 6A patch cable, S /...

Techniniai duomenys
Tipas	Cat 6a, s/ftp
Kitos savybės	Lszh halogen-free, cu material suitable for 10 gigabit (10/100/1000/10000 mbit) network double shielded lan/network cable to connect network components with 2 x rj45 connectors cat 6(a) tested - incl. test report with 50µ gold plated pins pairs screening: pimf (pairs in metal foil) + outer shield: braiding with length indication on the slimline strain relief with latch protection pair-sequence acc. to eia/tia 568b technical specifications connections connection, type rj45 male (8p8c) connection, shielding yes connection 2, type rj45 male (8p8c) latch protection both sides contacting eia/tia-568b cable cable type round cable specification cat 6a shielding class s/ftp (pimf) awg 27/7 (stranded) cable sheath diameter (approx.) 6 mm inner conductor material cu (copper) material cable sheath lszh cable length 10 m number of shieldings 2 x type 1, shielding foil (alu) pimf type 2, shielding braid (alu) overall shield kink protection both sides lszh compliant yes signal transmission max. bandwidth 500 mhz general consumption unit 1 pc. in polybag color grey markings ce, weee operating temperature from -20 °c operating temperature up to 65 °c

Modelio pavadinimas	93701
