Extralink CAT6A UTP (U/UTP) Indoor | Twisted-pair network cable | 25m

Fast 10 Gb/s data transfer in local networks

The Extralink CAT6A U/UTP installation cable is a professional network cable designed for building structured internal LAN networks. The product supports a frequency band of up to 500 MHz , which enables stable operation of telecommunication systems requiring lightning-fast information transfer. Its special construction eliminates the need for additional shielding, making it easier to lay the cable in cable trays.

Key advantages

• Stable data transmission thanks to a frequency band of up to 500 MHz .
• Full bandwidth and lower signal attenuation thanks to conductors made of pure copper .
• Reduced internal interference thanks to a plastic pair separator .
• Powering network devices using PoE, PoE+ and PoE++ technology.
• Durable PVC outer sheath with a thickness of 0.50 ± 0.05 mm protects the cable from damage.
• No voltage drops over long distances thanks to the optimal conductor thickness of 24 AWG .

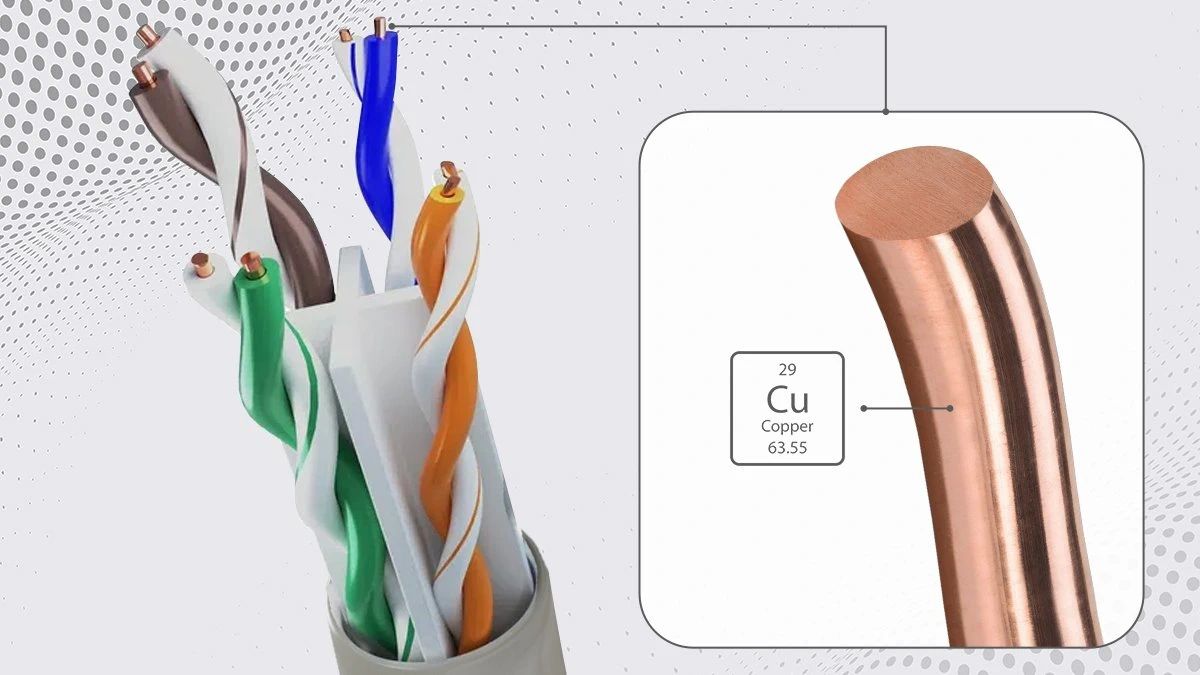

Stable signal thanks to pure copper

Conductors made entirely of pure copper (cu) guarantee minimal signal attenuation and excellent transmission parameters. The 24 AWG conductors maintain full data structure integrity לאורך the entire installation run. Using solid metal instead of cheap CCA composite substitutes eliminates the risk of wire breakage and ensures the long service life of the entire infrastructure.

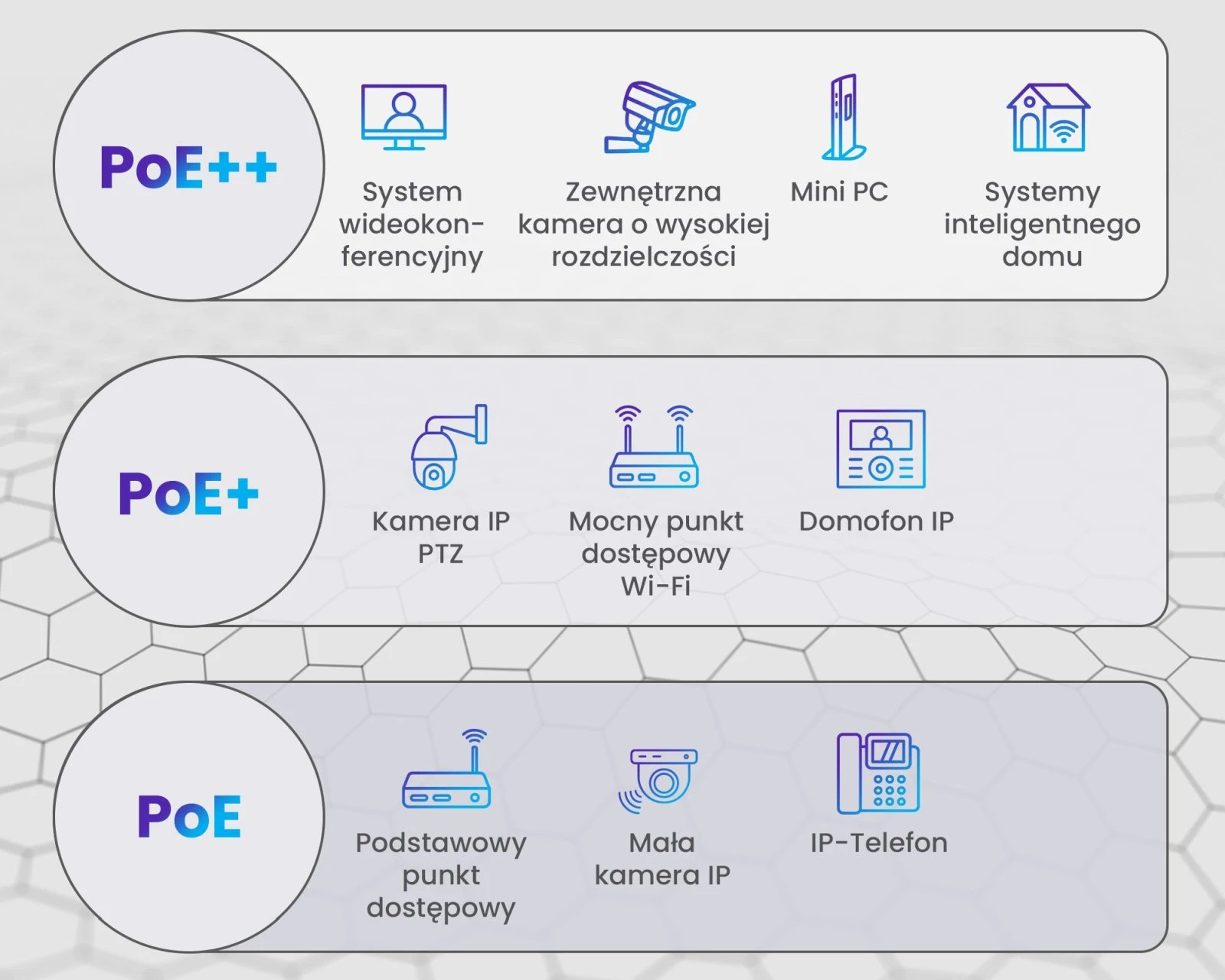

Power and data in one cable

The solid copper construction supports advanced PoE, PoE+ and PoE++ power standards. This solution delivers electrical power directly to end devices such as IP cameras or access points, without the need for separate power cables. This reduces the number of cables required, simplifies the network structure and noticeably lowers the overall investment costs.

Lightning-fast transfer of large files

The cable offers full support for data transmission at speeds of up to 10 Gb/s in the 10 Gigabit Ethernet standard. Such high bandwidth shortens the time needed to transfer large databases and ensures smooth ultra-high-definition video streaming. The infrastructure remains fully stable even when handling multiple demanding processes simultaneously in server rooms.

Safe indoor installation

The twisted-pair computer cable provides a durable foundation for structured networks in offices, commercial premises and detached houses. The product is ideal for professional CCTV installations, where it is responsible for continuous video transfer. The outer sheath protects the cable when pulling it through conduits and walls.

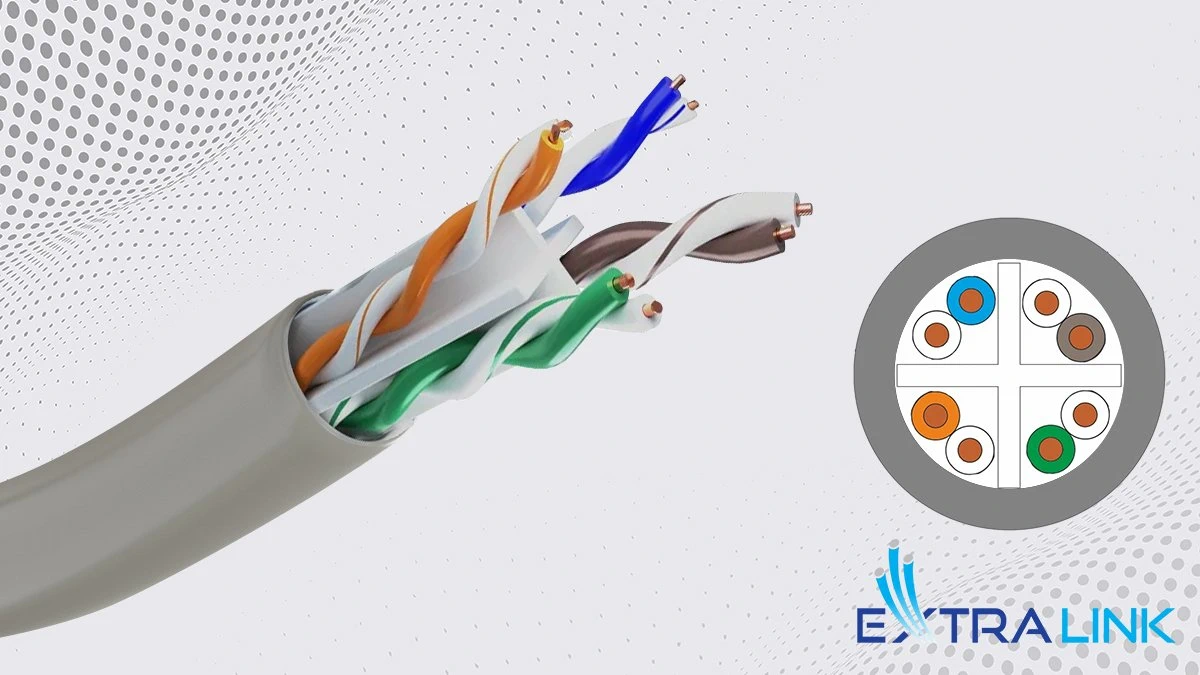

Protection against interference and crosstalk

The four pairs of twisted conductors are separated by a special plastic cross separator , which physically isolates the individual bundles from one another. This solution prevents crosstalk and eliminates electromagnetic distortion inside the cable. An additional high-density HDPE sheath guarantees excellent dielectric insulation and increases mechanical strength.
