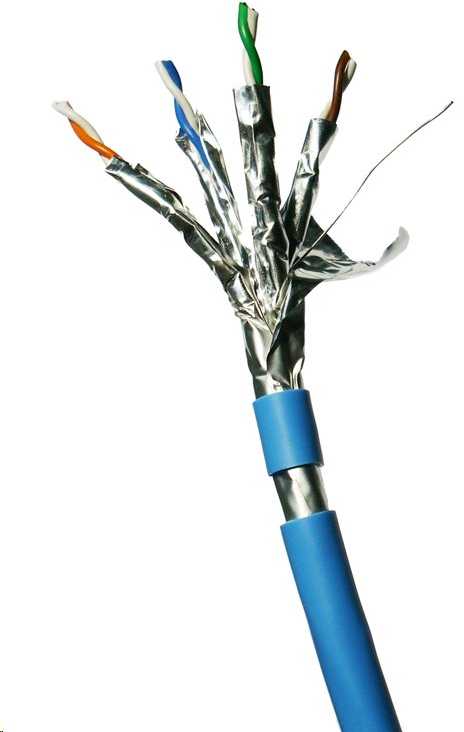

DATACOM F/FTP wire CAT6A LSOH,Eca 100m, sheath mėlynas

Product description

Category 6A installation cable for structured cabling. Thanks to the double shielding design of the cable, it is suitable for placement in harsh indoor environments.

- CAT6A (Class Ea)
- transmission speed: 10GBit/s
- protocol supported: 10GBase-T and below
- Bandwidth: 500 MHz
- 23 AWG
- 4 x 2 x 0.56 solid copper
- conductor type: wire
- Cable diameter(+-0.3mm): 8.0 mm
- conductor insulation: FMPE
- conductor sheath insulation diameter (+-0.05mm): 1.35 mm
- shielded F/FTP (AL foil overall and individual pairs)
- ground wire 1/0.4 mm
- LSOH sheath (reaction to fire class - Eca)
- sheath colour blue
- conductor colour:
WHITE - BLUE
WHITE - ORANGE
WHITE - GREEN
WHITE - BROWN

- 100 m winding


The cable complies with international standards.

IEC/ISO 61156-5
ANSI/TIA568C.2
ISO/IEC 11801
