Dahua V9H_TYPE-C-REAR parkavimo režimo maitinimo šaltinis

Dahua M30







A special car charger for 24-hour parking monitoring with the Dahua S5 Pro camera. The device provides continuous power to the camera in the vehicle and ensures security monitoring even while parked.

The Dahua M30 charger features a 5 V / 2.5 A output via a modern USB-C interface and a special 4-pin connector designed for the rear camera. To protect the car battery, it is equipped with a low-voltage protection feature that activates when the voltage drops to 11.8 V (±0.2 V).









Enables 24-hour parking monitoring with the Dahua S5 Pro camera
5 V output voltage with 2.5 A current for reliable camera power supply
Extremely low standby power consumption of 0.01 W
Car battery protection with automatic disconnection at 11.8 V (±0.2 V)
Modern USB-C output interface for connecting the camera
Special 4-pin connector for connecting the rear camera
Option for direct connection to the vehicle’s fuse box without using the cigarette lighter socket
Selectable power mode—constant (BAT) or only when the ignition is on (ACC)









Flexible installation options

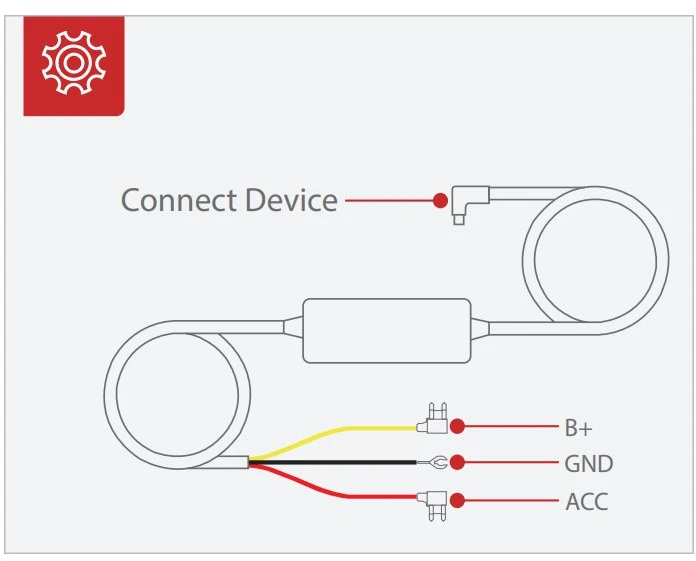

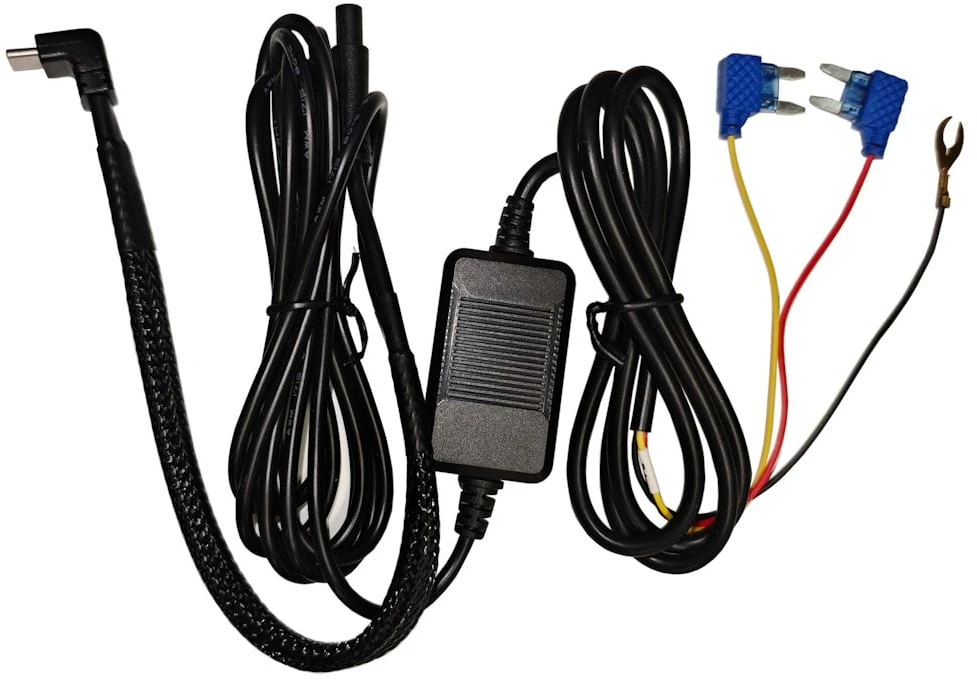

The M30 charger offers advanced installation options thanks to an adapter cable that allows direct connection to the vehicle’s fuse box. This frees up the cigarette lighter socket for other devices. The black wire (negative terminal) connects to the vehicle chassis in the fuse box.

Selectable operating modes
Depending on your monitoring requirements, you can choose between two connection modes:

1. Continuous monitoring (24 hours) – connect the red wire (positive terminal) to the BAT terminal in the fuse box, which ensures a constant power supply even when the engine is off
2. Monitoring only while driving—connect the red wire to the ACC terminal in the fuse box; this will cut off power when the ignition is turned off








BASIC SPECIFICATIONS

Designed for: Dahua S5 Pro camera
Function: 24-hour parking monitoring
Output voltage: 5 V
Output current: 2.5 A
Standby power consumption: 0.01 W
Low-voltage protection: 11.8 V ±0.2 V
Output interface: USB-C
Additional connectors: 4-pin connector for rear camera
Connection method: via fuse box or cigarette lighter socket
