Intelligent filmas cutting machine Forcell with positioning tool baltas

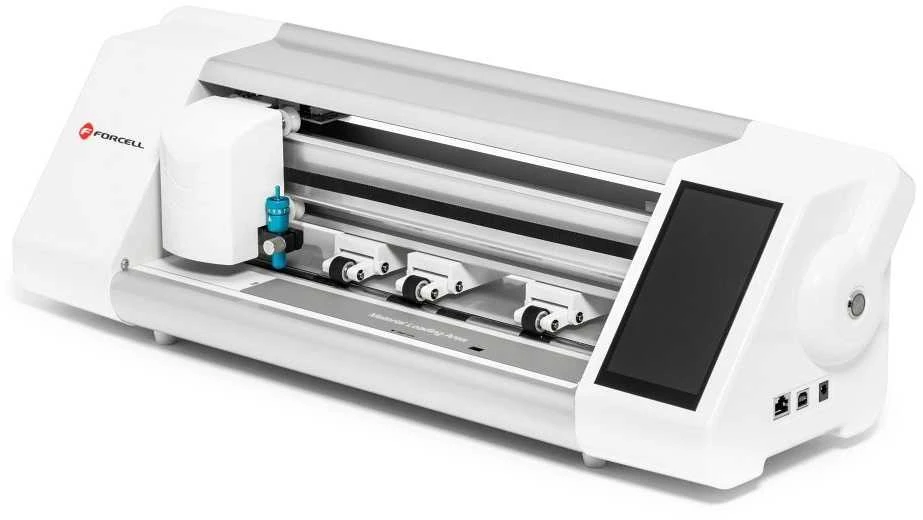

The foil plotter Forcell X5 is an advanced device designed to precisely cut various types of protective foils. Thanks to its advanced functions and intuitive interface, it is an ideal solution for those who value precision, speed, and ease of use. You do not need to sign a subscription agreement or scan QR codes to work with the plotter – the device gives you total freedom.

Speed of operation and ease of use
Thanks to the high cutting speed, Forcell allows for the quick completion of large orders, which is extremely important in mass production – see the instructional videos below for details . Intuitive software and a built-in 5.5” touch screen make designing easy, even for people without specialist knowledge. Ease of use and minimizing material waste make the Forcell plotter an effective and economical solution.

Instructional videos are available to help you get started.

Video tips:
- Adjustment of roller position
- Device database update
- Software update
- Screen protector installation using gel
- Screen protector installation using applicator

Cutting precision
The plotter was designed for the precise cutting of foils. Thanks to the precision cutting technology, each protector is perfectly matched to the shape of the device, which translates into excellent protection.

Programmed device database
The plotter has a programmed database of thousands of foil-cutting options for various phone models and other devices. The user can access a rich catalog of patterns through a very useful interface, thanks to which they can quickly and easily select the appropriate settings. Additionally, the device is regularly updated, which increases its functionality and usability.

Compatibility with various materials
The plotter is highly versatile regarding the types of materials it can cut. It can handle Matt, Privacy, or Nano foils, as well as many others of different thicknesses, intended for both the front, back, and sides of devices. Moreover, this plotter is the only one on the market that offers the option of cutting in Flexible Nano Glass.

Specification:
Material: Aluminum alloy + ABS
Size: 628 × 184 × 175 mm
Motherboard chip: RK3128
Memory: 1G + 8G
Display size: 5.5”
Resolution: 1080 × 720 dpi HD
Operating system: Android 7.1
Input: AC 100-240 V (50/60 Hz)
Power: 48 W (DC 24 V/2 A)
Maximum foil size: 400 mm
Maximum cutting size: 290 mm
Cutting accuracy: ±0.02 mm
Maximum cutting speed: 500 mm/s
Automatic alignment: yes
Includes applicator for positioning cut foils.
