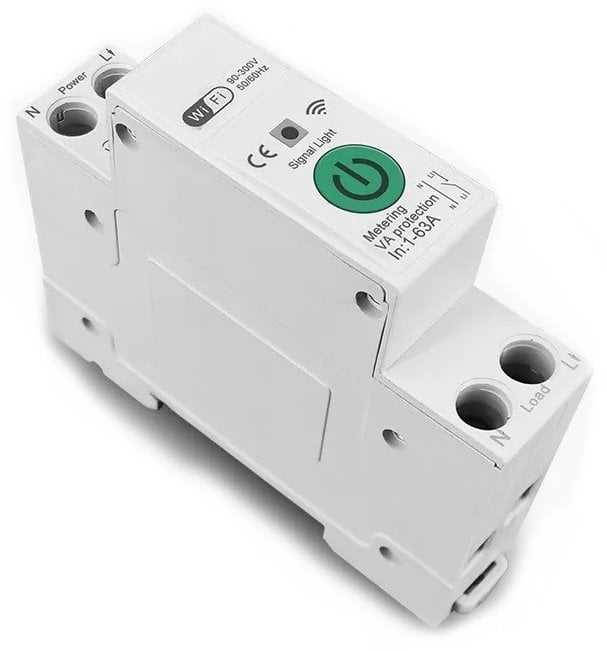

IMMAX NEO SMART electronic single-phase circuit breaker 1-63A, power metering, Wi-Fi, TUYA

IMMAX NEO SMART 07574L

Smart Wi-Fi electronic circuit breaker with power measurement and selectable protection settings - current protection, overvoltage, undervoltage. It is fully compatible with iOS, Android, Amazon Alexa, Apple Siri shortcuts, Google Assistant, TUYA, Lidl. It works on Wi-Fi protocol. Installs on DIN bar.

BASIC SPECIFICATIONS

Protocol: Wi-Fi
Frequency: 2400-2483.5 MHz
Maximum RF output power: 20 dBm
Voltage: AC 100-260 V (50/60 Hz)
Max load: 26 kW
Current protection: 1-63 A
Network standby power (Pnet): 0.4 W
Protection: overheat, overvoltage and overload
Wireless range: 30 m line of sight, 10 m in built-up area
Number of switched circuits: 1
Surge protection: 220-265 V
Undervoltage protection: 76-240 V
Operating temperature: -25 to +70°C
Rating of protection: IP20
Dimensions: 82 × 66 × 18 mm
