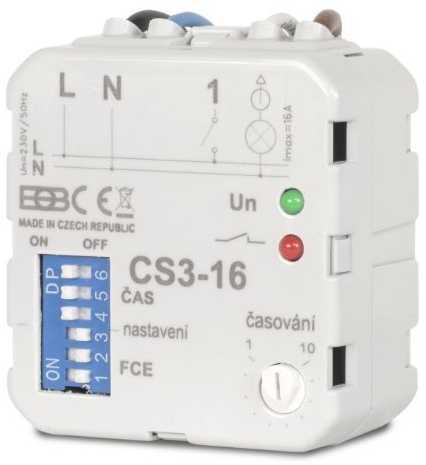

ELEKTROBOCK time switch CS3-16

Features of CS3-16:
is a multifunctional time relay for controlling resistive (light bulbs) and inductive loads (fans) with the possibility of mounting UNDER the switch, the switching element is a 16A power relay.



Eight functions CS3-16:
time relay with interrupt capability
delayed trip (similar to CS3-1)
Multi-time relay with interlock
delayed trip without interlocking
pulse relay (multi-site control)
delayed tripping
delayed on/off
flasher

Technical parameters
Power supply 230, 0 V / 50 Hz
Mounting type under the switch
Mounting without neutral wire No
Resistive load 0 W to 3680 W
Inductive load 0 VA to 450 VA
Power input 1.000000000 W
Switching element relay
Adjustable time 1 s to 1200 min
Fuse No
Degree of protection IP20
Operating temperature 0 °C to 35 °C
