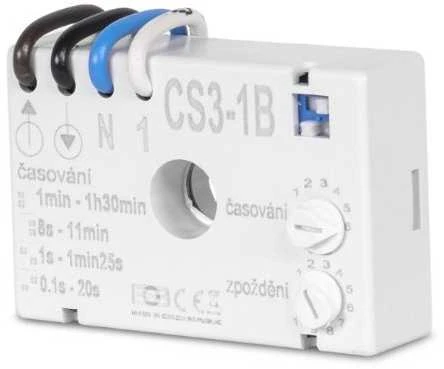

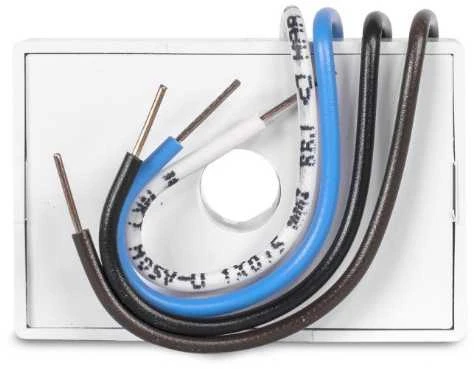

ELEKTROBOCK laiko jungiklis CS3-1B

Features of CS3-1B:
used to delay the fan on and off depending on the lighting. The fan starts 1s to 5min after the lighting is switched on. The adjustment is done by trimmer P1(delay), using a small screwdriver. The fan is switched off 1s to 1.5h after the lighting is switched off.

Technical parameters
Power supply 230, 0 V / 50 Hz
Mounting type under the switch
Mounting without neutral wire No
Resistance load 5 W to 150 W
Inductive load 5 VA to 50 VA
Power input 0.500000000 W
Switching element triac
Adjustable time 1 s to 90 min
Fuse No
Degree of protection IP20
Operating temperature 0 °C to 50 °C
