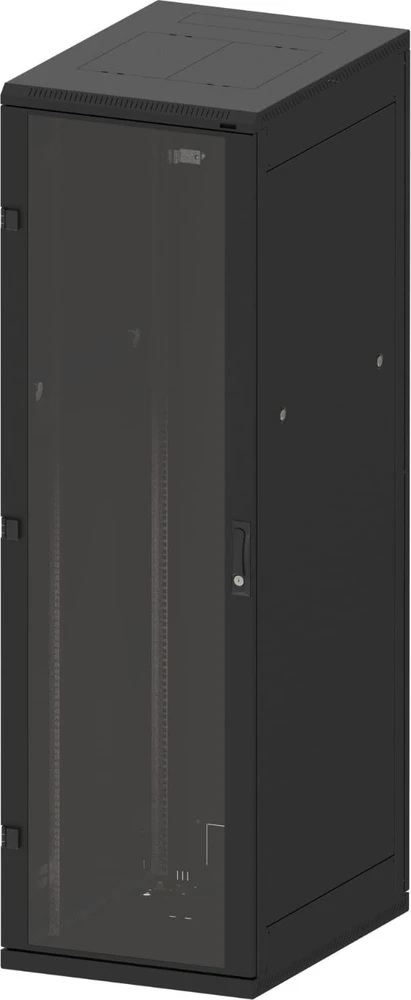

Triton RMA-42-A68-CAX-N1 NAUJA stelažų spintelė 42U Laisvai pastatoma stelažas

Dimensions RMA-42-A68
A= 1970 mm
B= 1868 mm
C= 487 mm
D= 600 mm
E= 800 mm

Net weight: 81,5 kg
Gross weight: 88,9 kg
Maximum load: 400 kg


Fittings:
Key - front door 2x
Key - removable covers 2x
Plastic washer 16x
Floating nut M6 16x
Screw M6x16 8x
Dust cap 1x
Rectification screw/leg for switchboard 4x
M10 nut 4x

Material:
Sheet steel
Safety tempered glass 4 mm thick



Delta S
- The perfect enclosure for the highest demands. It is a rack-mounted switchboard designed for data and telecommunication distribution. Its robust steel construction and high quality workmanship guarantee excellent performance. Its detailed design makes it particularly suitable for heavy loads and demanding installations.

The standard Delta S switchboard includes:

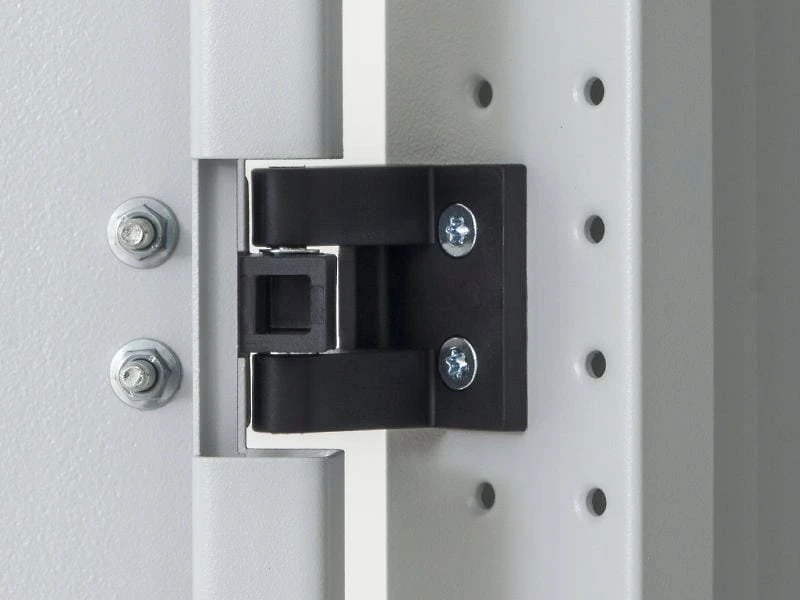

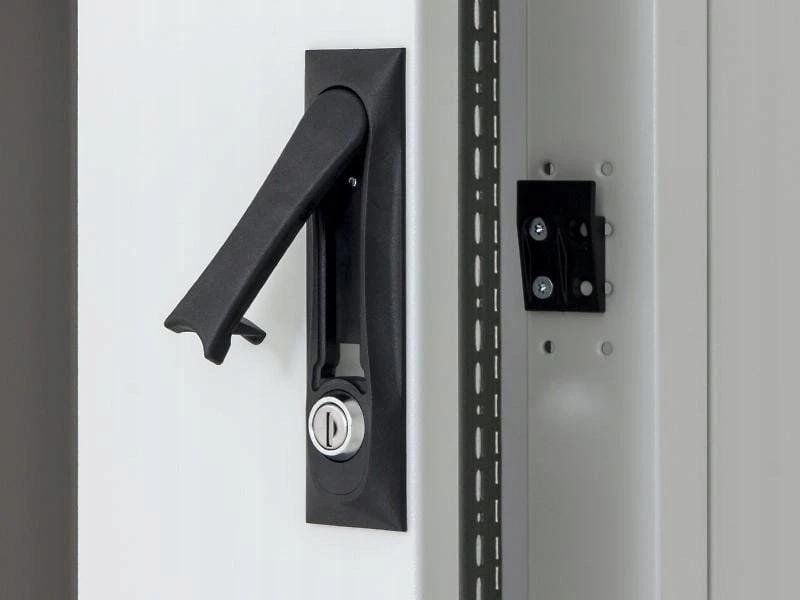

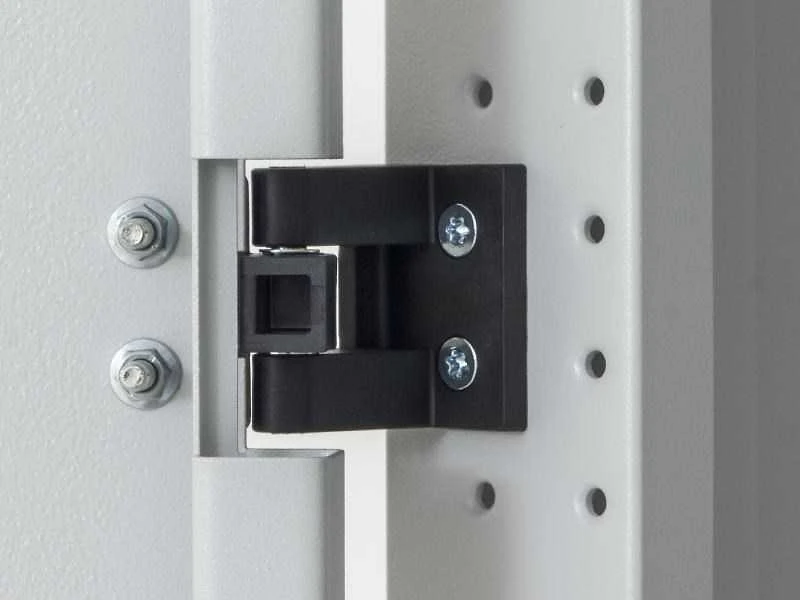

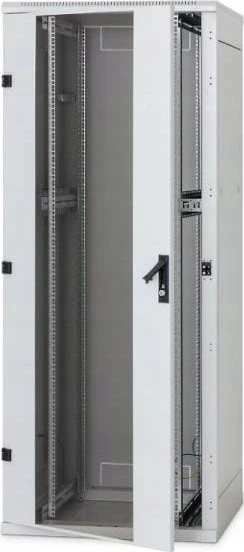

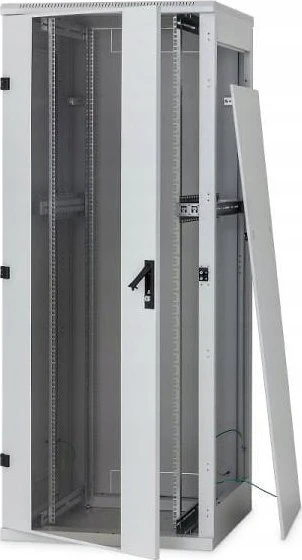

- Glazed front door with hinges and lever lock, the door can be full-panel or perforated on request. The 180° door opening design allows for easy removal and installation for left or right hand opening.

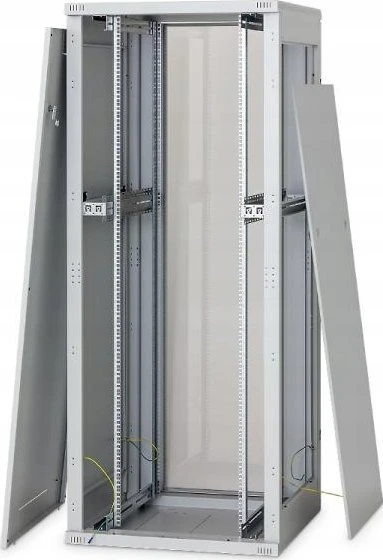

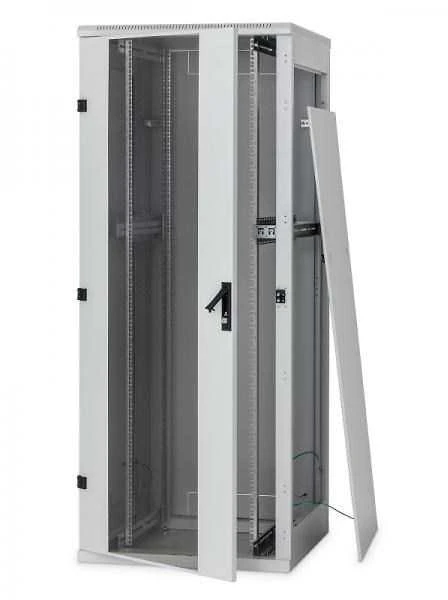

- Removable side and rear door covers secured with locks using the same key as the front door.
- Cable grommets at the top and bottom of the rear cover, in the base and in the cabinet cap. Each of the penetrations is covered by breakaway plugs. We have increased the area of the wiring hole to 333 cm2.
- Two pairs of depth adjustable vertical rails, which are also width adjustable in the 800 x 800mm version.A third pair of vertical rails is included in the 900 and 1000mm deep enclosures at no extra cost.

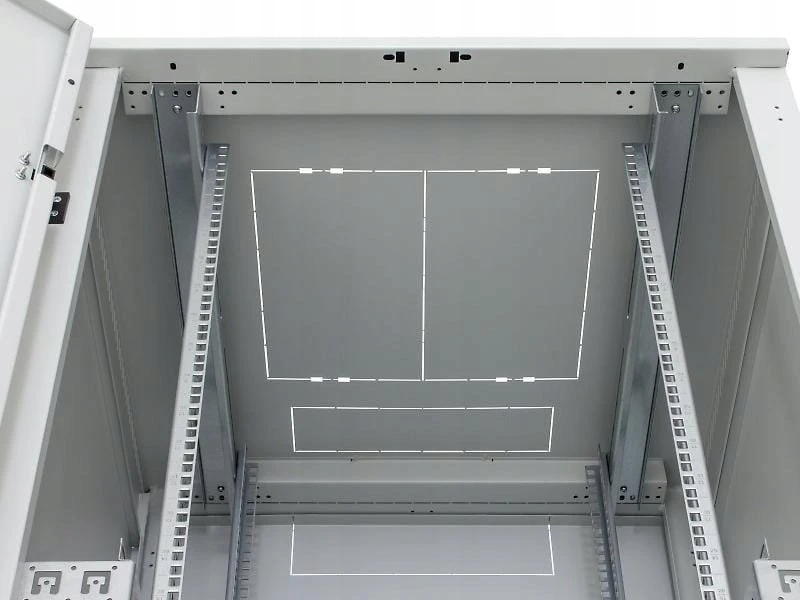

- The holes for the ventilation units are located in the base and ceiling of the enclosure. In the ceiling the opening is covered with a snap-on 3D cover, in the base the cover is pop-up.

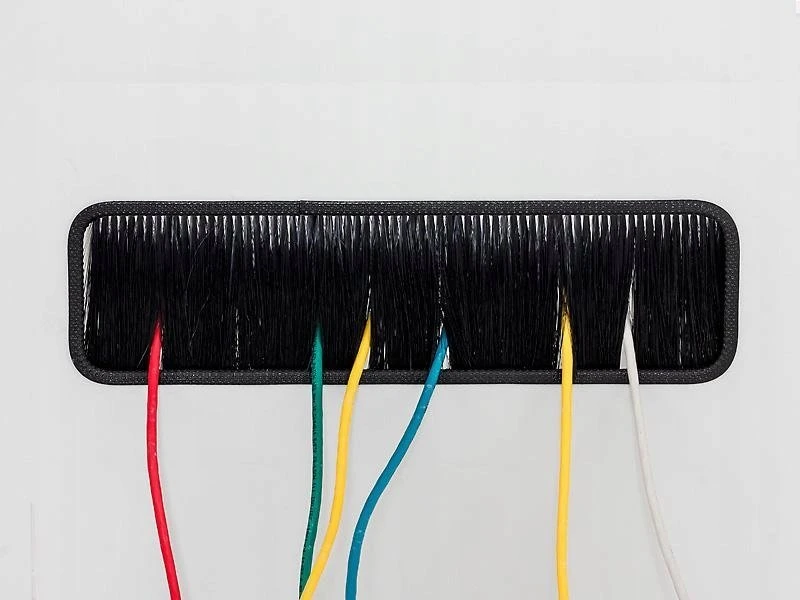

- Adhesive plug with dust brush for sealing the cables.
- Height adjustable levelling feet.
- Perforations at the bottom and top for natural ventilation.

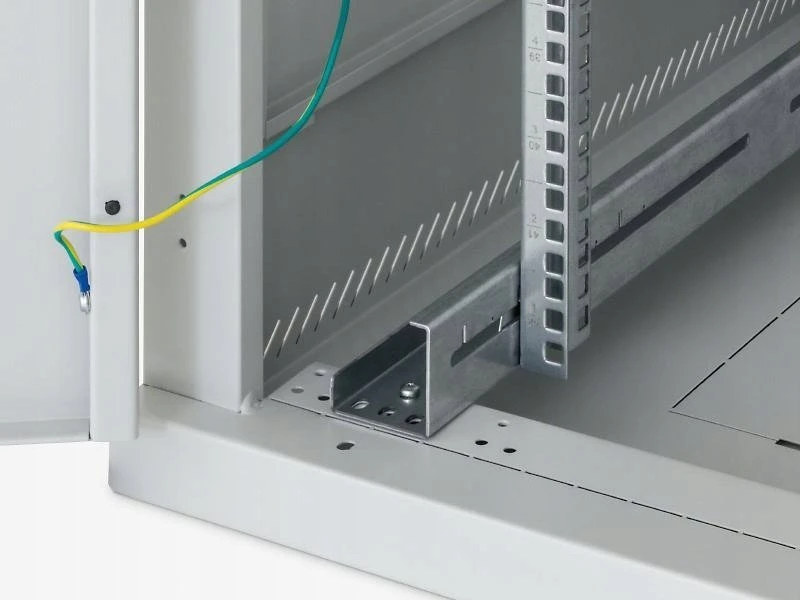

- Complete earthing system for each part of the enclosure.
- Packaging with basic assembly material.


The maximum permissible load of the enclosure is 300kg for the 15-22U version and 400kg for the 27-45U version.
