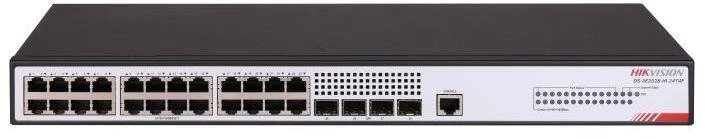

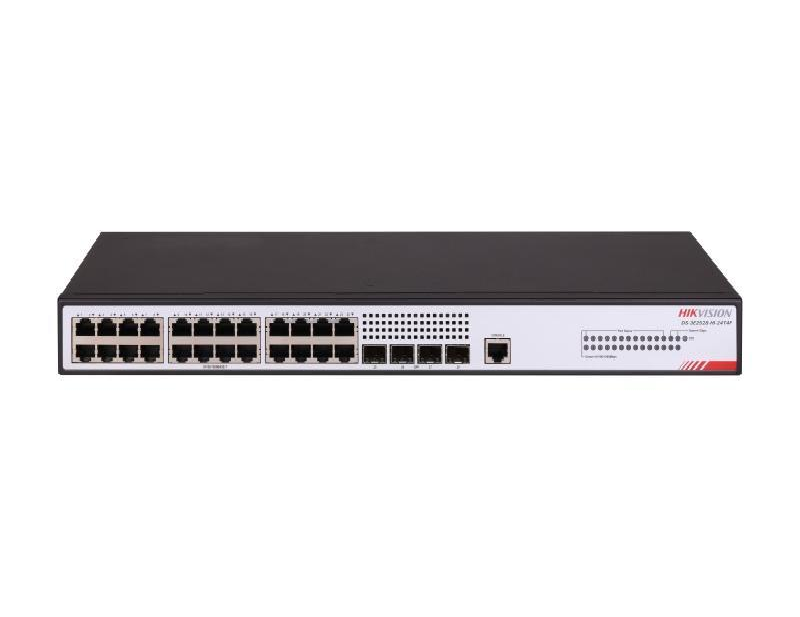

Šakotuvas 28 prievadų komutatorius...

Patvirtinimai
Cheminių komponentų sertifikavimas CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Saugumas CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)

Bendra informacija
Matmenys (P × A × G) 440.00 mm × 160.00 mm × 43.60 mm (17.32'' × 6.29'' × 1.71'')
Bendras svoris 2.90 kg (6.39 lb)
Installation Mode Rack (equipped with mounting ears)
Maks. energijos suvartojimas 21 W
Grynasis svoris 2.10 kg (4.63 lb)
Darbo drėgmė 10% to 95% (no condensation)
Darbinė temperatūra -5 °C to 45 °C (23 °F to 113 °F)
Energijos sunaudojimas miego režime 14 W
Maitinimo šaltinis AC：100 V～240 V AC，50/60 Hz
Santykinė drėgmė 5% to 95% (no condensation)
Rėmas Metal
Laikymo temperatūra -40 °C to 70 °C (-40 °F to 158 °F)
Apsauga nuo viršįtampių 6 kV

Tinklo parametrai
Vidinė cache atmintis 1.5 Mbits
MAC adresų lentelė 16 K
Paketų perdavimo sparta Whole-Device Performance: 41.66 MppsPort Performance: 41.66 Mpps
Prievadai 24 × Gigabit RJ45 port,4 × Gigabit fiber optical port
Perjungimo našumas Whole-Device Performance: 56 GbpsPort Performance: 56 Gbps

Programinės įrangos funkcijos
ACL ACL on Layer 2, Layer 3 and Layer 4 IPv4 and IPv6 ACLs VLAN ACL
DHCP DHCP RelayDHCP ClientDHCP Snooping
Ethernet LLDPStatic MAC configurationLimit of number of MAC addresses to be learned (up to 16K)Port mirroring and traffic mirroringPort aggregation (up to 24 groups and 8 ports for each group)Port isolationSTP/RSTP/MSTPIEEE 802.3ad (dynamic link aggregation) and static port aggregation
HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display topology information. 4. Display the alarm status. 5. Restart ports and devices. 6. Remotely upgrade the device.
IP maršrutas Static routingRIP/OSPF
IPv6 IPv6 static routing and dual-stackDHCPv6 Client and DHCPv6 SnoopingND and PMTUIPv6 Ping, IPv6 Telnet, IPv6 SSHv2, and IPv6 domain name resolution
Multicast IGMP V1/V2/V3 snoopingPIM SnoopingMulticast VLANIPv6 multicast setting
Paslaugų kokybė (QoS) SP/WRR/SP+WRR queue scheduling 802.1p and DSCP priority mapping Port speed limit
Patikimumas Hot patch, in-service patch upgrade
Sauga Hierarchical user management and password protectionSSH for a secure encrypted channel for user loginSpecific IP address based FTP logging and password mechanismPrevent attacks from ARP, unknown multicast packet, broadcast packet, unknown unicast packet, TTL=1 packet, and protocol packetMAC address limitIP+MAC+PORT bindingIEEE 802.1xRadius and AAASNMPv3Broadcast suppression
System Management Command line configuration via console/AUX Modem/Telnet/SSHUploading and downloading of FTP, TFTP, and Xmodem, and SFTP filesSNMP V1/V2c/V3sFlowNQANTP clockSystem operating logs
VLAN 802.1Q (up to 4K VLAN) Protocol-based VLAN MAC-based VLAN GUEST VLAN VLAN mapping MVRP
