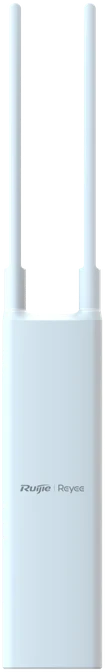

Ruijie Networks Prieigos taškas Ruijie Reyee RG-RAP52-OD (Wi-Fi 5, Montuojamas lauke), žema kaina

Pagrindinis
Wi-Fi protokolai 5 GHz: Wi-Fi 4 (IEEE 802.11a/n), Wi-Fi 5 (IEEE 802.11ac Wave2); 2.4 GHz: Wi-Fi 4 (IEEE 802.11b/g/n)
Dažnių juostos 5 GHz: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz; 2.4 GHz: 2.400 GHz to 2.4835 GHz
Erdviniai srautai 5 GHz: 2 spatial streams, 2x2 MIMO; 2.4 GHz: 2 spatial streams, 2x2 MIMO
Antena Omni-directional
Antenos stiprinimas 5 GHz: 4.0 dBi; 2.4 GHz: 3.0 dBi
Kanalo plotis 5 GHz: Auto/20/40/80 MHz; 2.4 GHz: Auto/20/40 MHz
Duomenų perdavimo greitis Max Throughput: 1266 Mbps; 5 GHz: 866 Mbps; 2.4 GHz: 400 Mbps
Maksimali perdavimo galia 5 GHz: ≤125 mW (21 dBm); 2.4 GHz: ≤160 mW (22 dBm)
Wi-Fi aprėptis 5 GHz Max. Range: 400m; 2.4 GHz Max. Range: 300m
Moduliacija OFDM: BPSK@6/9 Mbps, QPSK@12/18 Mbps, 16QAM@24 Mbps, 64QAM@48/54 Mbps; DSSS: DBPSK@1 Mbps, DQPSK@2 Mbps, CCK@5.5/11 Mbps; MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
Imtuvo jautrumas 11b: -91dBm (1 Mbps), -88dBm (5.5 Mbps), -85dBm (11 Mbps); 11a/g: -89dBm (6 Mbps), -80dBm (24 Mbps), -76dBm (36 Mbps), -71dBm (54 Mbps); 11n: -83dBm (MCS0), -65dBm (MCS7), -83dBm (MCS8), -65dBm (MCS15); 11ac (20 MHz): -83dBm (MCS0), -57dBm (MCS9); 11ac (40 MHz): -79dBm (MCS0), -57dBm (MCS9); 11ac (80 MHz): -76dBm (MCS0), -51dBm (MCS9)
Dydis (P x G x A) 220 mm × 50 mm × 35.7 mm (8.66 in. × 1.97 in. × 1.41 in.), Antenna size: 185 mm (7.28 in.)
Svoris ≤ 0.4 kg (0.88 lbs.) (excluding mounting kits)
Service Ports Number of 10/100/1000BASE-T Ports: 1 (supports 802.3af PoE); Number of 10/100/1000/2500BASE-T Ports: 0; Number of 1 Gbps Optical Ports (SFP): 0; Number of 10 Gbps Optical Ports (SFP+): 0
Maitinimas DC (Local Power): No; DC Port Dimensions: No; 802.3af: Yes; 802.3at: Yes; 802.3bt: N/A; 48 V passive PoE: N/A; PoE Out: No; Max. PoE Wattage by PSE: No
Energijos sunaudojimas < 13.5 W
Maitinimo adapteris No
Klavišai 1 × Factory reset
LED 1 × System LED indicator (blue)
Darbo sąlygos (temperatūra) –30°C to +65°C (–22°F to +149°F)
Sandėliavimo sąlygos temperatūra –40°C to +75°C (–40°F to +167°F)
Darbo sąlygos (drėgmė) 10% to 95% (non-condensing)
Sandėliavimo sąlygos drėgmė 10% to 95% (non-condensing)
Montavimas Ceiling-mount: No; Wall-mount: Yes; Pole-mount: Yes
Compliance Standards : EN IEC 62311:2020; Spectrum: EN 300 328 V2.2.2, EN 301 893 V2.1.1, EN 300 440 V2.2.1
Atsparumas oro sąlygoms IP Rating: IP65; Lightning Protection/Surge: ±4 kV
Darbinis režimas Router Mode: Yes; AP Mode: Yes
WLAN Recommended Number of Clients: 16 (2.4G) + 64 (5G) = 80; Max. Number of SSIDs: 8; Radio-based STA Limit: Yes; Layer 2 Client Isolation: Yes; OFDMA Subcarrier: No; OFDMA: No; Target Wake Time (TWT): No; Wi-Fi Multimedia (WMM): Yes; 802.1Q VLAN: Yes; Multi-Link Operation (MLO): No; 4K-QAM: No; Same SSID for Different VLANs: Yes
Roaming 802.11k/v: Yes; 802.11r: Yes; Layer 2 Roaming: Yes; Layer 3 Roaming: Yes; AI Roaming: Yes
Saugumas PSK Authentication: Yes; Static Blocklist and Allowlist: Yes; WPA (TKIP), WPA2 (AES), and WPA-PSK: Yes; OWE (Enhanced Open): No; WPA3-SAE/WPA2-PSK: No; WPA3-SAE: No
Saugumo ypatybės 802.1X: Yes; ARP Check: No; IP Source Guard: No; LLDP: No; Static ARP Binding: Yes; Proxy ARP: No; Ping: Yes; Traceroute: Yes
Maršrutas NAT: Yes; Static IP Address: Yes; DHCP Server: Yes; PPPoE Client: Yes
AP Mesh Mesh Management: Yes; Reyee Mesh: Yes
Standalone Portal Captive Portal: Yes
Pralaidumo ribojimas Yes
Duomenų kvota No
Valdymas ir priežiūra Default Access/Password: Yes; No. of APs on a Self-Organizing Network: 300; Unified Networking for All Network Equipment: Yes
Valdymo parinktys Local or Remote Management via RuijieReyee App: Yes; Local Management via the Web Interface: Yes; Remote Management via Ruijie Cloud: Yes; SNMP: No
Platformos valdymo funkcijos Optimization of Channel, Transmit Power, and Management Frame Power Settings with Pre- and Post-Optimization Settings Displayed: Yes; Unified Configuration via Ruijie Cloud: Yes; Unified Monitoring via Ruijie Cloud: Yes
