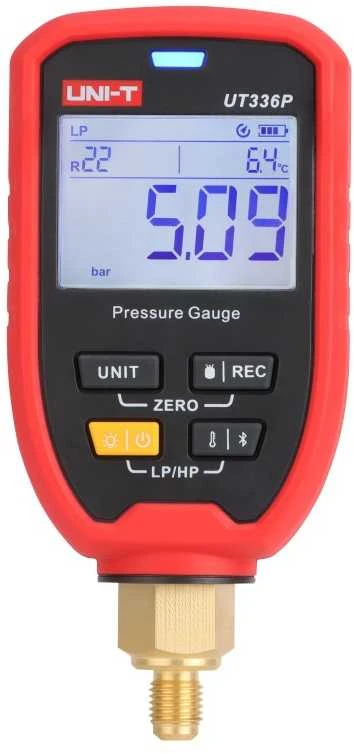

Uni-T UT336P Wireless Pressure Gauge
The Uni-T UT336P wireless pressure gauge is a tool designed for use with refrigeration systems and heat pumps. It enables accurate pressure measurement and long-term monitoring of system operating parameters, facilitating the diagnosis and servicing of HVAC systems.
Real-time system monitoring
The UT336P model allows for pressure measurement in multiple units and supports a wide range of refrigerants. Thanks to Bluetooth connectivity and a mobile app, you can analyze data in real time and check parameters such as superheat and subcooling (using a temperature probe). The ability to store up to 8,000 measurements and the option to operate offline are ideal for long-term monitoring.
Features to facilitate service work
The device offers high and low pressure alarms, an adjustable data logging interval, and a backlit screen, which improves user comfort. Built-in LED indicators show the operating status, and the rugged design with an IP54 rating allows the device to be used in various conditions.
Included in the set
-
Wireless pressure gauge
-
3 AA batteries
-
Carrying case
-
Wrist strap
-
User manual
Specifications
|
Manufacturer
|
Uni-T
|
|
Model
|
UT336P
|
|
Type
|
Wireless pressure gauge
|
|
Pressure range
|
-1 ~ 60 bar ±0.5% FS
|
|
Pressure units
|
bar, kg/cm², cmHg, psi, inHg, kPa, MPa
|
|
Temperature units
|
°C / °F
|
|
Data log
|
8,000 measurements
|
|
Logging interval
|
1 s ~ 1 h
|
|
Connectivity
|
Bluetooth (mobile app)
|
|
Supported media
|
10 in the device / 90+ in the app
|
|
Features
|
Data Hold, data logging, high and low pressure alarms, LCD backlight, pressure zeroing, auto power off, firmware update
|
|
Temperature port
|
3.5 mm (compatible with UT-T19)
|
|
Connection
|

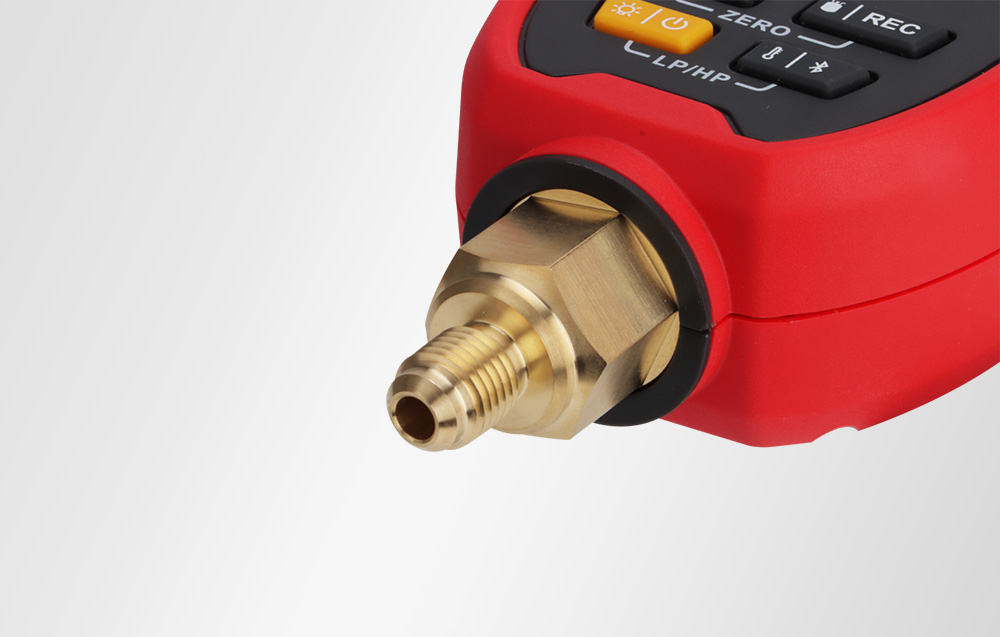

1/4" SAE
|
|
Protection rating
|
IP54
|
|
Power supply
|
3x AA batteries
|
|
Dimensions
|
145 x 68 x 39 mm
|
|
Weight
|
250 g
|
|
Certifications
|
CE, RoHS
|
