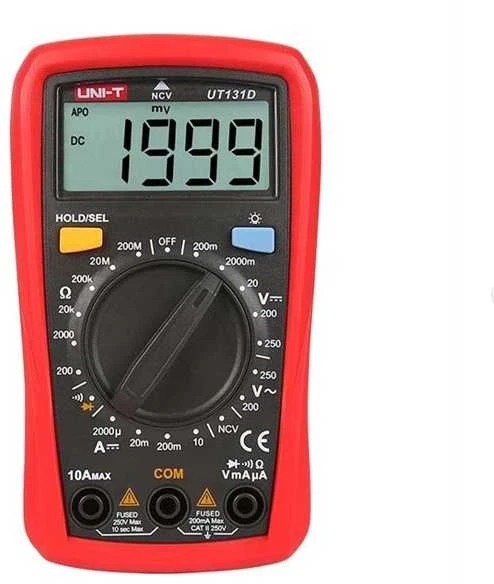

UNI-T UT131D multimeter

UT131D with non-contact electric field measurement

The new generation of UT131 series multimeters offers a higher standard of measurement in the more affordable category of digital multimeters. The innovative and industrial design ensures the multimeter is shock and drop resistant from up to two meters. The new LCD display layout is clearer and more practical for all users, plus the display has a backlight option. The UT131 series multimeters guarantee safe handling and measurement according to CAT II standard.

Multimeter functions:

AC voltage measurement (AC) - 200 V / 250 V
DC voltage measurement (DC) - 200 mV / 250 V
DC current measurement (DC) - 2000.0 µA / 10.00 A
Resistance measurement - 200.0 ? / 20.0 M?
Non-contact electric field measurement with acoustic intensity indication
Line continuity test (buzzer)
Diode test
Manual range selection
Reverse polarity detection
Data hold function
Backlit display
Automatic shutdown after 15 min. of inactivity
Measurement cables included
Low battery indication
Overload protection, fuse protection

Technical parameters:

AC voltage measurement (range, resolution, accuracy) :
200.00 V / 0.1 V / ± 1.2% + 3
250 V / 1 V / ± 1.2 % + 3

DC voltage measurement (range, resolution, accuracy) :
200 mV / 0.1 mV / ± 0.7% + 3
2000 mV / 1 mV / ± 0.5 % + 2
20.00 V / 0.01 V / ± 0.7 % + 3
200.0 V / 0.1 V / ± 0.7 % + 3
250 V / 1 V / ± 0.7 % + 3

DC current measurement (range, resolution, accuracy) :
2000.0 µA / 1 µA / ± 1.0% + 2
20.0 mA / 0.01 mA / ± 1.0 % + 2
200.0 mA / 0.1 mA / ± 1.0 % + 2
10.00 A / 0.01 A / ± 1.2 % + 5

Resistance measurement (range, resolution, accuracy) :
200.0 ? / 0.1 ? / ± 1.0 % + 2
2000 ? / 1 ? / ± 0.8 % + 2
20.00 k? / 0.01 k? / ± 0.8 % + 2
200.0 k? / 0.1 k? / ± 0.8 % + 2
20.00 M? / 0.01 M? / ±1.2 % + 3
200.0 M? / 0.1 M? / ± 5.0 % + 10

The instrument complies with IEC 61010-1, IEC 61010-2-030, CAT II standards
Dimensions (mm) : 134 x 77 x 47
Power supply : 2 x AAA 1.5 V batteries (included)
Weight : approx. 206 g (including batteries)
Operating temperature : 0 - 40°C (32 - 104°F)

Parameters and specifications
Max. AC voltage:
250 V
Max. DC voltage:
250 V
Max. AC current:
10 A
Max. DC current:
10 A
Measured quantities:
AC voltage, AC current, DC voltage, DC current, resistance
Special Features:
Data Hold, display backlight, sleep mode, acoustic test, diode test
Multimeter resolution:
2000
