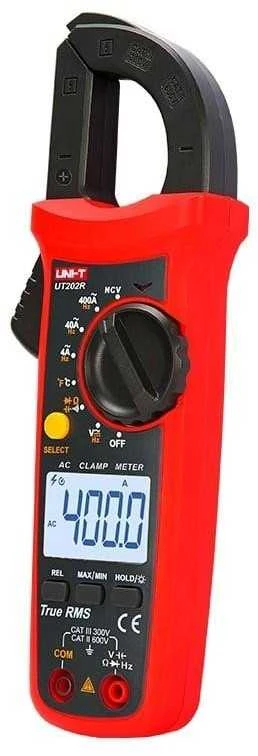

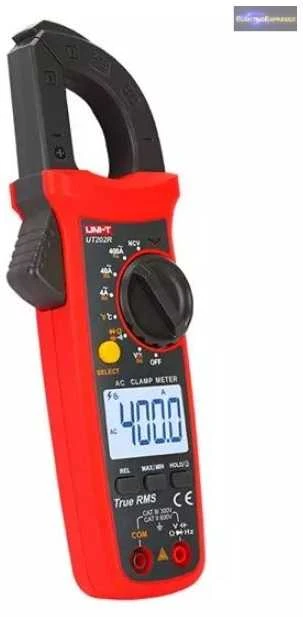

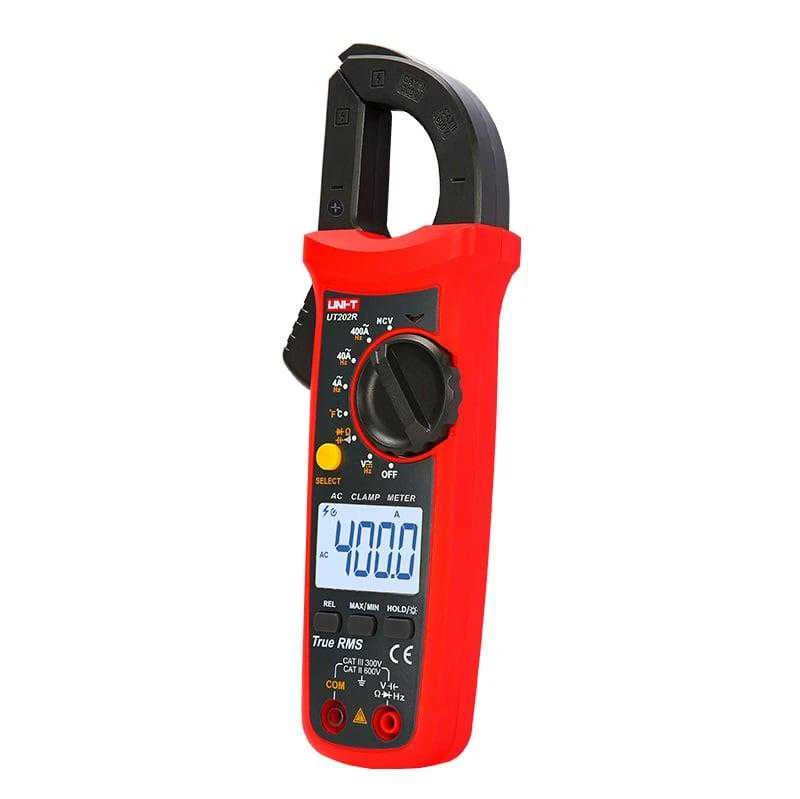

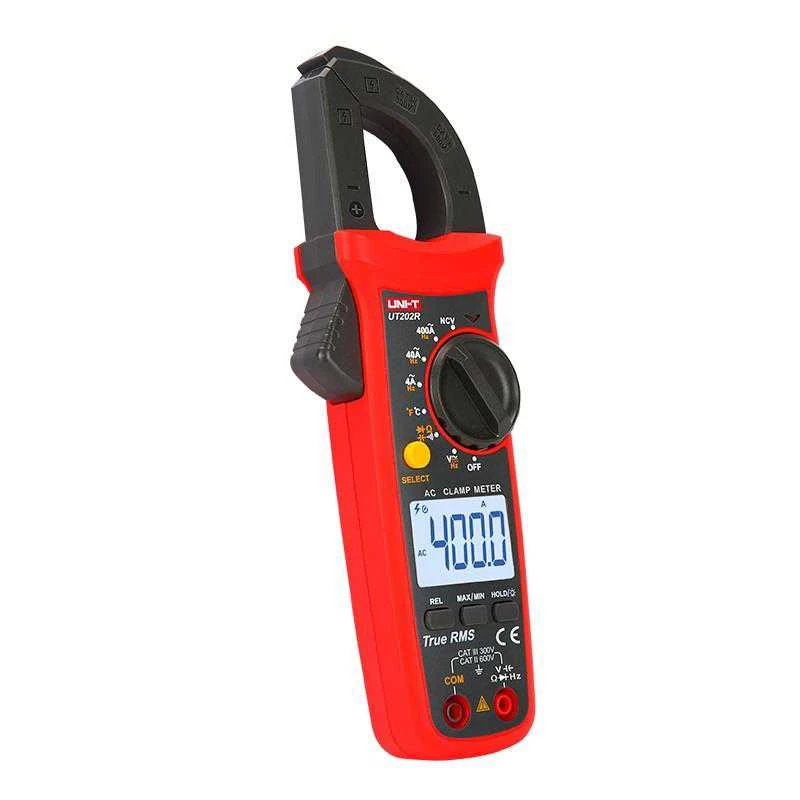

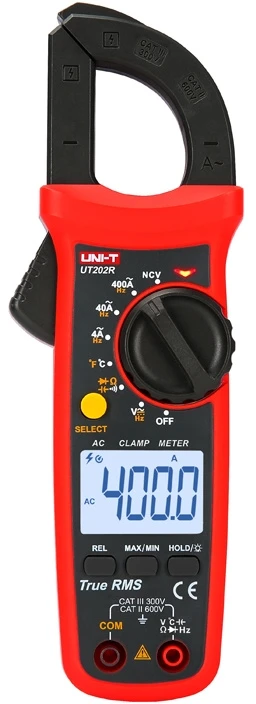

Uni-T UT202R Digital Clamp Meter

The Uni-T UT202R universal clamp meter is a practical tool for everyday electrical measurements. It is ideal for inspecting installations, diagnosing basic circuits, and measuring AC current without having to open the circuit. Thanks to its clamp design, it allows for convenient and quick measurements in the field.

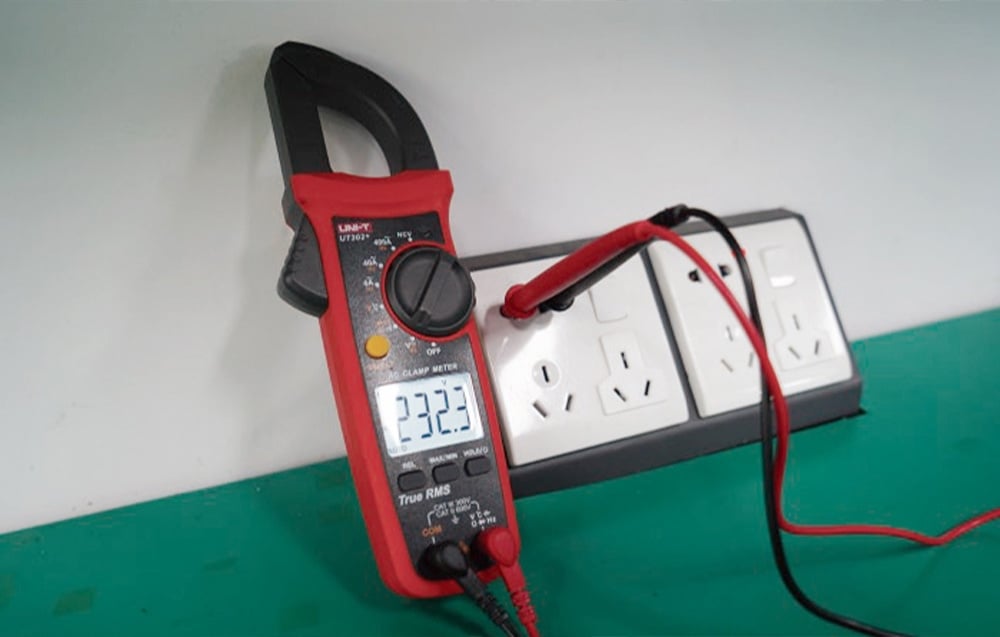

Uni-t Skaitmeninis testeris UT-202R aprašymas - Prekės nuotrauka

Basic measurements for everyday work

The UT202R model allows for measuring AC current up to 400 A and AC and DC voltage up to 600 V, and additionally enables the measurement of capacitance and temperature. This makes it better suited for broader diagnostics of electrical and electronic devices.

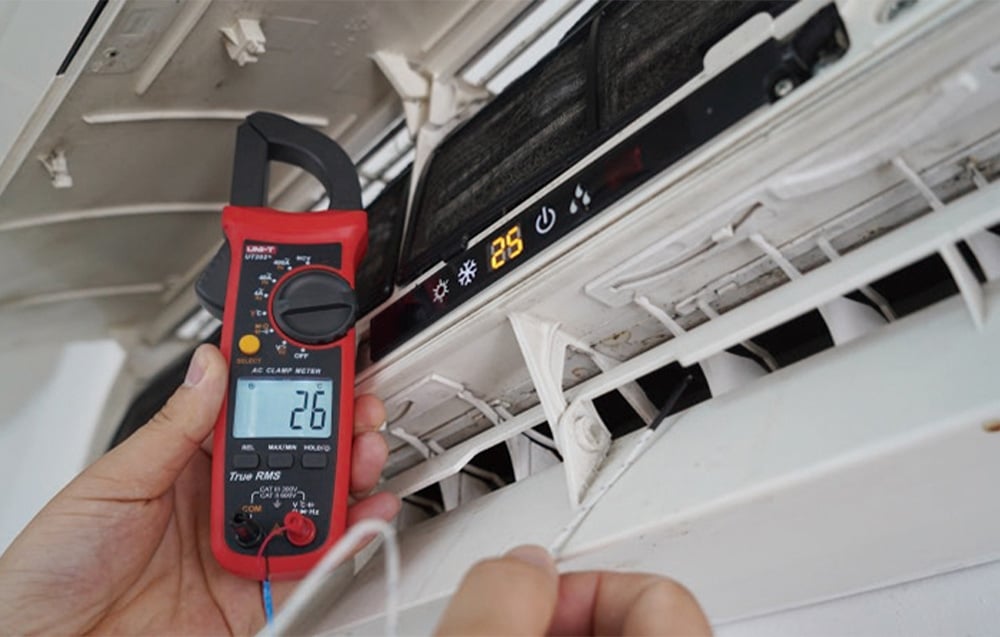

Uni-t Skaitmeninis testeris UT-202R aprašymas - Prekės nuotrauka

User-friendly features

The multimeter is equipped with True RMS, which provides more reliable results when measuring alternating signals. Features such as NCV, diode test, continuity test, Data Hold, and Max/Min simplify daily work and speed up operation.

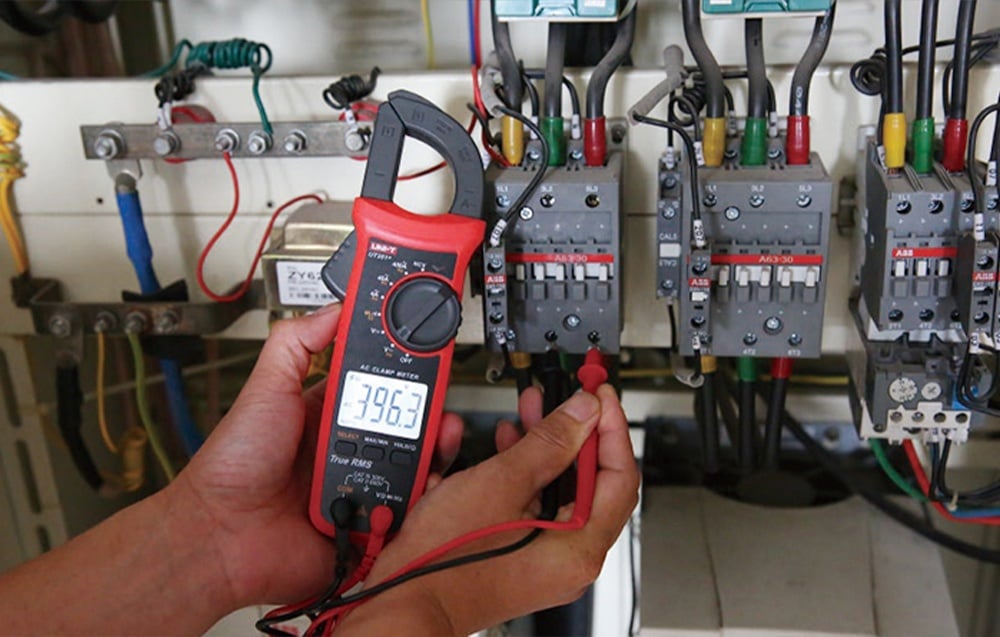

Uni-t Skaitmeninis testeris UT-202R aprašymas - Prekės nuotrauka

Clear design and safe operation

The large backlit screen makes it easy to read results, and the 28 mm jaw opening allows for a comfortable grip on the wire during measurement. Compliance with safety categories CAT II 600V and CAT III 300V allows the device to be used in typical electrical applications.

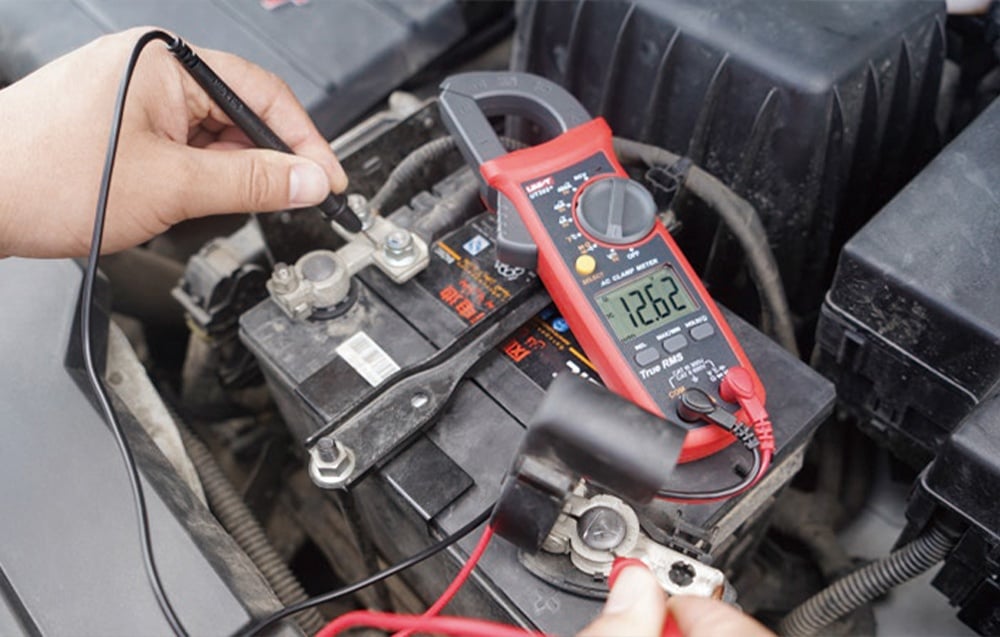

Uni-t Skaitmeninis testeris UT-202R aprašymas - Prekės nuotrauka

Included in the set

Clamp meter
Batteries x2
Test leads
Thermocouple
User manual

Specifications

Manufacturer	Uni-T
Model	UT202R
Type	Clamp meter
AC current	0.04~400A ±(2%+10)
AC Frequency	50Hz~100Hz ±(1%+5)
AC Voltage	600V ±(0.8%+5)
AC Voltage Frequency	10Hz~10kHz ±(1%+5)
DC Voltage	600V ±(0.5%+2)
Resistance	40MΩ
Capacitance	4mF ±(4%+5)
Temperature	-40°C~1000°C ±(1.5%+5)
Maximum reading	4000
Functions	True RMS, NCV, diode test, continuity test, Data Hold, Max/Min, LCD backlight
Jaw opening	28 mm
Power supply	2x 1.5V battery (R03)
Safety	CAT II 600V / CAT III 300V
Dimensions	215 x 63 x 36 mm
Certifications	CE, UKCA, cETLus
