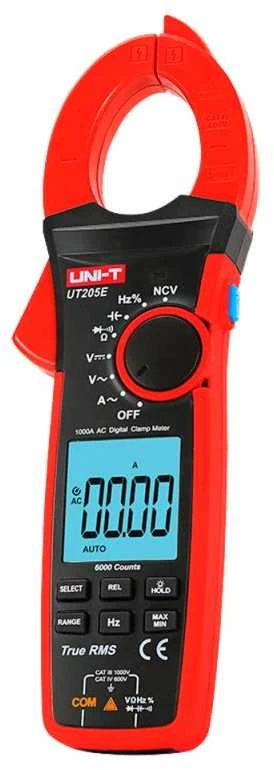

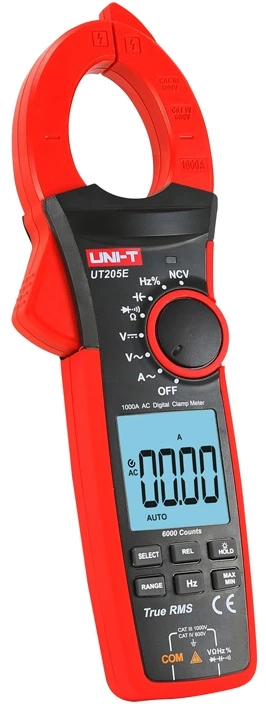

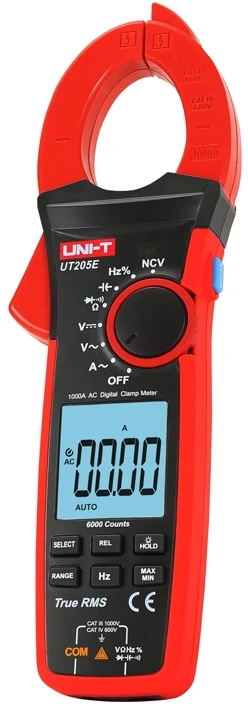

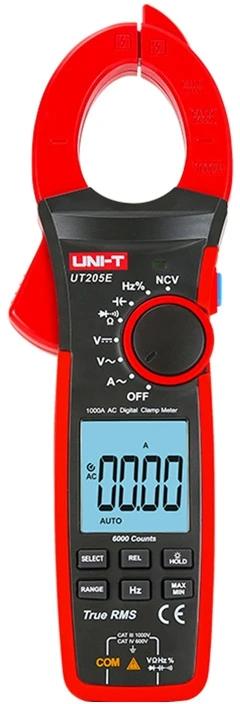

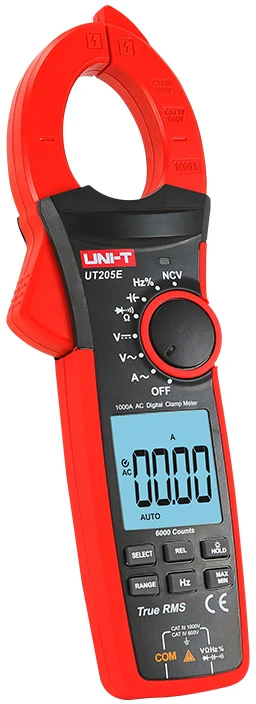

Uni-T UT205E Digital Clamp Meter

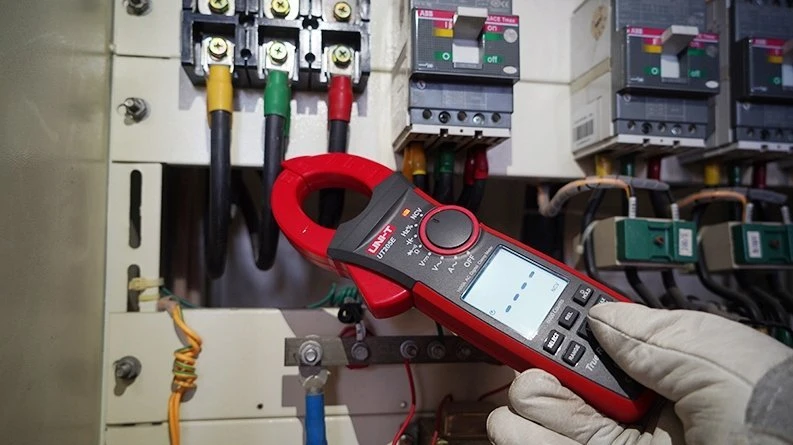

The Uni-T UT205E digital clamp meter is a versatile tool for working with electrical installations and diagnosing equipment. Thanks to its clamp design, it allows for quick current measurement without opening the circuit, which significantly simplifies field work and operations at switchgear panels.

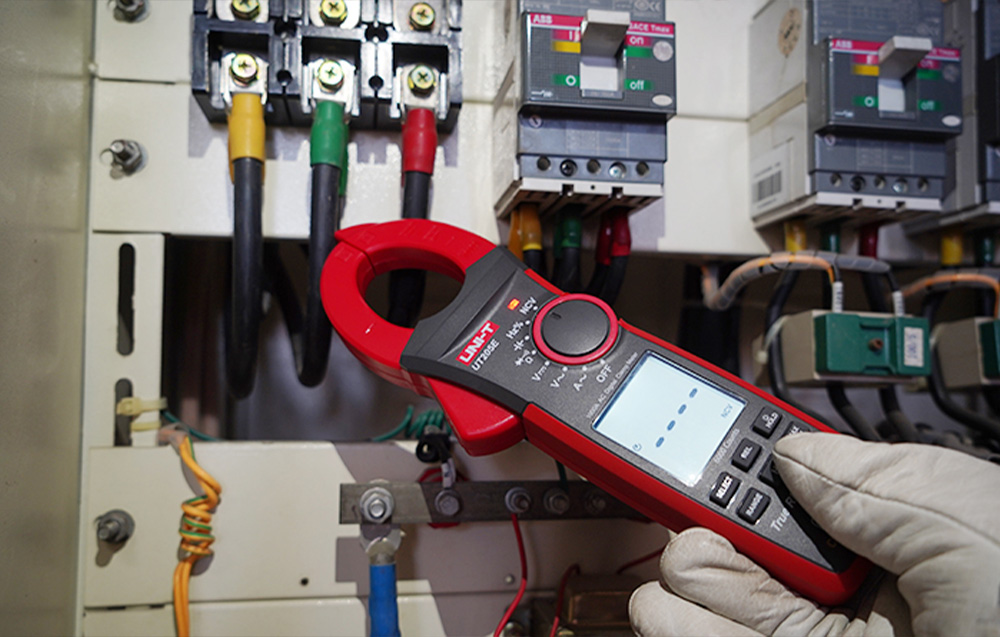

Srovės matavimo replės DC/AC 1000V; AC 1000A; 60MΩ; 60mF; 1MHz; UNI-T aprašymas - Prekės nuotrauka

Wide Measurement Range

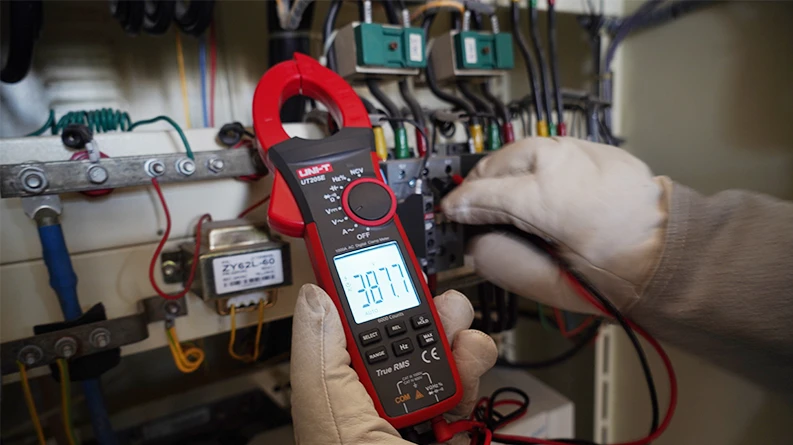

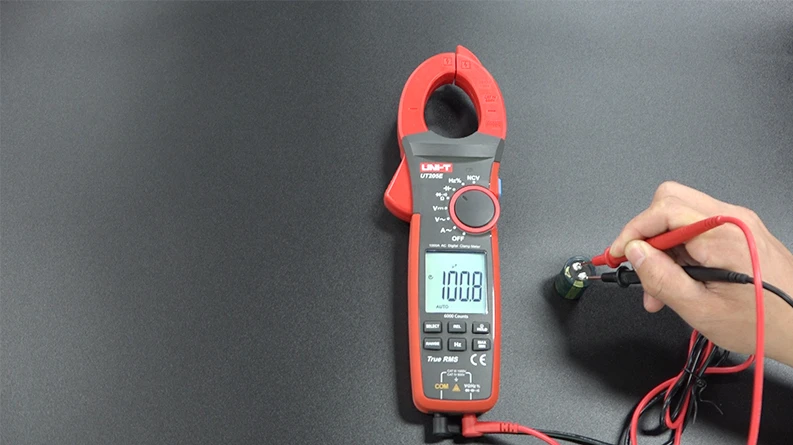

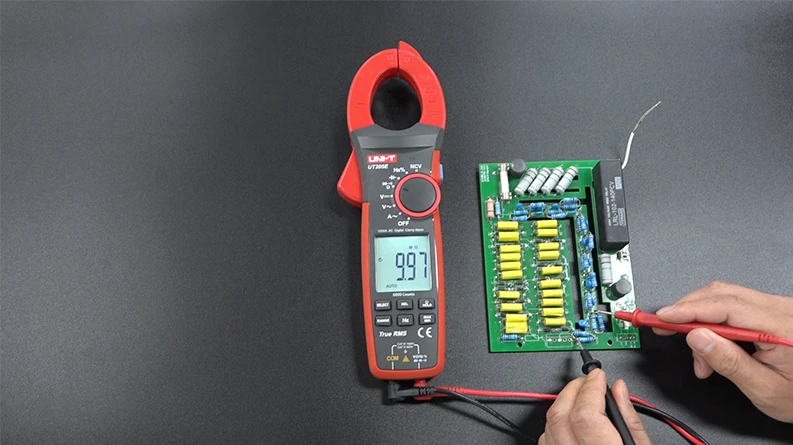

The UT205E model allows for measuring AC current up to 1000A and AC/DC voltage up to 1000V, enabling work on more demanding installations. Additionally, it supports resistance, capacitance, frequency, and duty cycle measurements, expanding its diagnostic capabilities.

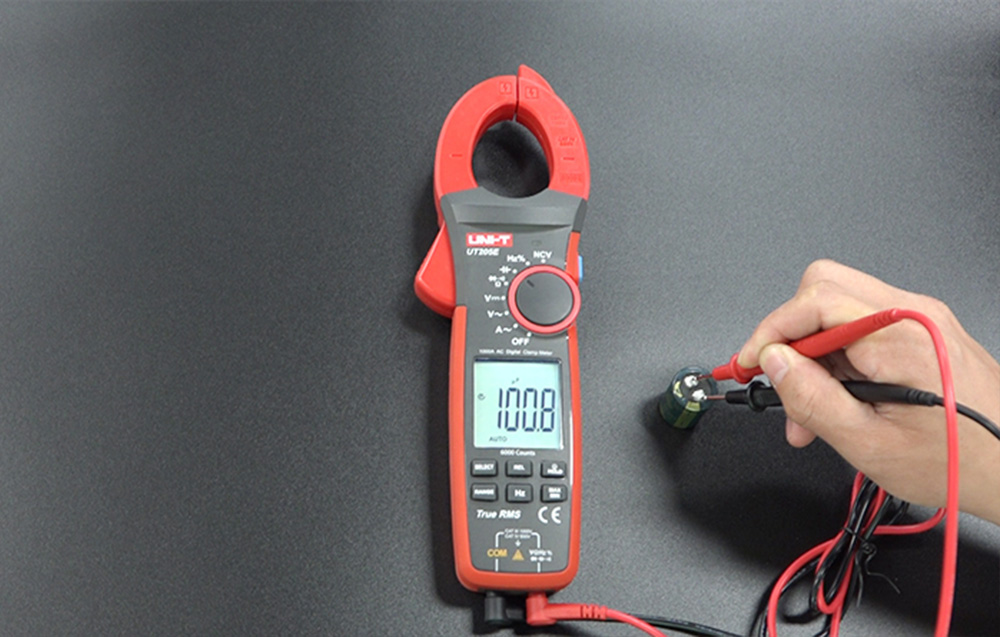

Srovės matavimo replės DC/AC 1000V; AC 1000A; 60MΩ; 60mF; 1MHz; UNI-T aprašymas - Prekės nuotrauka

Features that make work easier

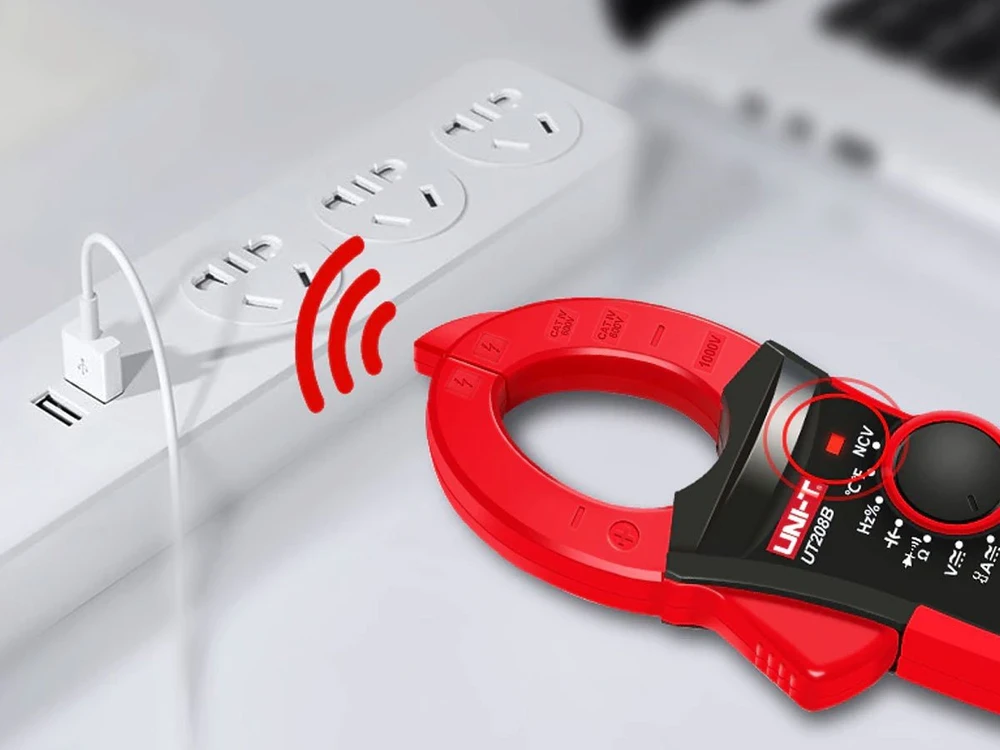

True RMS ensures more accurate measurements, while features such as NCV, backlight, and flashlight improve working comfort. Automatic range selection and a clear display facilitate quick measurements in various conditions.

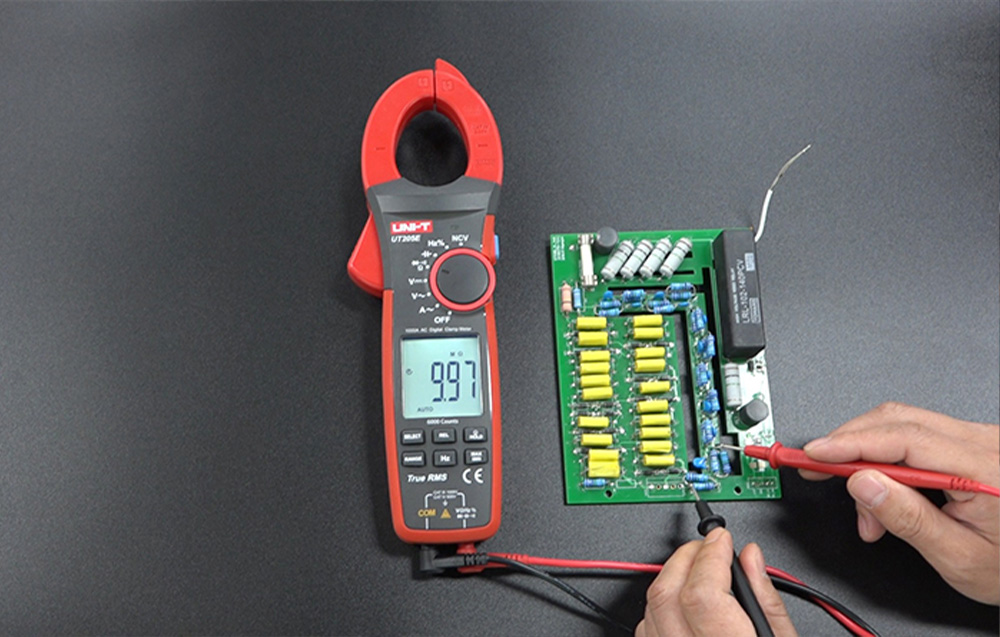

Srovės matavimo replės DC/AC 1000V; AC 1000A; 60MΩ; 60mF; 1MHz; UNI-T aprašymas - Prekės nuotrauka

Intuitive design and safety

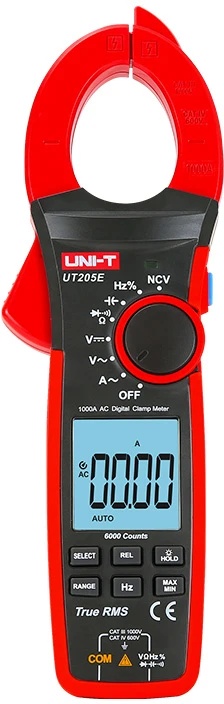

The large screen and 42 mm jaw opening allow for comfortable work even with thick cables. The device complies with CAT III 1000V / CAT IV 600V standards, ensuring safe use.

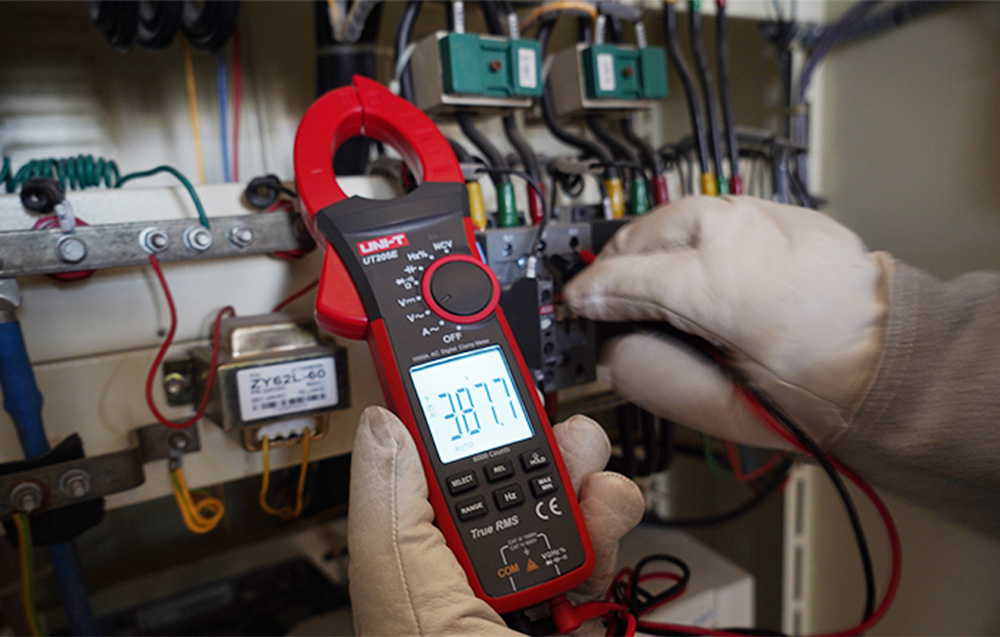

Srovės matavimo replės DC/AC 1000V; AC 1000A; 60MΩ; 60mF; 1MHz; UNI-T aprašymas - Prekės nuotrauka

Included

Clamp meter
Batteries x3
Test leads
User manual

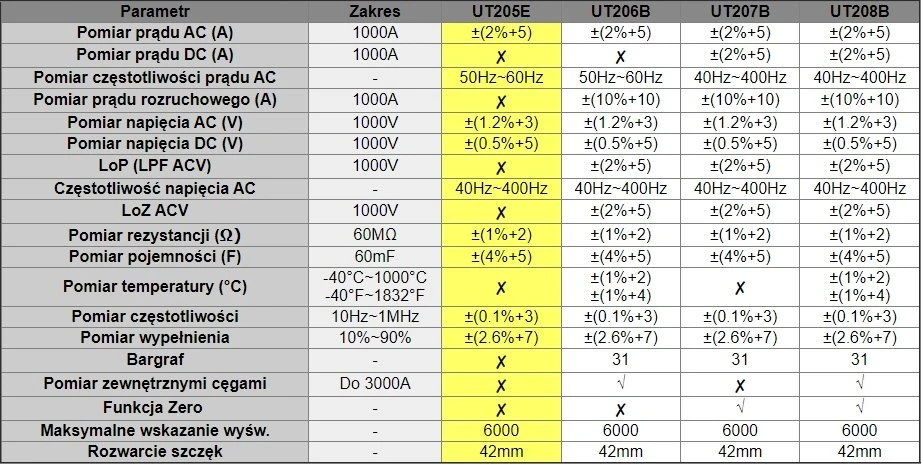

Specifications

Manufacturer	Uni-T
Model	UT205E
Type	True RMS Clamp Meter
AC Current	1000A ±(2%+5)
AC Current Range	50Hz ~ 60Hz
AC Voltage	1000V ±(1.2%+3)
DC Voltage	1000V ±(0.5%+5)
AC Voltage Range	40Hz ~ 400Hz
Resistance	60MΩ ±(1%+2)
Capacitance	60mF ±(4%+5)
Frequency	10Hz ~ 1MHz ±(0.1%+3)
Duty cycle	10% ~ 90% ±(2.6%+7)
Maximum reading	6000
Functions	True RMS, NCV, backlight, flashlight, automatic range switching
Jaw opening	42 mm
Power supply	3x 1.5V battery (R03)
Display	43 x 45 mm
Dimensions	272 x 81 x 43.5 mm
Weight	465 g
Safety	CAT III 1000V / CAT IV 600V
Certifications	CE, UKCA, cETLus
