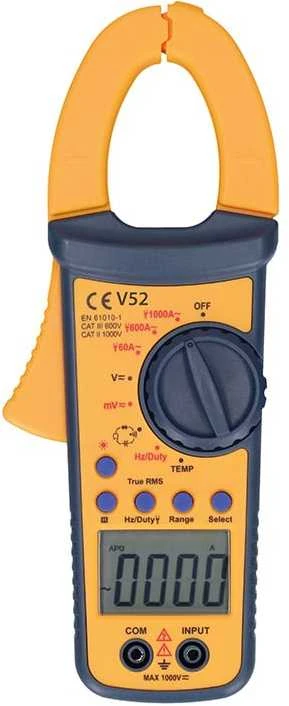

Professional clamp multimeter
Digital multimeter with max. display of 6000 values and backlit LCD display (34 × 48 mm). Offers automatic or manual range selection and automatic shutdown after 15 minutes of inactivity. Measures DC voltage (0.1 mV - 1000 V), AC voltage (0.1 mV - 750 V, True-RMS), AC current (10 mA - 1000 A, True-RMS), resistance (0.1 ? - 60 M?), capacitance (6 nF - 60 mF) and temperature (-40 °C - 1370 °C). Features data hold, maximum and minimum value indication, frequency (0 Hz - 10 MHz), and duty cycle (0.01% - 99.9%). Diode test, continuity with buzzer, and clamping frequency measurement. Power supply: 3x AAA 1.5V batteries. Dimensions: 240 × 95 × 40 mm, weight: 342 g.
6000.
LCD size: 34 × 48 mm
Range selection: Automatic or manual
Automatic shut-off: After 15 minutes of inactivity
Display backlight: Yes
Data Hold: Yes
Maximum and minimum value indication: Yes
DC Voltage (Auto Range) - Range: 0.1 mV - 1000 V (±0.8% + 3 to ±1.0% + 5)
AC Voltage (Auto Range, True-RMS) - Range: 0.1 mV - 750 V (±1.2% + 6 to ±1.2% + 8)
AC Current (Auto Range, True-RMS) - Range: 10 mA - 1000 A (±2.5% + 10)
Resistance (Auto Range) - Range: 0.1 ? - 60 M? (±1.5% + 5)
Capacitance (Auto Range) - Range: 6 nF - 60 mF (±8.0% + 5)
Temperature - Range: -40 °C - 1370 °C (-40 °F - 2000 °F) (±1.2% + 4 to ±5.0% + 4)
Frequency (Auto Range) - Range: 0 Hz - 10 MHz (±1.0% + 5)
Clamp Mode Frequency - Range: 50 Hz - 1 kHz (±1.5% + 5)
Duty Cycle - Range: 0.01% - 99.9% (±1%)
Diode test - voltage in the pass direction: approximately 3.2 V
continuity - buzzer trip threshold: <30 ?
operating temperature: 0°C to 40°C, less than 80% RH
storage temperature: -10°C to 50°C, less than 85% RH
Power supply: 3× AAA 1.5V batteries
Dimensions (H×W×D): 240 × 95 × 40 mm
maximum jaw opening: 40 mm
Weight: Approximately 342 g (with batteries)
