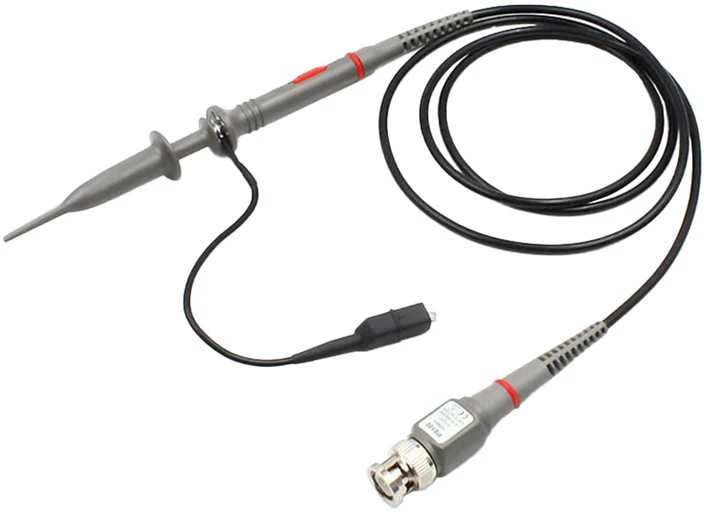

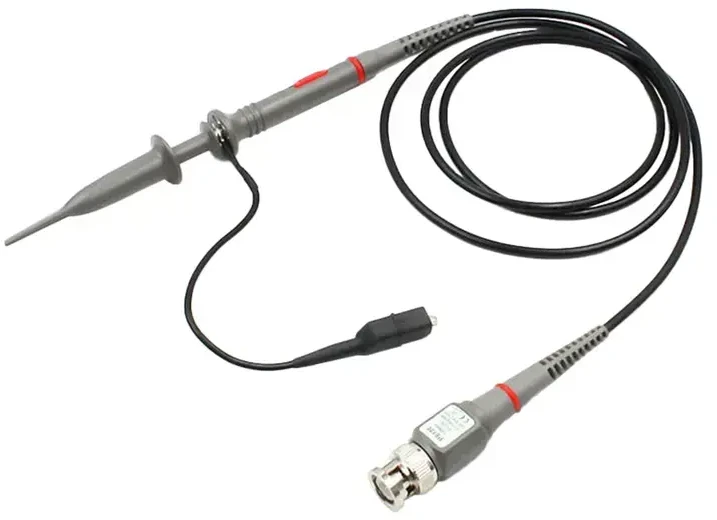

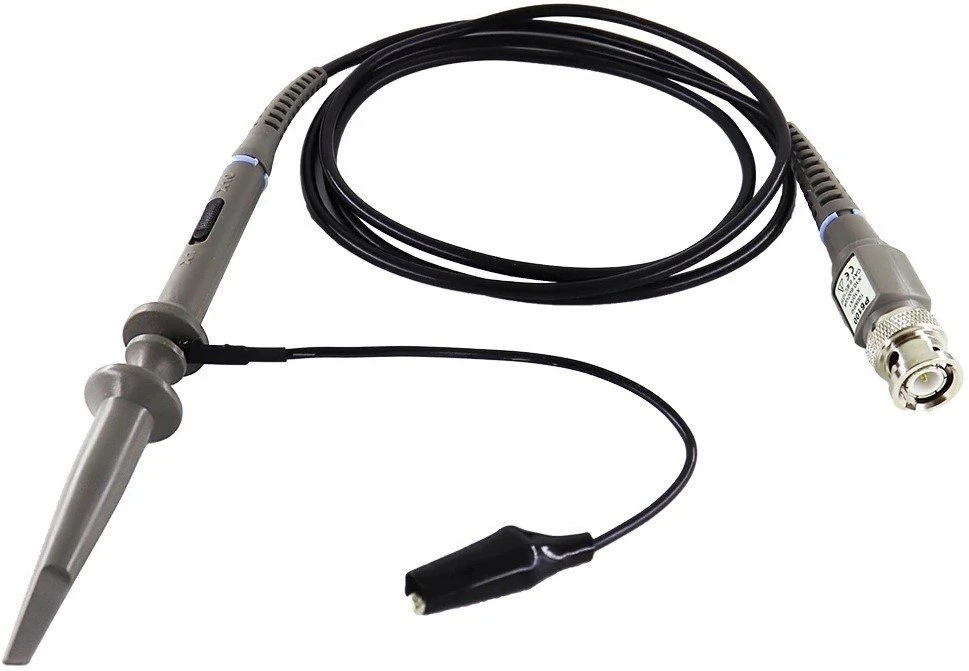

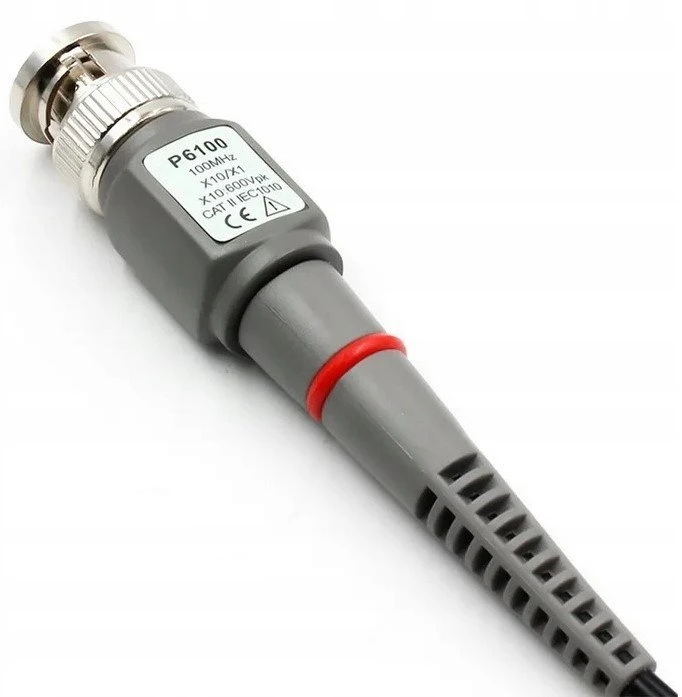

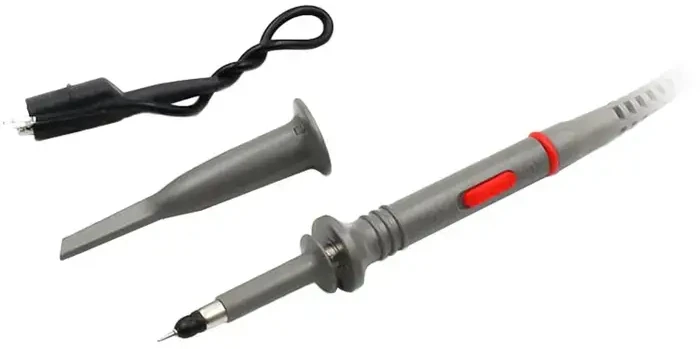

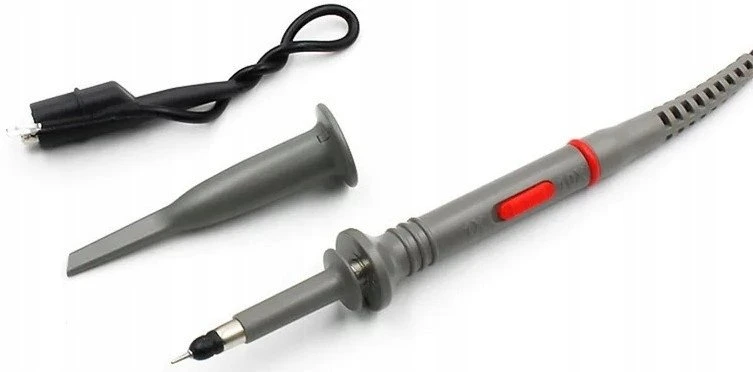

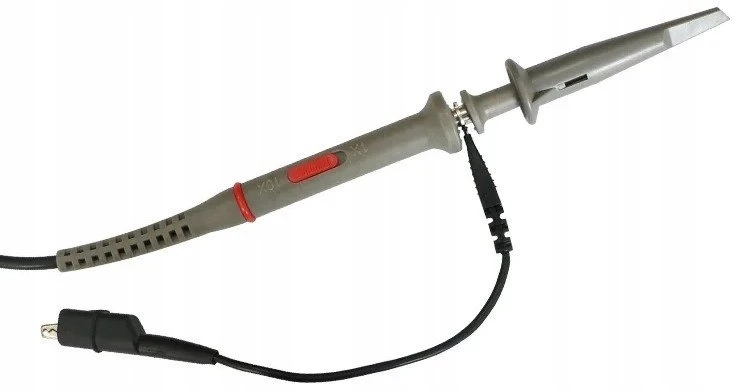

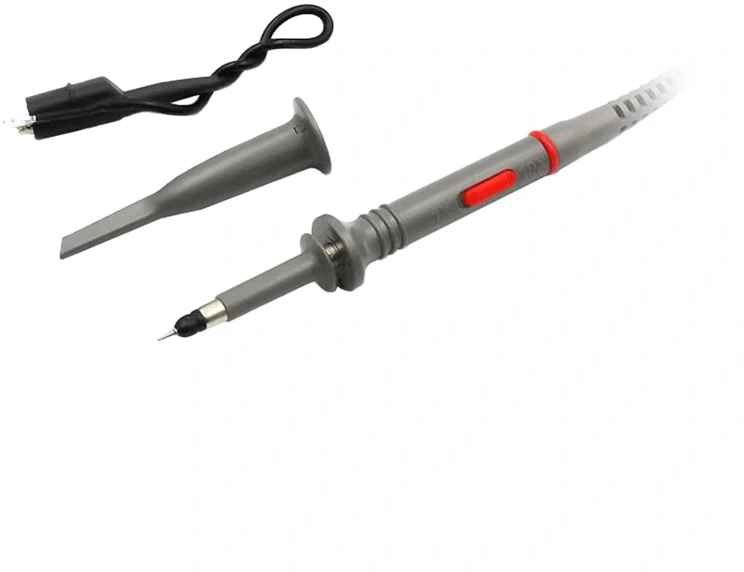

Fnirsi P6100 oscilloscope probe,...

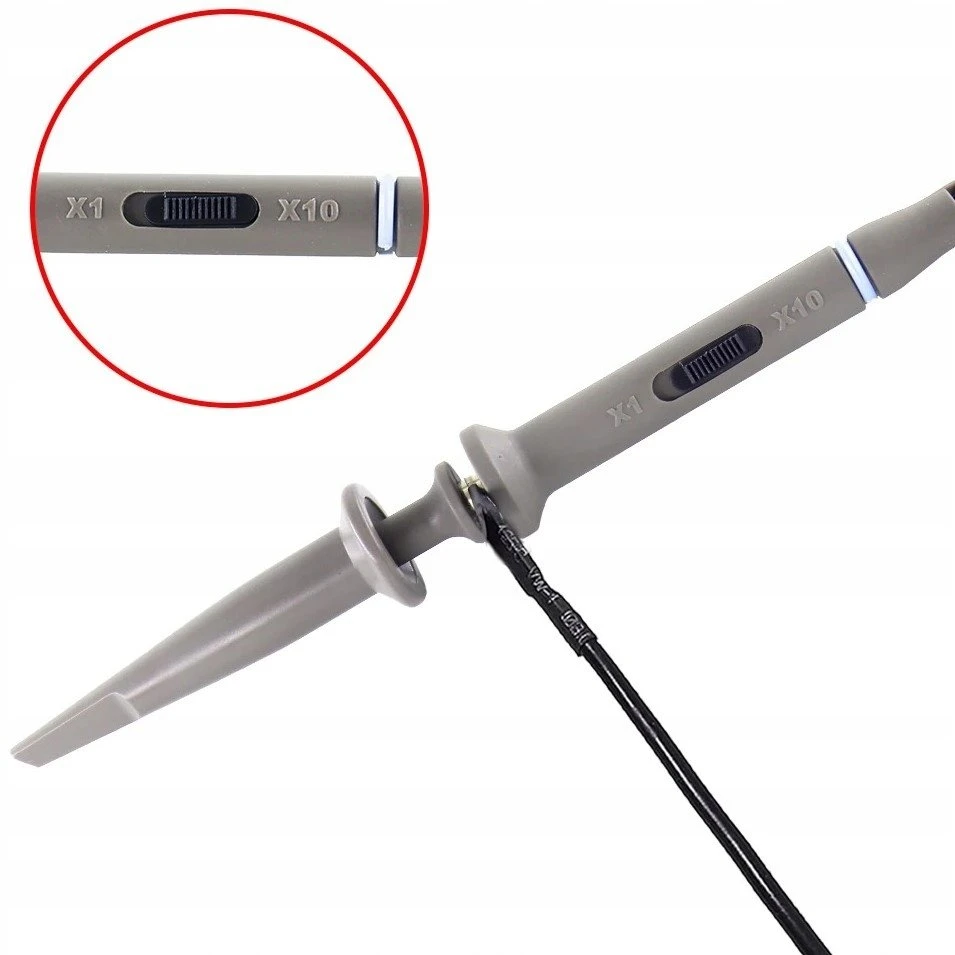

The Fnirsi P6100 is an oscilloscope probe designed for precise signal measurements in everyday work with electronics. It offers a wide bandwidth, two attenuation modes, and solid electrical parameters, making it suitable for both service and hobbyist workshops.

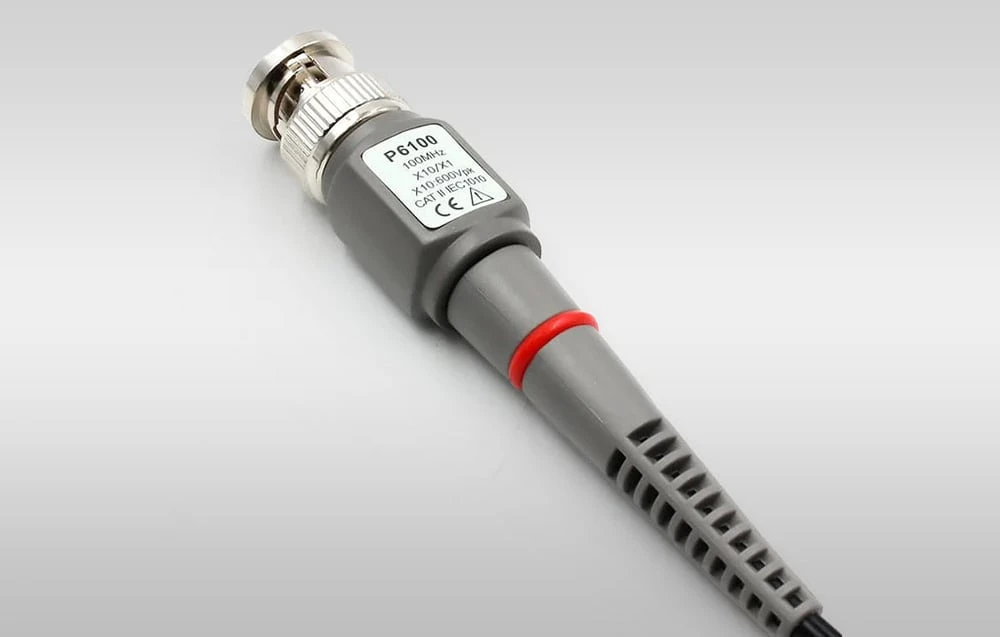

Fnirsi P6100 oscilloscope probe aprašymas - Prekės nuotrauka

Safe operation with higher voltages

In 1X mode, the probe supports voltages up to 200 V DC + AC Peak, and in 10X mode up to 600 V DC + AC. These parameters allow for comfortable work with many popular electronic devices and power modules. The appropriate voltage range increases safety and expands the range of applications.

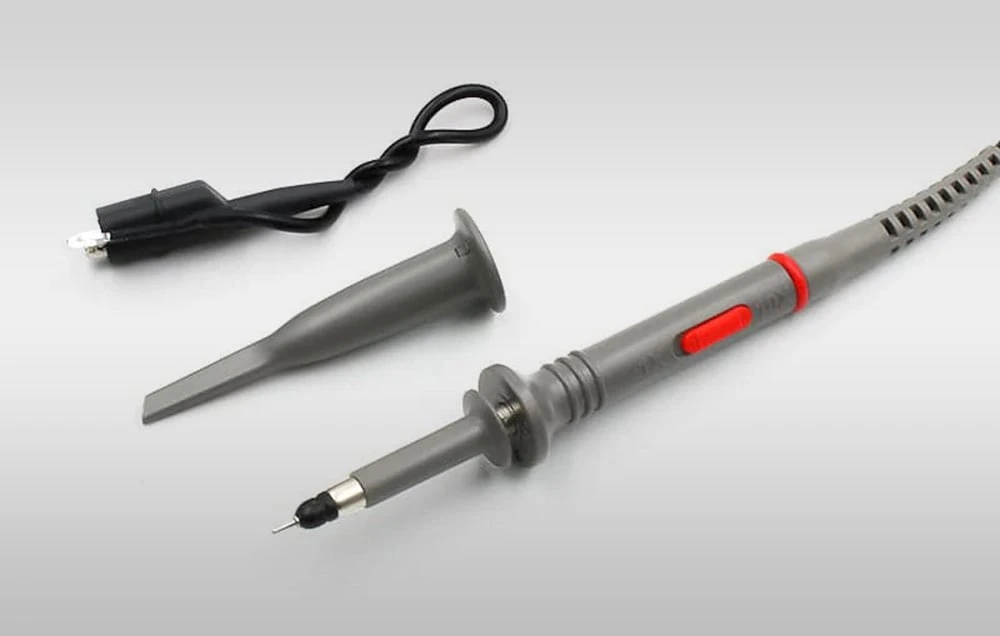

Fnirsi P6100 oscilloscope probe aprašymas - Prekės nuotrauka

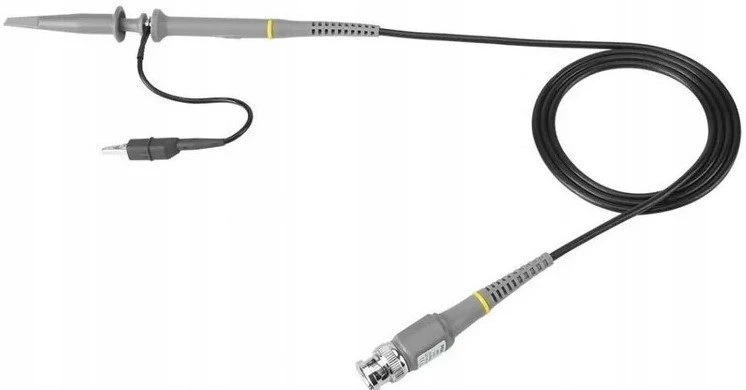

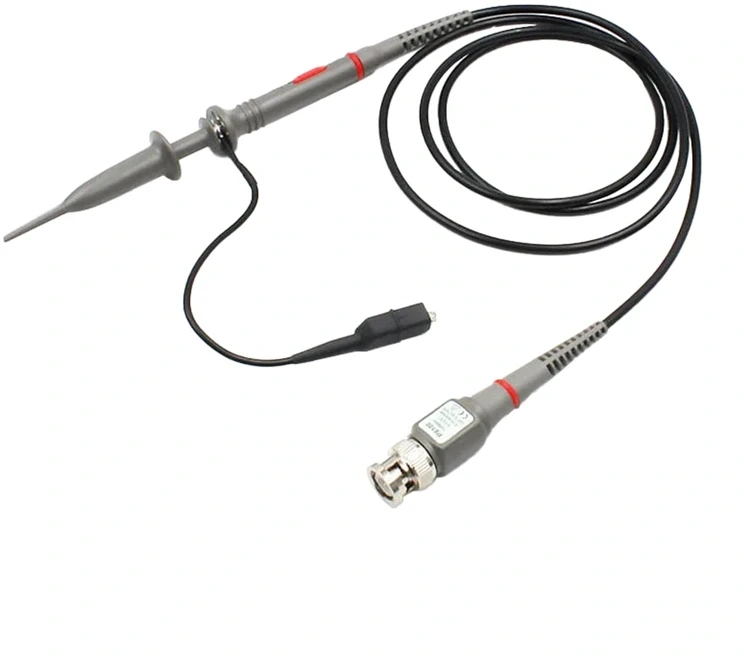

Convenient cable length

The 120 cm long cable provides freedom of movement at the measuring station. This allows you to conveniently connect the probe even in less accessible places without excessive cable tension. The whole thing weighs about 80 g, so the probe does not burden the connector and fits well in your hand.

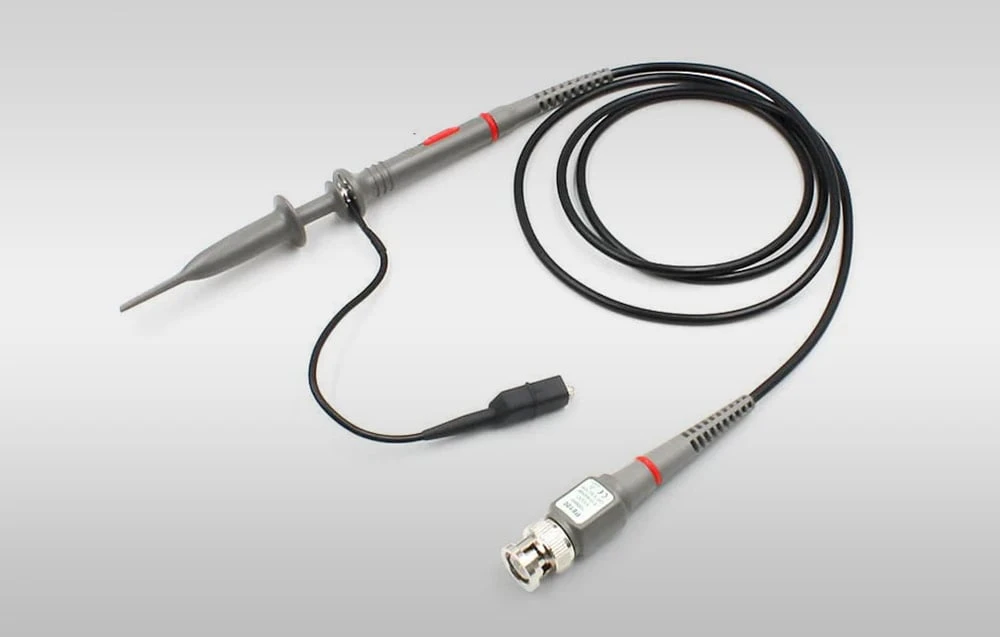

Fnirsi P6100 oscilloscope probe aprašymas - Prekės nuotrauka

Included:

Fnirsi P6100 oscilloscope probe

Manufacturer	Fnirsi
Model	P6100
Frequency response	DC–6 MHz (1X mode), DC–100 MHz (10X mode)
Attenuation ratio	1:10
Input capacitance:	1X: 85 pF–120 pF, 10X: 18.5 pF–22.5 pF
Compensation range	10 pF–30 pF
Rise time	< 3.5 ns
Operating voltage	1X: < 200 V DC + AC (peak), 10X: < 600 V DC + AC
Cable length	120 cm
Operating temperature range	-10°C to +50°C
Storage temperature range	-20°C to +75°C
Humidity	≤ 5% (relative humidity)
Weight	80 g
Color	gray-black
