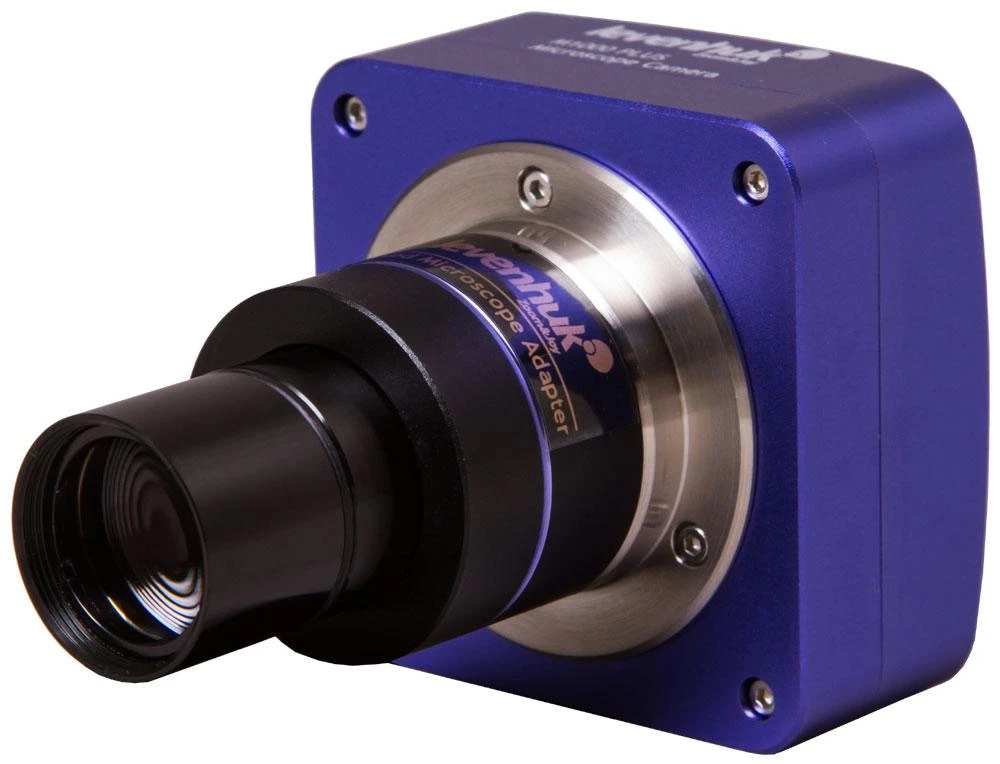

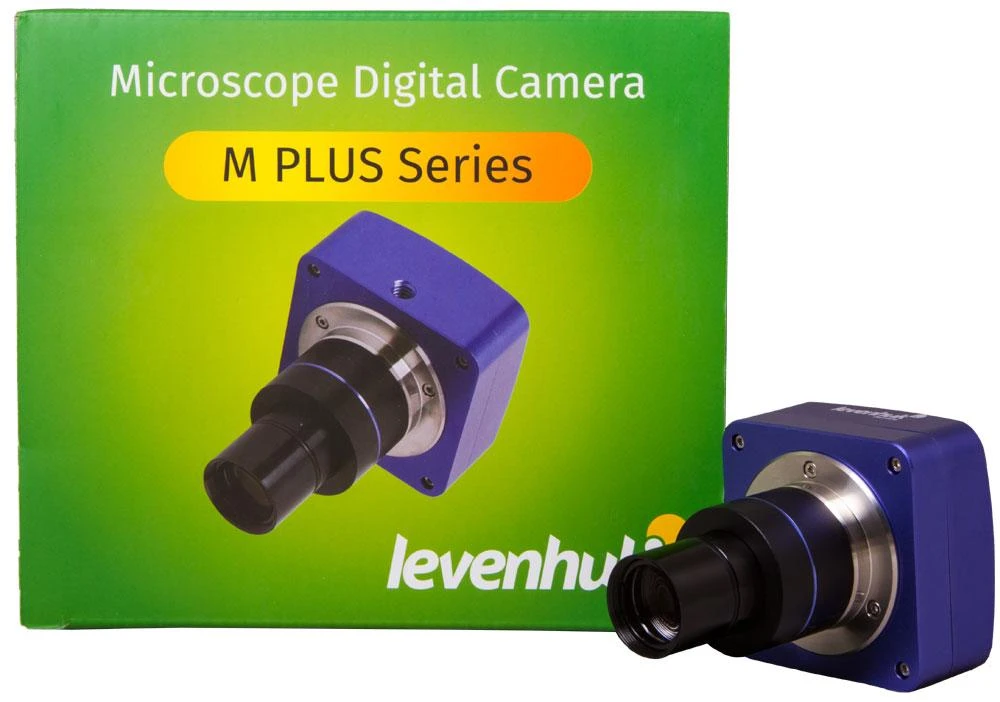

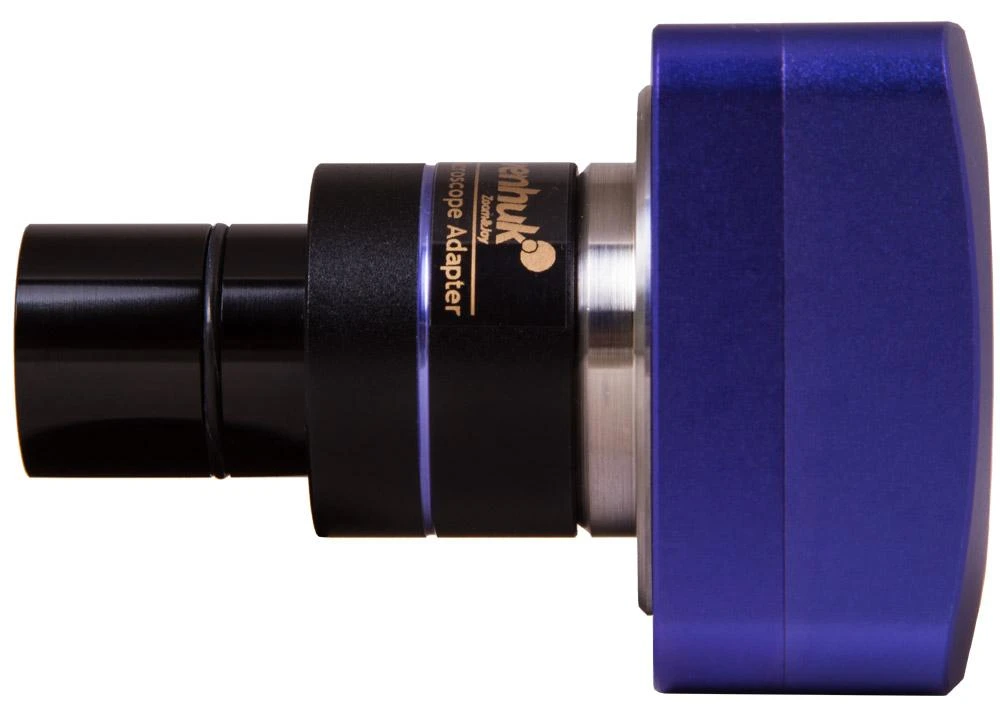

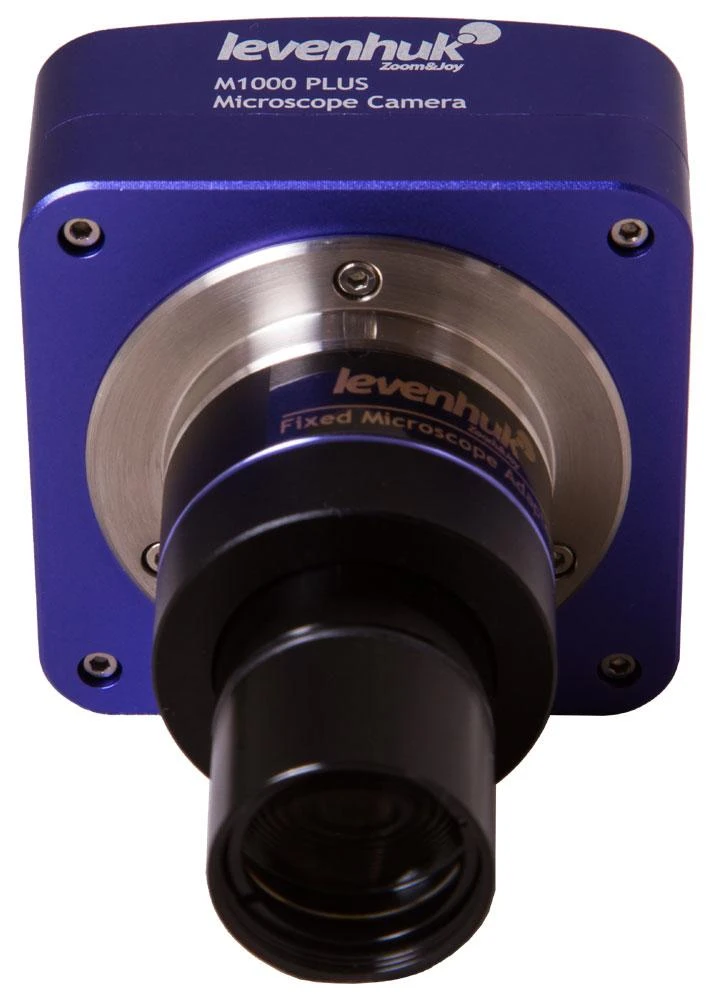

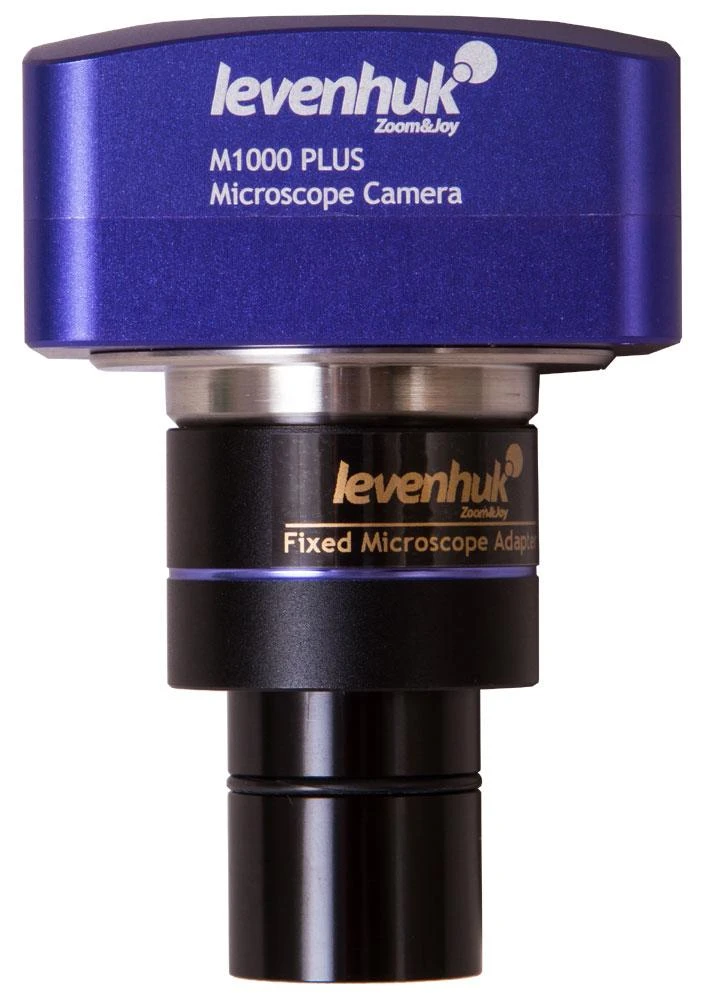

Levenhuk M10000 PLUS is a digital camera for microscopes that will impress you with sharp, high- contrast images. You can study the smallest structures at high magnification and observe the life of tiny microorganisms. This 10-megapixel camera allows you to take photos and videos with a resolution of up to 3584x2748 pixels. The maximum frame rate is 27fps – just enough for videos to be smooth and clear.

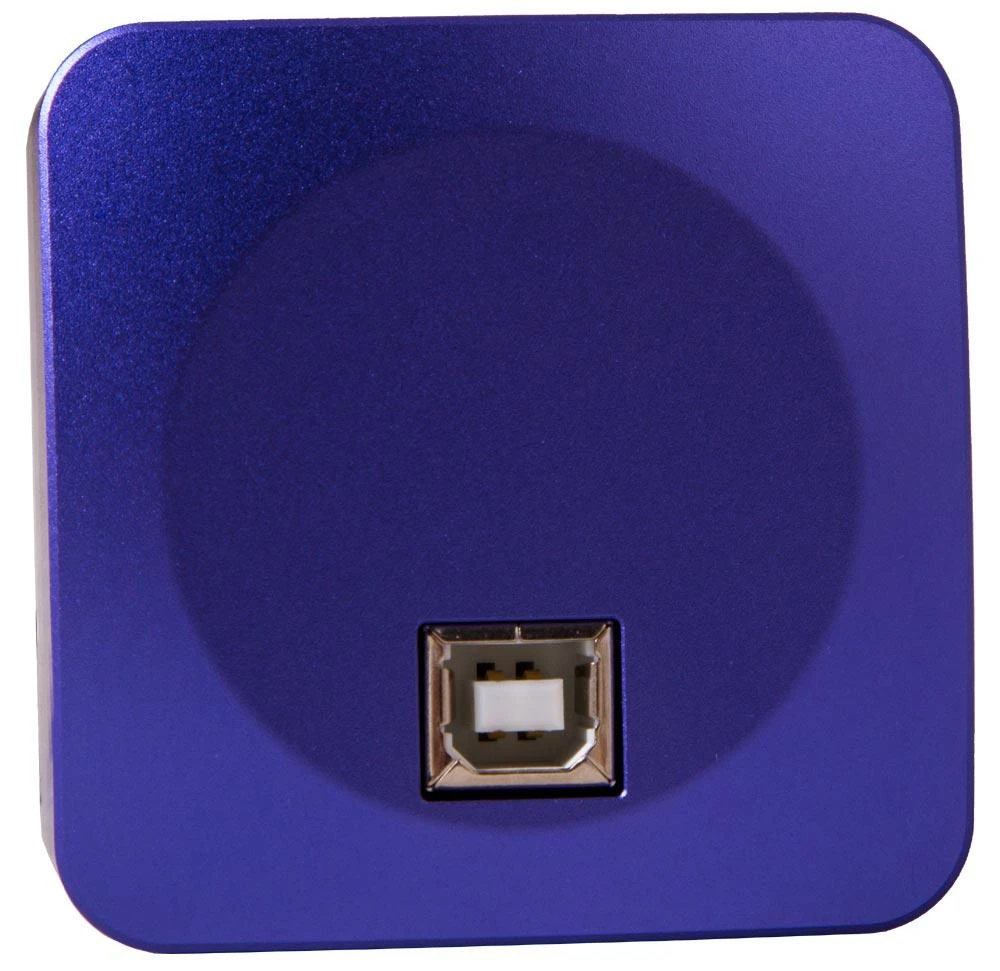

The camera works with biological and stereoscopic microscopes of any manufacturer. Adapters are included in the kit to enable you to use the camera with eyepiece tubes of different diameters. A standard USB cable is used to connect the camera and PC or laptop to display the image from the microscope lens on the computer screen. The Levenhuk software allows you to capture and record images in real time, and then process them. The Levenhuk M10000 PLUS Digital Camera is suitable for home use, study and professional observations.
To ensure the best possible performance of your new camera, make sure your computer complies with the system requirements specified by the manufacturer. Compatible OS include Mac OS, Linux * , Windows XP, Windows Vista, and Windows 7/8/10. A USB 2.0 port is required to establish a connection.
The latest version of Levenhuk Software for Windows supports eight languages: English, French, German, Polish, Russian, Simplified Chinese,Traditional Chinese, Turkish.
Levenhuk Digital Camera is compatible with microscopes of 23.2-mm eyepiece tube diameter. The camera can also be mounted on eyepiece tubes of 30 и 30,5mm diameters using adapters, included in the kit.
User Manual: Microsoft Digital Camera M Plus Series (pdf)
LevenhukLite Software: Quick Start Guide (pdf)
LevenhukLite 4.11 software 2021-03 (zip)

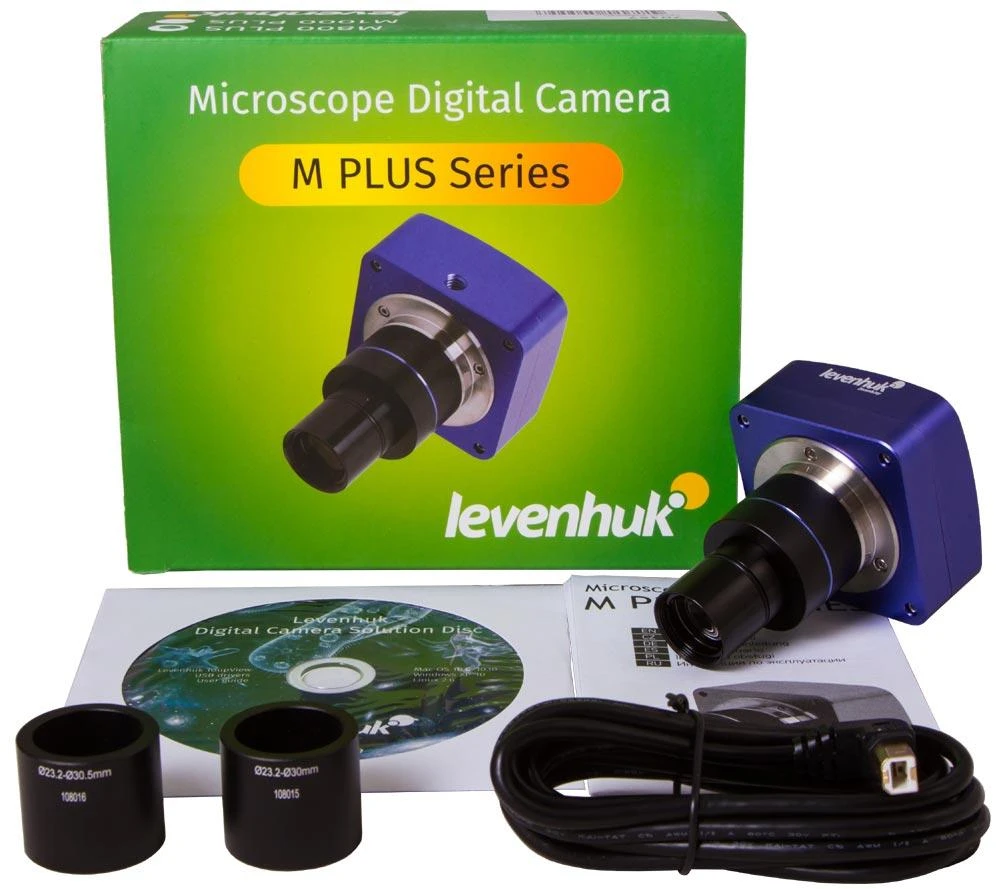

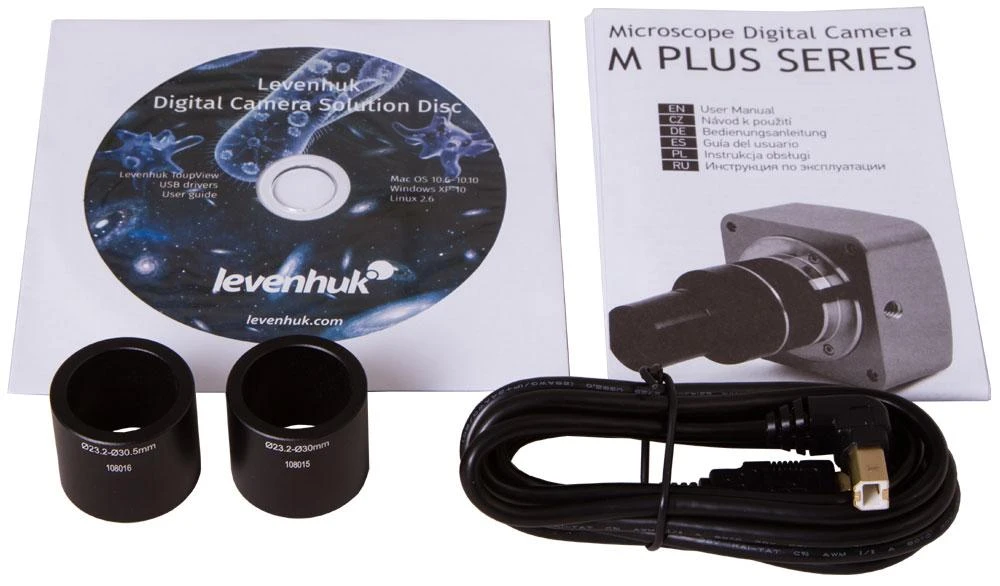

The kit includes:
Digital camera Levenhuk for microscopes
Adapter (23.2mm)
2 adapters for microscopes with different diameters of an eyepiece tube (23.2-30mm and 23.2–30.5mm)
USB cable for connection to PC or laptop and power supply
Installation CD with Levenhuk image editing software and the required drivers
User manual and lifetime warranty
|
Specifications |
|
|
Maximum resolution |
3584x2748 |
|
Megapixels |
10 |
|

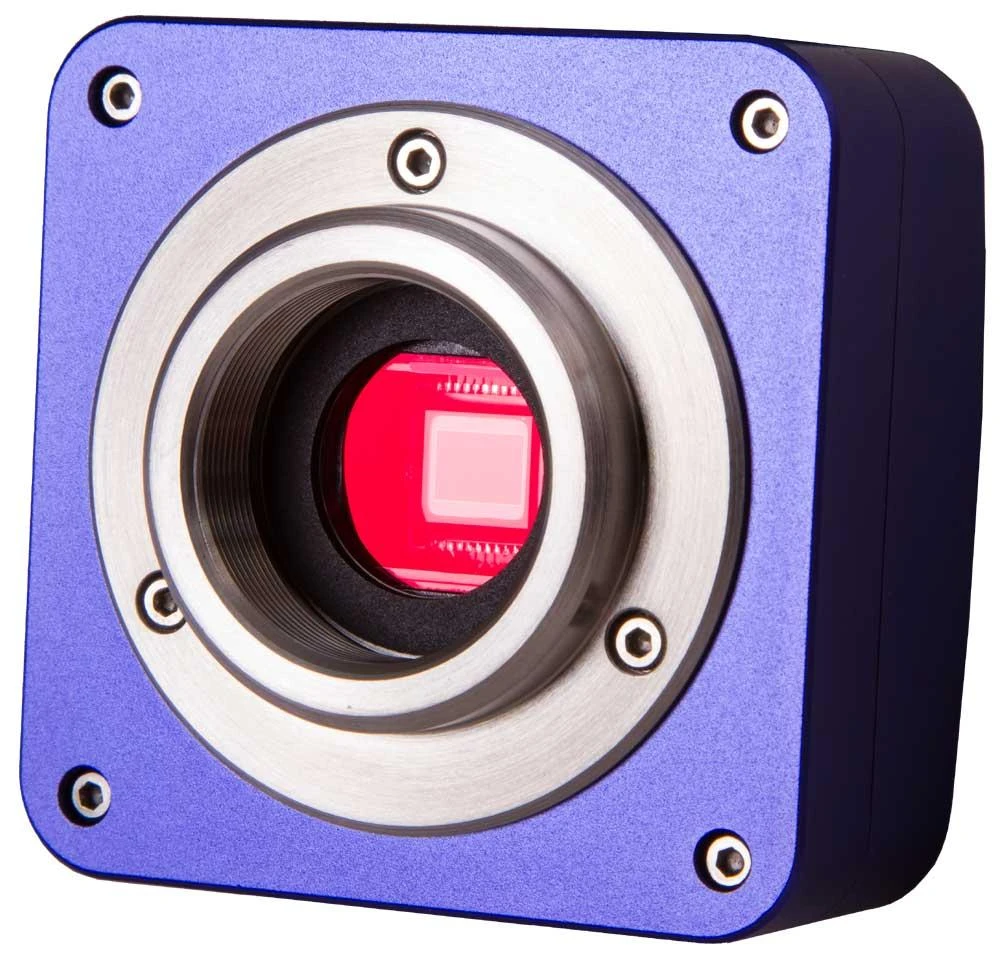

Sensor |
1/2.3'' CMOS |
|
Pixel size |
1.67x1.67 |
|
Sensitivity, v / lux.sec @ 550 nm |
0.31 |
|
Exposure time, ms |
0.4–2000 |
|
Video recording |
yes |
|
Frame rate, frames per second@resolution |
1.9@3584x2748 8@1792x1374 27@896x684 |
|
Active range, dB |
65.2 |
|
Application |
eyepiece tube of 23.2mm diameter, instead of the actual eyepiece |
|
Image format |
*.jpg, *.bmp, *.png, *.tif |
|
Video format |
recording: *.wmv, *.avi, *.h264 (Win 8 or later), *h265 (Win 10 or later) |
|
Spectral range |
380–650 (built-in infrared filter) |
|
Method of exposure |
ERS (Electronic Rolling Shutter) |
|
White balance |
auto/manual |
|
Exposure control |
auto/manual |
|
Software features |
image size, brightness, exposure time |
|
USB features |
USB 2.0, 480 Mb/sec. |
|
System requirements |
Mac OS 10.12, Linux Ubuntu 14.04, Windows XP/Vista/7/8/10 (32bit or 64-bit) |
|
CPU IntelCore 2 or above; RAM 2GB, USB port 2.0, CD-ROM. |
|
|
Software |
Levenhuk |
|
Casing |
metal |
|
Power supply |
via USB 2.0 cable |
|
Operating temperature range, °C, °F |
-10... 50°C; 14… 122°F |
