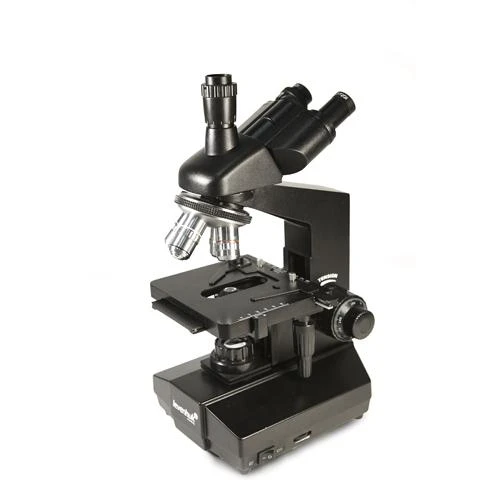

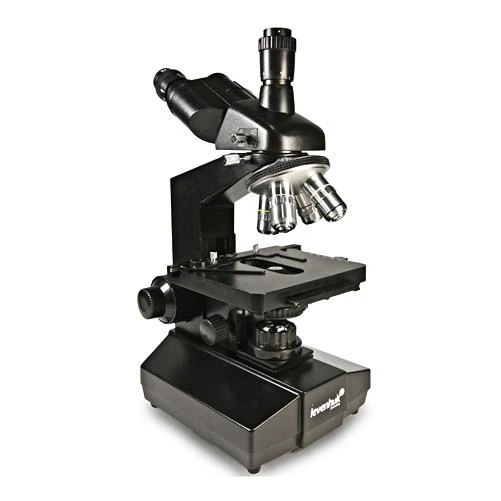

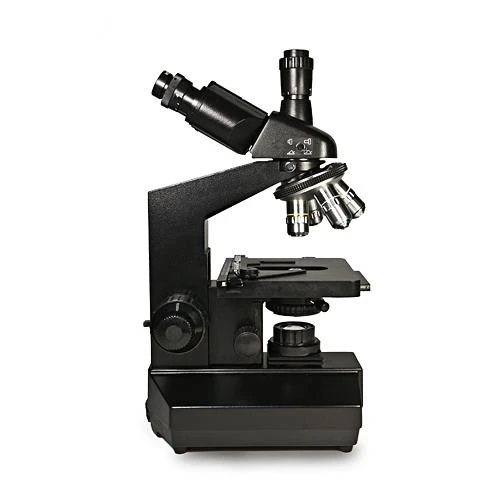

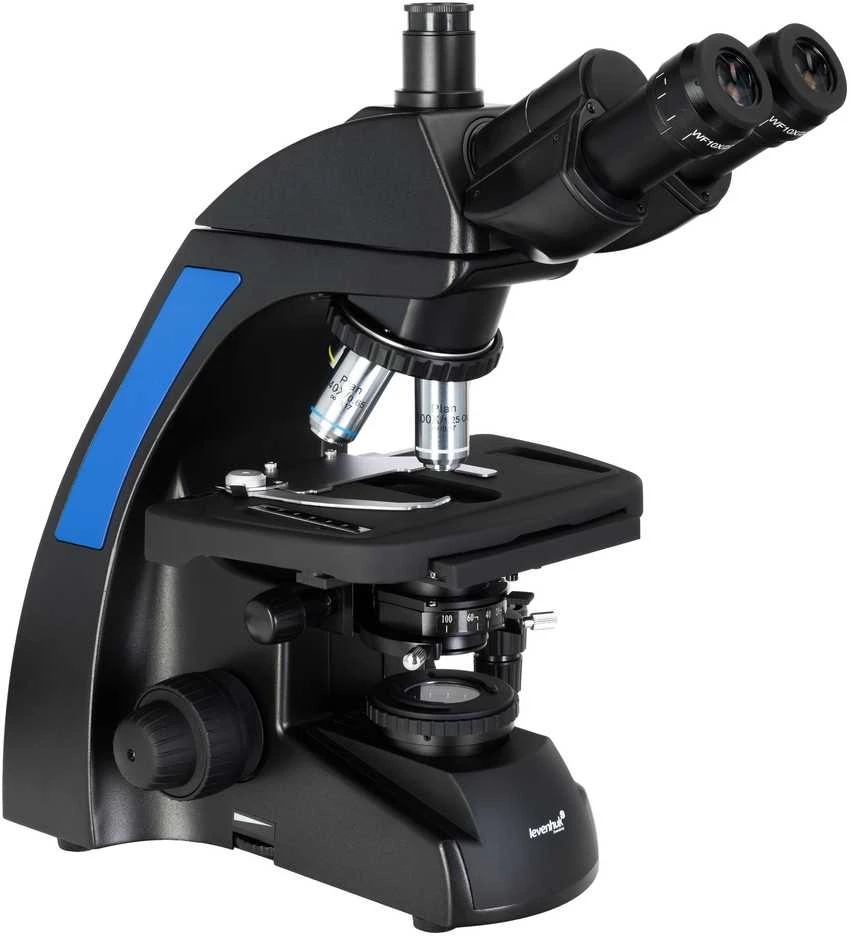

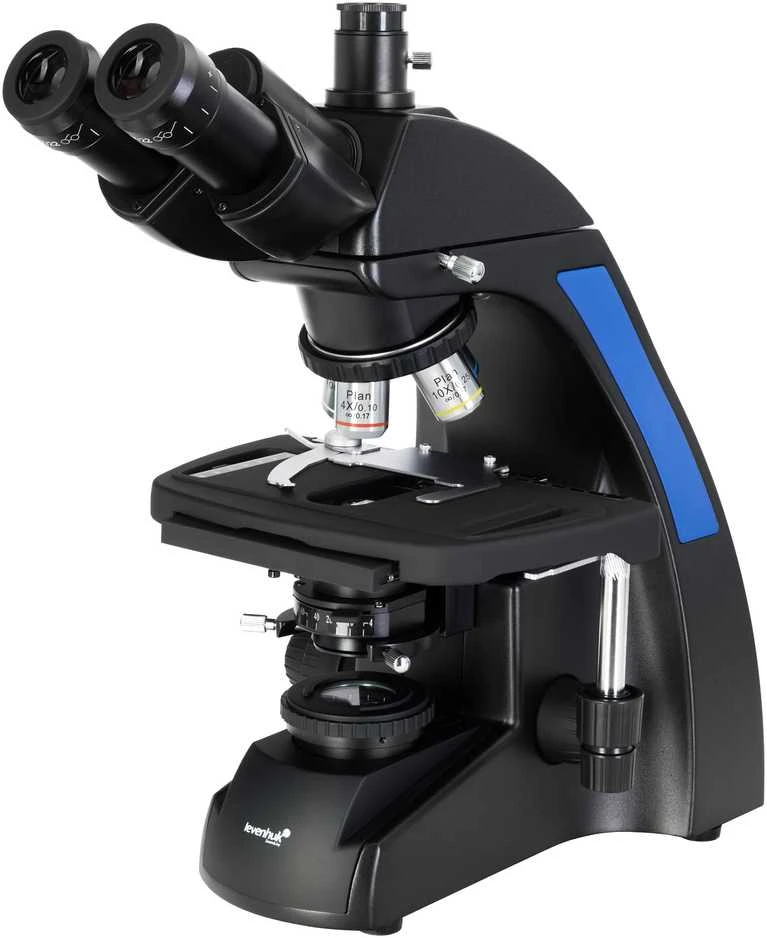

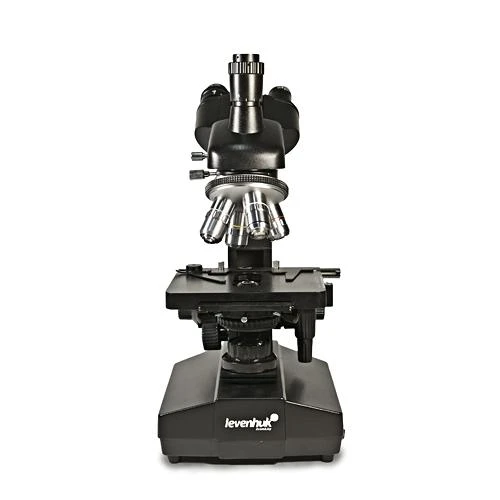

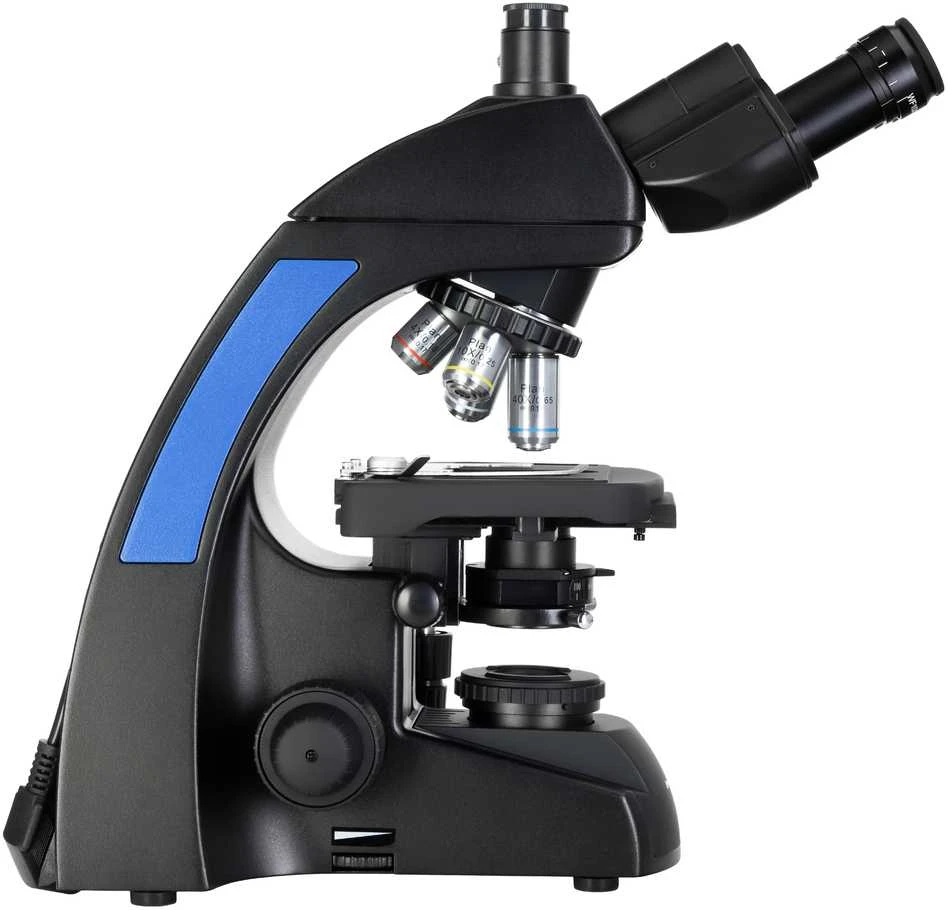

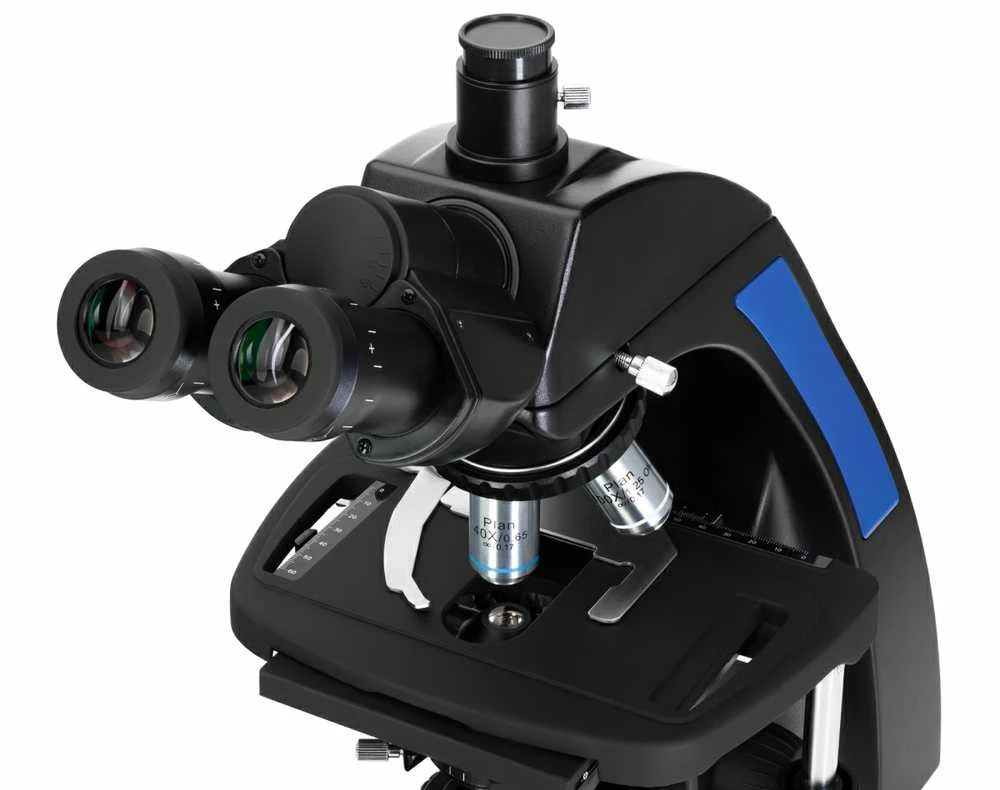

Mikroskopas Levenhuk 870T Biological Trinocular Microscope

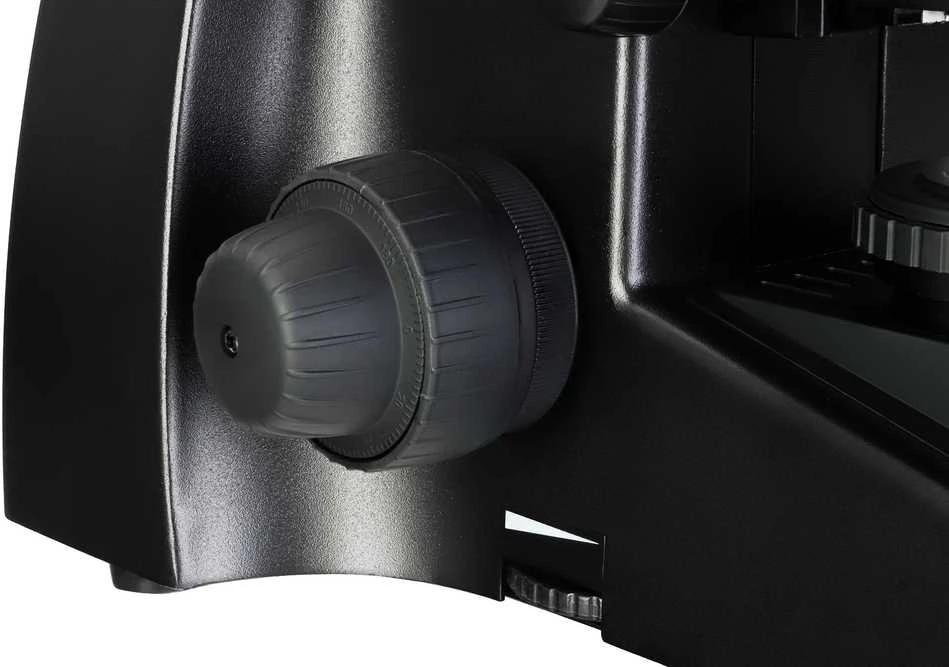

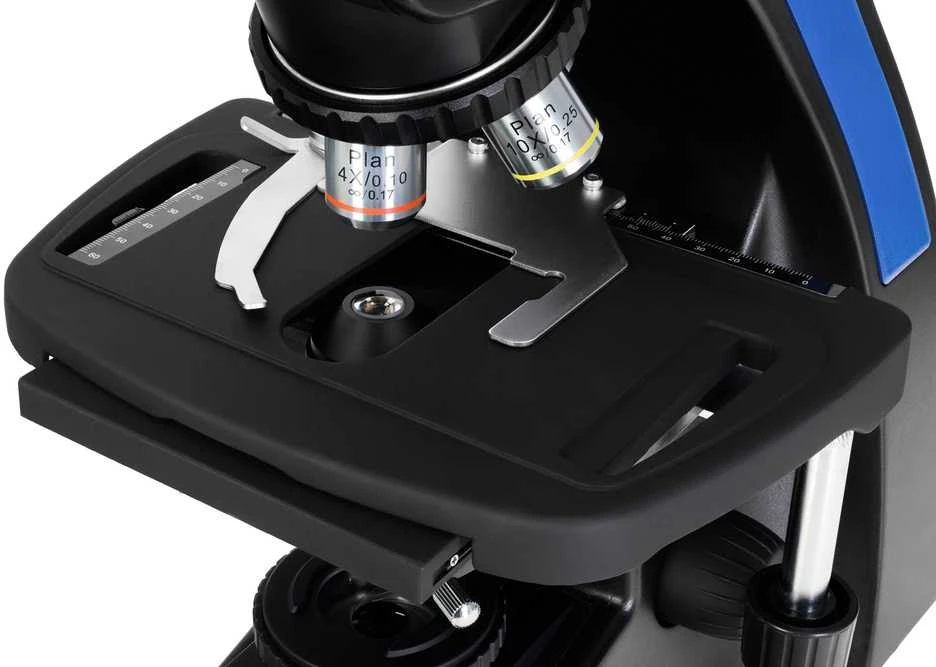

Levenhuk 870T is a reliable biological trinocular microscope that may be used for the bright field observations. It is commonly used in various medical laboratories for clinical research in dermatology, biochemistry, cytology and other scientific studies. Due to the trinocular design of the head, this model may be turned into a digital microscope with an addition of an eyepiece digital camera. The head of the microscope is inclined at 30 degrees and may be rotated 360 degrees around its axis. Four objective lenses on the revolving nosepiece, Köhler illumination method, adjustment of the aperture and field diaphragms make this microscope a perfect tool for serious observations. The stage (140x155 mm, 5.5x6.1 in) moves along two axes. Focusing the view is achieved by rotating the coarse and fine focus wheels that raise or lower the stage itself, thus bringing the sample closer to or farther away from the objective lens. Both focus systems have smooth movements in 25 mm (1 in) increments for coarse and 0.002 mm (0.00008 in) for fine. There is a variable brightness 6V 20W halogen lamp installed in the base of the microscope that acts as an illumination source. Features:

• Magnification: 40–1000x
• Oil immersion

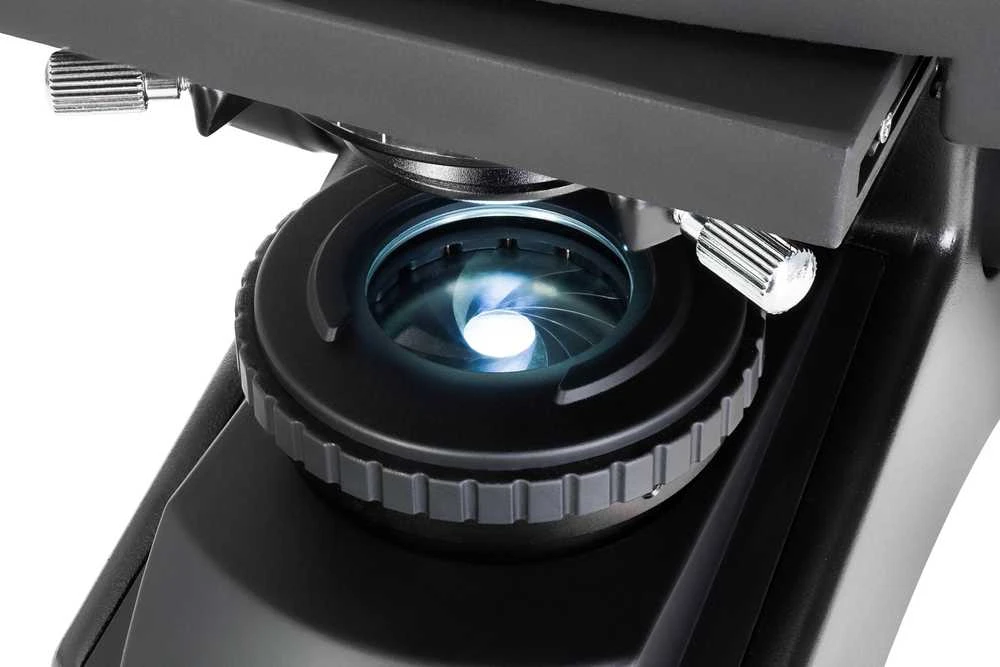

• Condenser: Abbe with iris diaphragm
• Two-axes stage
• Fine and coarse focusing
• Halogen illumination with brightness adjustment
• Household power supply

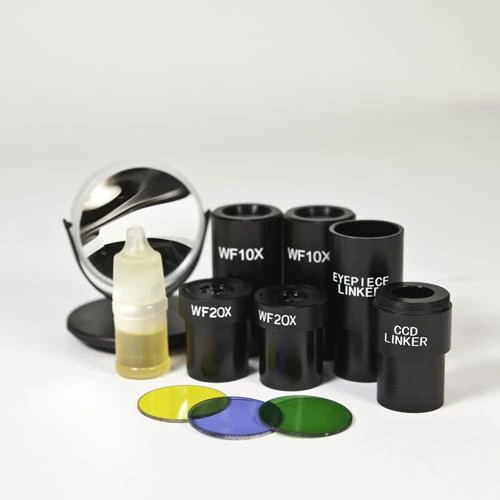

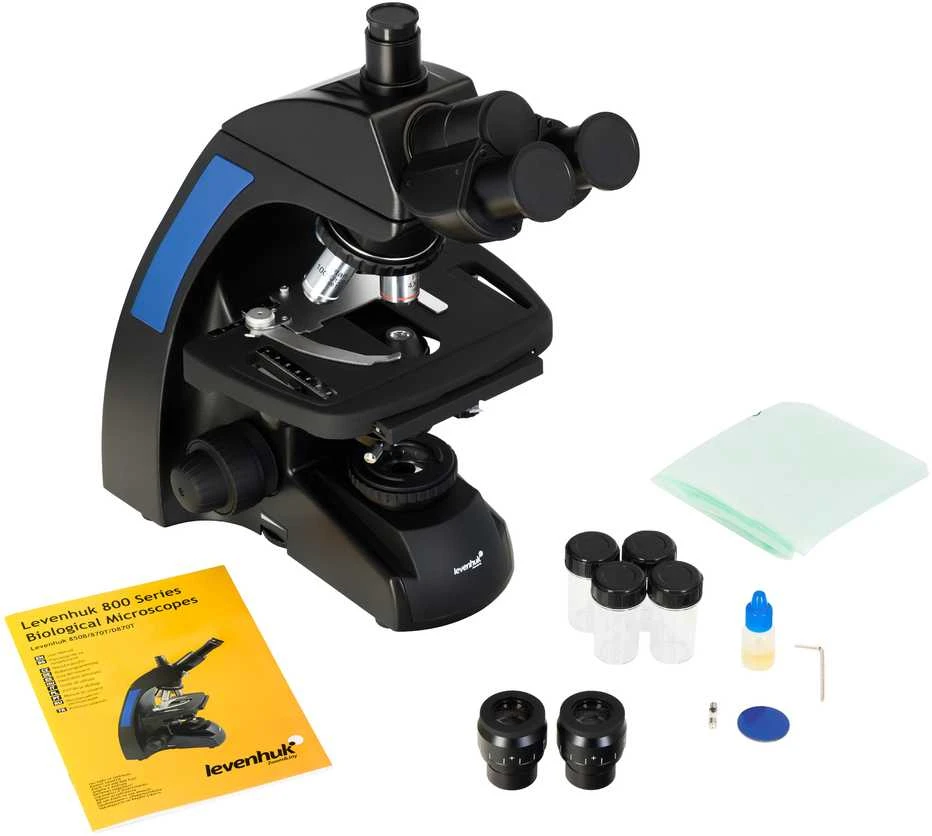

The kit includes:

• Microscope stand with base

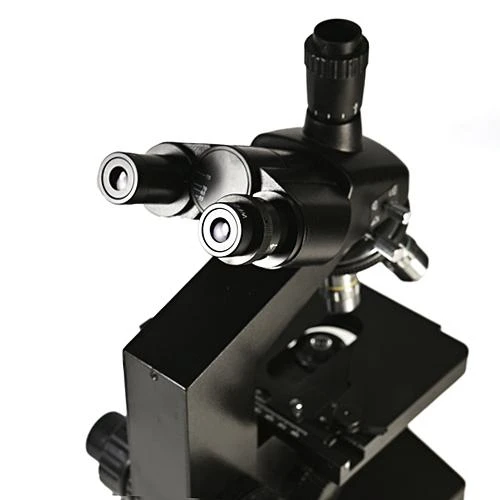

• Trinocular head

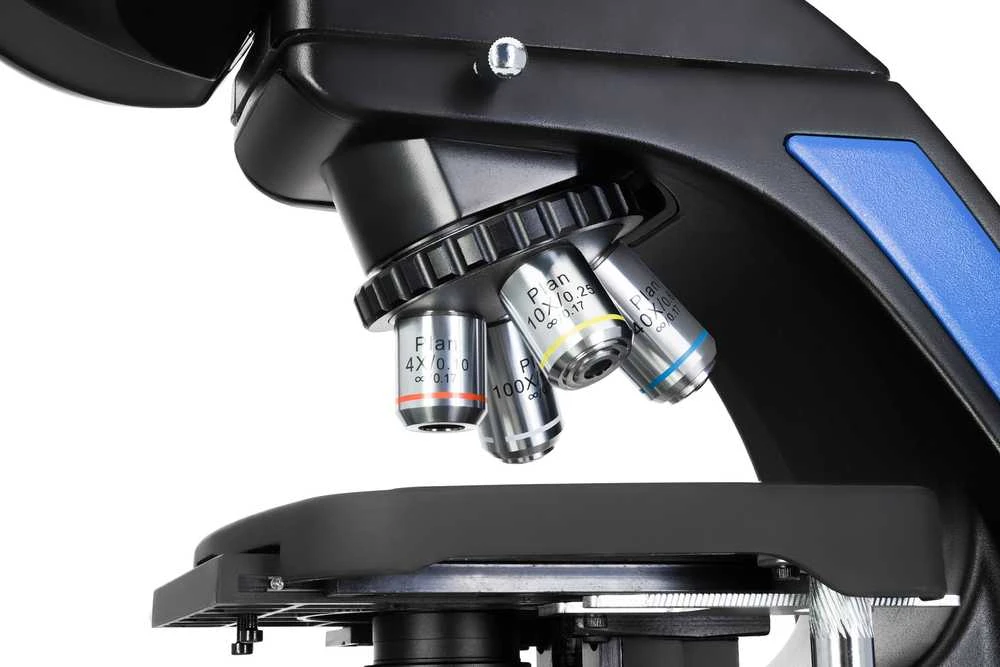

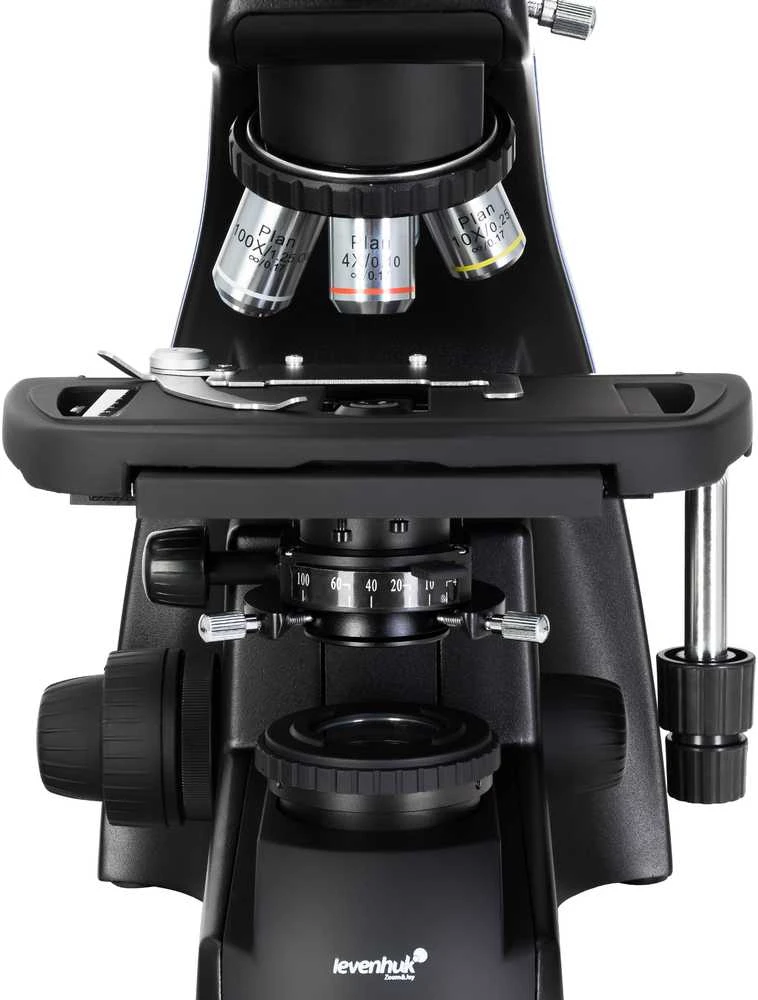

• Plan achromatic objectives: 4x, 10x, 40x, 100x (oil)
• Mirror
• Eyepieces: paired, wide field WF10x, WF20x
• Filters (blue, yellow, green)
• Bottle of immersion oil
• Eyepiece extension tube and focusing extension tube
• Adapter for installing a digital camera
• AC adapter
• User manual and lifetime warranty

Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.
Techninė specifikacijaGalvatrinoklinisOptikos medžiagastiklasDidinimas, x40-2000Okuliaraipora, platus laukas PLAN WF10x, PLAN WF20xObjektyvaiPLAN WF: 4x, 10x, 40x, 100x (alyvos imersija)Revolverinis apsodas4 objektyvųAtstumas tarp akių, mm55-75Staliukas, mm140x155, stumdomas dviem ašimisStaliuko judėjimo diapazonas, naudojant fokusavimo mechanizmą, mmX-Y: 70x50Eyepiece diopter adjustment, diopters±5 Kondensatorius Abbe, 1.25 N.A, aukščiausios klasės irisine diafragma irtamsaus lauko kondensatoriusFokusuotilygus: 0,002 mm; šiurkštus: 25 mmApšvietimashalogeninė lempa 6V/20WMaitinimas220V maitinimo laidasNaudojimasBendro naudojimo produktas.
Gali naudoti vyresni nei 3 metų amžiaus vaikai.
