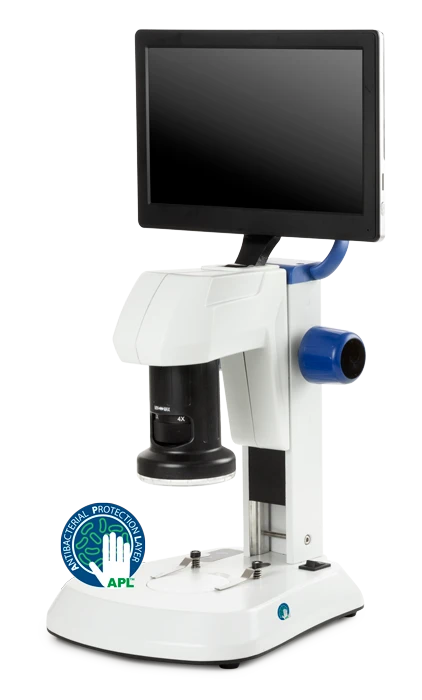

Mikroskopas EduBlue LCD Euromex

Digital microscope with built-in 2.0 MP camera

The EduBlue LCD microscope is built around one 1 to 4 times zoom objective and enables observation of all kinds of objects directly on a 9" LCD screen. These kinds of microscopes are well-suited for education

The EduBlue LCD is equipped with a built-in 2 MP high denition CMOS camera with 1920 x 1080 pixels

CENTRAL ZOOM OBJECTIVE
The EduBlue LCD ED.3000 features a single optical zoom objective with a 1 to 4x zoom magnication. Zoom adjustments engravings on 1, 1.5, 2, 3 and 5x. The working distance is 91 mm. A digital zoom up to 10x is available within the software

STAND
The central Zoom Objective with attached screen and LED ring light is mounted on a rack and pinion system that sits on a 30 x 180 mm metal stand

ILLUMINATION
Two types of illumination are available;
• An integrated 21 LED incident ring light illumination (5,500 K) with ve intensity positions
• A 7 LED transmitted illumination (5,785 K) with two intensity positions, integrated in the base

BUILT-IN CAMERA
Built-in HD 2 MP CMOS high speed camera with attached 9" screen. There is one USB port for a max. 16 GB SD storage card for captured images. The operator can take and save images to the SD card by pressing on a capture button at the left side of the screen. Images are saved in the .jpg format and videos are saved in .avi format

BUILT-IN SOFTWARE
The built-in on screen software is driven by the supplied computer mouse and features functions such as Capture image, Freeze image, Automatic white balance, Automatic exposition, File manager, Grids. Also camera settings such as Exposure time, Gain, Saturation, Contrast, Sharpness and HDR

PACKAGE CONTENT
Supplied with 16 GB SD card, black/white object plate, a glass transparent object plate and two external 12V / 3.3 A power supplies
